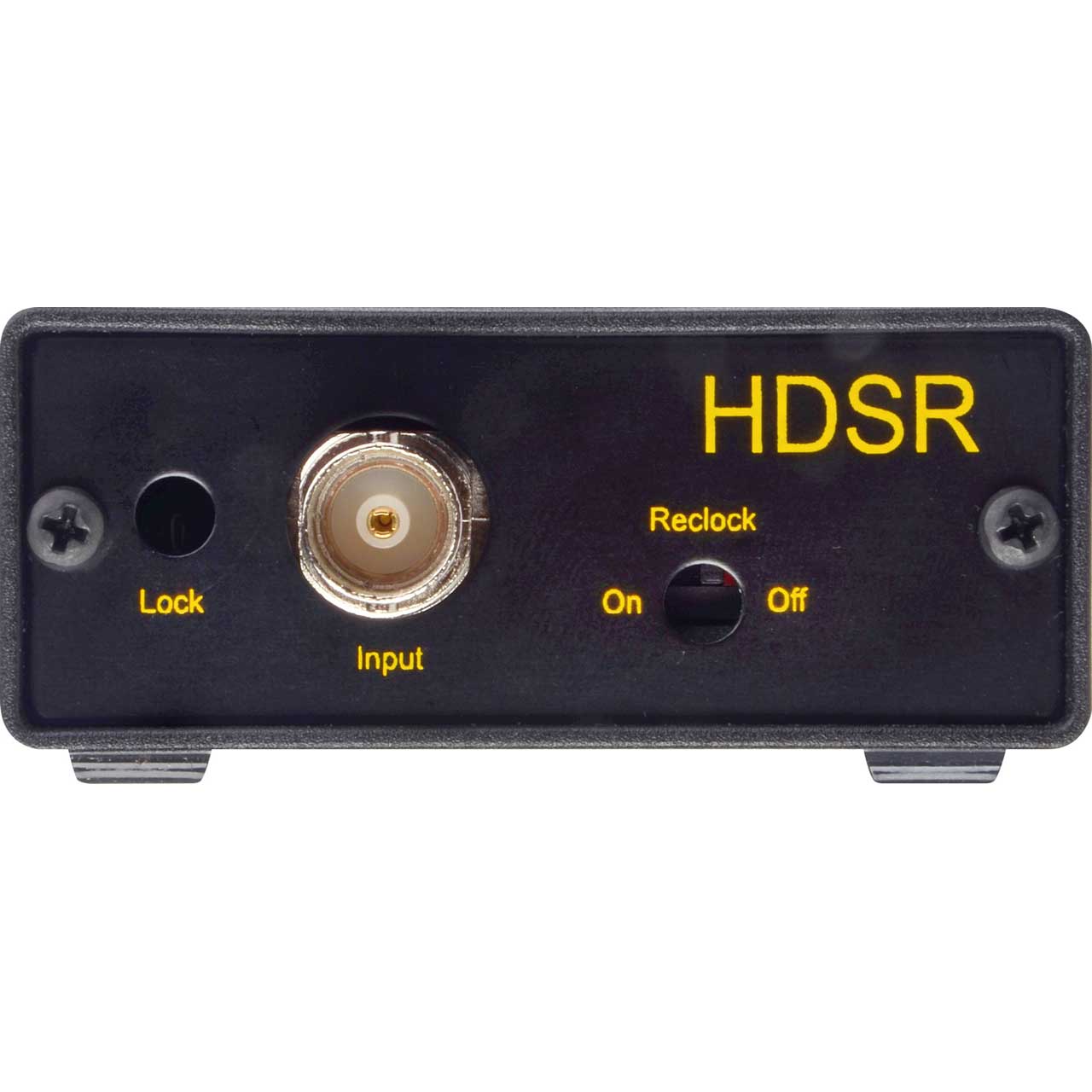

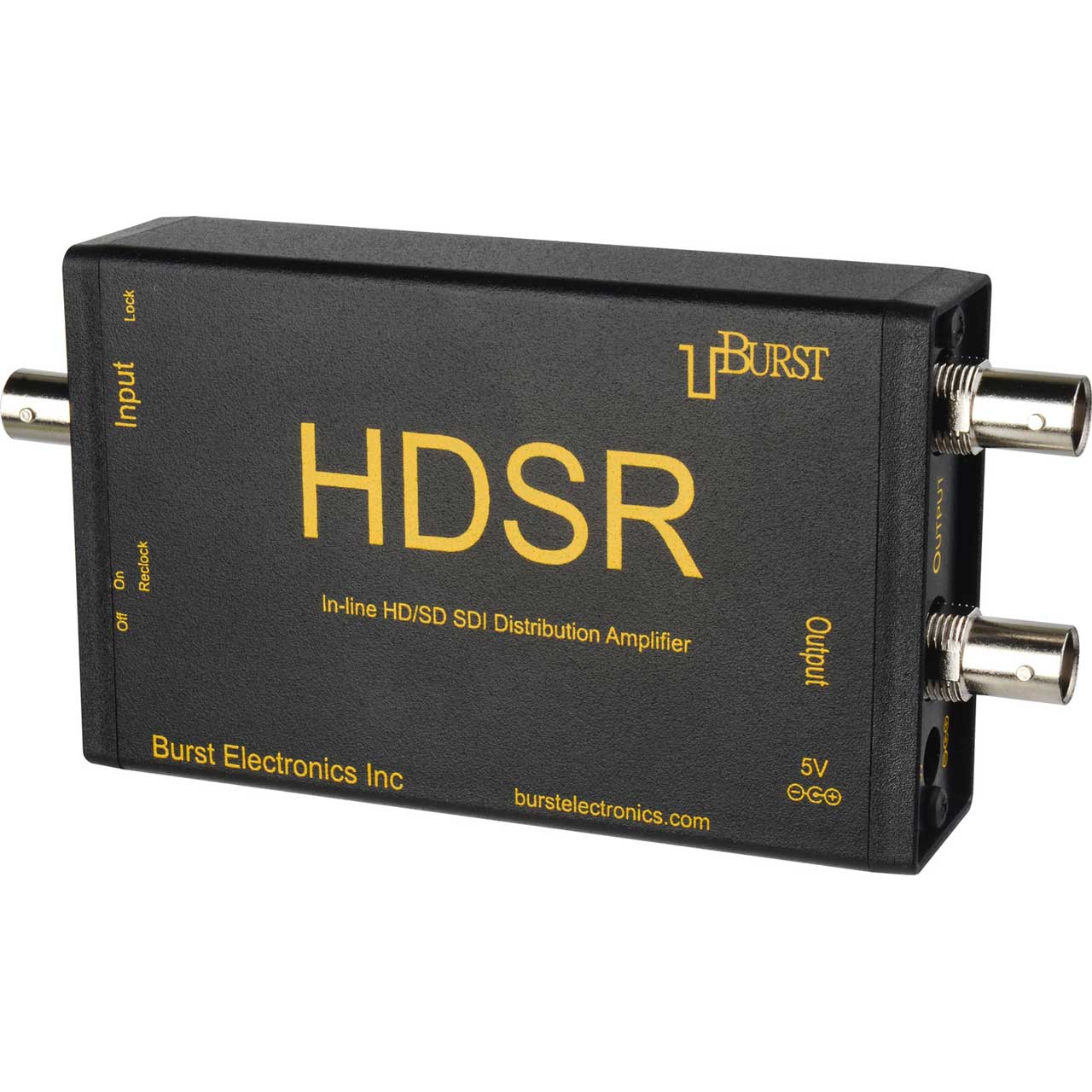

Burst HDSR 1x2 HD-SDI Video Distribution Amplifier

ITEM #: BURST-HDSR MFG #: HDSR

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,237.50

Our Price:

$1,013.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HDSR - Overview

Burst Electronics manufactures a series of Video Distribution Amplifiers. The HDSR is an HD/SD SDI reclocking, 2-output distribution amplifier capable of driving SDI video with embedded AES audio down 300 feet of quality video cable (RG6/U). Designed with a rugged enclosure to be placed in-line with long cable runs or can be rack mounted. Outputs are unity gain and switch selectable between reclocked and non-reclocked. 5Vdc power supply is included and backed by Burst's standard 2-Year warranty.

  • Specifications:

    • Input: 1 volt standard video
    • Input Impedance: Hi-Z or 751/2, looping (jumper selected)
    • Coupling: DC throughout
    • Internal Power: Plus & Minus 5 Vdc derived from ext.12 Volt
    • Outputs: Four, 751/2
    • Output Voltage: 4 Vpp max
    • Delay Input to Output: 10 nS
    • Output Impedance: 751/2 1%
    • Frequency Response: DC - 33MHz 0.2dB
    • Gain: Unity, adjustable plus/minus 3dB
    • Diff.Gain: 0.1%
    • Diff.Phase: 0.1 degrees
    • Video Connector: BNC (4-pin mini DIN on Y/C Version)
    • Output Protection: Open or Short, infinite duration
    • Power: 120VAC 60Hz, 3 Watts, UL Listed Wall Module (incl.)
    • DC Powered: 10-16 Vdc (polarity insensitive), 150 mAdc
    • Size (Micro DA): 4.4W x 2.4H x 1.3D inches
    • Size (VDA-4): 4.2W x 1.5H x 5.5D inches
    • Rack Mount: Optional, Model RM-4
    • Warranty: One Year Parts and Labor
