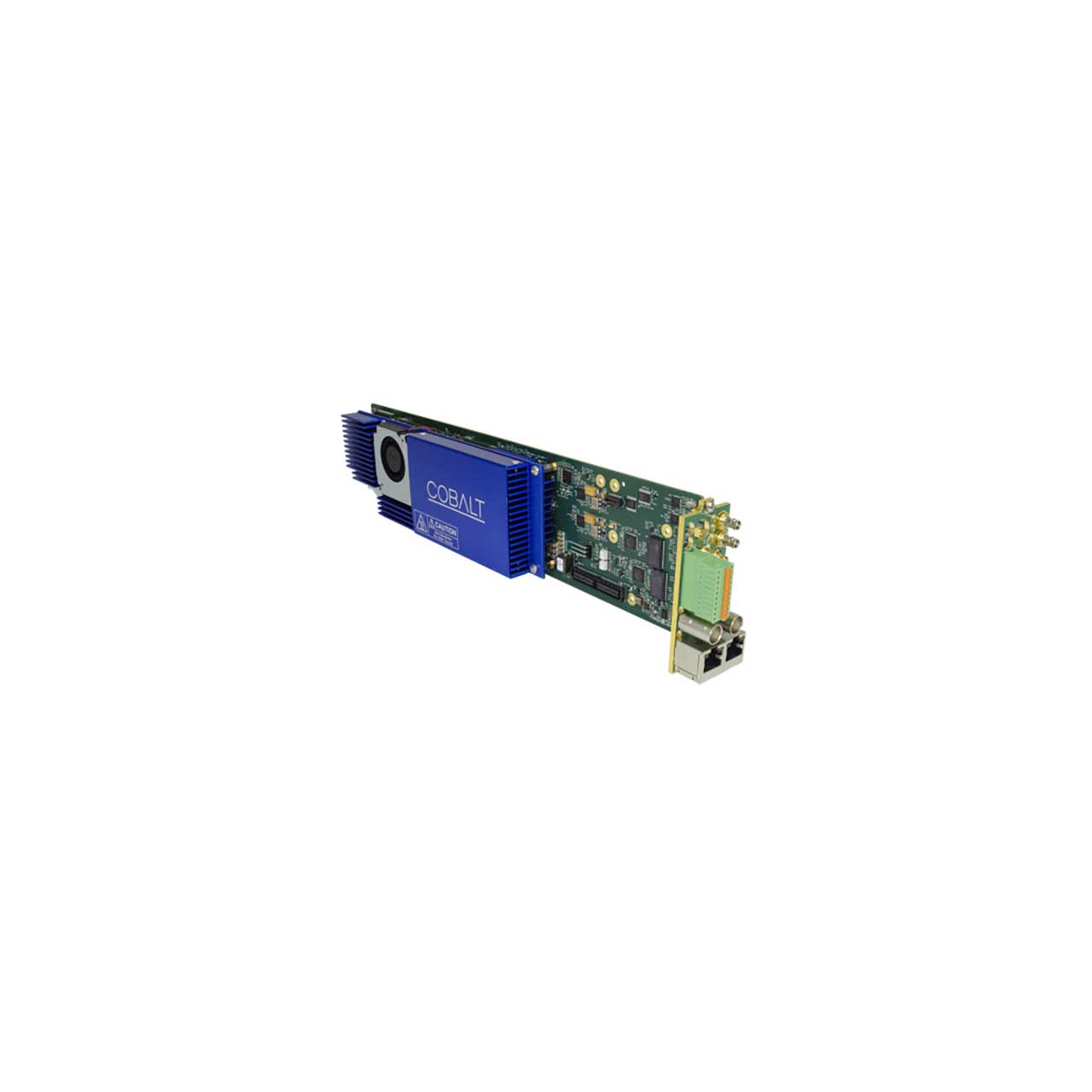

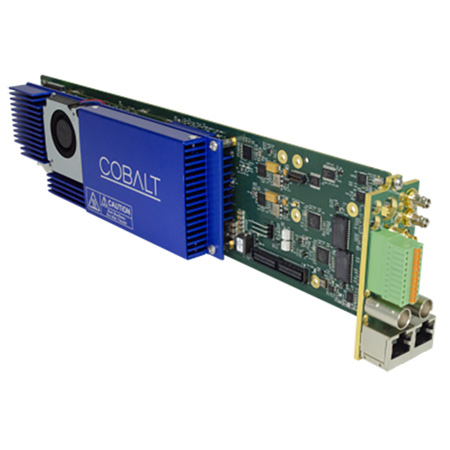

Cobalt Digital 9992-ENC HEVC Upgradeable AVC / MPEG2 Software Defined Broadcast Encoder

9992-ENC - Overview

• Features:

  • Future-Proof - The 9992-ENC software-defined architecture supports MPEG-2, MPEG-4 AVC (H.264) and HEVC (H.265) with an optional license, so it can be deployed today and upgraded as your needs change.
  • Industry Standard Form-Factor - The 9992-ENC is offered in the industry-standard openGear format, and is compatible with existing deployed openGear frames.
  • High Density - The 9992-ENC can be licensed to support up to four independent 1080p60 input signals, or a single UHD 4Kp60 input signal. One openGear frame can support up to 10 cards, for a total of 40 HD or 10 UHD 4K channels.
  • Full Audio Support - The 9992-ENC supports MPEG-1 Layer II, AAC-LC, HE-AAC, LPCM (SMPTE-302M) and Dolby AC-3/EAC-3 (optional license). Flexible "credits-based" audio processing allows flexible audio resource allocation.


  • Support for one encode channel up to 1080p60
  • Support for MPEG-2 and MPEG-4 AVC (H.264)
  • Support for 4:2:0 8-bit/10-bit encoding
  • Full ancillary data support
  • Support for 2 stereo pairs (4 audio channels) in any combination of MPEG-1 Layer II, AAC-LC, and HE-AAC (v1/v2) modes
  • All network protocols (RIST and SMPTE-2022 FEC available with corresponding Options)
  • Remote control/monitoring via Dashboard software
  • Hot-swappable
  • Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
  • Five year warranty


• Specifications:

  • Inputs
  • (2) Ω SDI inputs each supporting 12G-SDI, 3G-SDI, HD-SDI and SD-SDI
  • (2) Ω SDI inputs each supporting 3G-SDI, HD-SDI and SD-SDI
  • Support for all standard frame rates (interlaced and progressive): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • Optional support for SMPTE-2110 baseband video over IP inputs (Future release availability)

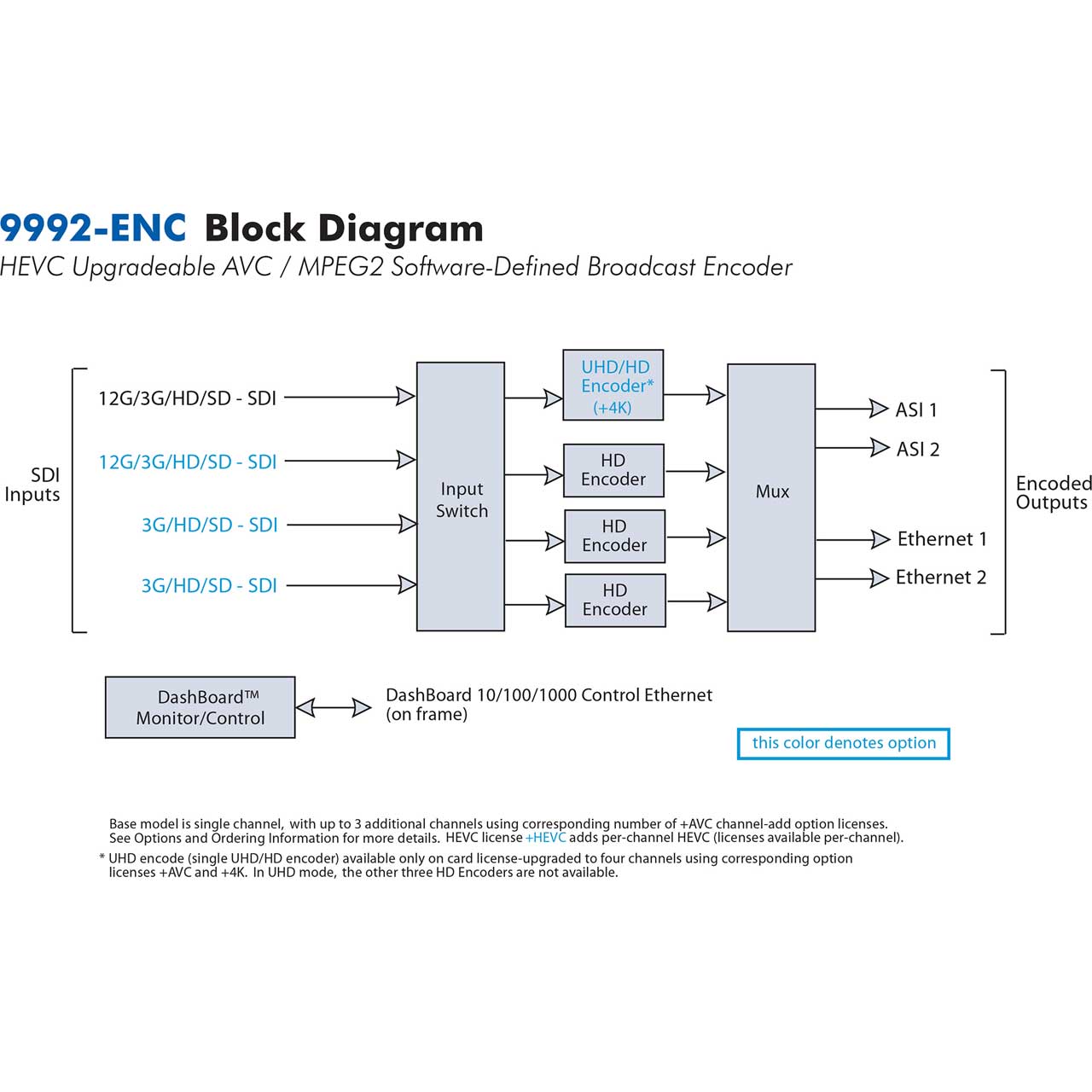

    Note: Although two 12G/3G/HD/SD-SDI inputs are present, only one input can be used at a time to route to the maximum-available single UHD encoder engine.
    Note: UHD encode (single UHD/HD encoder) available only on 9992-ENC license-upgraded to +4K. In UHD mode, the other three HD encoder channels are not available.

    Outputs
  • (2) DVB-ASI outputs
  • (2) Gigabit Ethernet ports for IP output, supporting the following protocols: UDP unicast/multicast, RTP unicast/multicast with optional SMPTE-2022 FEC, HTTP Live Streaming (local or remote server), RTMP (limited to H.264 only)
  • Integrated multiplexer creates MPTS over IP or over DVB-ASI
  • Support for DVB table generation
  • Support for PSIP table generation (Future release availability)
  • Optional SMPTE-2110 baseband video over IP turnaround (Future release availability)

    Video Pre-Processing
  • Support for arbitrary down-scaling input video, extending down to 320x240
  • Support for up-scaling input video (Future release availability)
  • Interlaced to progressive conversion
  • Progressive to interlaced conversion (Future release availability)
  • Frame rate conversion
  • Basic noise reduction filter and spatial filter
  • Enhanced pre-processing filters (Future release availability)
  • High Dynamic Range (HDR) support (Future release availability)

    Video Encoding
  • Encoding Standards: MPEG-2, MPEG-4 AVC (H.264), HEVC (H.265)
  • Support for up to four independent 1080p60 encode sessions (All encode sessions must use the same standard; mixed-standard encoding is not supported.)
  • Support for UHD encoding in AVC and HEVC modes (Maximum resolution 4096x2160p60)
  • Maximum bit rates: UHD (4K) encoding: 150 Mb/s, HD encoding: 40 Mb/s (The first HD channel can be as high as 150 Mb/s.)
  • Support for 4:2:0 and 4:2:2 color spaces in all modes
  • Support for 8-bit / 10-bit encoding in all modes
  • Full control of GOP size and structure
  • Advanced compression controls available

    Audio Encoding
  • Encoding Standards: MPEG-1 Layer II, AAC-LC, HE-AAC (v1/v2), Dolby AC-3, Dolby EAC-3, LPCM (SMPTE-302M), Dolby AC-3/EAC-3 pass-through support, (5.1-Surround encoding available for AAC-LC, HE-AAC, Dolby AC-3 and Dolby EAC-3; subject to licensing)
  • Maximum number of channels supported (subject to licensing): MPEG-1 Layer II: 16 stereo pairs (32 audio channels), Dolby AC-3: 16 stereo pairs (32 audio channels), Dolby EAC-3: 8 stereo pairs (16 audio channels), AAC-LC: 8 stereo pairs (16 audio channels), HE-AAC (v1/v2): 8 stereo pairs (16 audio channels)
  • Optional support for 5.1 Surround Sound encoding, in AAC and Dolby modes
  • Optional audio module: increases the capacity to 32 stereo pairs (64 audio channels), allowing full 16-channel support for the four HD inputs, in all compression modes (Future release availability).

    Ancillary Data Support
  • Closed-Captioning: SMPTE-334M (EIA-608 and EIA-708 supported), Line 21 (SD sources)
  • OP-47/SMPTE RDD-08 teletext subtitles (Future release availability)
  • AFD: SMPTE-2016, Line 20/22 WSS (SD sources)
  • SCTE-104 to SCTE-35 conversion
  • SMPTE-2038 generic ancillary data transport (timecode, KLV, etc.)


• Item Includes:

  • 1x Cobalt Digital 9992-ENC HEVC Upgradeable AVC / MPEG2 Software Defined Broadcast Encoder


• Warranty:

  • Five year warranty
