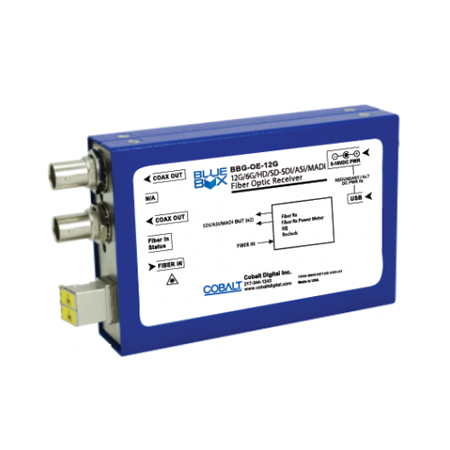

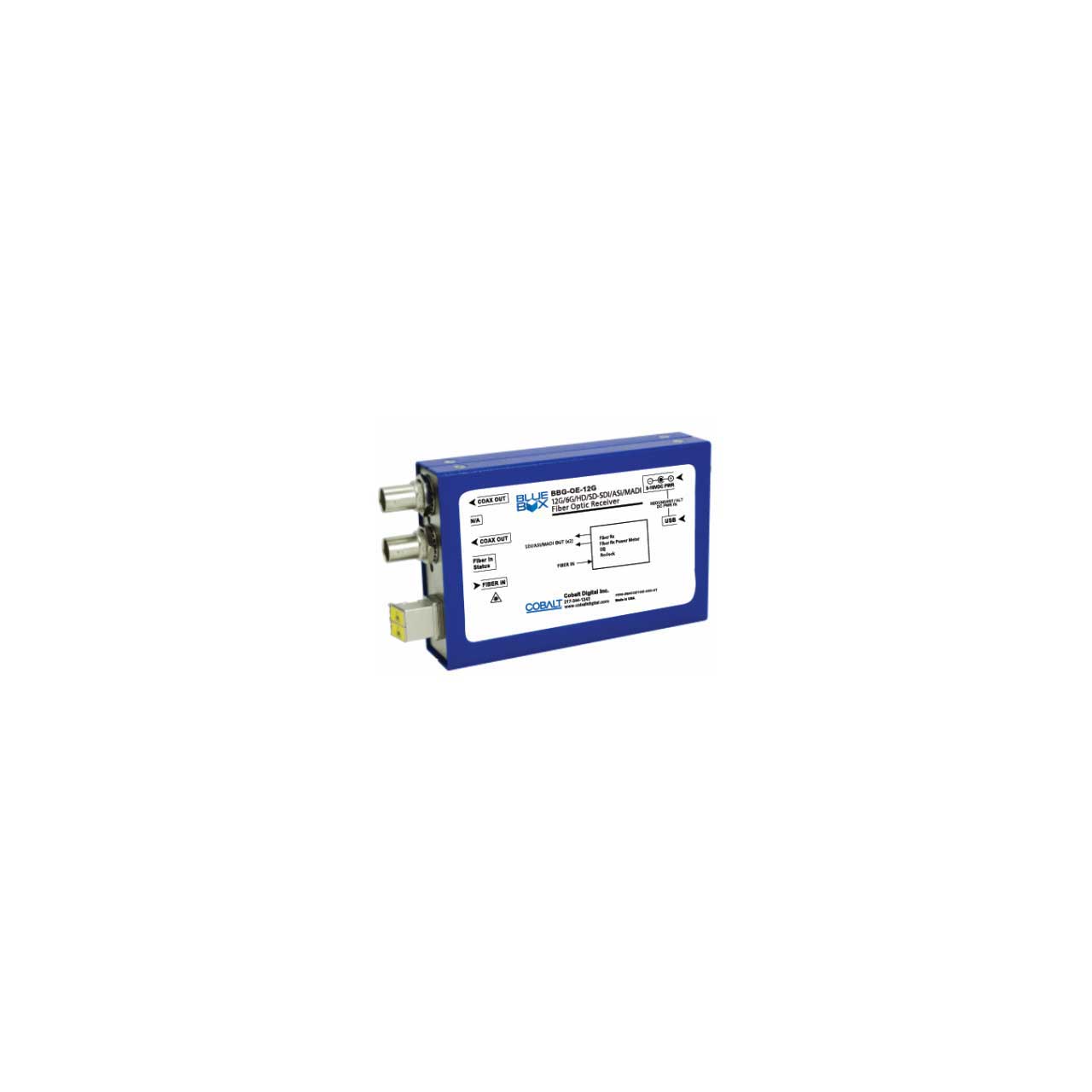

The Cobalt Blue Box BBG-OE-12G Fiber-To-Coax throw-down converter unit is a part of the Blue Box GroupT of compact, rugged, and portable converter boxes. Super-easy to use, BBG-OE-12G supports SMPTE ST2082, ST2081, 424M, 292M, and 259M as well as ASI and MADI audio. Auto-mode EQ/reclocking automatically sets to the signal type being received while allowing unrecognized formats to be safely passed without reclocking (auto-reclock can also be manually disabled). Its wide operating range (from 5Mbps to 12Gbps) flexibly supports most professional digital serial communications. Fully error-free pathological pattern operation is fully compatible with other professional fiber video interfaces. An SFP-based OE converter provides state-of-the-art fiber performance, power consumption, and compactness.
BBG-OE-12G receives its operating power via a USB connection or using an AC adapter connection. These power sources can be simultaneously used to provide redundant power sourcing.
Note: Device includes one PS4 Power Supply (AC adapter). Power supplies listed below are for replacement or spares purposes: PS4 Universal Power Supply, UL/CSA. Input: 100-240V, 60/50 Hz. Output: 5 VDC @ 12 Watts, PS5 Universal Power Supply, IEC Connector, CE/UL/CSA. Input: 100-240V, 60/50 Hz. Output: 5V, 2A (International Power Supply. Specify country of destination.)
