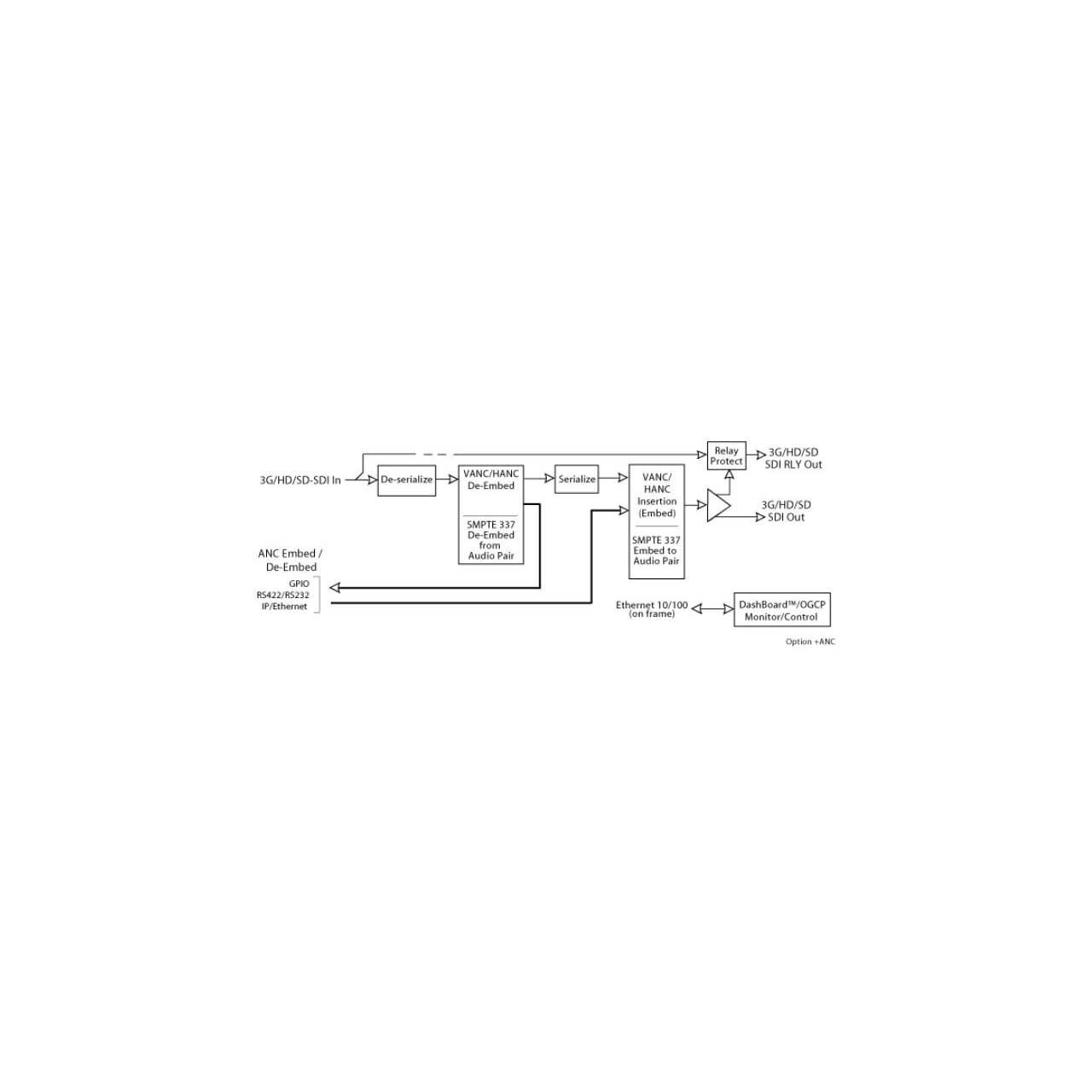

Option +ANC offers full VANC/HANC ancillary data packet de-embedding and embedding for 3G/HD/SD-SDI streams. The easy to use interface allows direct access to DID and SDID locations to extract or insert user data such as camera PTZ, SCTE 104, closed-captioning read/insert, GPI/GPO via ANC, or other specialized user payloads. Data can be extracted and inserted within the card, bypassing the scaler (Bridge mode) and allowing scaling while preserving ANC packets, or inserted and/or extracted to and from external interface via serial or IP interfaces. This allows the card to directly embed ANC packets from external sources such as closed-captioning generators.
The software can be ordered with card purchase, or activated later using a downloadable feature key via free DashBoard remote control/monitoring software (no need to remove or replace card.)
Please Note:+ANC option is available for the following cards and models on product purchased new or as field software upgrade:
9902-UDX, 9902-2UDX, 9902-UDX-FS, 9902-UDX-DSP, 9903-UDX-ADDA, 9922-FS, 9922-2FS, 9940-4x1-CS, 9992-ENC-MPEG BBG-1000 series standalone/desktop units BBG-1002-UDX,
BBG-1002-2UDX, BBG-1002-UDX-DSP, BBG-1002-UDX-FS,
BBG-1003-UDX-ADDA, BBG-1022-FS, BBG-1022-2FS, BBG-1040-4x1-CS
