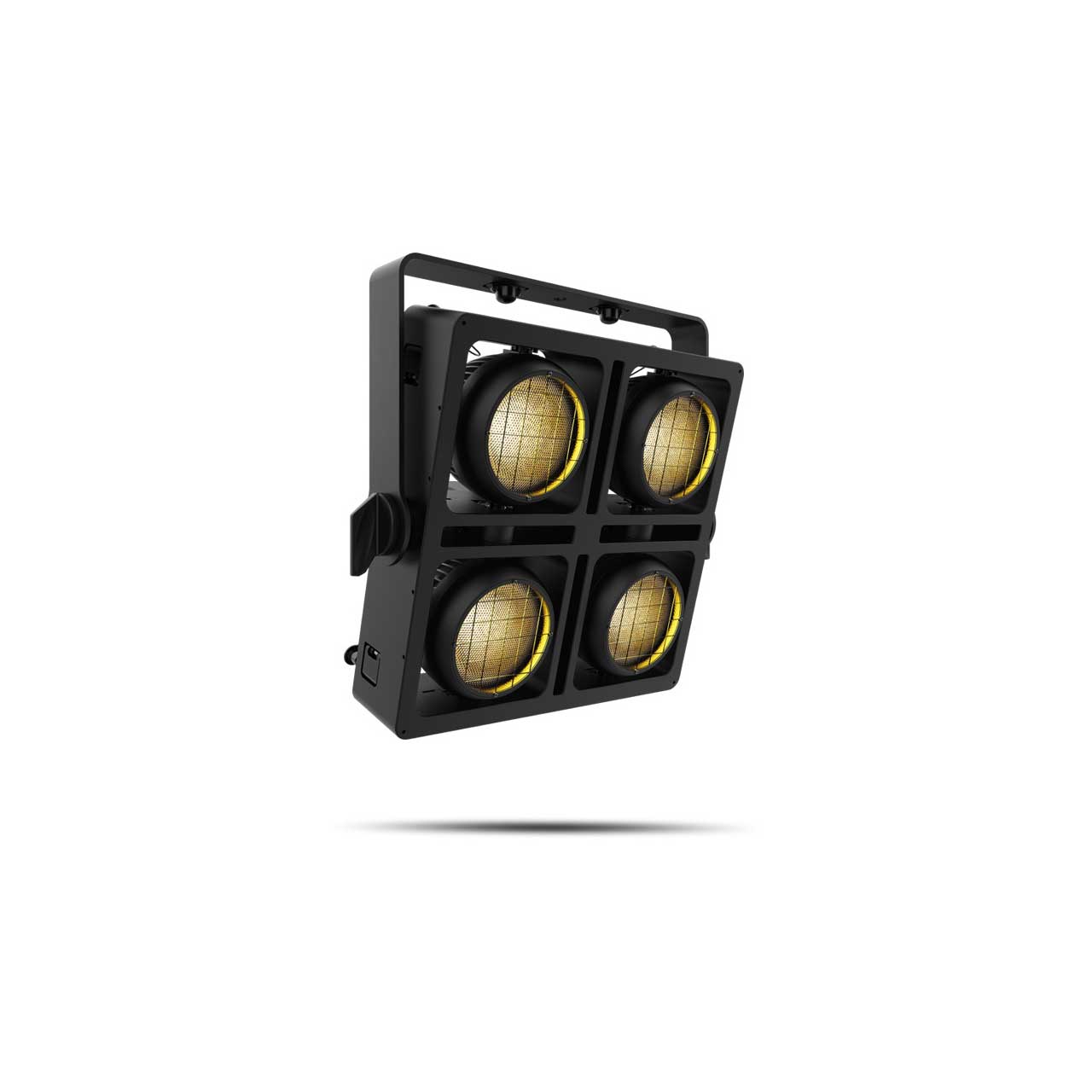

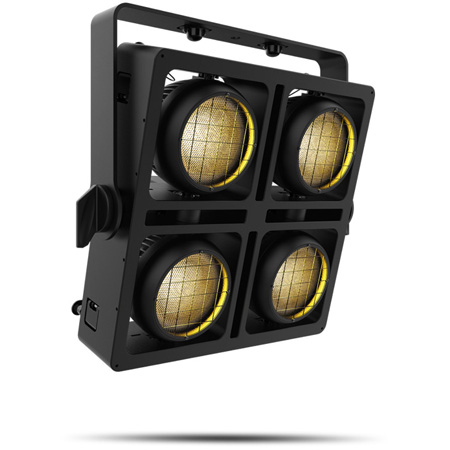

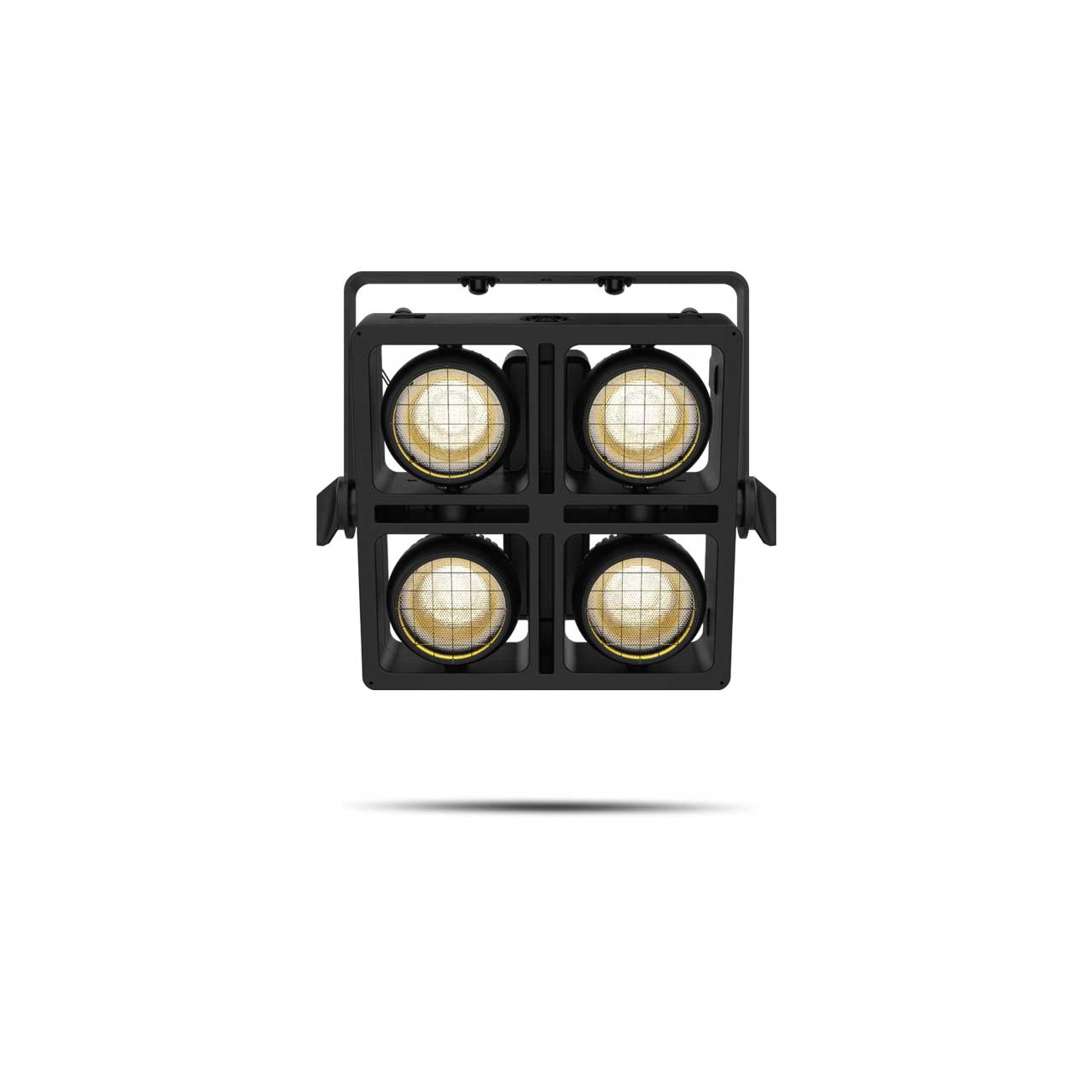

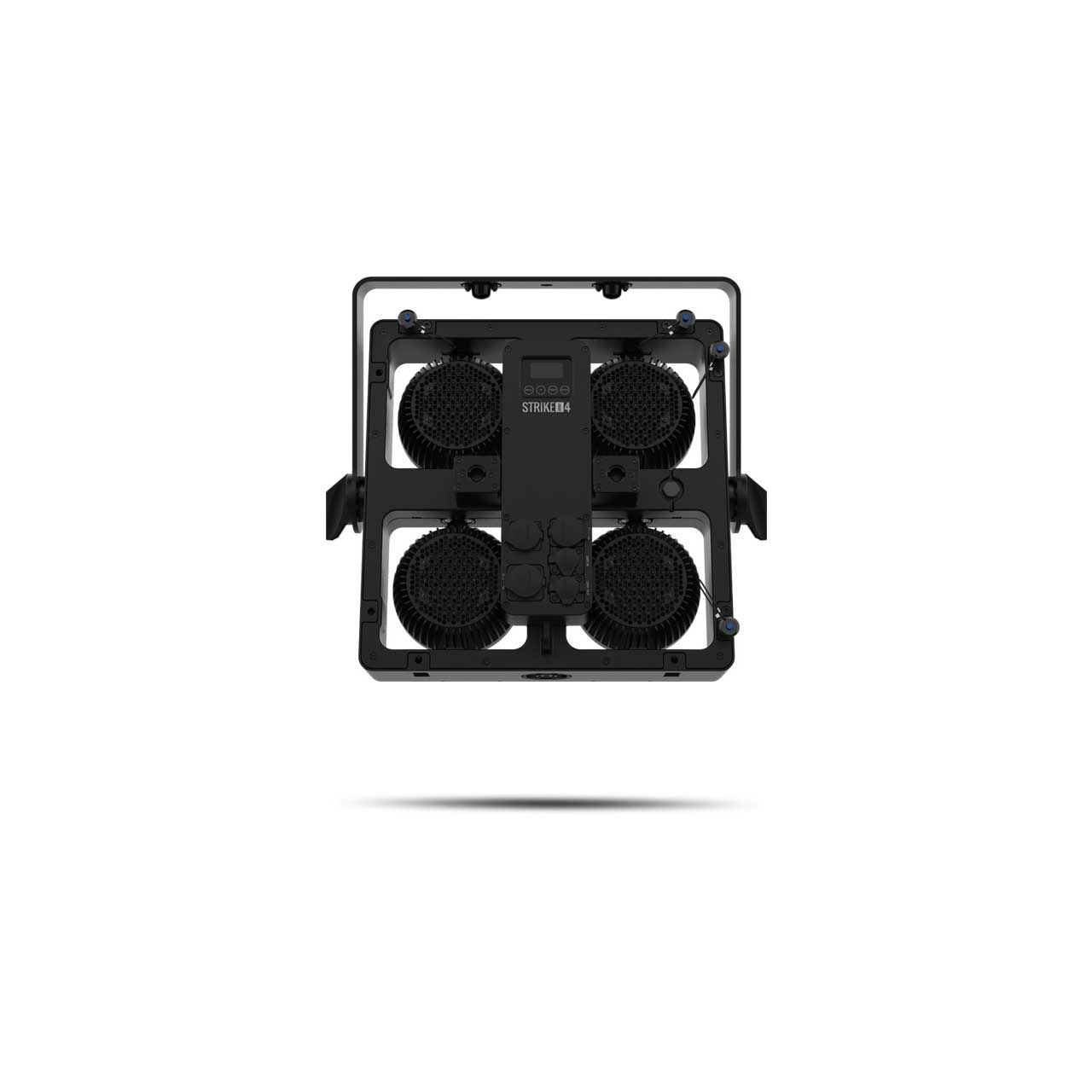

Chauvet STRIKE Array 4 Intense 4 Pod Blinder/Strobe Light with IP65 Rating for All-Weather Use

STRIKEARRAY4 - Overview

• Features:

  • Intense 4 pod blinder/strobe rated IP65 for all-weather use
  • Emulated "red shift" to mimic incandescent fixtures perfectly.
  • Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output.

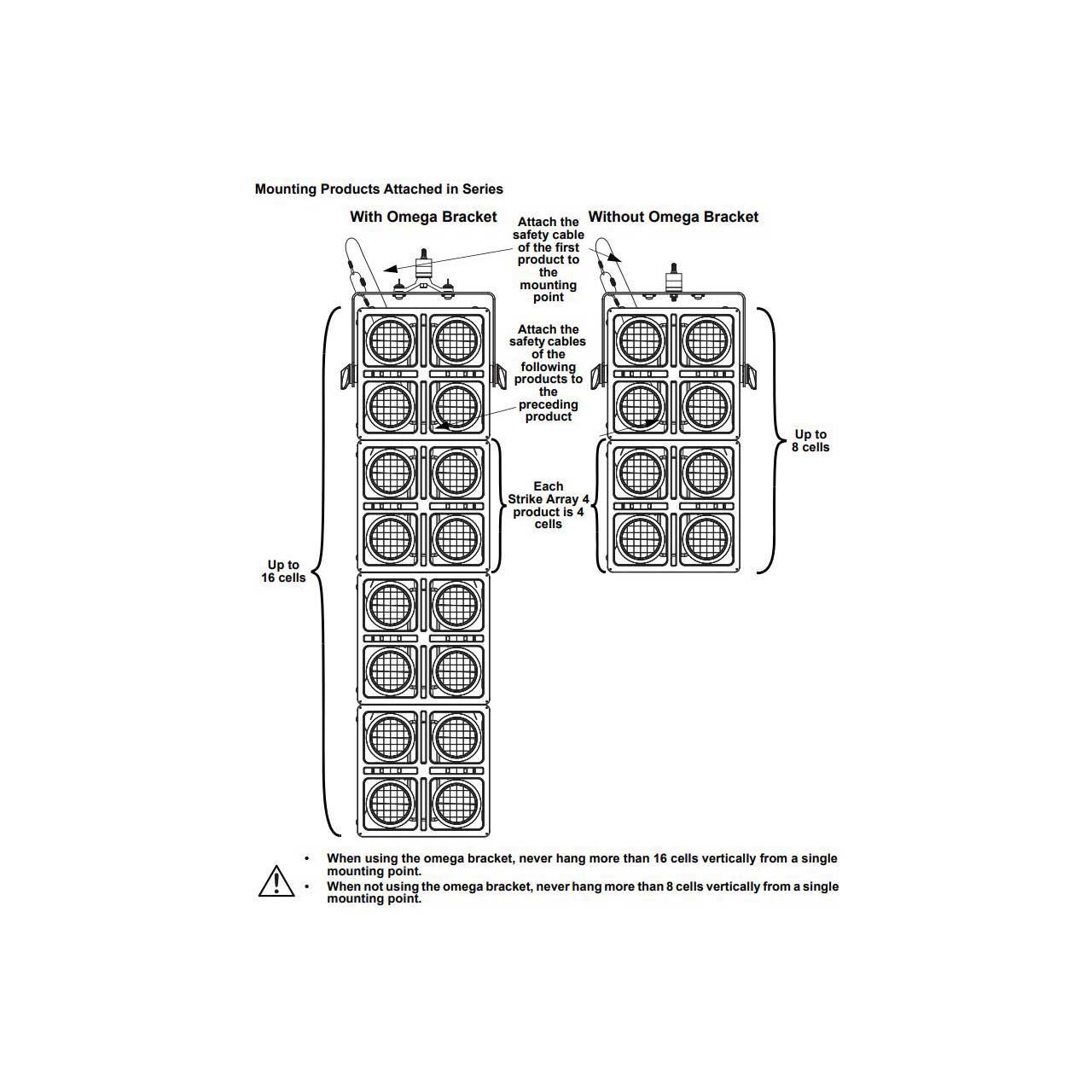

  • Innovative interlocking system to connect multiple Strike Array 4s and Strike Array 2s together.
  • Multiple mounting locations and repositionable yoke with 1/4" turn adaptors for creative and convenient rigging options
  • 16-bit dimming control for smooth, perfect fades
  • Strobe functionality for high-impact effects on the fly

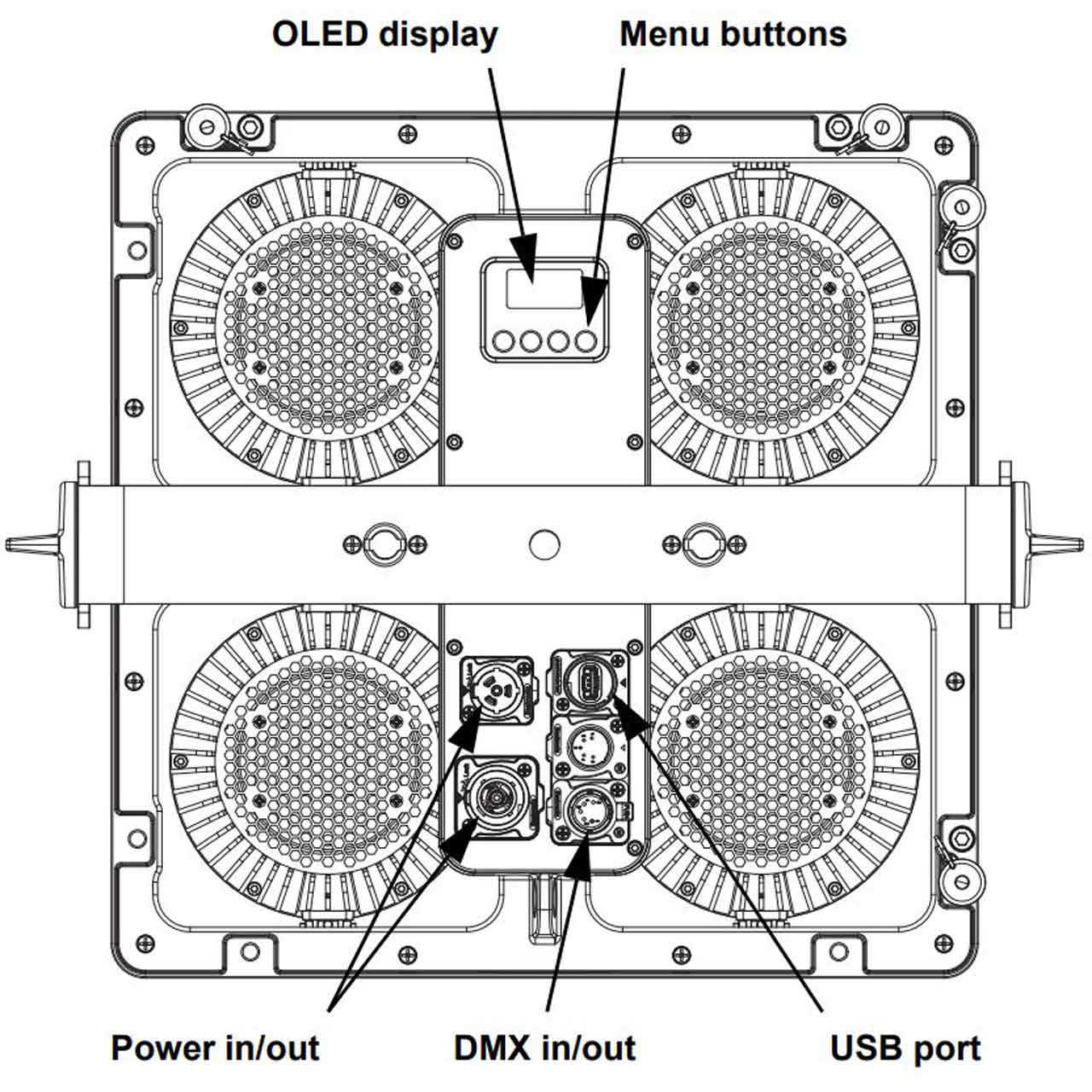

  • Easy to use OLED display
  • Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility


• Specifications:

  • Optical
  • Light Source: 192 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy
  • Light Source: 20 LED (Amber) 2.63 W, (.758 A), 50,000 hours life expectancy
  • Color Temperature (at full): 2770 K
  • CRI: 93.2 TLCI: 91
  • Beam Angle: 61.5°
  • Field Angle: 100.5°
  • Illuminance (total): 684 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Strobe Rate: 0 to 25 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

    Construction/Physical
  • Dimensions: 18.5 x 16.7 x 6.3 in (470 x 424.5 x 161 mm)
  • Dimensions (shipping size): 20.7 x 8.5 x 19.3 in (525 x 215 x 490 mm)
  • Weight: 28.7 lb (13 kg)
  • Weight (shipping weight): 33.1 lb (15 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 4, 5, 6, or 10

    Connections
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 12 units @ 240 V
  • Power and Current: 243 W, 2.44 A @ 100 V, 60 Hz [9.0 A inrush]
  • Power and Current: 241 W, 2.01 A @ 120 V, 60 Hz [10.8 A inrush]
  • Power and Current: 244 W, 1.18 A @ 208 V, 60 Hz [14.2 A inrush]
  • Power and Current: 245 W, 1.07 A @ 230 V, 50 Hz [12.8 A inrush]
  • Power and Current: 247 W, 1.03 A @ 240 V, 50 Hz [12.8 A inrush]
  • Power and Current (resting): 8 W, .087 A @ 100 V, 60 Hz
  • Power and Current (resting): 9 W, .083 A @ 120 V, 60 Hz
  • Power and Current (resting): 17 W, .083 A @ 208 V, 60 Hz
  • Power and Current (resting): 18 W, .082 A @ 230 V, 50 Hz
  • Power and Current (resting): 21 W, .084 A @ 240 V, 50 Hz


• Item Includes:

  • 1x STRIKE Array 4
  • 1x Seetronic Powerkon IP65
  • 1x Omega bracket with mounting hardware
  • 1x Warranty Card
  • 1x Quick Reference Guide or User Manual


• GTIN:

  0781462220624
