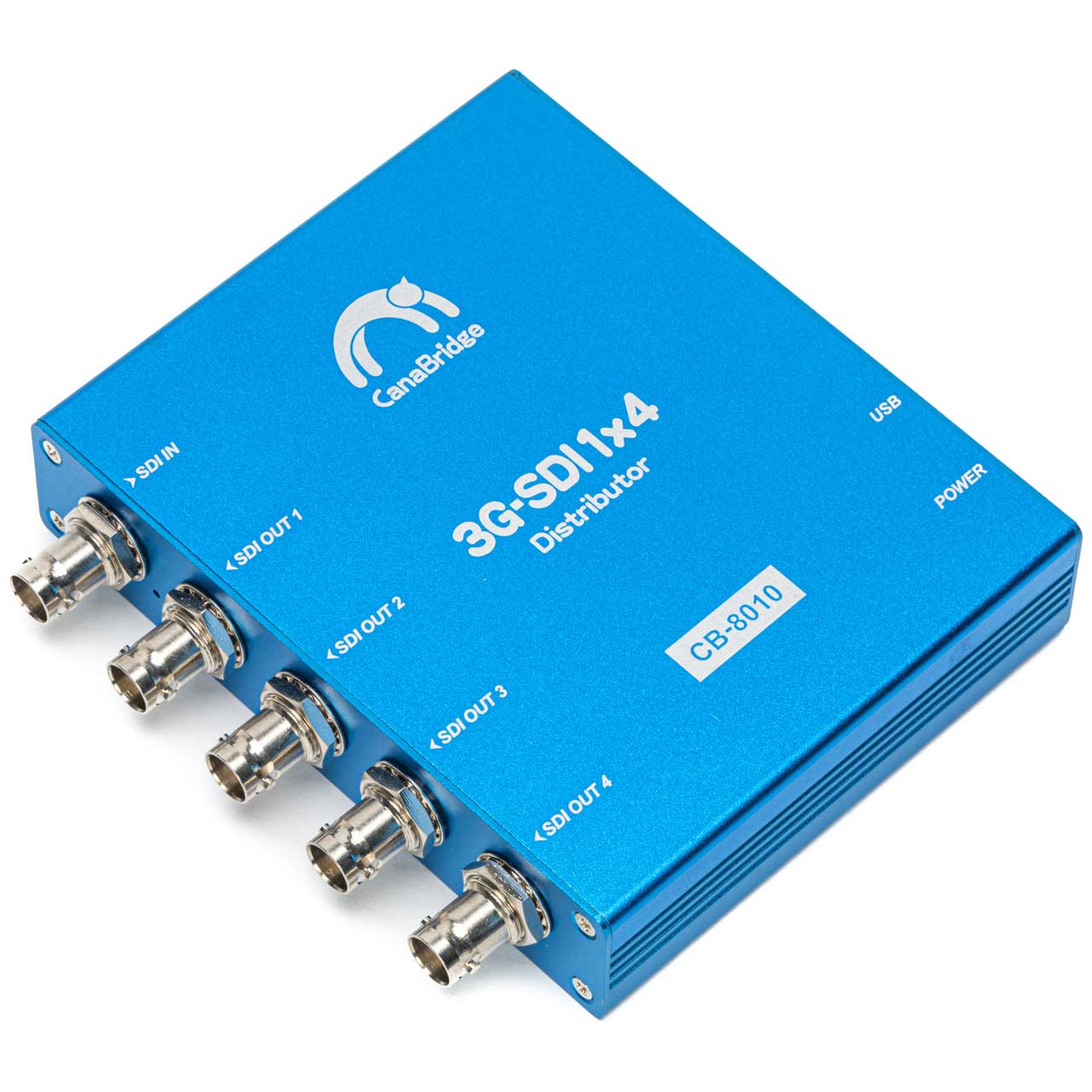

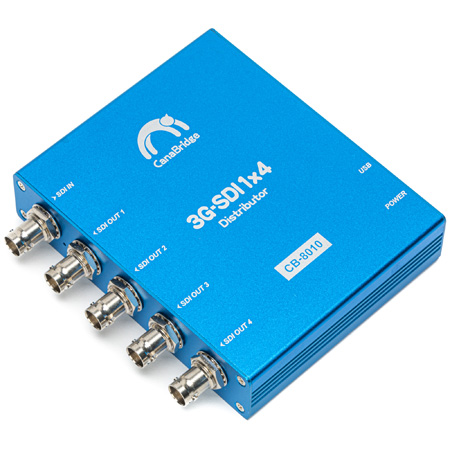

Canare CB-8010 CanaBridge 1x4 3G-SDI Video Distribution Amplifier / Splitter

ITEM #: CNR-CB-8010 MFG #: CB-8010

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Canare
Free Shipping with $49 Minimum Order

List Price:

$235.75

Our Price:

$209.93

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CB-8010 - Overview

The CanaBridge CB-8010 is a miniature, low-cost 1x4 3G-SDI/HD-SDI/SD-SDI re-clocking distribution amplifier. Featuring four separately buffered SDI outputs, the CB-8010 provides automatic input detection, re-clocking and cable equalization.

1x4 Distribution
CB-8010 is a compact, one input, four output distribution amplifier for SDI and multi-rate SDI video signals up to 1080p 60Hz(2.97 Gbps). Output 2 & Output 4 support DVB-ASI signal.

Widespread Application
CB-8010 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities, rental and staging, and other applications.

  • Specifications:

    • Connections
    • SDI Video Input: 1xSD/HD/3G-SDI(75Ω BNC)
    • SDI Video Output:
      4xSD/HD/3G-SDI(75Ω BNC)
      Output 2 and 4 support ASI signal

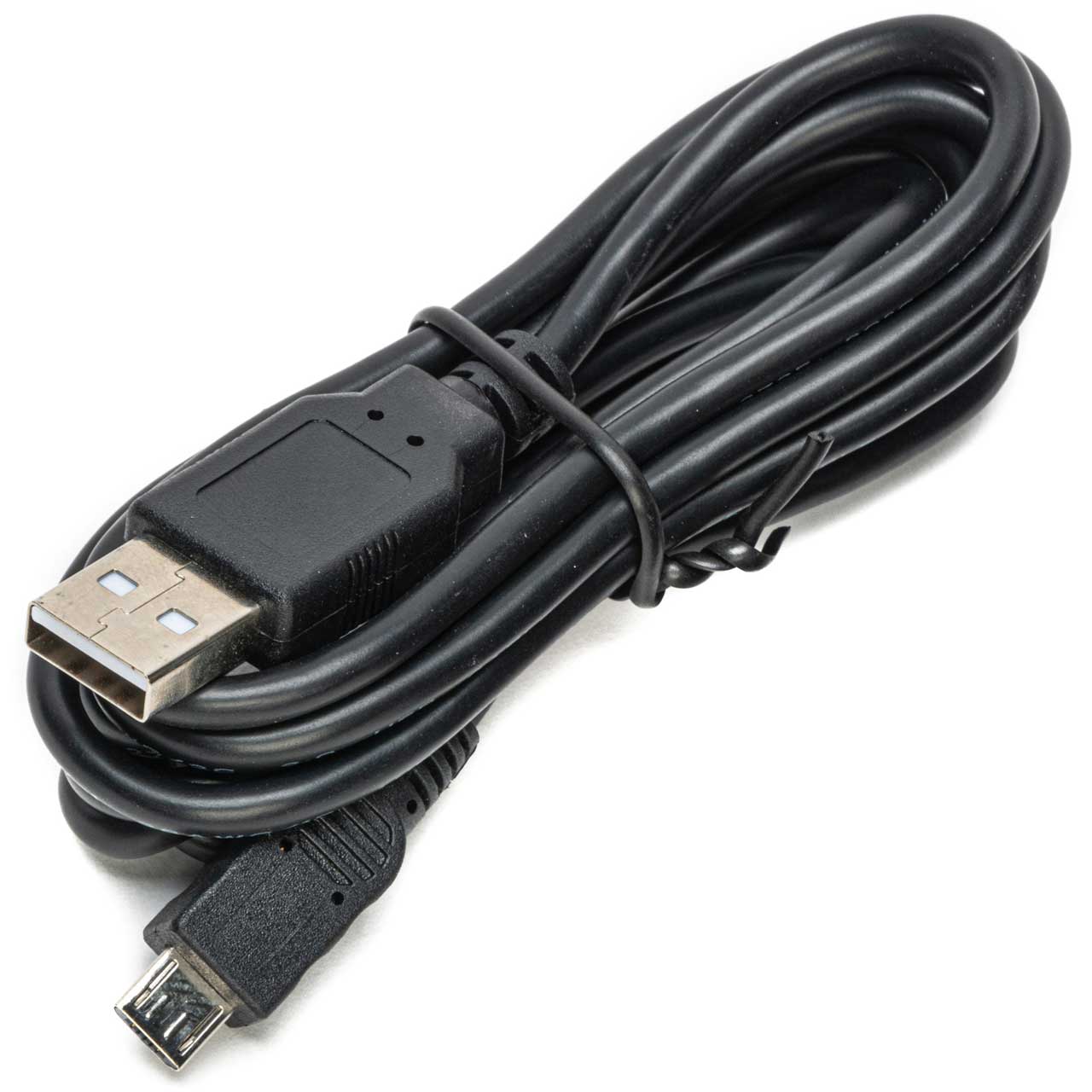

    • Micro USB:Power and software update

      Functions and Standards
    • SDI Video Rate: SD/HD/3G-SDI
    • SDI Auto Switching: Automatically detects SD, HD, and 3G-SDI
    • SDI Standard
      SMPTE ST 259
      SMPTE ST 292-1
      SMPTE ST 424
      DVB-ASI

      Power
    • Power Supply
      Micro USB or Threaded locking
      DC connector
    • Voltage Range: USB 5V, DC 5-17V
    • Power Consumption: 1.5W (Max)

      Physical Specifications
    • Dimensions: 125.5x101.4x27.5mm
    • Net Weight: 310g
    • Gross Weight: 920g

      Environmental Specifications
    • Operating Temperature: 0°C~40°C
    • Storage Temperature: -30°C~70°C
    • Relative Humidity: 0%~90% non-condensing


  • Item Includes:

    • 1x CB-8010 (3G-SDI 1x4 Distributor)

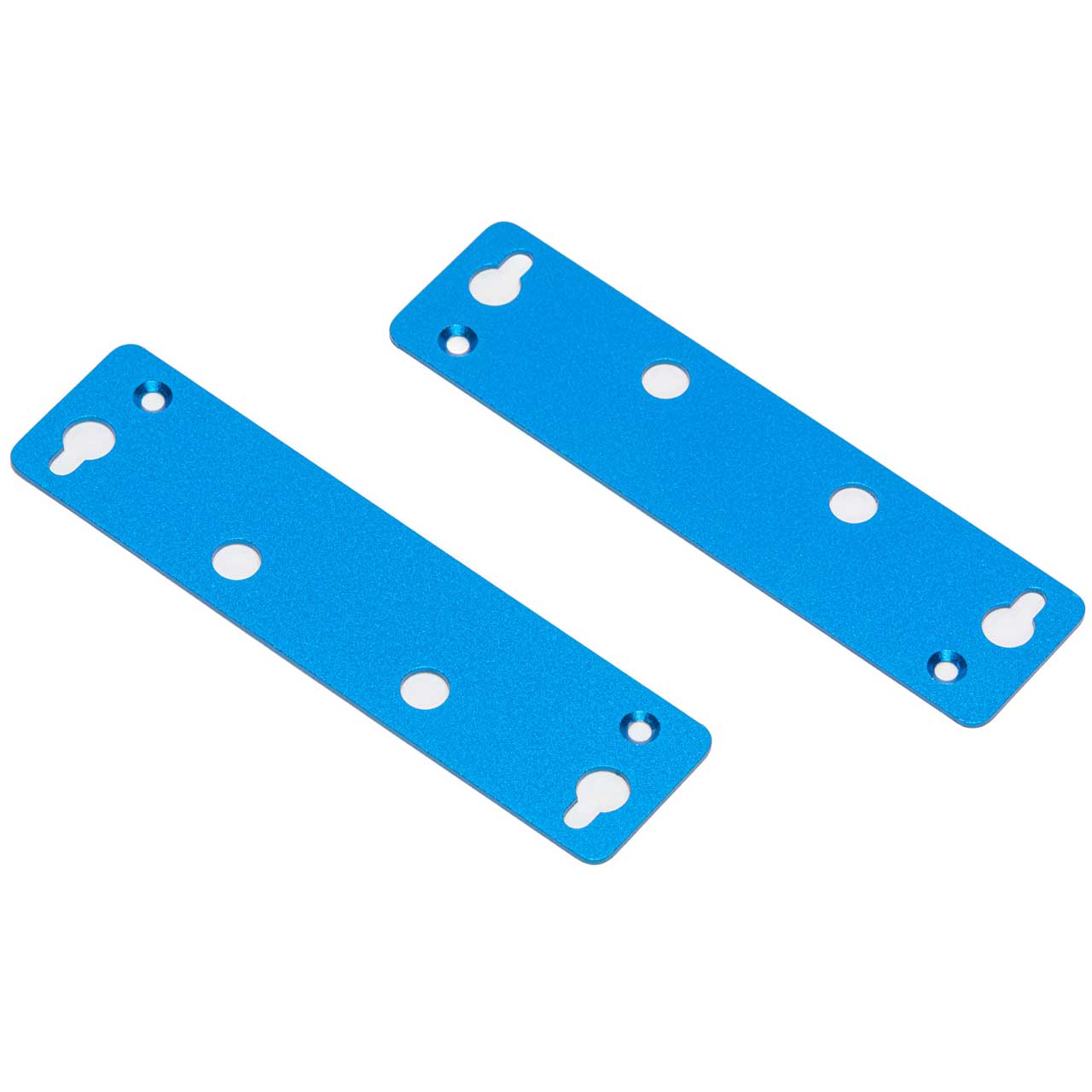

    • 2x Mounting Brackets with 4 screws (15g/2pcs)

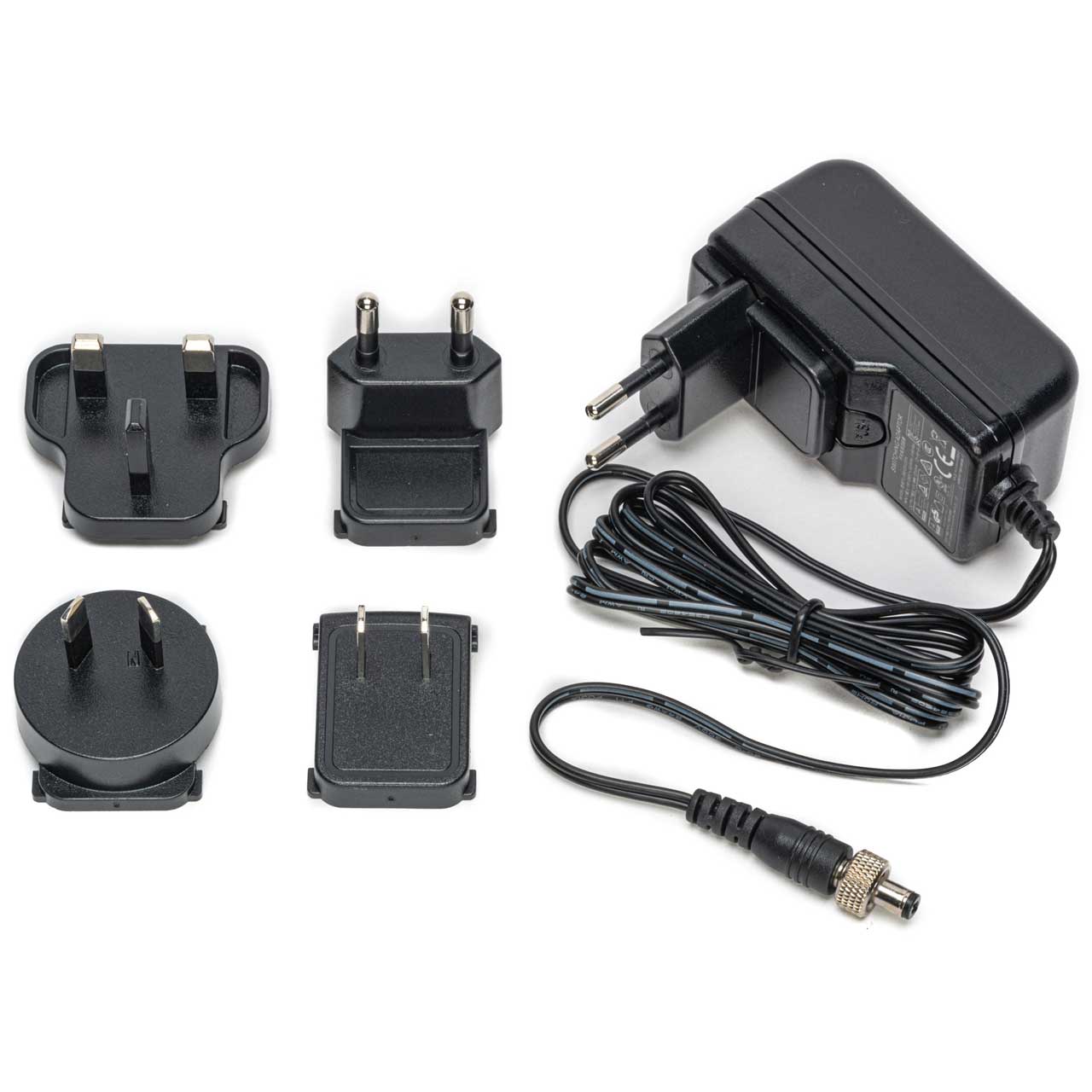

    • 1x DC 12V Universal Power Supply with 5 International Socket Adapters
