Canare CB-2012 CanaBridge HDMI to 3G-SDI Mini Video Converter

ITEM #: CNR-CB2012 MFG #: CB-2012

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$163.30

Our Price:

$149.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CB-2012 - Overview

The Canare CanaBridge CB-2012 is an exquisite and portable HDMI to SDI converter with a micro USB power supply as well as a detachable mounting bracket, CB-2012 is the best choice for indoors and outdoors. It converts an HDMI input to dual 3G-SDI outputs, supporting a conversion of full HD resolution signals up to 1080p60 professional SDI. Different video rate of SD/HD/3G-SDI is selectable for SDI output.

One of the convenient features of this series is the Micro USB power input connection. Powering the mini video converter is not only possible from its DC power plug pack or a power bank, but also possible from laptops and computers. Its incredibly small power consumption can deliver 24 hours of uninterrupted operation possible from just a 5,000mAh power bank.

The miniature design makes it a tidy portable package for multiple applications. You can put it in your pocket and take it anywhere you want and a detachable mounting bracket allows you to mount it just about anywhere.

  • Specifications:

    • Connections
    • HDMI Video Input: 1xHDMI A
    • SDI Video output: 2xSD/HD/3G-SDI(75Ω BNC)
    • Micro USB: Power and software update
    • Power LED: Power indicator
    • SDI LED: SDI output signal indicator

      Functions and Standards
    • HDMI Input Format:
      1080p 50/59.94/60
      1080p 23.98/24/25/29.97/30
      1080i 50/59.94/60
      720p 50/59.94/60
      576i 50, 480i 59.94
    • HDMI Color Space and Precision
      YCbCr 4:2:2
      YCbCr 4:4:4
      RGB 4:4:4
    • SDI Output Format
      1080p 50/59.94/60
      1080p 23.98/24/25/29.97/30
      1080i 50/59.94/60
      720p 50/59.94/60
      625i 50, 525i 59.94
    • SDI Video Rate
      SD/HD/3G-SDI
    • SDI Standard
      SMPTE ST 259
      SMPTE ST 292-1
      SMPTE ST 424
    • SDI Color Space and Precision
      YCbCr 4:2:2
    • HDCP
      Signal with HDCP doesn't pass through

      Power
    • Power: Micro USB
    • Power Consumption: 2W (Max)
    • Voltage Range: USB 3.3-5.5V

      Physical Specifications
    • Dimension: 72.4x41x24.6mm
    • Net Weight: 110g
    • Gross Weight: 470g

      Environmental Specifications
    • Operating Temperature: 0°C~40°C
    • Storage Temperature: -30°C~70°C
    • Relative Humidity: 0%~90% non-condensing

  • Item Includes:

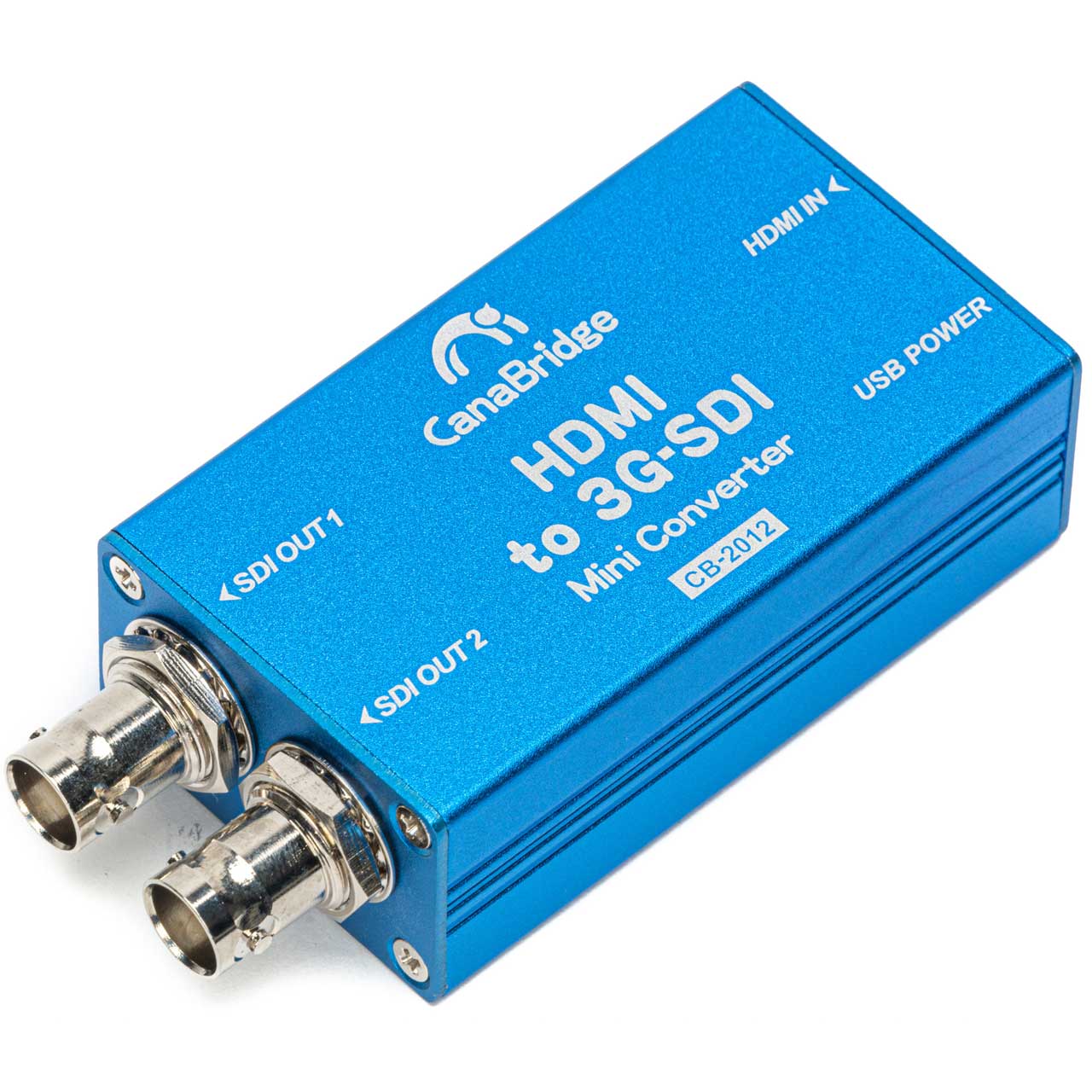

    • 1x CB-2012 (HDMI to 3G-SDI Mini Converter)

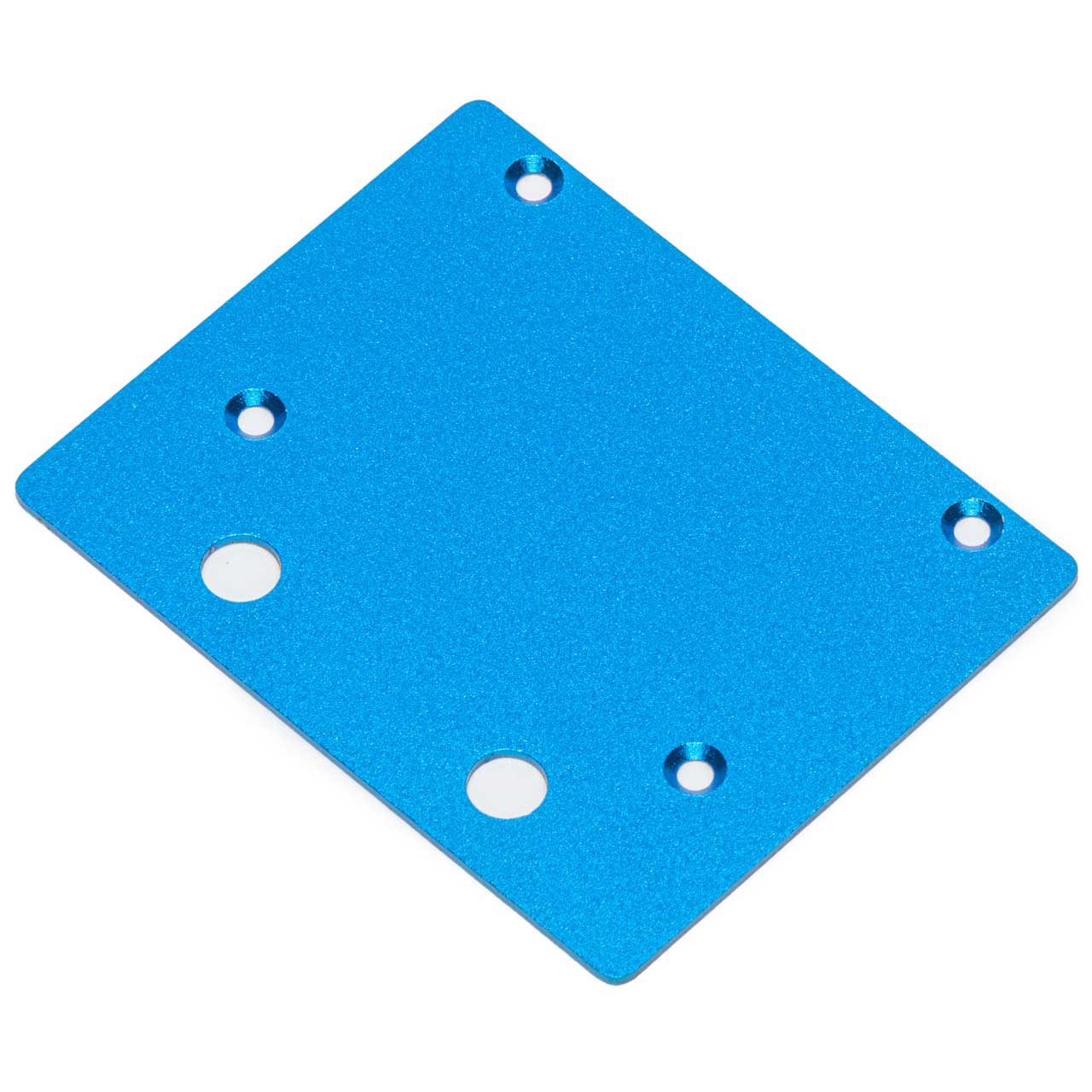

    • 1x Mounting Bracket with 4 screws (12g)

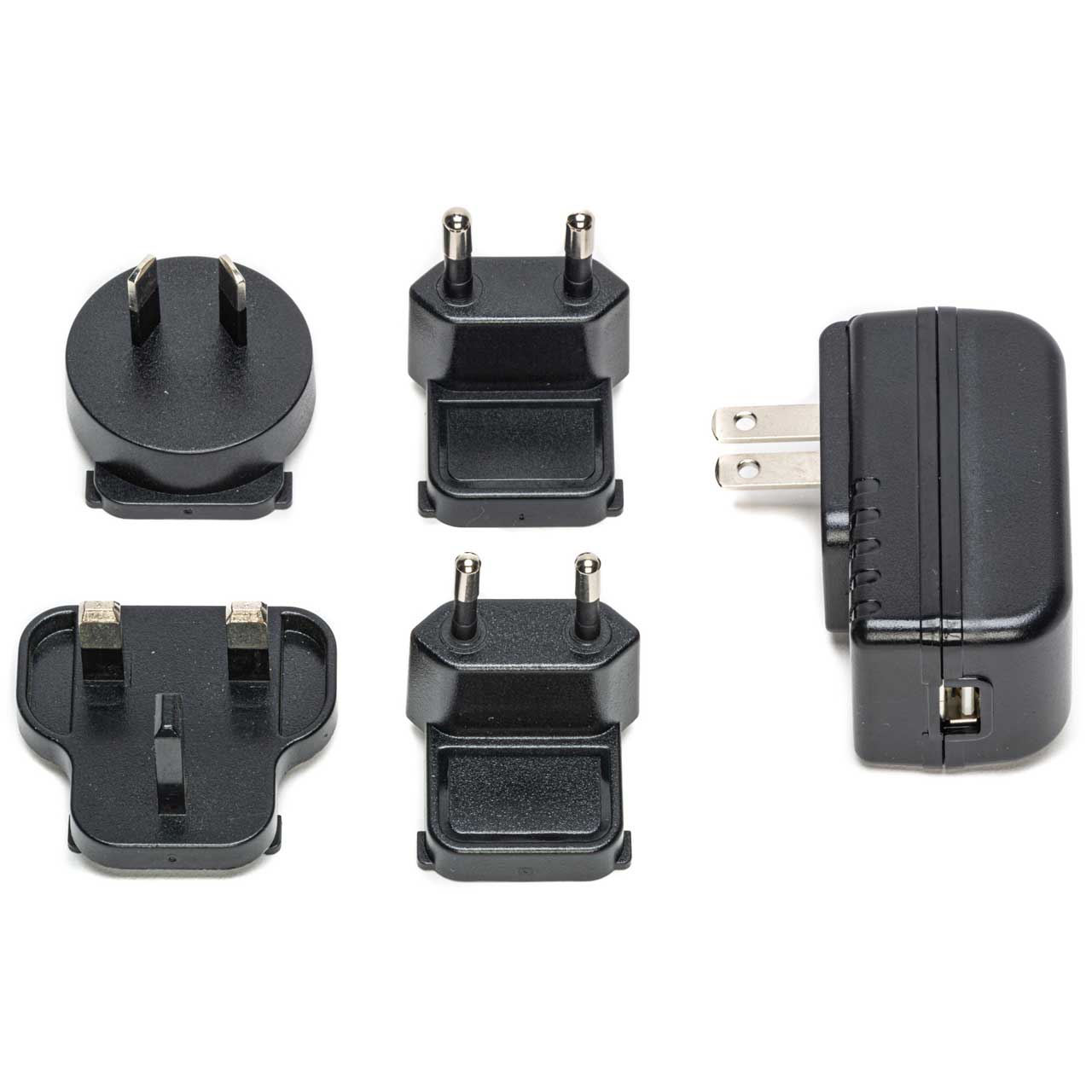

    • 1x DC 5V Universal Power Supply with 5 International Socket Adapters

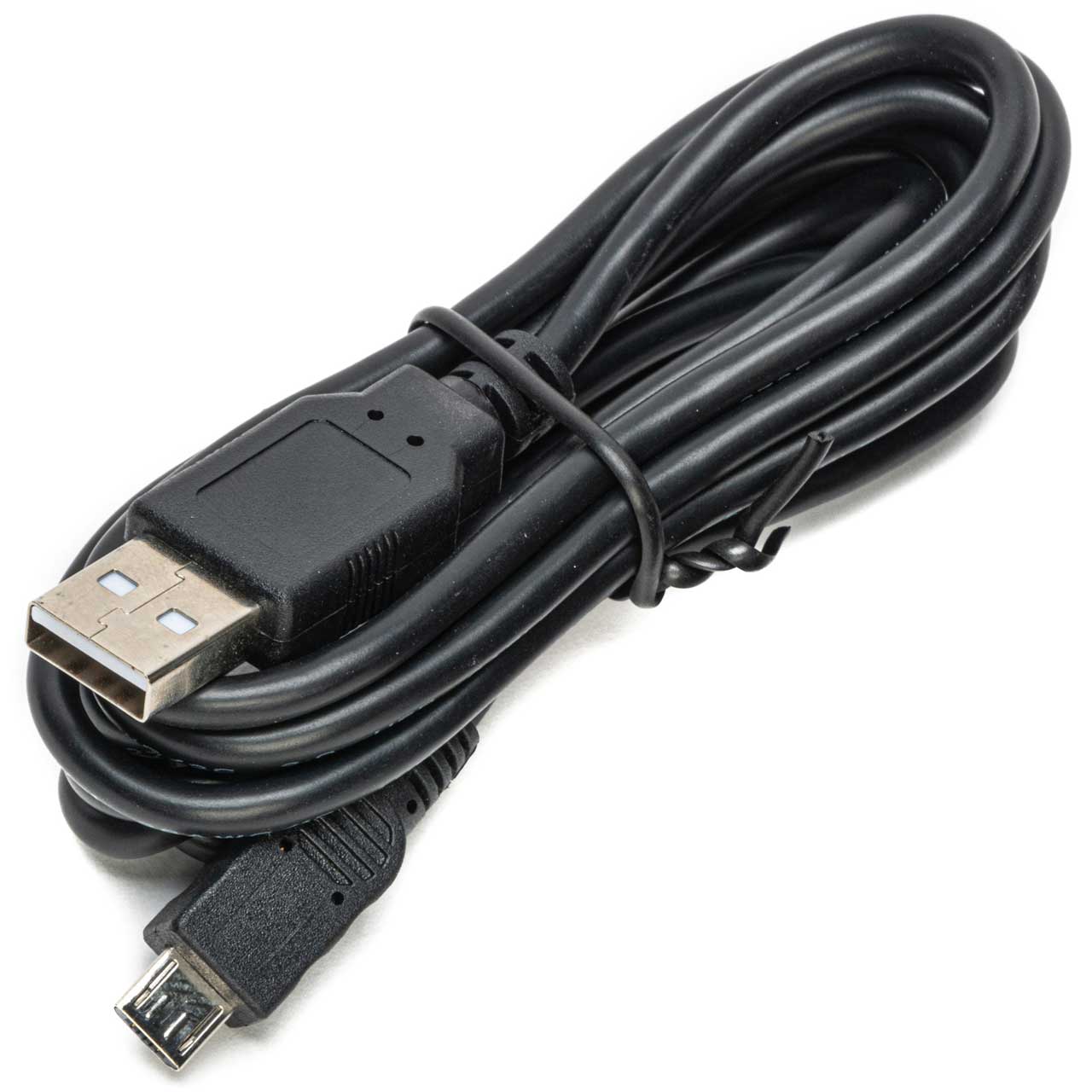

    • 1x USB Cable (150cm)
