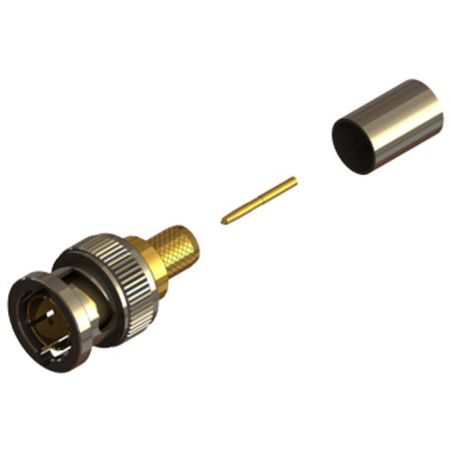

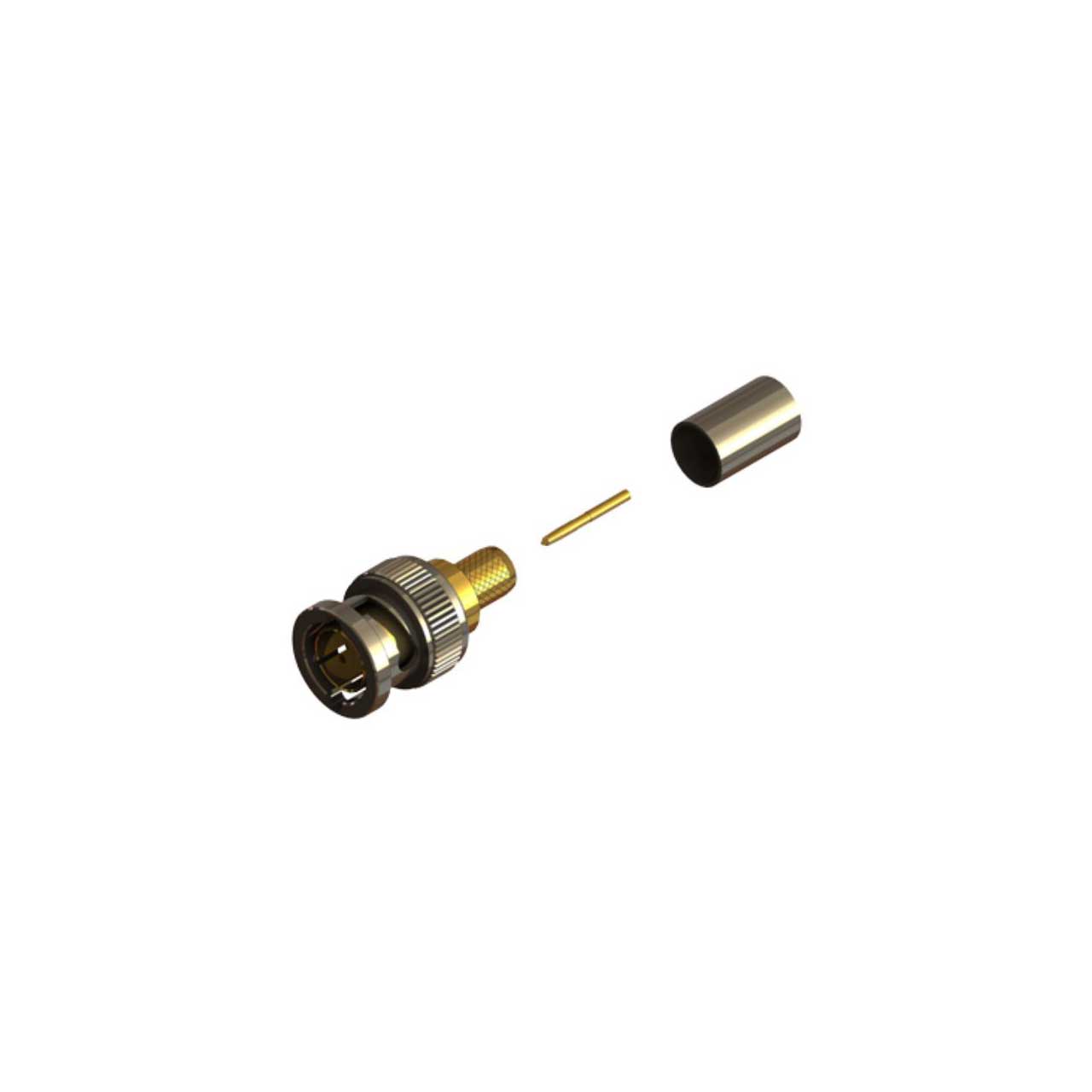

Coax Connectors 10-005-D126-FC1-BULK are BNC Ultra HD Crimp / Crimp 12G Plugs - 100 Pack.
Performance
-30.18 dB @ 3.0 GHz
-21.12 dB @ 6.0 GHz
-23.03 dB @ 9.0 GHz
-28.63 dB @ 12.0 GHz
75 ohm series includes a range of High Performance connectors suitable for use at frequencies of 12GHz and beyond. When tested, many of these connectors have shown low loss performace up to 18GHz. BNC connectors feature a simple bayonet coupling requiring only a quarter turn to connect or disconnect. The easy to use coupling make BNC one of the most popular general purpose connectors used in all markets. Typical applications are, broadcast, including Ultra High Definition (4K), telecom, instrumentation, security, mil/aero and many others.
