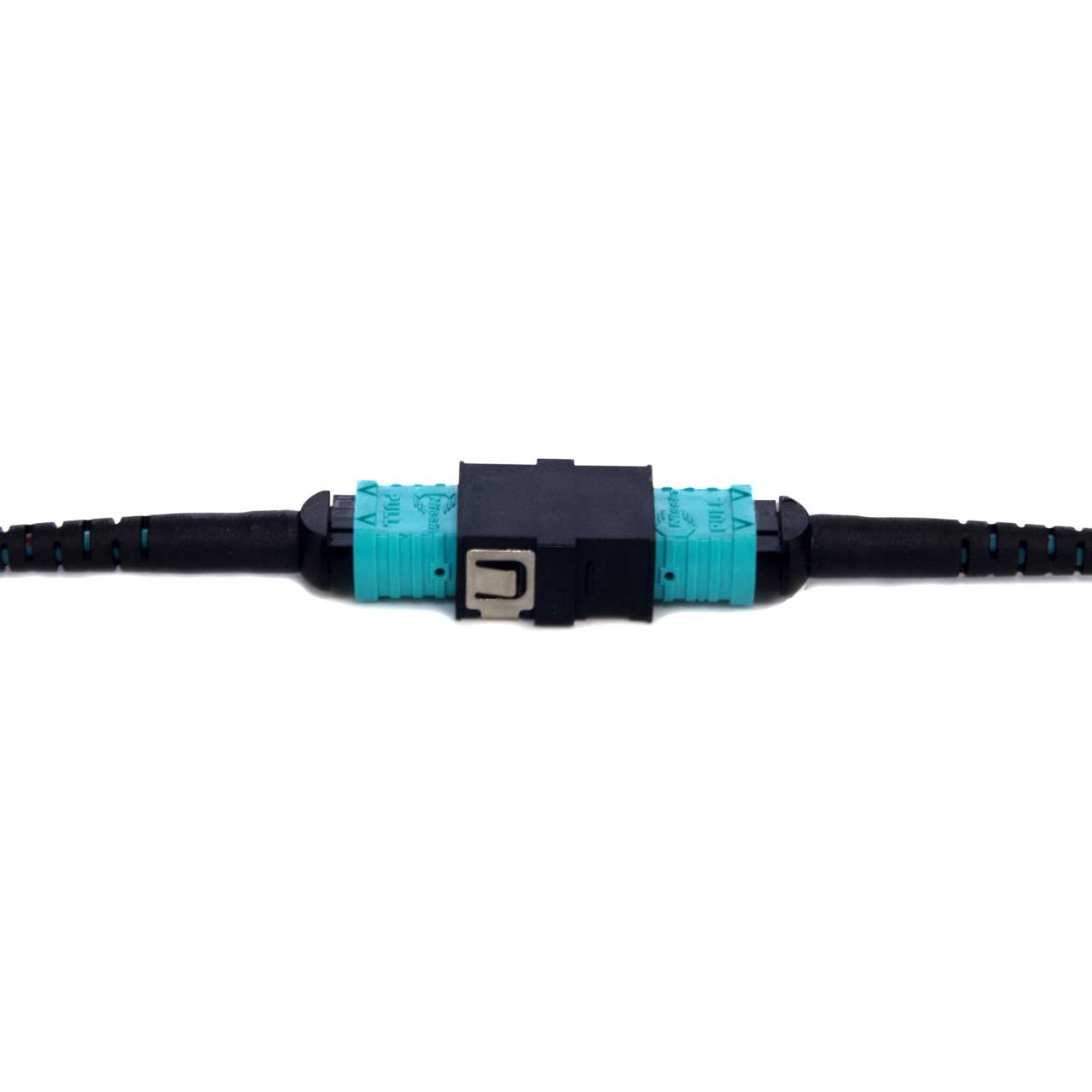

Celerity UFO-8KH-130P Fiber Optic cables feature a detachable connector allowing the fiber optic plug on each end of the fiber optic cable to be very small and easy to prewire through conduit and other concealed spaces.

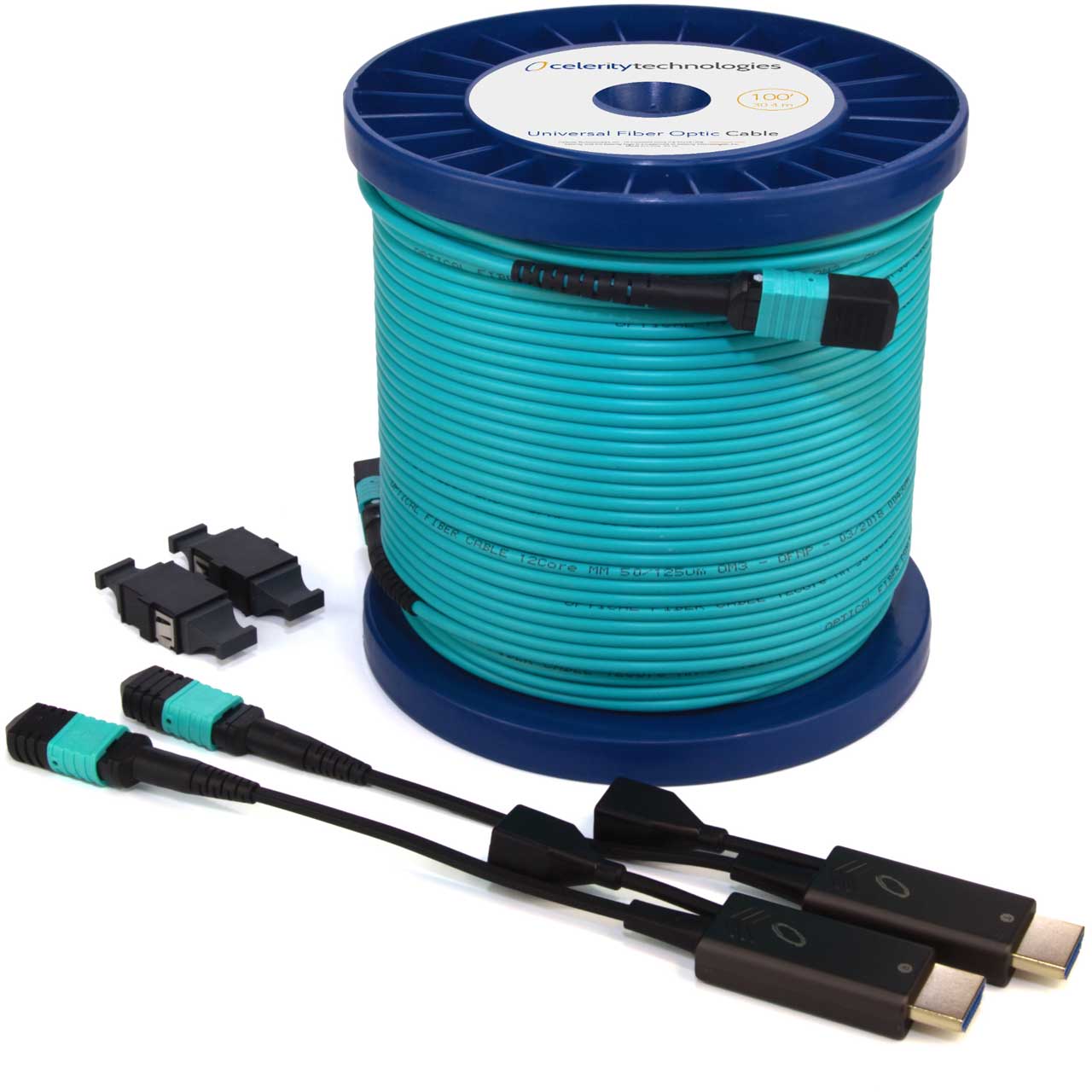

All Celerity Fiber Optic cables are plenum rated with a bend radius of 5mm for durability and flexibility and available in finished lengths from 35' to 1000' and custom special-order 50' increments between 200' and 1000'.
It is recommended that Celerity Universal Fiber Optic Cable be used with Celerity Connectors or accessories. MPO multi-mode compatible fiber optic cables (12 strand Type-A) from 3rd party manufacturers may also work with Celerity Connectors
Universal Fiber Optic HDMI
Celerity Universal Fiber Optic (UFO) supports HDMI 2.1 connections up to 1000 feet and offer the vey best possible picture quality. Celerity fiber optic cable shows full brightness highlights, and the wide range of colors as originally intended by the video engineers during mastering. Celerity fiber optic cable shows all the details of the video content being played. Celerity fiber optic cables offer isolation from EMI and are plenum rated and can be installed as residential, commercial and infrastructure cabling for current and future needs. Celerity HDMI connectors have received the following medical electrical equipment certifications:
• IEC 60601-1:2005/A1:2012
• EN 60601-1:2006/A12:2014
• EN 55032: 2015
• EN 55024: 2010+A1:2015
• EN 60601-1-2 : 2015
Two Steps, No Tools
Celerity UFO is installed with a simple two-step process "Pre-Wire and Connect." This is made possible by Celerity's innovation with fiber optics so that fiber terminations, testing and tools are no longer necessary. This ensures reliability and efficient project deployment.
Bi-Directional Cable
The Celerity UFO Cable may be installed from any location between a source and display without the burden of ensuring the cable is in the correct direction. Celerity UFO is designed that each end of the UFO fiber cable acts as a precision optical pathway. Once the Celerity UFO Cable has been installed the UFO Cable is ready for stheirce and display connections. Celerity UFO Cable has received the following certification:
UL certified as Optical Fiber Non-Conductive Plenum OFNP
