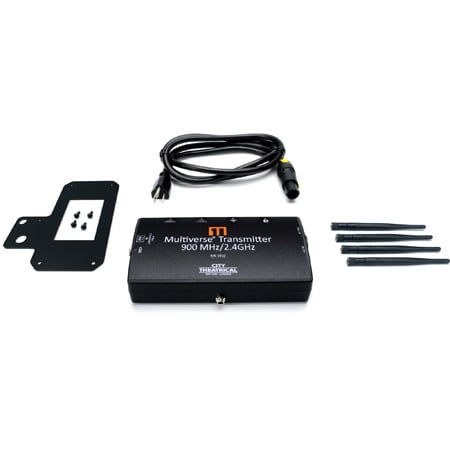

City Theatrical 5910 Wireless DMX Multiverse Transmitter 900MHz/2.4GHz - Licensed in North America Only

ITEM #: CTYTH-5910 MFG #: 5910

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,558.90

Our Price:

$2,175.07

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


5910 - Overview

The Multiverse® Transmitter (5910) opens a new world in wireless DMX/RDM. Its Ethernet input allows it to take in Streaming ACN (sACN) or Art-Net and to transmit between eight and 10 user-selectable universes of DMX/RDM, depending on the type of Multiverse Transmitter product used, with the ability to use less radio energy than a present day single universe wireless DMX transmitter.

The Multiverse Transmitter has a Bluetooth radio receiver built in that allows it to communicate with City Theatrical's DMXcat® app from the user's smartphone. This gives the user smartphone control of any lighting fixture that is part of the Multiverse setup, whether it is a lighting fixture with a Multiverse Module inside, a lighting fixture receiving its data from a Multiverse SHoW Baby or Multiverse Node, or any wired fixture downstream of those devices.

The Multiverse Transmitter is Wi-Fi enabled, allowing for communication and control from tablet based Wi-Fi lighting controllers like Luminair.

  • Features:

    • Four radios: Bluetooth and Wi-Fi for inputs, 900MHz and 2.4GHz for Multiverse wireless DMX/RDM output
    • Ethernet input for sACN and Art-Net
    • All setup and user choices made with our free DMXcat app
    • Rugged cast aluminum enclosure
    • A hanging bracket is included for hanging from a pipe or truss
    • Additional user control via DMXcat app or Luminair

  • Specifications:

    • Physical Specifications
    • Length: 7.75" (196.9mm)
    • Width: 4" (101.5mm)
    • Height: 1.85" (47mm)
    • Weight: 1.25Lbs (0.57kg)
    • Construction: Die Cast Aluminum
    • Frequency Range: 2400 - 2480 MHz; 902 - 928 MHz

      Connection Specifications
    • Antenna(s): RP-SMA female
    • AC: powerCON TRUE1 in/thru
    • DC: Locking DC Jack, 5.5mm x 2.1mm, center positive, 12.1mm mating depth; EtherCON

      Functionality
    • Wi-Fi Capability: 802.11 b/g/n
    • User Interface: DMXcat® app (for iPhone, Android or Amazon Fire), free download
    • Version Control: Free firmware updates on product pages of CTI website
    • RDM Configuration: Configurable over RDM
    • RDM Features: RDM Proxy, RDM Responder

      Power
    • High Voltage Input: 100-240VAC 50/60 Hz
    • Low Voltage Input: 5-30VDC
    • Power over Ethernet (PoE): Class 0
    • Maximum Wattage: 0.5W

      Radio Technology
    • Latency: 4 ms average
    • RF Sensitivity: -95dBm
    • Loss of Data Behavior: Output stops
    • Broadcast Power: 3.2mW, 10mW, 32mW, 100mW
    • Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
    • DMX Burst Mode: Auto Dynamic
    • Show IDs: 237

      Supported Protocols
    • RDM ANSI E1.20 via Art-Net / DMXcat
    • Streaming ACN (sACN)
    • Art-Net I, II, and III

      Product Information
    • Use Environment: Indoor
    • Ambient Temperature Range: 0 C to 40° C
    • IP Rating: IP50
    • Compliance: FCC, IC, ETL
