City Theatrical 5980 Antenna for Multiverse DMX - Omni Broadband - 900MHz/2.4GHz - 2dBi/4dBi

ITEM #: CTYTH-5980 MFG #: 5980

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
City Theatrical Inc.
Free Shipping with $49 Minimum Order

List Price:

$30.47

Our Price:

$25.90

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

5980 - Overview

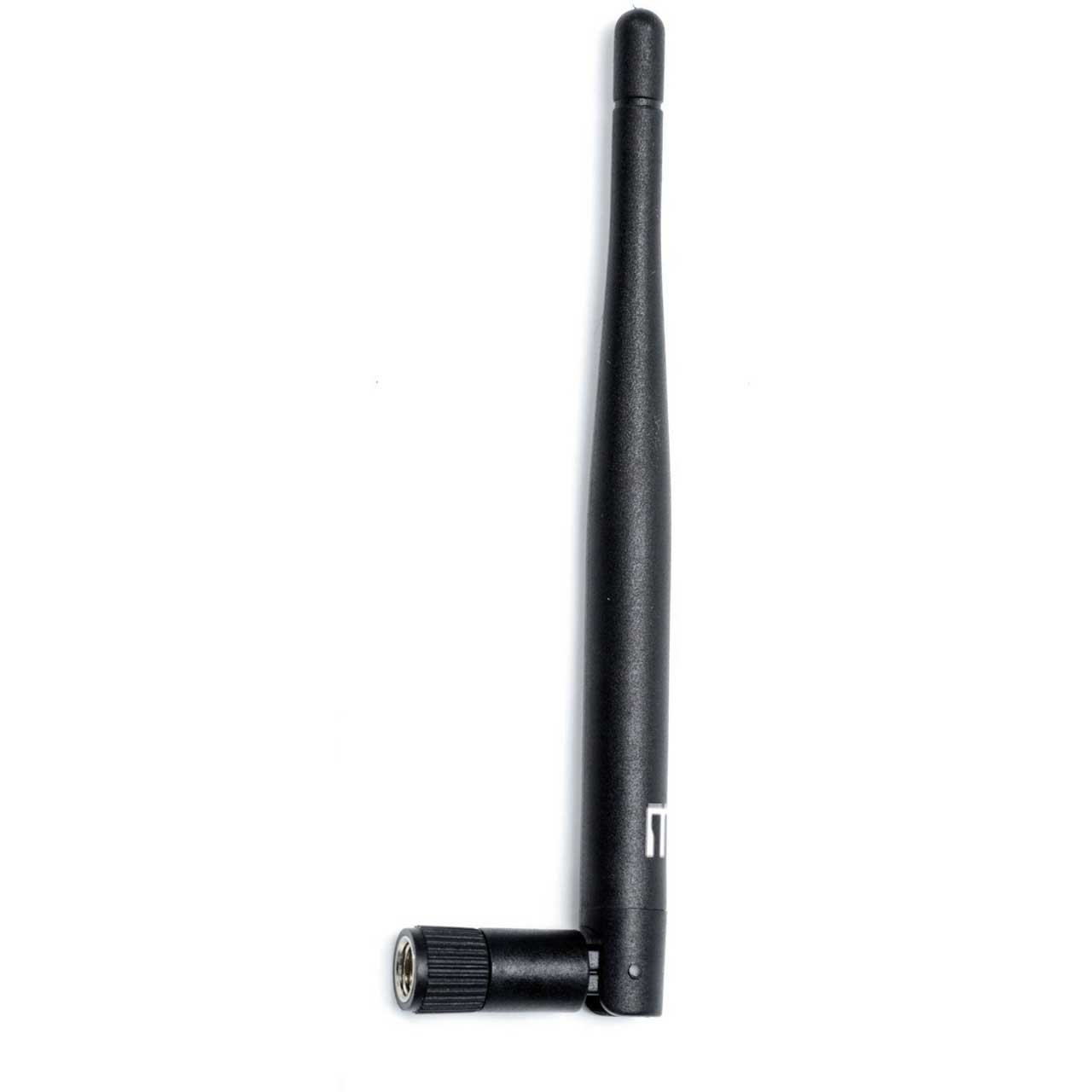

The 2dBi/4dBi Omni Broadband Antenna, 900MHz/2.4GHz, Dual Band (5980) is the standard antenna for City Theatrical's Multiverse® Node and Multiverse Transmitter products. Its connection is made using a RP-SMA male plug.

This Omni-directional Dual Band Antenna allows the user to receive or broadcast on the 2.4GHz (for worldwide use) radio band or the 900MHz (for use in the Americas only) radio band.

  • Specifications:

    • Antenna Type: Monopole antenna
    • Frequency Range: 902~928MHz / 2400~2500MHz
    • V.S.W.R: <= 2.0
    • Impedance: 50 OHM
    • Type of Radiation: Omni-directional
    • Electrical Wave: 1/4
    • Frequency/Gain: 900~928MHz: 2dBi;2400~2500MHz: 3-4dBi
    • Polarization: Vertical

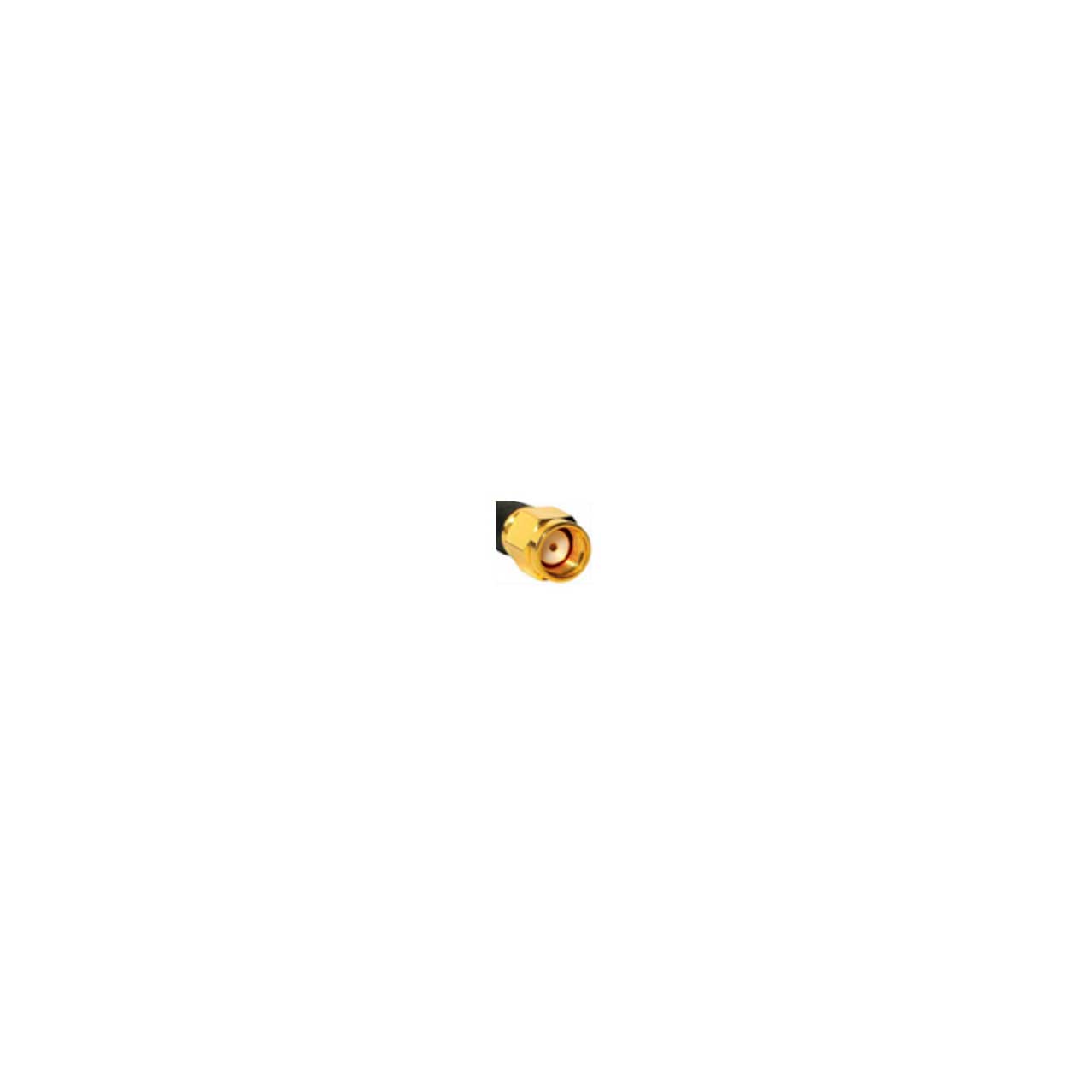

    • Identifying Connector: RP-SMA Male
    • Color: Black
    • Operating Temperature Range: -4° to 149°F (-20° to + 65°C)
    • Storage Temperature Range: -22° to 158°F (-30° to + 70°C)
    • Dimensions:
      Height: 5.7" (fully extended)
      Width: 1.2" (when bent at 90 degrees)
      Thickness: 0.4" (at widest part)


  • Warranty:

    • One year
