Decimator MD-LX HDMI/SDI Bi-Directional Converter for 3G/HD/SD - Unit has been opened & used

ITEM #: DEC-MD-LXBSTK3 MFG #: MD-LX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DEC-MD-LXBSTK3

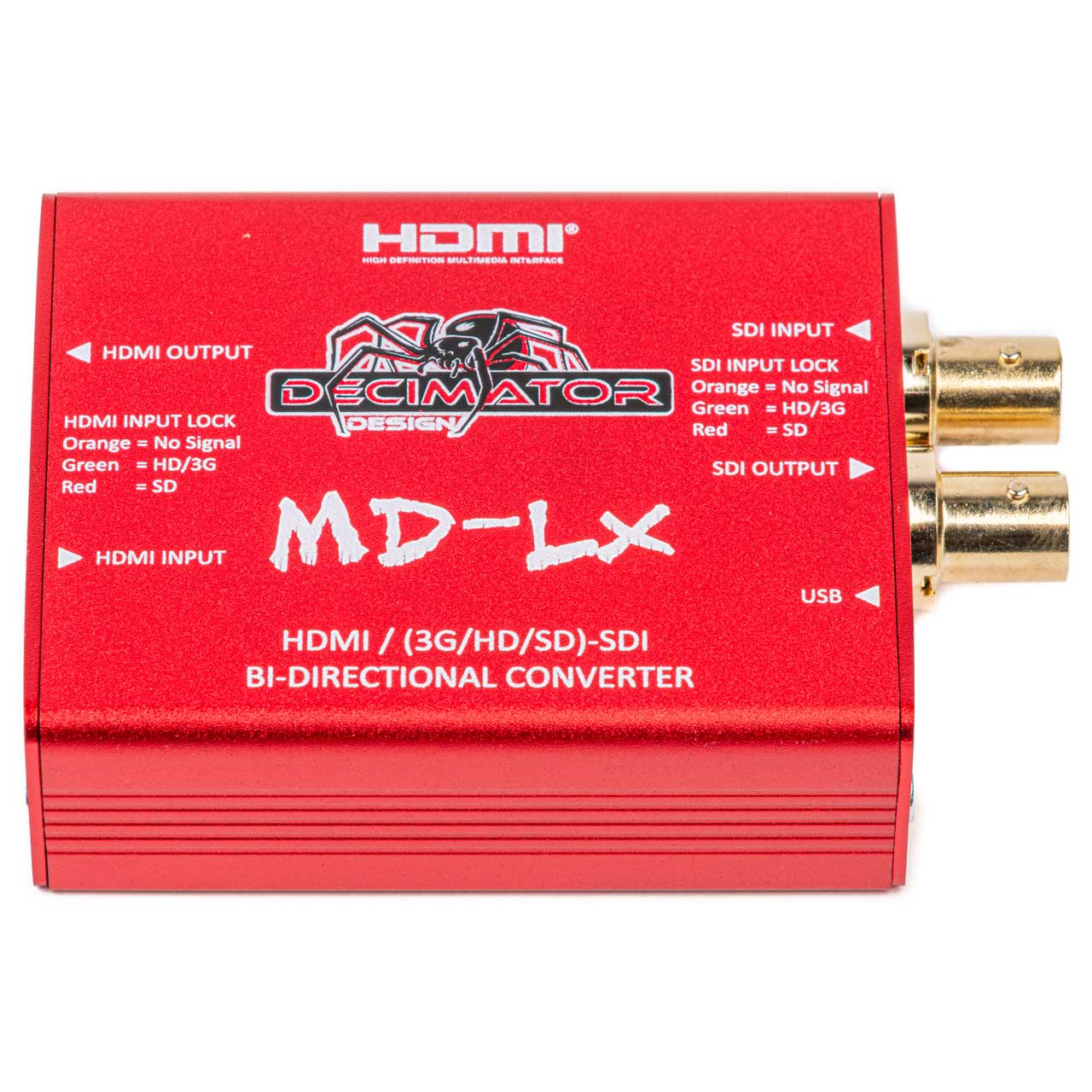

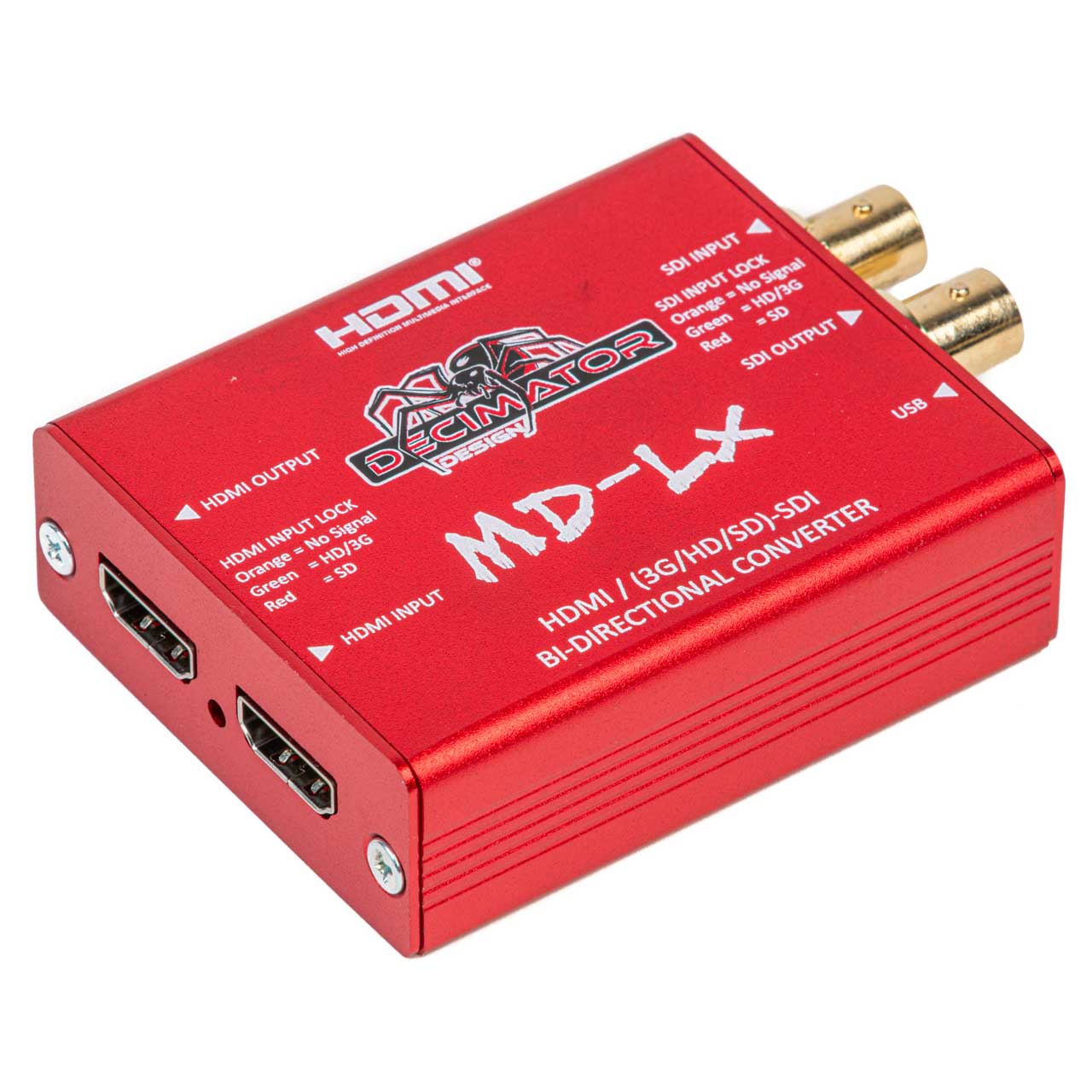

MD-LX - Overview

The Decimator Design MD-LX is a miniature and low-power HDMI/SDI bi-directional converter. This unit is the Lite version of the popular MD-HX. The MD-LX is controlled either via USB on a Mac/Windows app.

Please Note: Unit has been opened and used

  • Features:

    • Please Note: Unit has been opened and used
    • Auto Select (Active input to all outputs or if both inputs are active SDI to HDMI and HDMI to SDI)
    • HDMI in to SDI out and SDI in to HDMI out
    • SDI in to HDMI and SDI out
    • HDMI in to HDMI and SDI out
    • Low Power enabling operation from the USB
    • USB provides for power, control and firmware upgrades
    • This unit also includes a Power Supply and USB Cable

  • Specifications:

    • SDI Formats:
    • 3G-A or 3G-B:SMPTE [email protected] and 2.967Gb/s, 1080p@60/59.94/50Hz
    • HD: SMPTE 292M/274M/[email protected] and 1.435Gb/s, 1080i@60/59.94/50Hz, 1080p/psf@30/29.97/25/24/23.98Hz, 720p@60/59.94/50/30/29.97/25/24/23.98Hz
    • SD: SMPTE 259M@270Mb/s, 625i50 (PAL), 525i59.94 (NTSC)

      HDMI Formats:
    • 1080p@60/59.94/50/30/29.97/25/24/23.98Hz, 1080i@60/59.94/50Hz, 720p@60/59.94/50/30/29.97/25, 625i50 (PAL), 525i59.94 (NTSC)
    • Inputs: 1x HDMI Type A / 1x (3G/HD/SD)-SDI / Micro USB for power, control and firmware updates
    • Outputs: 1x HDMI Type A / 1x (3G/HD/SD)-SDI
    • Power: USB Power +4.4V to +5.25V DC, Uses under 2.5 Watts
    • Dimensions: 2.4" x 2.9" x 0.9"

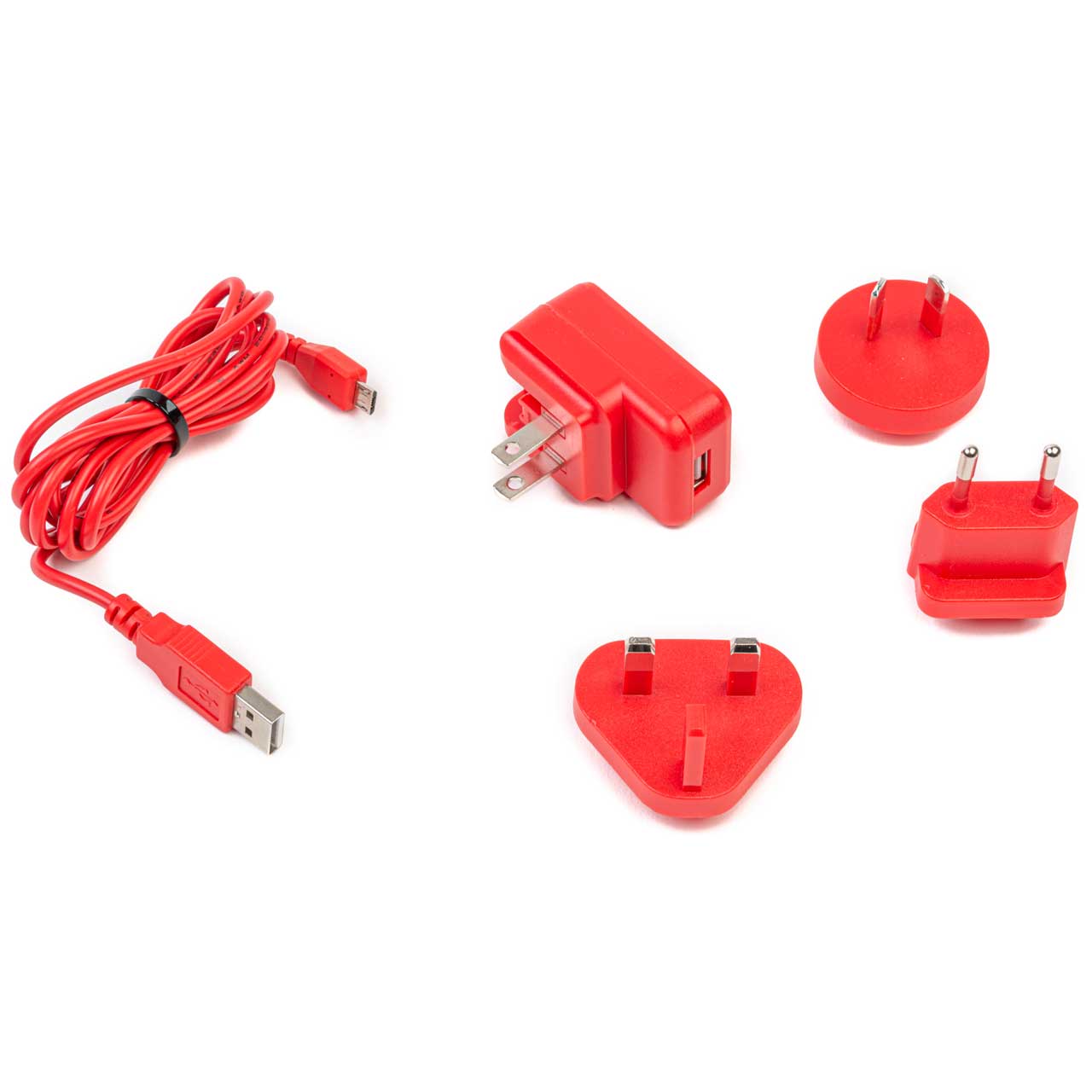

  • Item Includes:

    • Power Supply
    • USB Cable

  • GTIN:

    0506041739019
