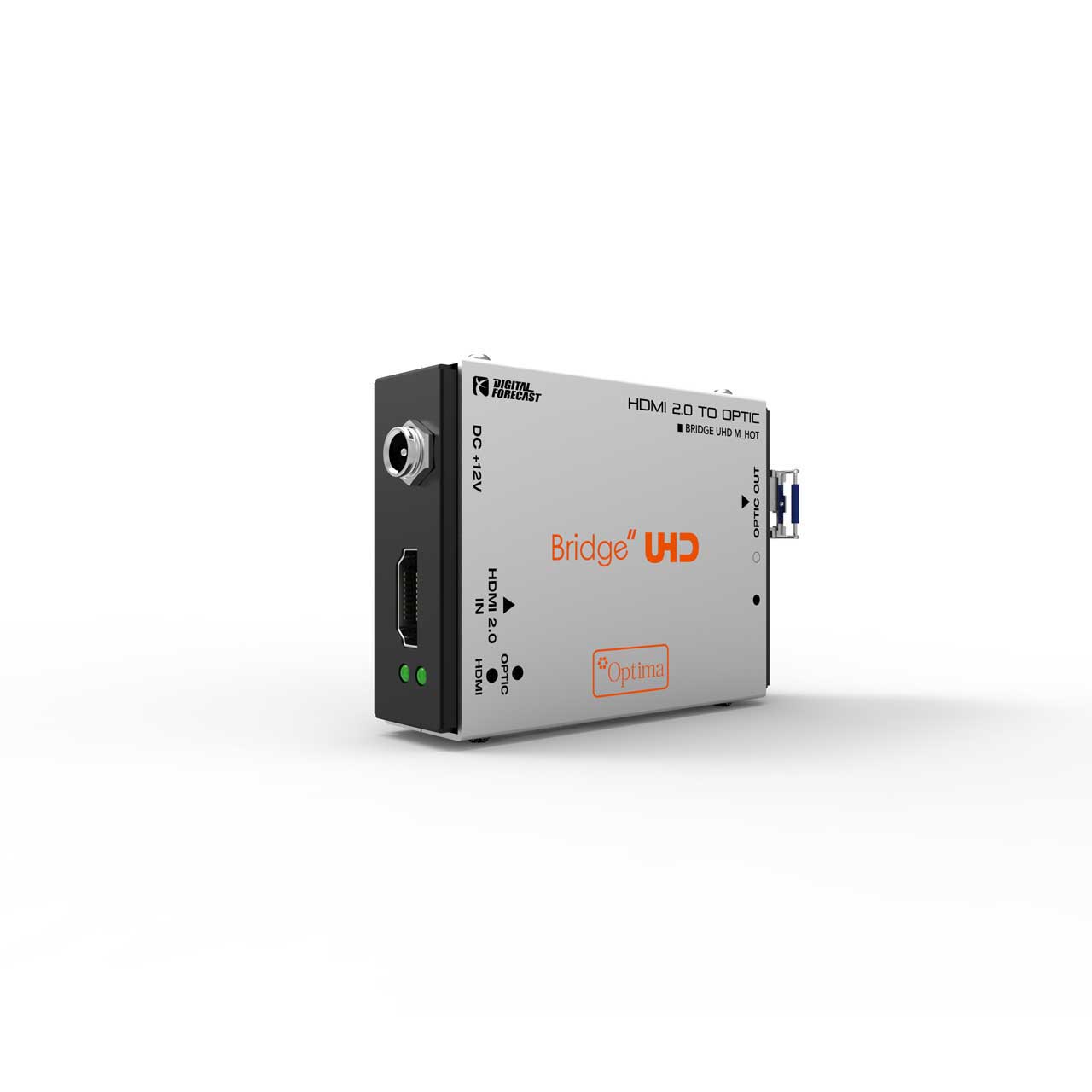

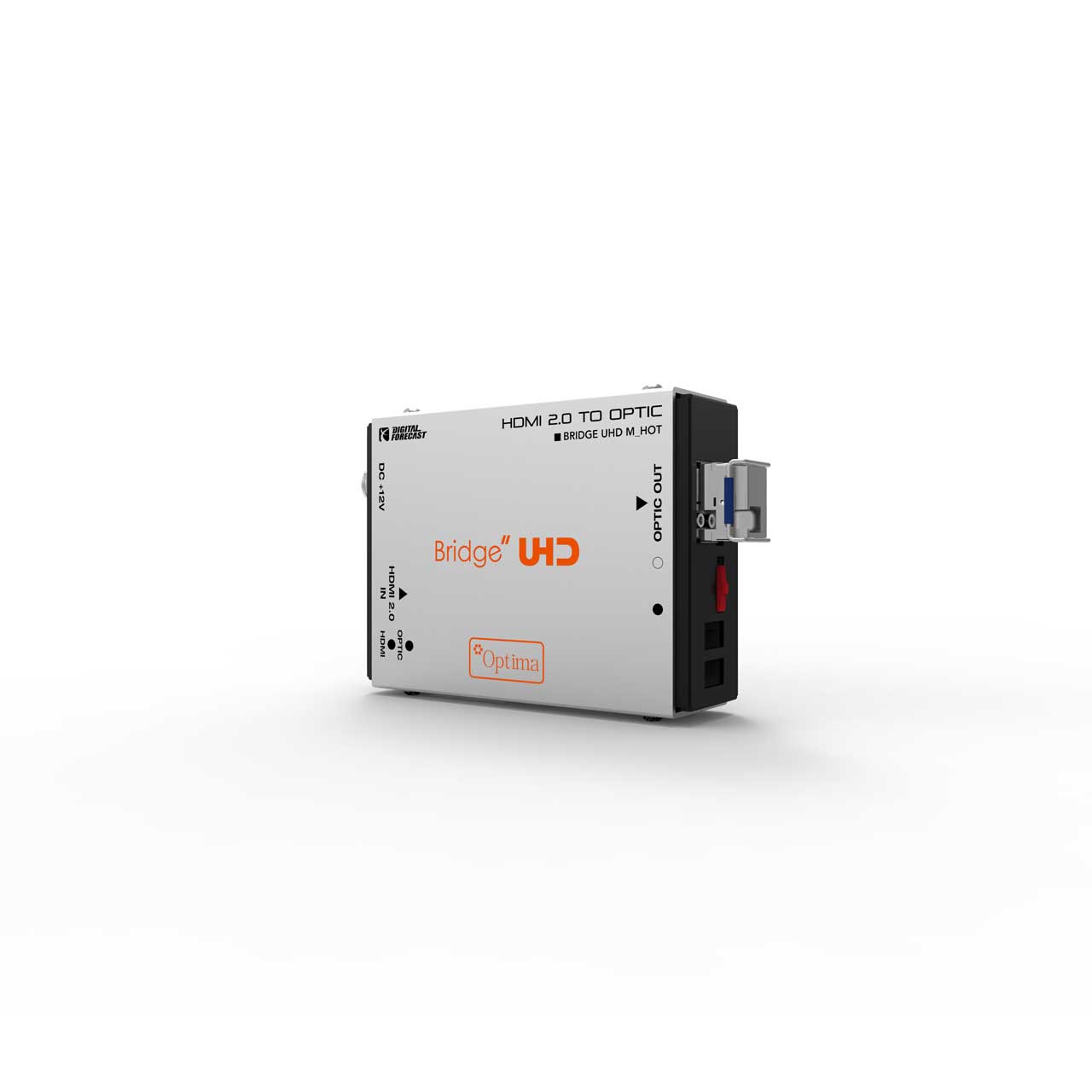

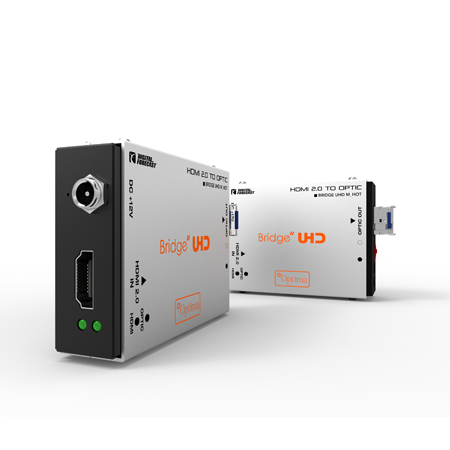

Digital Forecast UHD M-HOT HDMI 2.0 to Fiber Optic SingleMode Simplex LC Transmitter Extender- SFP Included

UHD M_HOT - Overview

• Features:

  • HDMI 2.0 (720p-2160p60) input
  • Optima Optic Module SFP
  • Chroma Format 4:2:2 10bit
  • LC single mode, max 10Km
  • 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)


• Specifications:

  • Physical:
  • Dimension (W x H x D): 80 x 59.4 x 22.5 (mm)
  • Weight: 110g
  • Power Level: 7V ~ 16 VDC
  • Power Consumption: 6.2 Watts (Max: 7 Watts)
  • Operating Temperature: 0°C ~ 55°C
  • Humidity: 0 to 95% RH, non-condensing
  • Data Rate: Max 600Mhz
  • Signal Level: 800mVp-p +/- 50m

    Digital Video Specs:
  • HD: 720P (60/59.94/50), 1080i (60/59.94/50), 1080P (23.98/24/25/29.98/30)
  • FHD: 1080P (60/59.94/50)
  • 2K4K: 2160p (23.98/24/25/29.98/30)
  • 4K: 2160p (60/59.94/50)

    Optical Spec:
  • Type: Small Form-Factor Pluggable (SFP)
  • Power: 3.3 V
  • Datarate: max 6G dual
  • Wavelength: 1310 nm, 1490 nm


• Warranty:

  • 2 Year Warranty
