Digital Forecast Bridge X-MC Multi Converter Converts Input CVBS AES/EBU SDI VGA Component Analog Audio & HDMI to Output

BRIDGE X-MC - Overview

• Features:

  • Up/Down/Cross/Scan converter
  • HDMI in/output
  • Audio Mux Function
  • Audio DeMux Function
  • User selectable output format
  • User selectable output ARC
  • Multiple standard video/audio signal (CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog Audio, HDMI)
  • Supports remote control(option)
  • 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)


• Specifications:

  • General Specs
  • Dimensions (W x H x D): 6 x 3.6 x .8 In
  • Weight: .46 lbs
  • Power Level: +12 VDC
  • Power Consumption: 10 Watts
  • Operating Temperature: -4°F ~ 158°F
  • Humidity: 0 to 95% RH, non-condensing

    Digital Video Specs
  • Supports HDMI v1.3 formats
  • Supports multi-rate SDI formats

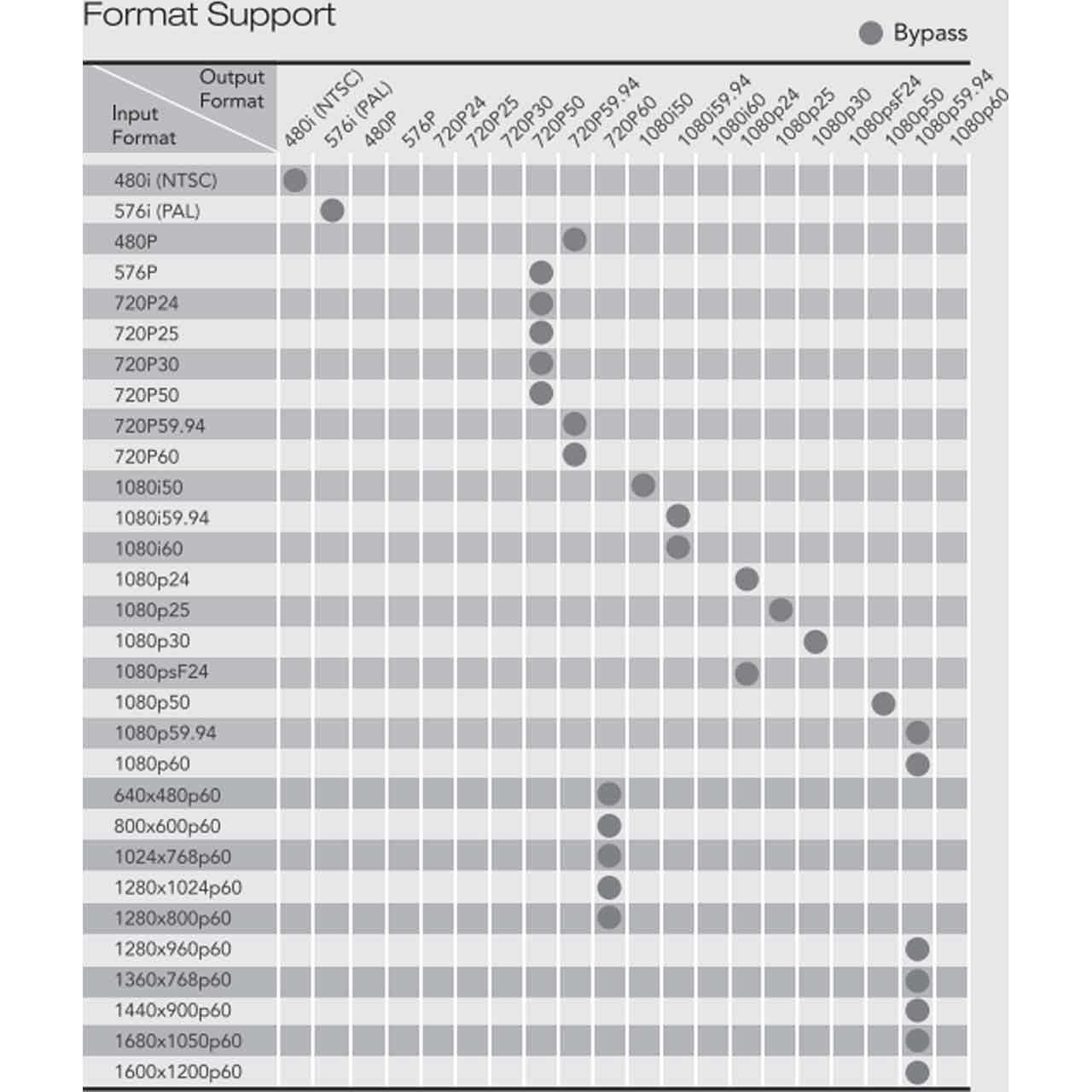

  • NTSC (480i 59.94), PAL (576i 50)720p (60/59.94/50) 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98) 1080p (60/59.94) 3G


• Item Includes:

  • 1x Bridge X_MC Multi Format Converter
  • 1x AC Adapter
  • 1x D-SUB to Component Gender
  • 1x Audio Stereo Jack


• Warranty:

  • 2 Year Warranty


• GTIN:

  0704006295537
