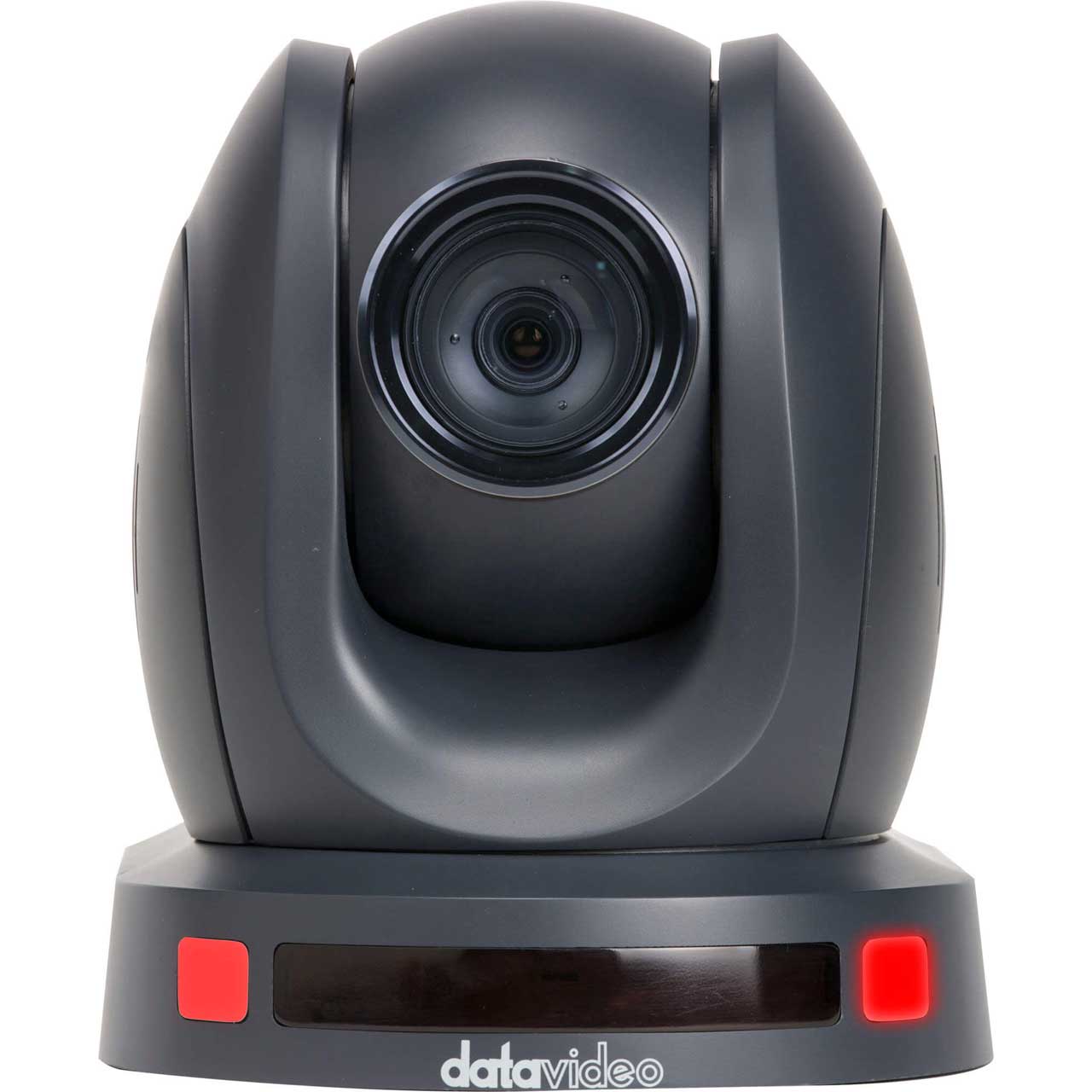

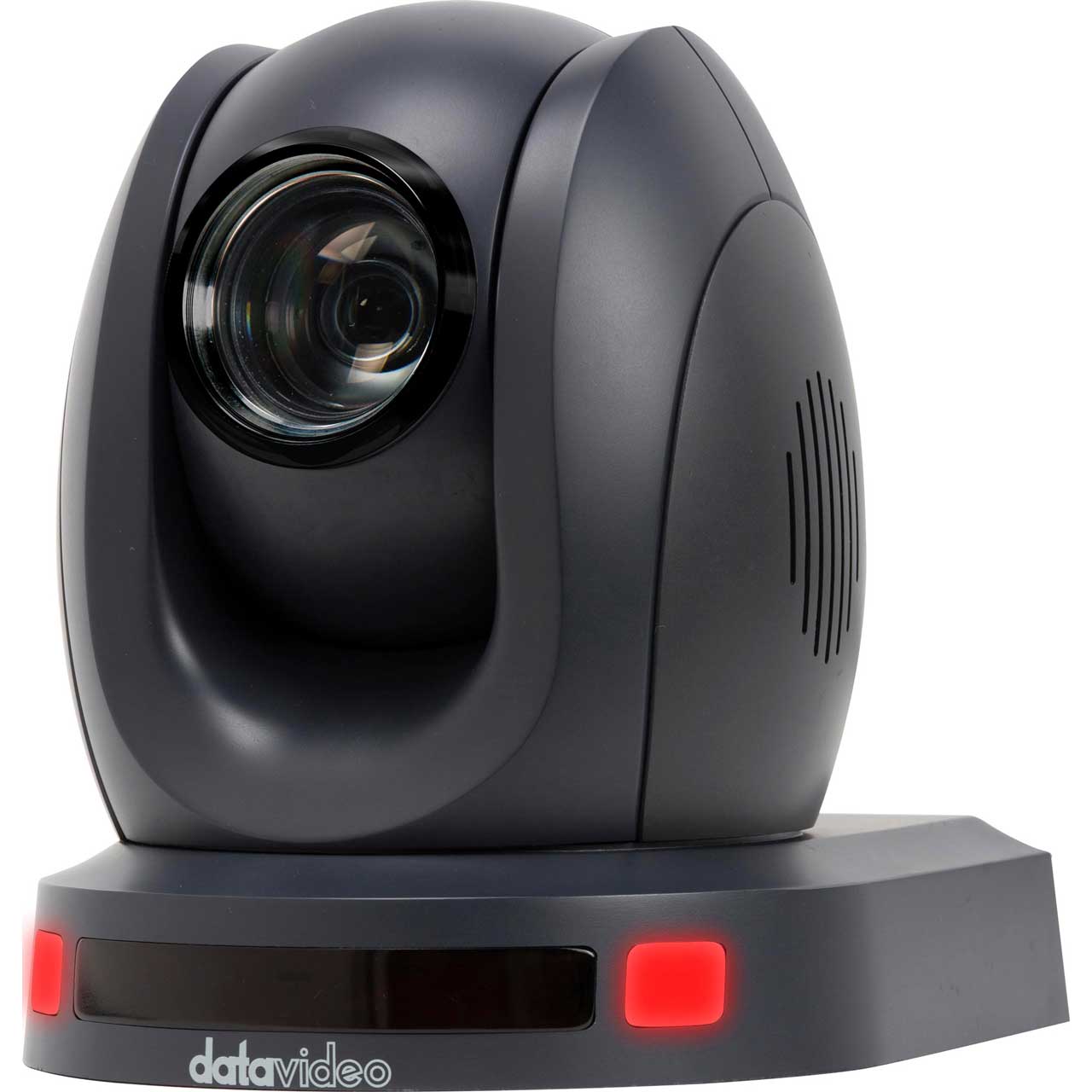

Datavideo PTC-140 20x HD/SD-SDI and HDMI PTZ Camera - Dark Blue

ITEM #: DV-PTC-140 MFG #: PTC-140

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTC-140 - Overview

The Datavideo PTC-140 is a cost-effective SDI/HDMI PTZ camera, which features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution 20x optical zoom, 10 digital zoom allows you to mount it near or far and still get great, sharp shots. The PTC-140's onboard streaming encoder can encode up to 2 simultaneous streams to any cloud service, including Datavideo's own DVS-200. It supports H.264 /H.265 video compression and dual stream output. Advanced 2D/3D noise reduction function supports advanced digital noise reduction, even in less-than-perfect lighting conditions. The PTC-140 can use Datavideo RMC-300C and RMC-180 as the controllers for distant controlling.

  • Features:

    • 1/2.8 inch CMOS sensor.
    • Resolution is up to 1920x1080 with frame rate up to 60fps
    • 20x Optical Zoom, 10x Digital Zoom
    • Simultaneously video output: SDI and HDMI
    • Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness
    • Audio 3.5mm Line Input Interface
    • Dual color Tally light included
    • Camera preset position: 255
    • Support 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding
    • Supports H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression
    • Multiple Network Protocol: support RTSP, RTMP protocols, easy to link streaming media server
    • Remote controllable by RMC-300C and RMC-180 PTZ Camera Controller
    • Support upside down installation and image flipping

  • Specifications:

    • Video format: 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/50/30/25/59.94/29.97
    • Image Sensor: 1/2.8 inch high quality HD CMOS Sensor
    • Effective Pixels (approx.): 2.07 Mega pixels
    • S/N Ratio: >55dB
    • Min. Illumination: 0.5Lux (F1.8, AGC ON)
    • Electronic Shutter: Auto/ Manual
    • Zoom Ratio: 20 x Optical Zoom 10 x Digital Zoom
    • Gamma Control: Off/ Normal
    • Iris Control: Auto/ Manual
    • Digital Noise Reductions: Yes
    • On-Screen Display (OSD): English, Simplified Chinese
    • White Balance: Auto/Manual/OnePush/3000K/4000K/5000K/6500K
    • AGC / Gain Control: Auto/ Manual0
    • Mirror / Flip Image: Yes
    • Focus Mode: Auto / Manual
    • Panning/Tilting Range Pan: 340°
    • Tilt: +90° to -30°
    • Panning/Tilting Speed Pan: 0.1~60°/sec
    • Tilt: 0.1~30°/sec
    • Presets: 255 Position
    • Focal Length: f=5.2 (wide) ~98 (tele) mm F1.6 to F3.5
    • Field of View (Horizontal, Wide): Approx. 54.7° (wide) / 3.3° (tele)
    • Video Compensation Format: H.264, H.265, Dual Stream Output

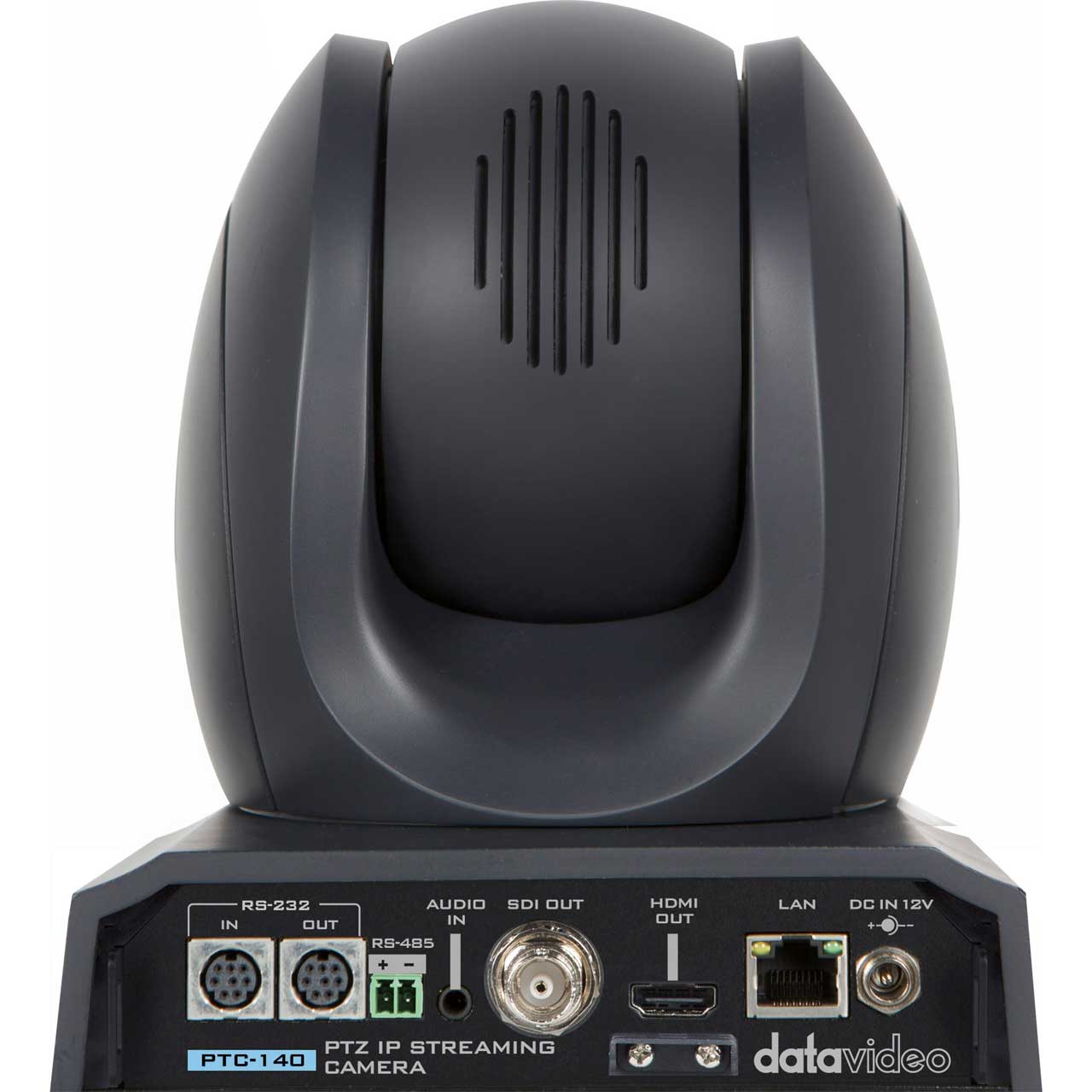

    • Video Output: SDI x 1 HDMI x 1
    • Audio Input: 3.5mm Line In
    • Audio Compression Format: AAC/ MP3/ PCM Audio Compression
    • Tally LED: Dual Color (Red, Green)
    • Filter: M52.0 x 0.75 Thread with UV Protection
    • Protocol: RTSP, RTMP
    • Camera Control Unit: RMC-300C
    • Dimension (H x W x D): 185.8 x 156 x 181.9mm
    • Weight: 1.62 Kg
    • Size of Screw Hole for Tripod: 1/4-20 UNC
    • Color: Dark Blue

  • Item Includes:

    • 1x PTC-140 Unit
    • 1x IR remote controller
    • 1x PTC-140 Thank You Card
    • 1x Ceiling mount bracket -A
    • 1x Ceiling mount bracket -B
    • 6x Ceiling mount bracket screw M3*4mm
    • 1x DC 12V Power Adaptor
    • 1x Power Cord
    • 1x A tightrope

  • GTIN:

    0672255008256
