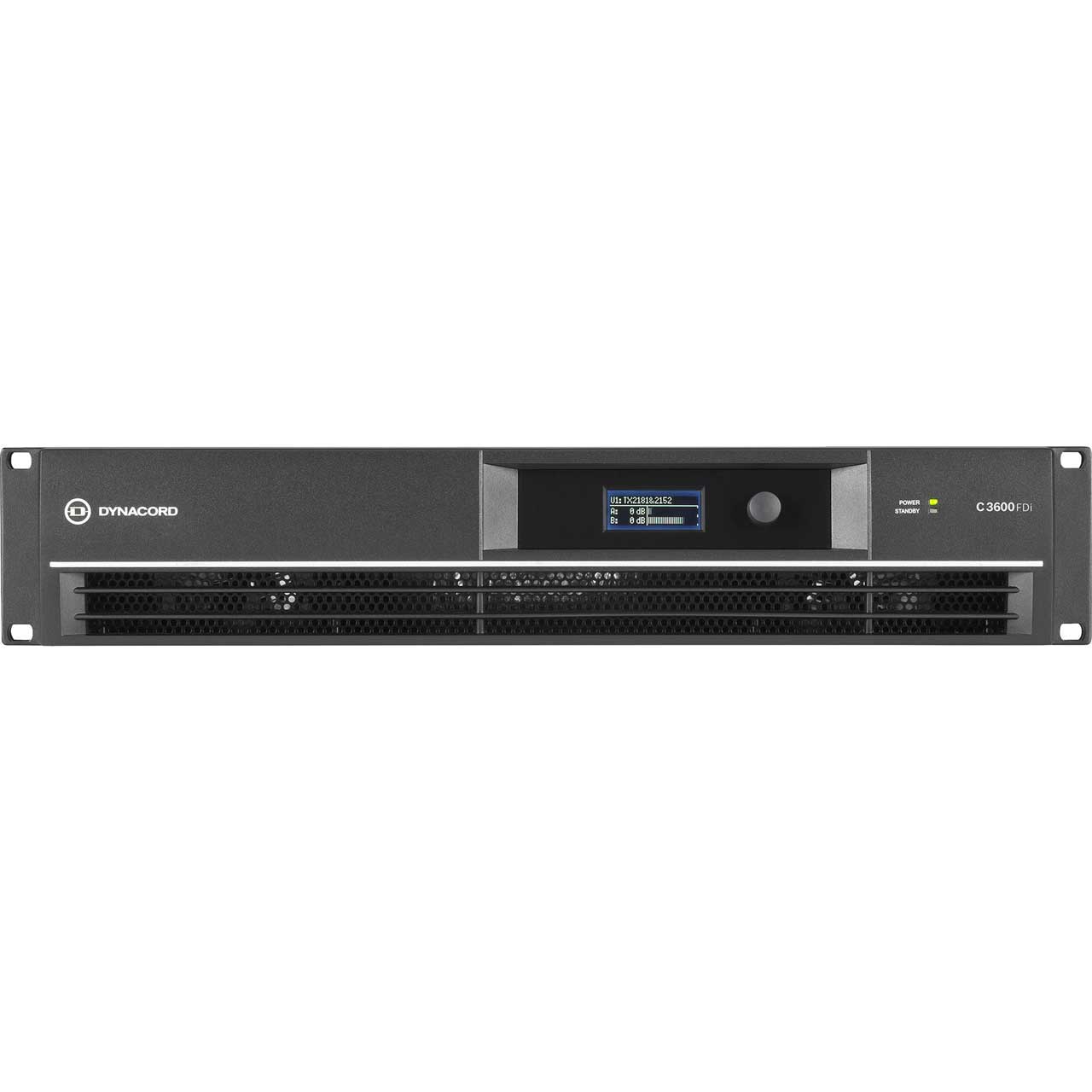

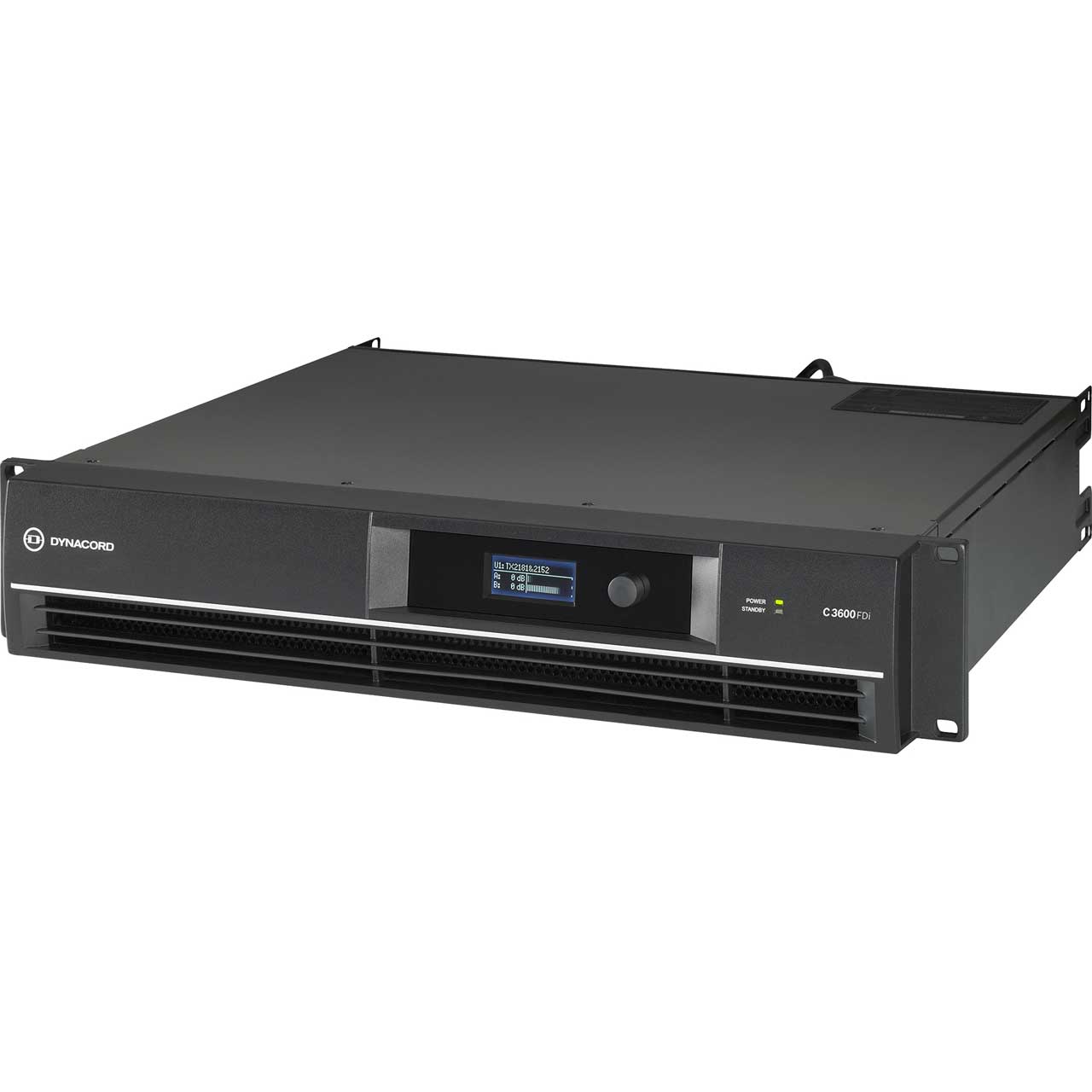

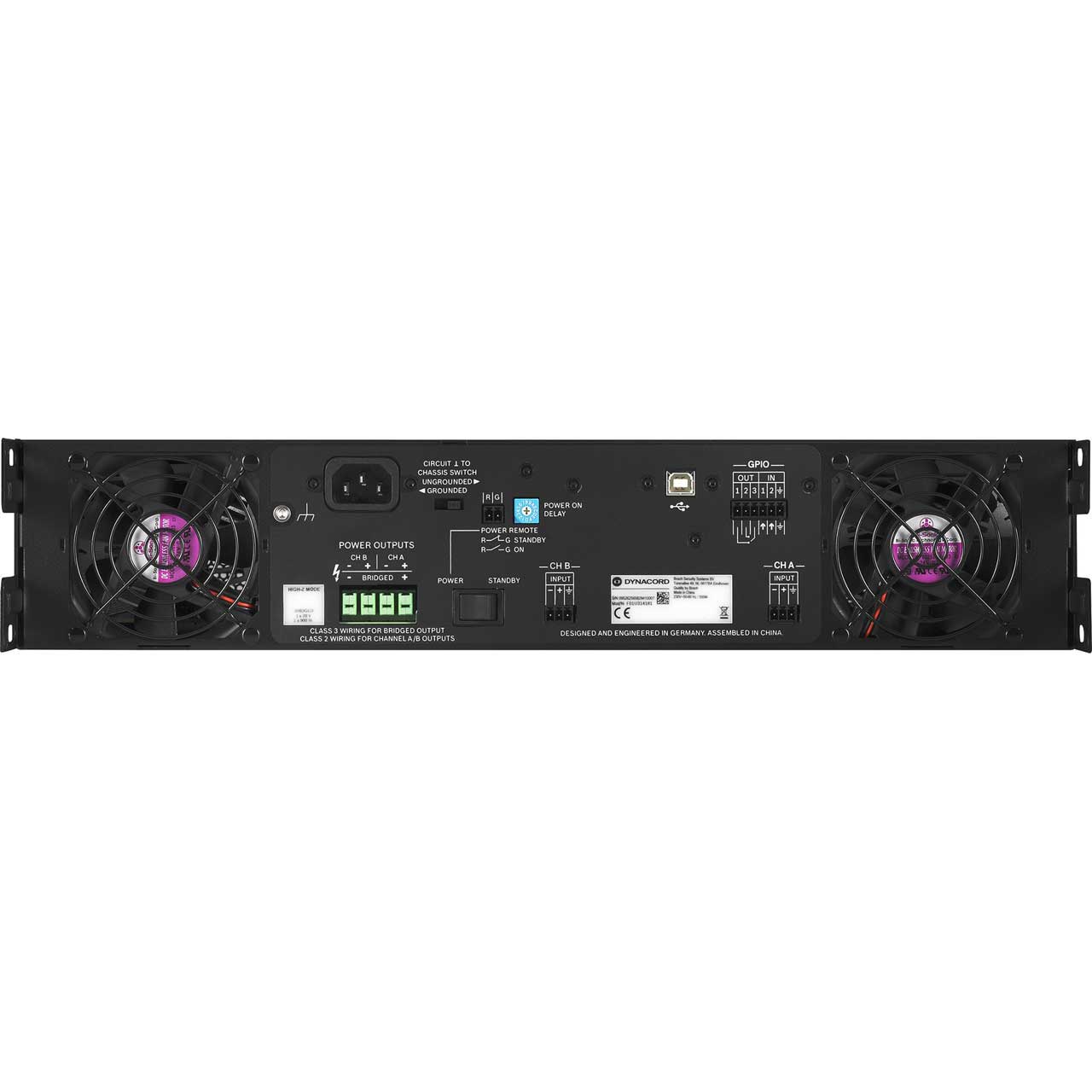

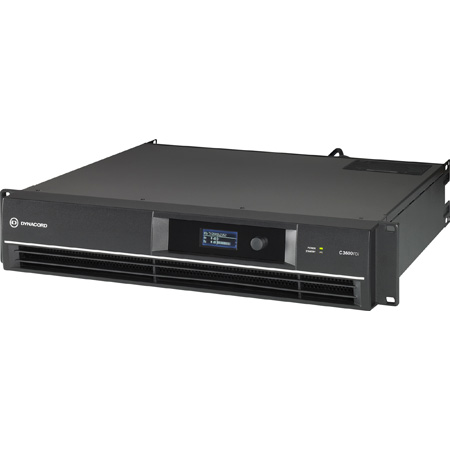

Dynacord C3600FDI-US RD DSP Power Amplifier 2 x 1800W Install with FIR Drive - Phoenix Connectors

ITEM #: DYN-C3600FDI-US MFG #: C3600FDI-US

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$2,335.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


C3600FDI-US - Overview

Dynacord C3600FDI-US C Series amplifiers are dedicated installation DSP amplifiers optimized for 24/7 operation. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. C Series amplifier utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of fixed install applications. For low cost of ownership a power saving standby mode is available. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

  • Features:

    • Professional Installation DSP amplifier
    • Fully integrated professional speaker processing with FIR Drive technology
    • Market leading acoustic performance and rock solid reliability
    • Intuitive system control software, makes setup and control easy

  • Specifications:

    • Load Impedance: 2Ω, 2.7Ω, 4Ω, 8Ω
    • Maximum Output Power, Single Channel: 3200W, 2700W, 1800W, 950W
    • Maximum Output Power, Dual Channel: 3000W, 2500W, 1700W, 900W
    • Maximum Output Power, Bridged: 6000W, 3400W
    • Maximum RMS Voltage Swing THD = 1%, 1 kHz: 90.6 V
    • Voltage Gain Ref.1 kHz: 32.0 dB
    • THD at 450 W/4 Ω MBW = 80 kHz, 1 kHz: < 0.05%
    • IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
    • DIM30, 3.15 kHz, 15 kHz: < 0.05%
    • Maximum Input Level: +21 dBu
    • Crosstalk ref. 1 kHz, at 100 W/4 Ω: < -80 dB
    • Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (±1 dB)
    • Input Impedance, Active Balanced: 20 k Ω
    • Output Noise, A-weighted: < -68 dBu
    • Output Stage Topology: Class H
    • Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz

  • Item Includes:

    • 1x DSP Amplifier
    • 1x Power Cable
    • 1x Manual

  • Warranty:

    • 3 years

  • GTIN:

    0787907982898
