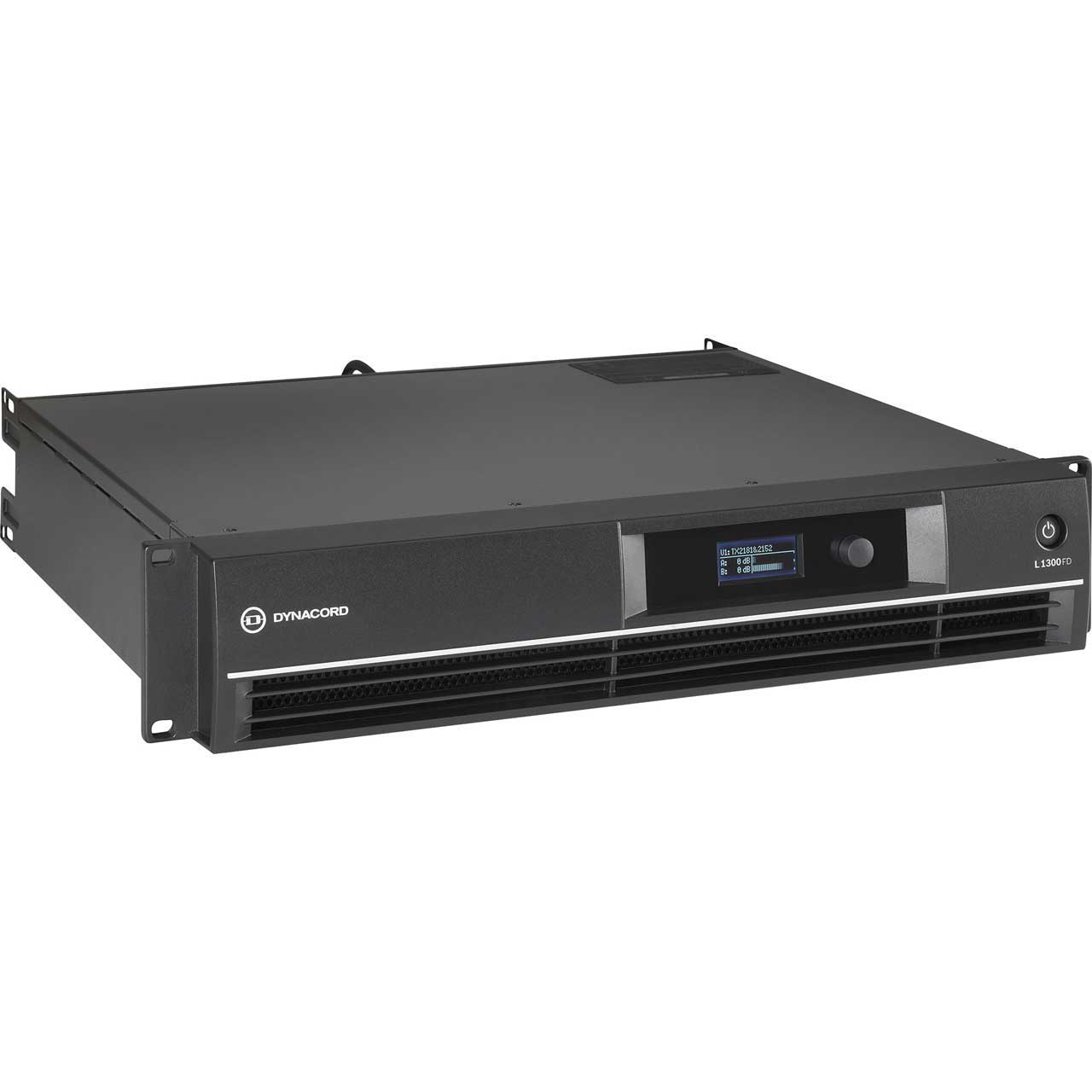

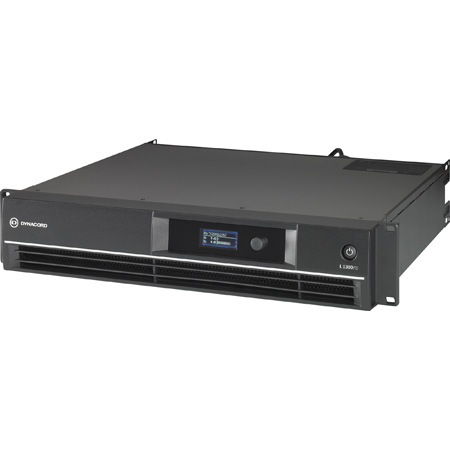

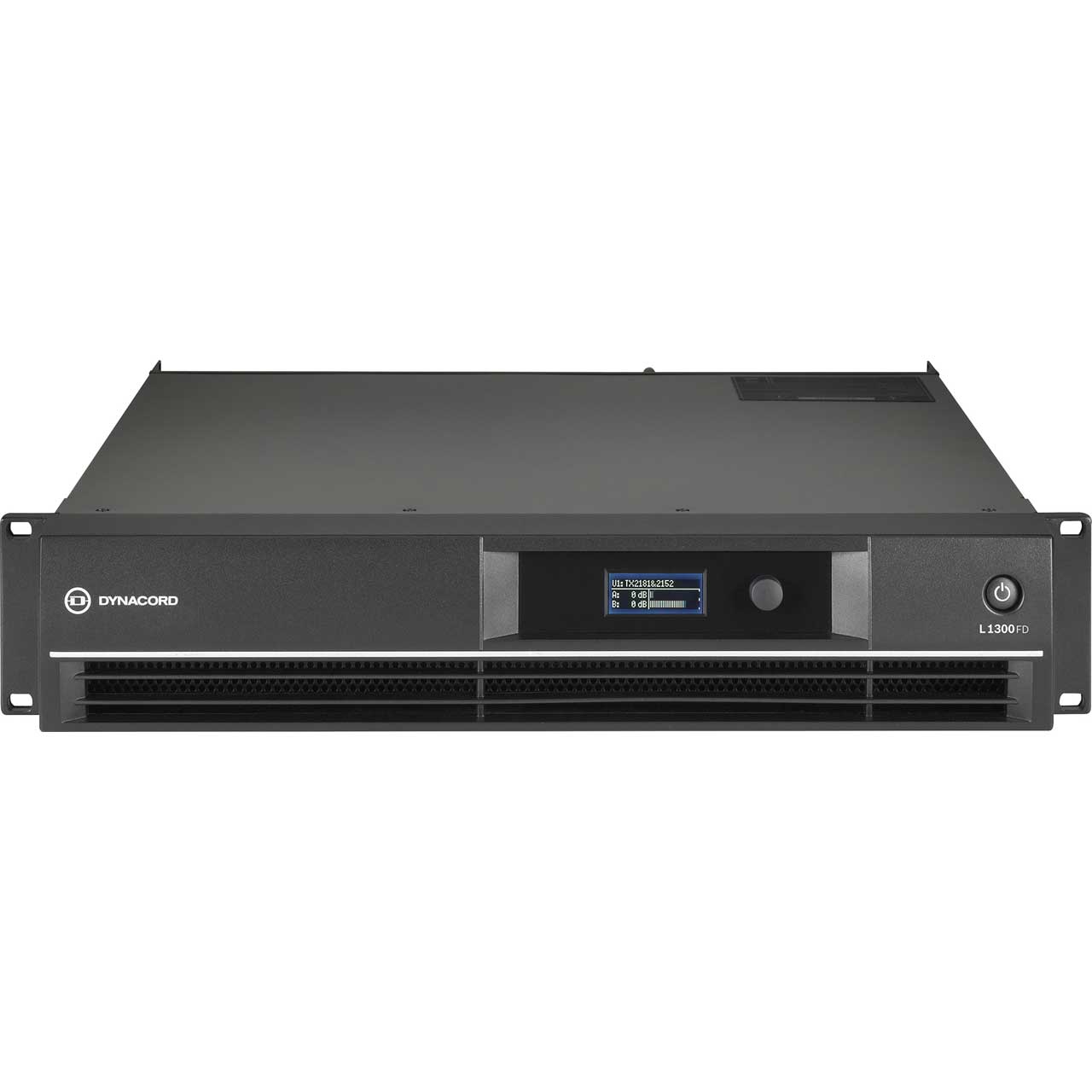

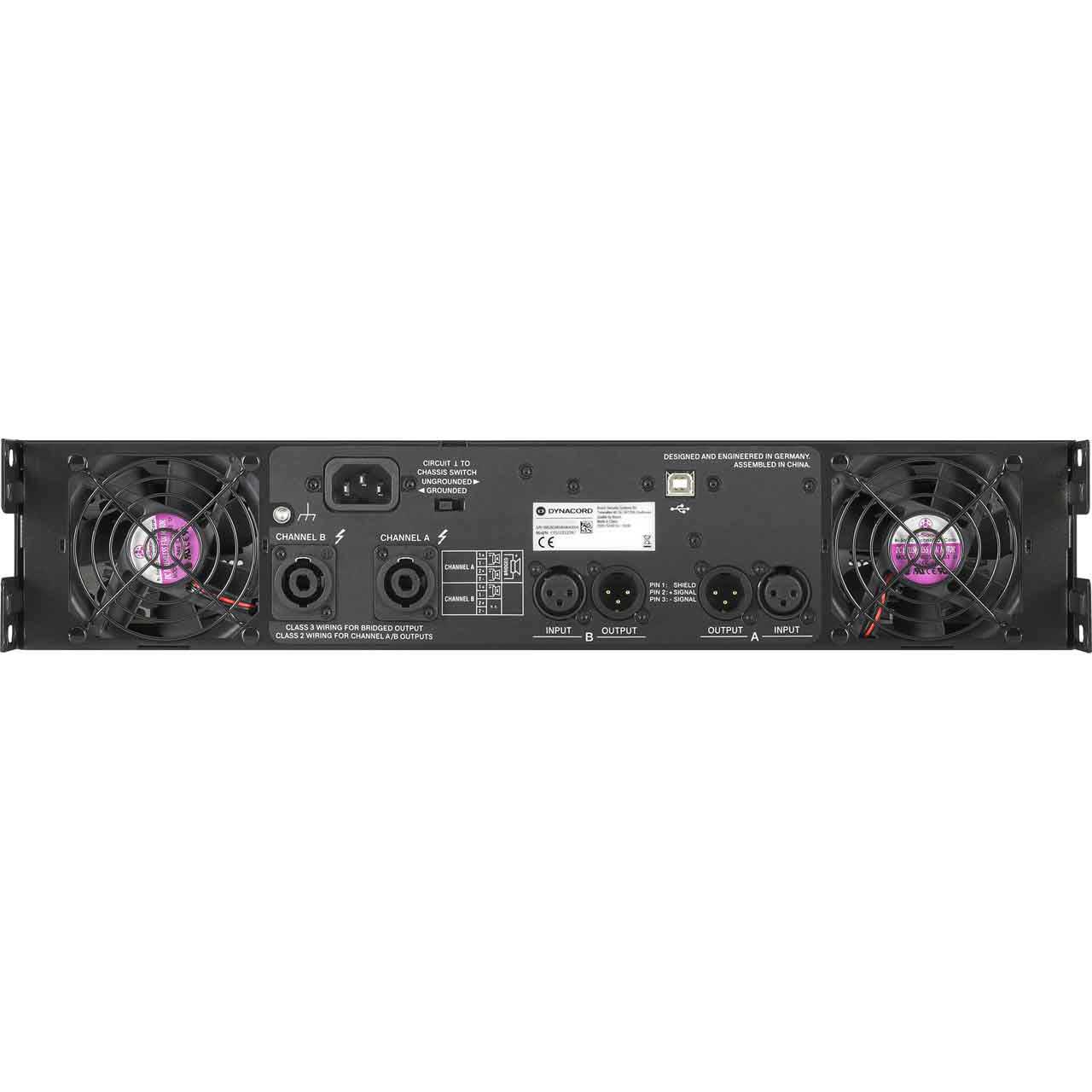

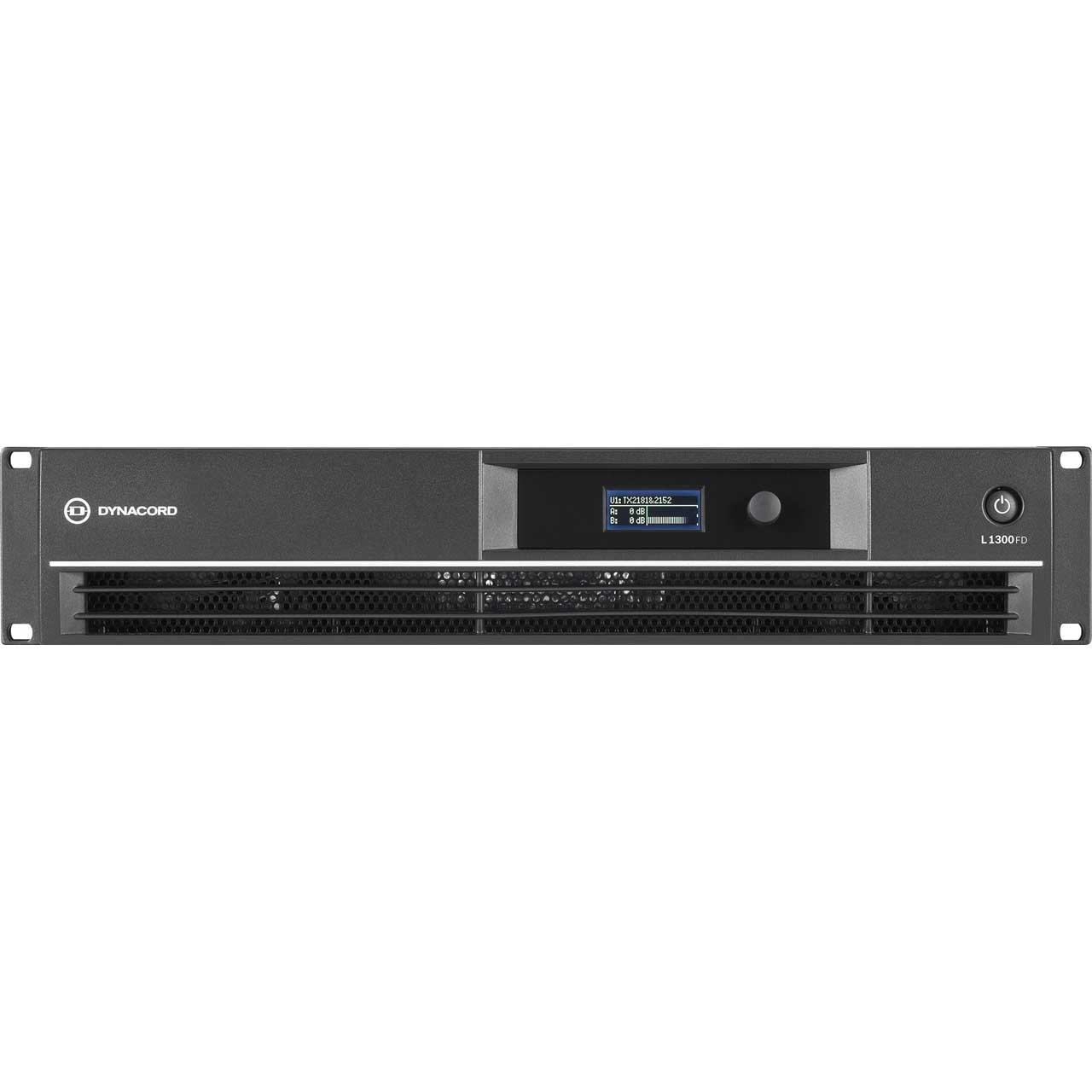

Dynacord L1300FD-US DSP Power Amplifier 2 x 650W with FIR Drive - XLR/NL4 Connectors

L1300FD-US - Overview

• Features:

  • Professional DSP amplifier for live and mobile application
  • Fully integrated professional speaker processing with FIR Drive technology
  • Market leading acoustic performance and rock solid reliability
  • Intuitive system control software, makes setup and control easy


• Specifications:

  • Load Impedance: 2Ω, 2.6Ω, 4Ω, 8Ω
  • Maximum Output Power, Single Channel: 1100W, 950W, 660W, 350W
  • Maximum Output Power, Dual Channel: 1000W, 850W, 600W, 320W
  • Maximum Output Power, Bridged: 2000W, 1200W
  • Maximum RMS Voltage Swing THD = 1%, 1 kHz: 55.3 V
  • Voltage Gain Ref.1 kHz: 32.0 dB
  • THD at 450 W/4 Ω MBW = 80 kHz, 1 kHz: < 0.05%
  • IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
  • DIM30, 3.15 kHz, 15 kHz: < 0.05%
  • Maximum Input Level: +21 dBu
  • Crosstalk ref. 1 kHz, at 100 W/4 Ω: < -80 dB
  • Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (Ý1 dB)
  • Input Impedance, Active Balanced: 20 k Ω
  • Output Noise, A-weighted: < -68 dBu
  • Output Stage Topology: Class AB
  • Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz


• Item Includes:

  • 1x DSP Amplifier
  • 1x Power Cable
  • 1x Manual


• Warranty:

  • 3 years


• GTIN:

  0787907982942
