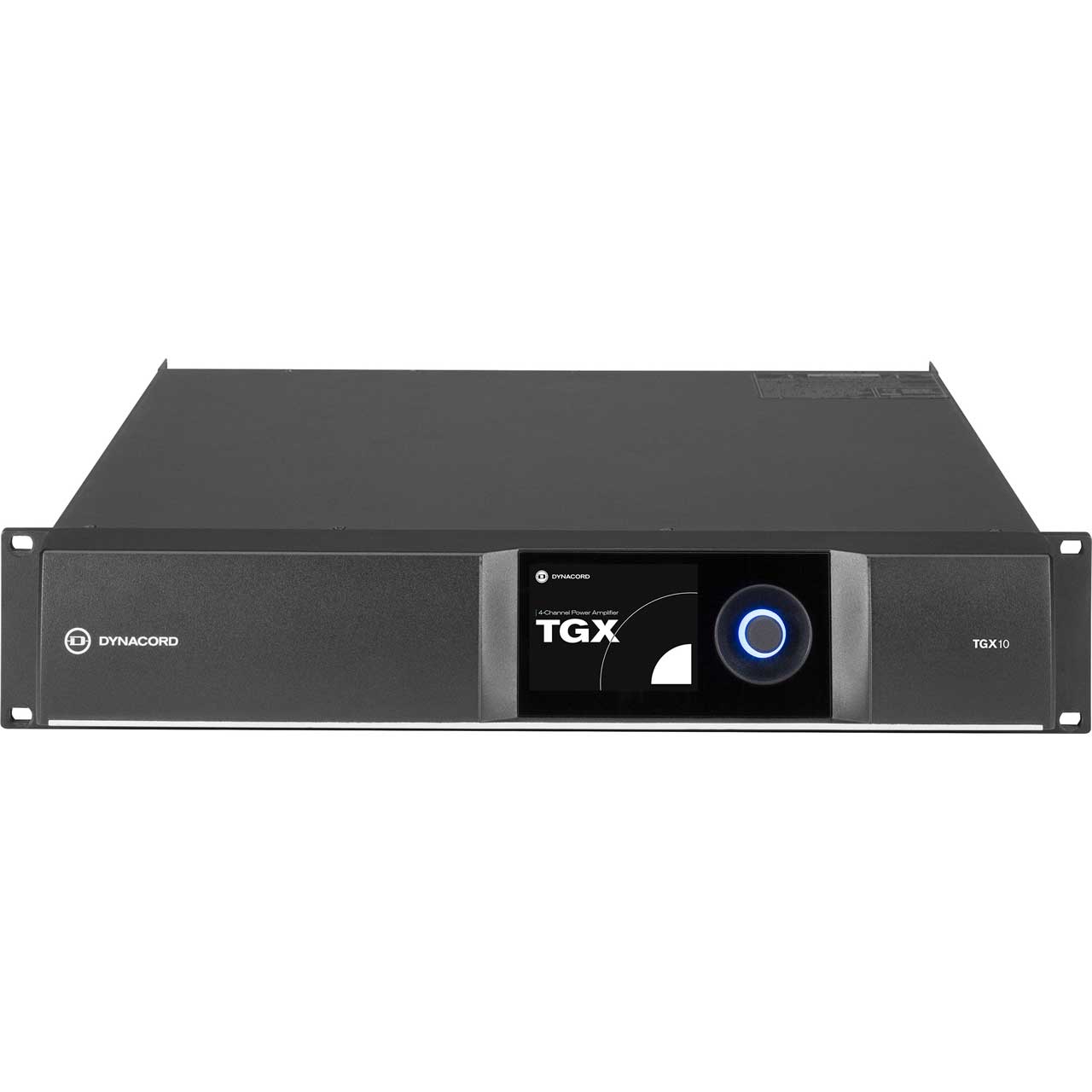

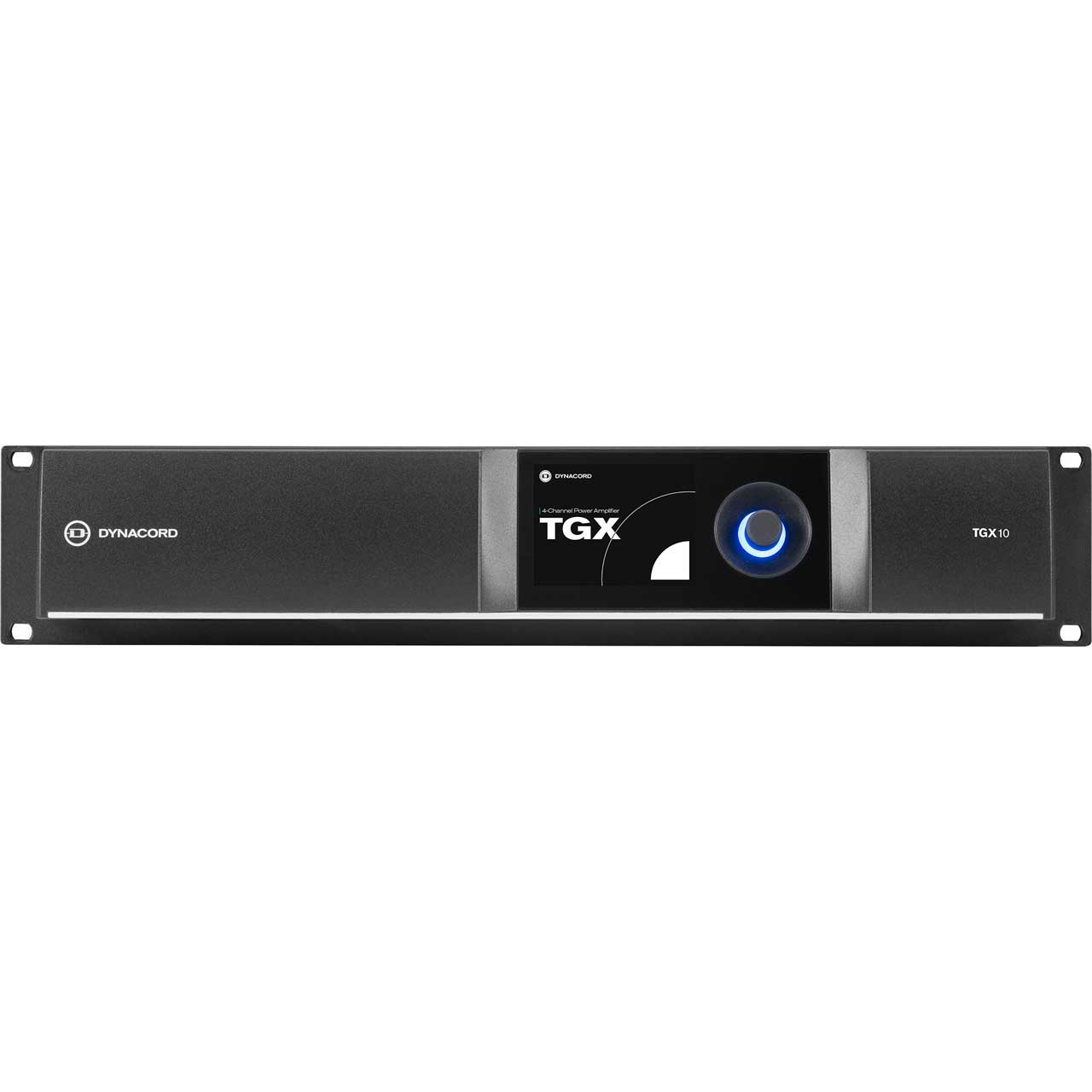

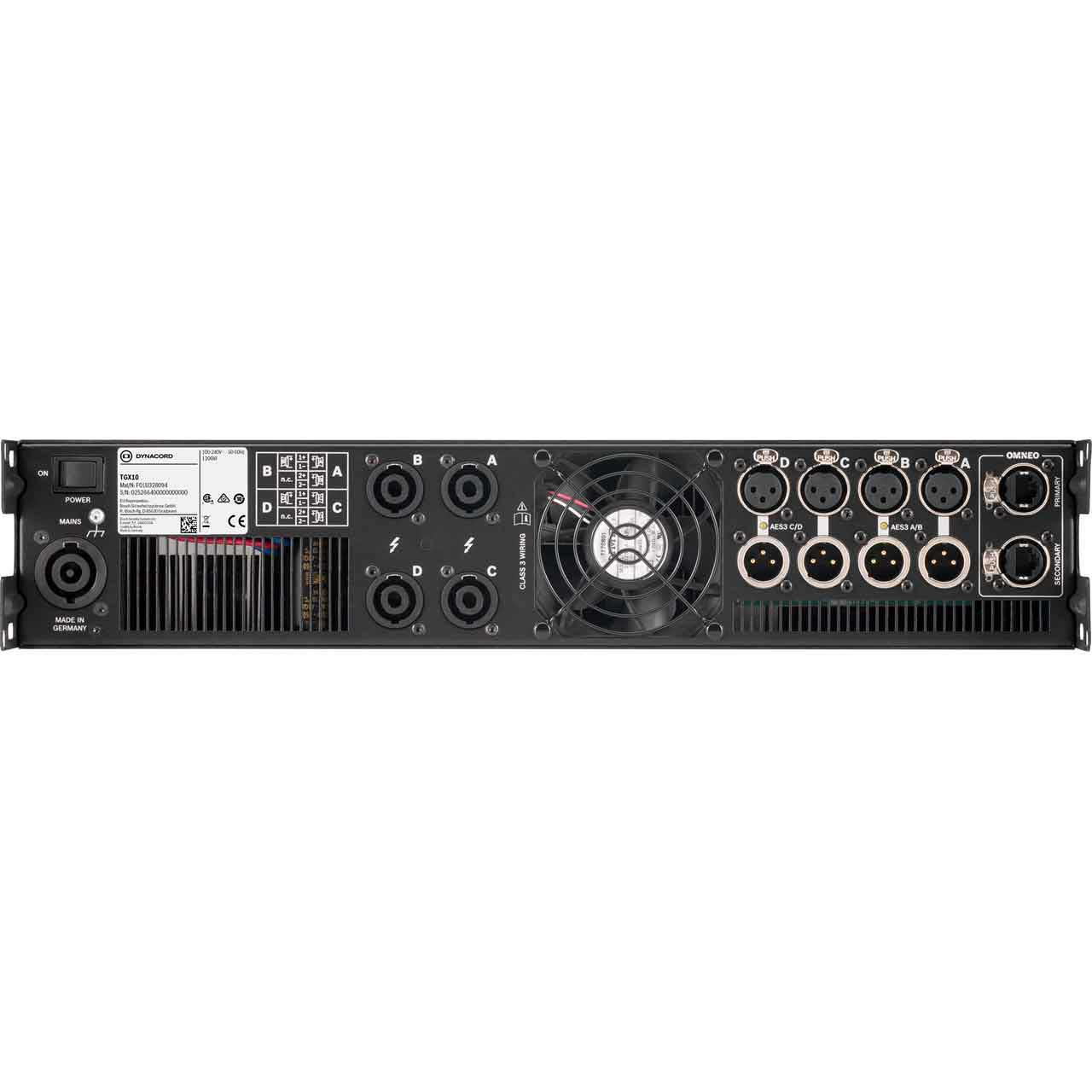

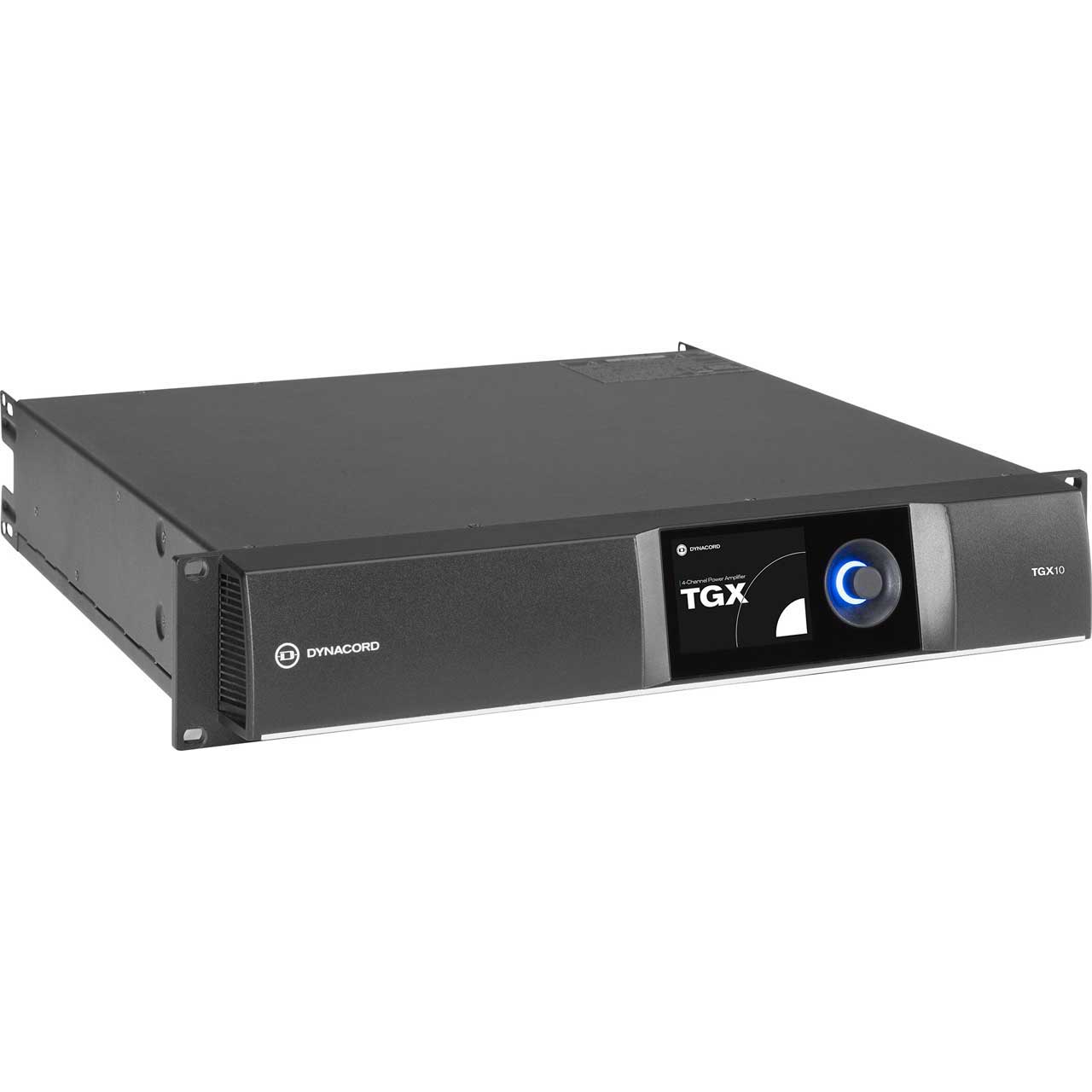

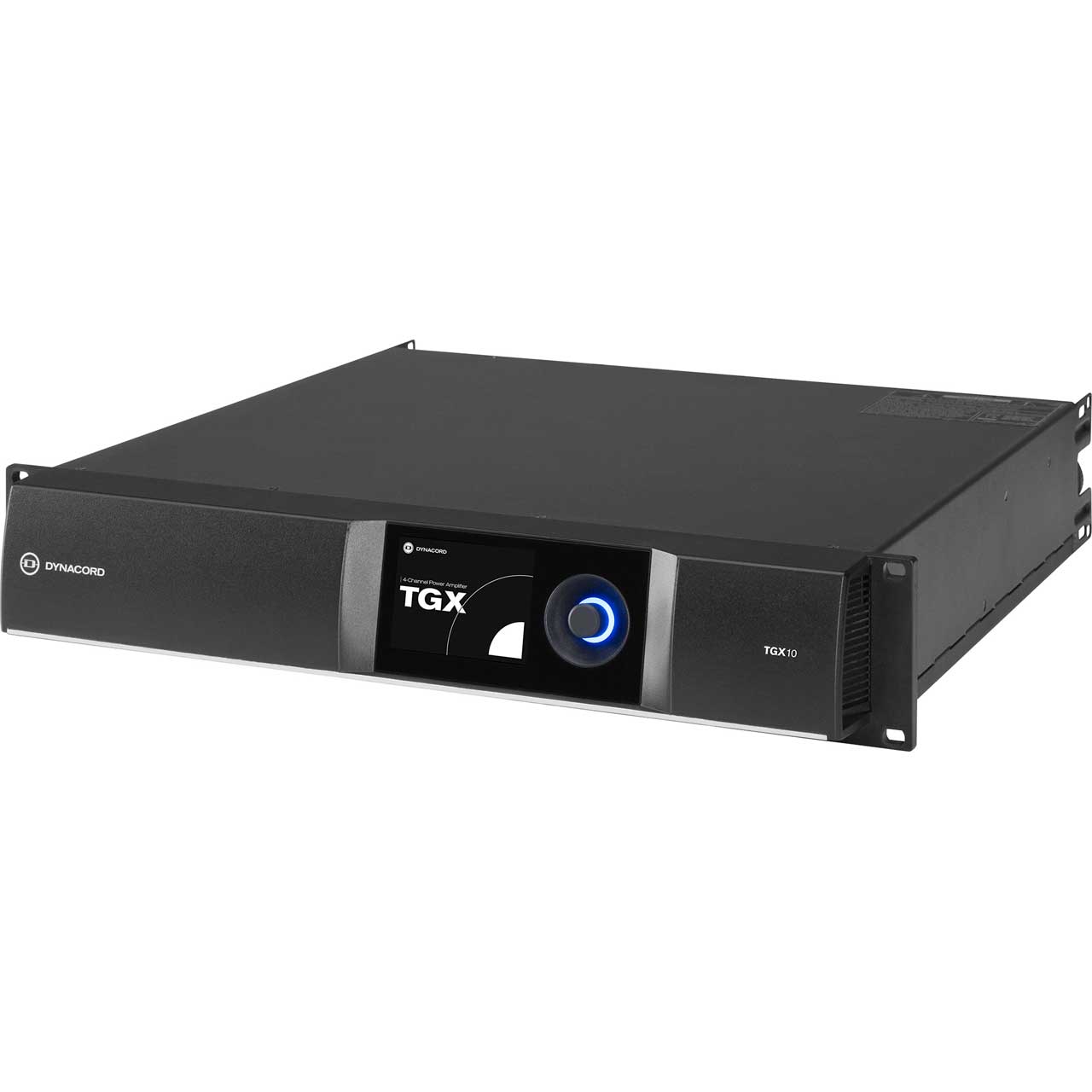

Dynacord TGX10 4 x 2500W DSP Amplifier with OMNEO - AES/EBU

ITEM #: DYN-TGX10 MFG #: TGX10

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Dynacord
Free Shipping with $49 Minimum Order

Our Price:

$10,379.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

TGX10 - Overview

Dynacord TGX10 TGX 4-channel live sound amplifiers from Dynacord are one of the most powerful on the market and represent the pinnacle of pro audio electronics engineering. Along with unprecedented power density, they offer Dynacord’s signature audio quality, advanced reliability and power efficiency. Engineered and manufactured in Germany, TGX amplifiers are built as the ultimate amplification solution for large-scale live performance sound applications. They embody several proprietary amplifier technologies developed by Dynacord engineering, one of the most experienced R&D teams in the audio industry.

  • Features:

    • 4-channel DSP amplifier for live applications
    • Power density of up to 10kW in 2RU
    • Fully integrated DSP with advanced 96 kHz processing and FIR Drive technology
    • OMNEO integration for seamless compatibility with Dante and OCA
    • Full color touch screen for control without software


  • Specifications:

    • Load impedance: 2Ω 2.7Ω 4Ω 8Ω
    • Maximum Output: Power: All channels driven: 2600 W 3000 W 2500 W 1250 W
    • Number of amplifier channels: 4
    • Maximum Output Voltage: 150 Vpeak
    • Damping Factor, 20 Hz to 200 Hz, 8Ω: > 400
    • Output Stage Topology: Class D, fixed frequency
    • A-weighted, analog input: 112 dB
    • A-weighted, digital input: 115 dB
    • A-weighted, analog input: < -70 dBu
    • A-weighted, digital input: < -73 dBu
    • Sampling rate: 48 kHz/96 kHz, OMNEO/Dante synchronized
    • Analog in to Speaker Out, 48 kHz/96 kHz: 0.70 ms/0.53 ms
    • AES3 in to Speaker Out, 48 kHz/96 kHz: 1.00 ms/0.66 ms
    • Dante Network Latency: typ. 1.00 ms
    • Signal Processing: 32/40 bit, floating point
    • Maximum Output Current: 53 Apeak
    • Voltage Gain ref.1 kHz: 32.0 dB, adjustable 24-40 dB
    • Input Sensitivity ref. to Max. Output Voltage: 10.7 dBu (2.66 V), adjustable 2.7-18.7 dBu
    • THD 3 dB below Max., AES17, 1 kHz: < 0.05 %
    • IMD-SMPTE, 60 Hz, 7 kHz: < 0.05 %
    • DIM100, 3.15 kHz, 15 kHz: < 0.15 %
    • Crosstalk ref. 1 kHz, 12 dB below Max., 8Ω: < -80 dB
    • Frequency Response ref. 1 kHz, analog in to speaker out: 20 Hz to 20 kHz (±0.5 dB)
    • DSP Presets: 1 Factory + 20 User
    • Speaker-Pool Presets: 30 speaker settings
    • Type: 4 x 3-pin XLR female/male
    • Maximum Input Level: +24 dBu
    • Input Impedance, active balanced: 20 kΩ
    • Reference level equal to digital input: +21 dBu for 0 dBFS


  • Item Includes:

    • 1x TGX 4-channel power amplifier
    • 4x M6x20 screw for rack mounting
    • 1x Installation manual
    • 1x Mains power connector, 32 A with safety & assembly instruction
    • 1x Safety instruction booklet


  • Warranty:

    • 3 years


  • GTIN:

    0787907980375
