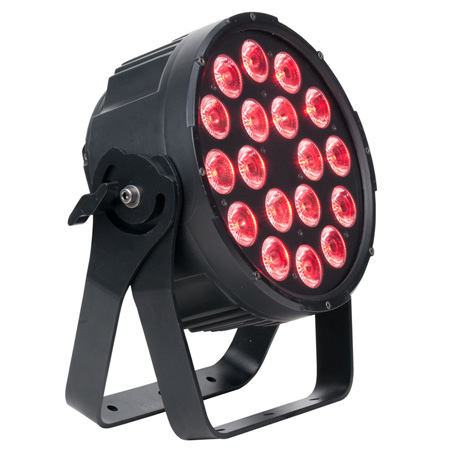

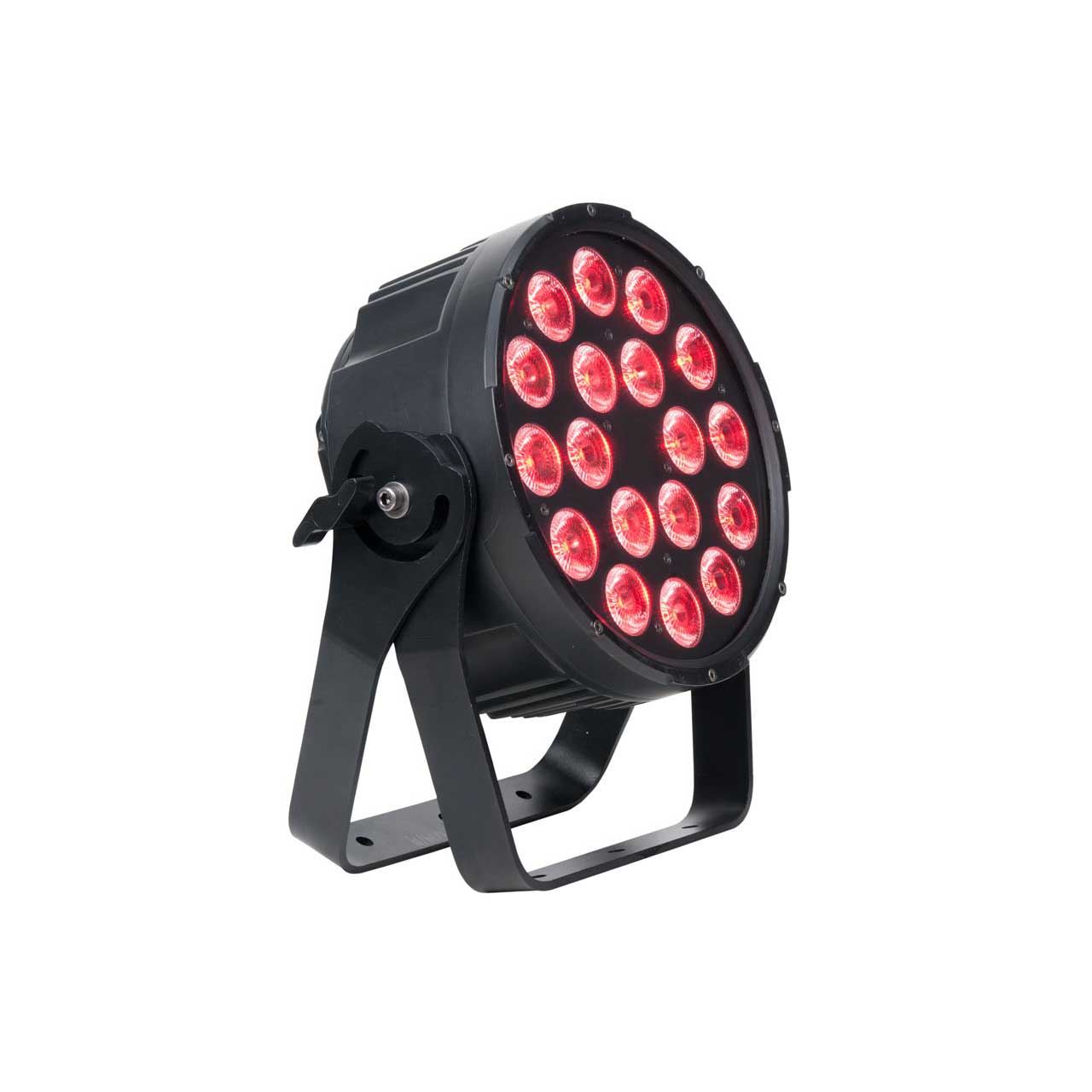

Elation Professional SIX062 Sixpar 300 6-In1 LED Par 18X12 Watt

SIX062 - Overview

• Features:

  • 15° Beam 25° Field Angles
  • 5 Variable Dimming Curve Modes
  • Dual Yoke / Floor Stand
  • Multiple Unit Power Linking
  • RDM Remote Device Management
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM


• Specifications:

  • SOURCE
  • (18) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 Hour Average LED Life*
  • *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


  • PHOTOMETRIC DATA
  • 24,500 LUX 2,276 FC @3.3’ (1m) (15° Full ON)
  • 8,500 LUX 790 FC @6.6’ (2m) (15° Full ON)
  • 3,950 LUX 367 FC @9.8’ (3m) (15° Full ON)
  • 2,150 LUX 200 FC @13.1’ (4m) (15° Full ON)
  • 1,350 LUX 125 FC @16.5’ (5m) (15° Full ON)


  • EFFECTS
  • Electronic Strobe
  • Color and Chase Macros
  • Electronic Dimming: 0% 100%
  • 5 Variable Dimming Curve Modes


  • CONTROL / CONNECTIONS
  • (4) DMX Channel Modes (6 / 7 / 8 / 12)
  • (4) Button Touch Control Panel
  • LCD Menu Display

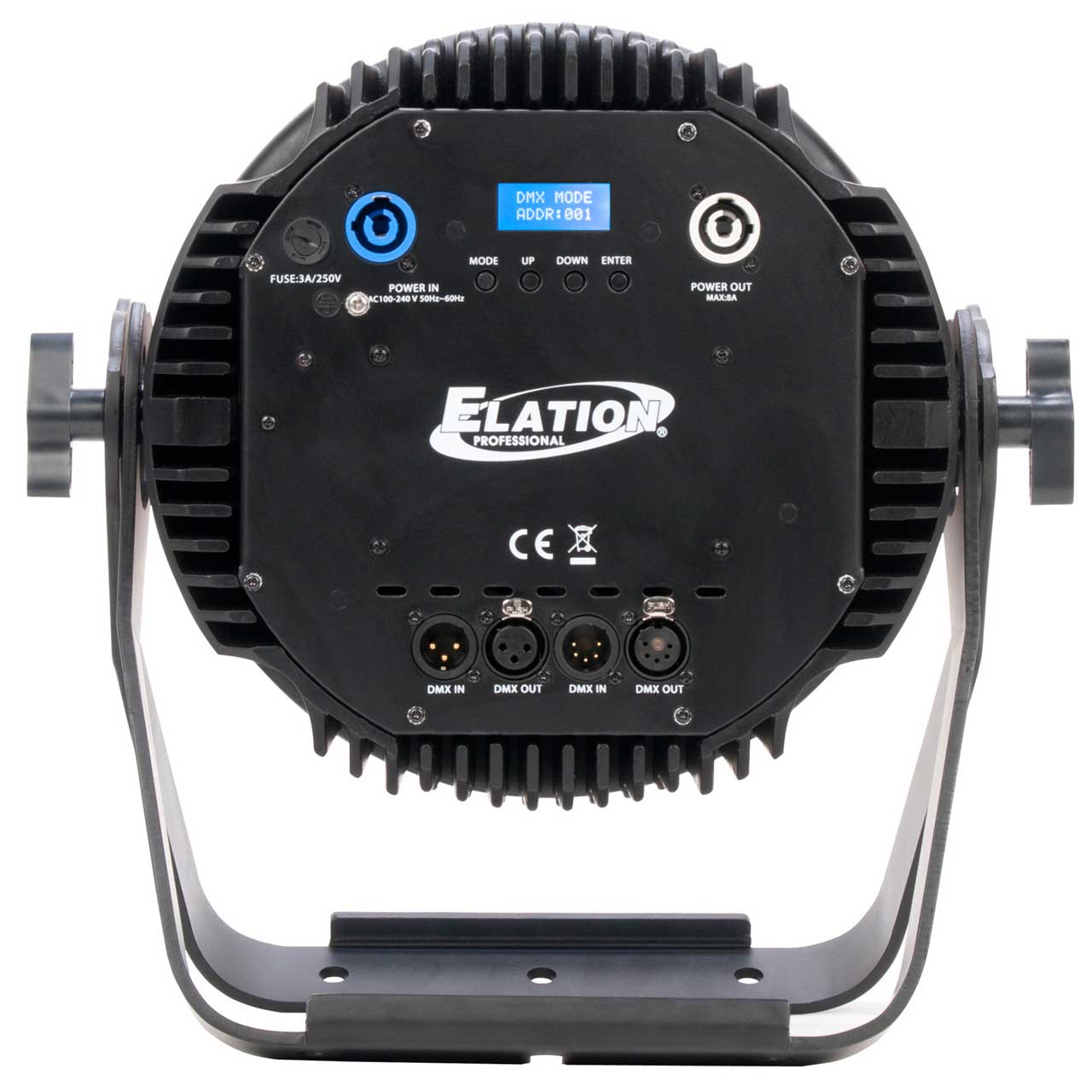

  • 3pin & 5pin DMX and powerCON In/Out


  • SIZE / WEIGHT
  • Length:14.4” (365mm)
  • Width: 4.9” (125mm)
  • Vertical Height: 14.4” (365mm)
  • Weight: 18.0 lbs. (8.1 kg)


  • ELECTRICAL / THERMAL
  • AC 110-250V 50/60Hz
  • 220W Max Power Consumption
  • Power Linking: 5pcs @110V / 10pcs @240V
  • 5°F to 113°F (-15°C to 45°C)
  • UV Wavelength: 395nm


  • APPROVALS / RATINGS
  • CE, cETLus, IP20


  • INSTALLATION

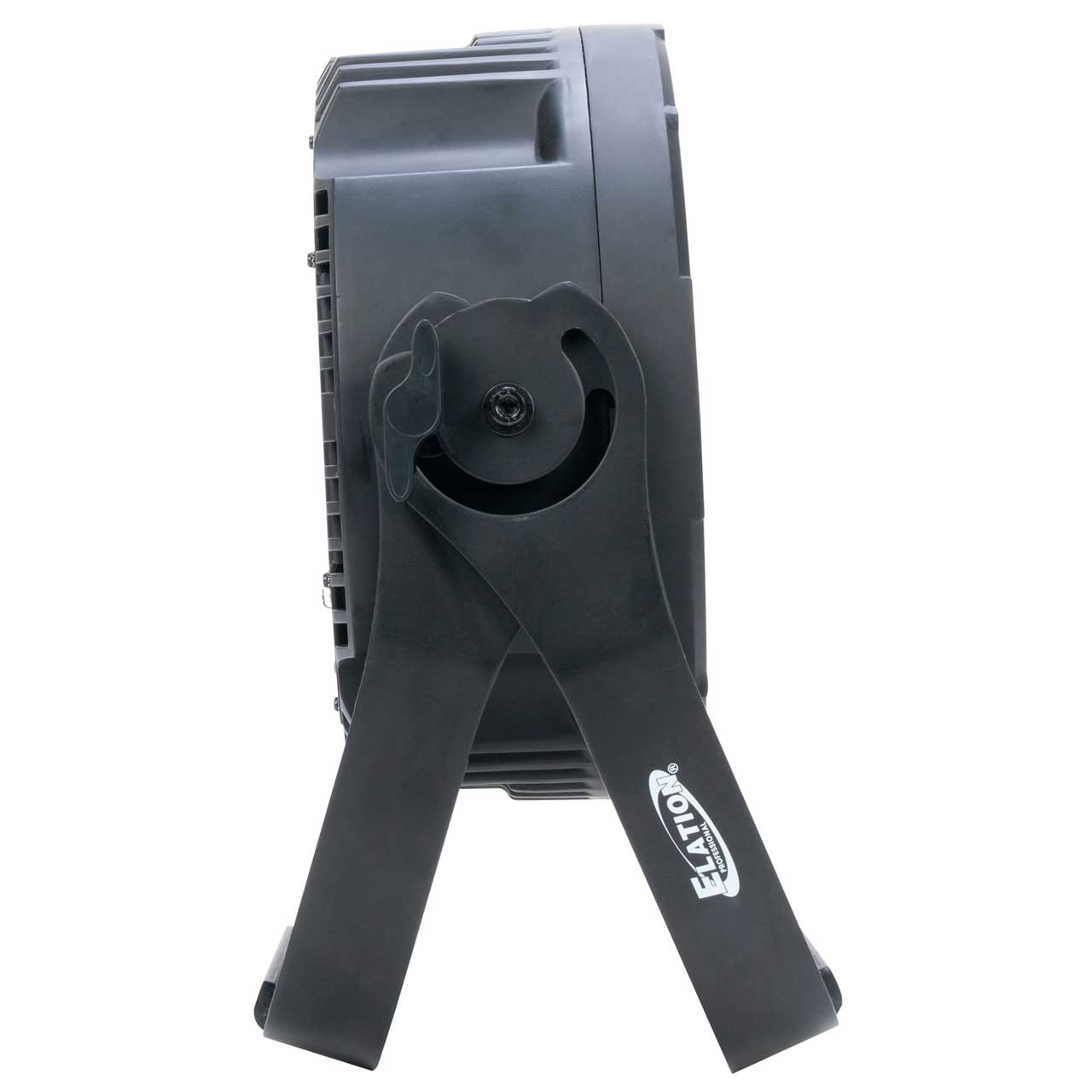

  • Rigging: Integrated Dual Yoke / Floor Stand
  • Working Position: Any (360°)


  • OPTIONAL ACCESSORIES
  • SIXPAR300/GFH Gel Frame and Holder Kit
  • SIXPAR/BD300 Barn Door


  • NOTE: Gel Frame and Holder Kit required to attach Barn Door.
  • (Sold separately)


• Warranty:

  • 2 Years


• GTIN:

  0837874018035
