Ensemble Designs BrightEye 43 1x6 3G HD-SDI ASI Distribution Amplifier

Name: Ensemble Designs BrightEye 43 1x6 3G HD-SDI ASI Distribution Amplifier
Brand: Ensemble Designs
SKU: ENDE-BE43
Price: 405.00 USD
Availability: PreSale

ITEM #: ENDE-BE43 MFG #: BE43

Ensemble Designs

List Price:

$450.00

Our Price:

$405.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BE43 - Overview

Ensemble Designs BrightEye 43 3G/HD/SD/ASI Distribution Amplifier

BrightEye 43 is a reclocking distribution amplifier that can be used with standard definition video signals,3 Gb/s and 1.5 Gb/s high definition signals, or ASI signals. The signal is equalized, reclocked and delivered to six simultaneous outputs. The reclocker isASI compliant and all six outputs have the correct ASI polarity.

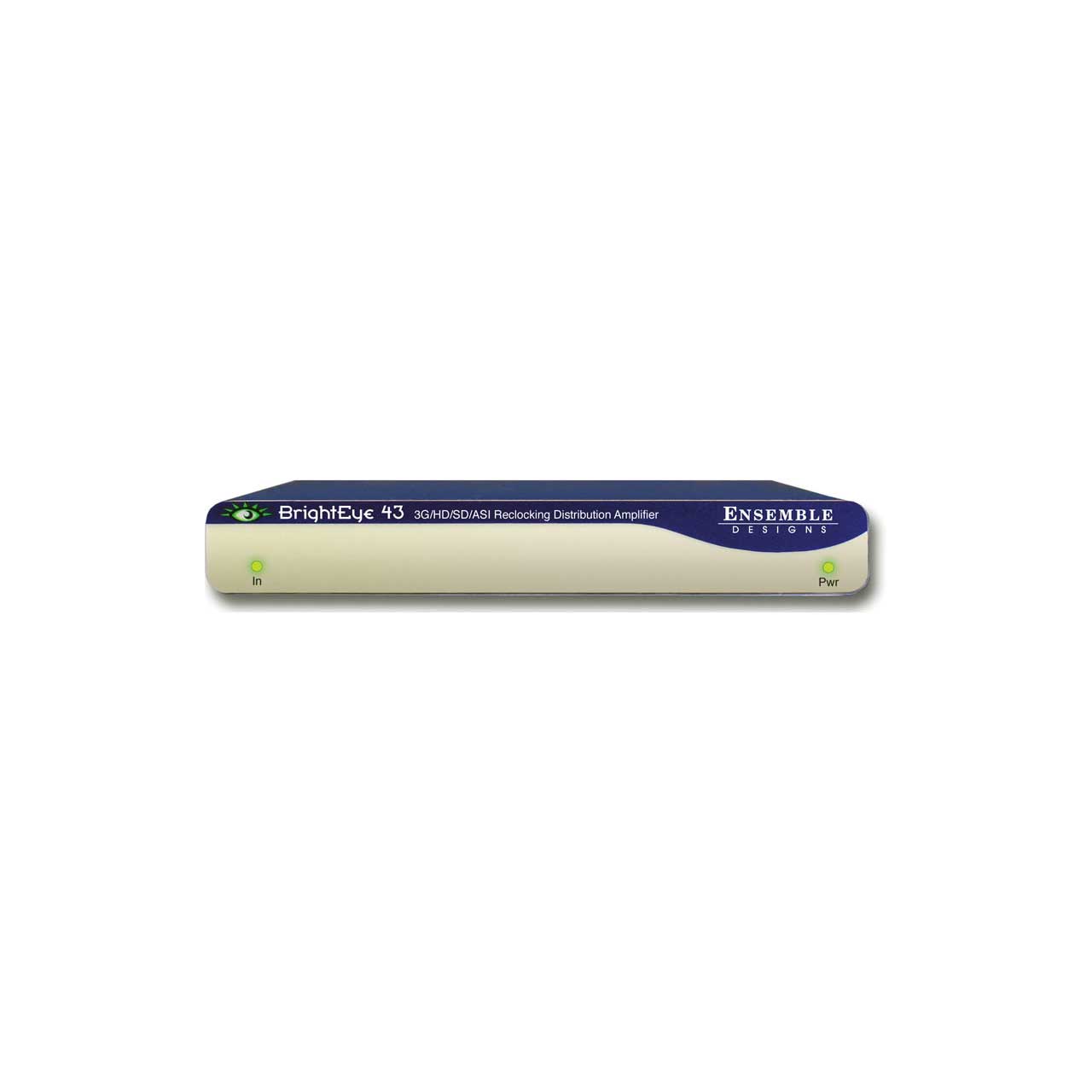

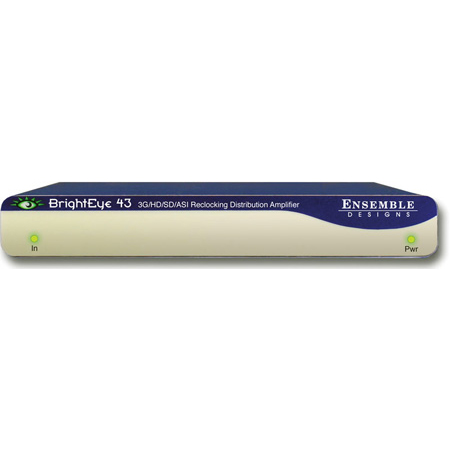

This is a simple device with no USB port and no interface to BrightEye Mac or PC software. Front panel indicators show the presence of an input signal and power.

Power supply is included).

Features:
- Use with Video Converters and TSGsin Order to Have More Outputs
- DA for Digital HD or SD Signals
- DA for 3G HD, Level A or Level B
- DA for ASI Signals
- Passes Embedded Audio
Specifications:
- Serial Digital
- Number: One
- Signal Type 270 Mb/s SD Serial Digital
- (SMPTE 259M)
- 1.485 Gb/s HD Serial Digital
- (SMPTE 274M, 292M or 296M)
- 3 Gb/s HD Serial Digital
- (SMPTE 424M, 425M)
- Impedance 75 U
- Return Loss >15 dB for 270 Mb/s
- >15 dB for 1.485 Gb/s
- >10 dB for 3 Gb/s
- Max Cable Length 300 meters for 270 Mb/s
- 100 meters for 1.485 Gb/s
- 120 meters for 3 Gb/s
- (Belden 1694A or equiv.)

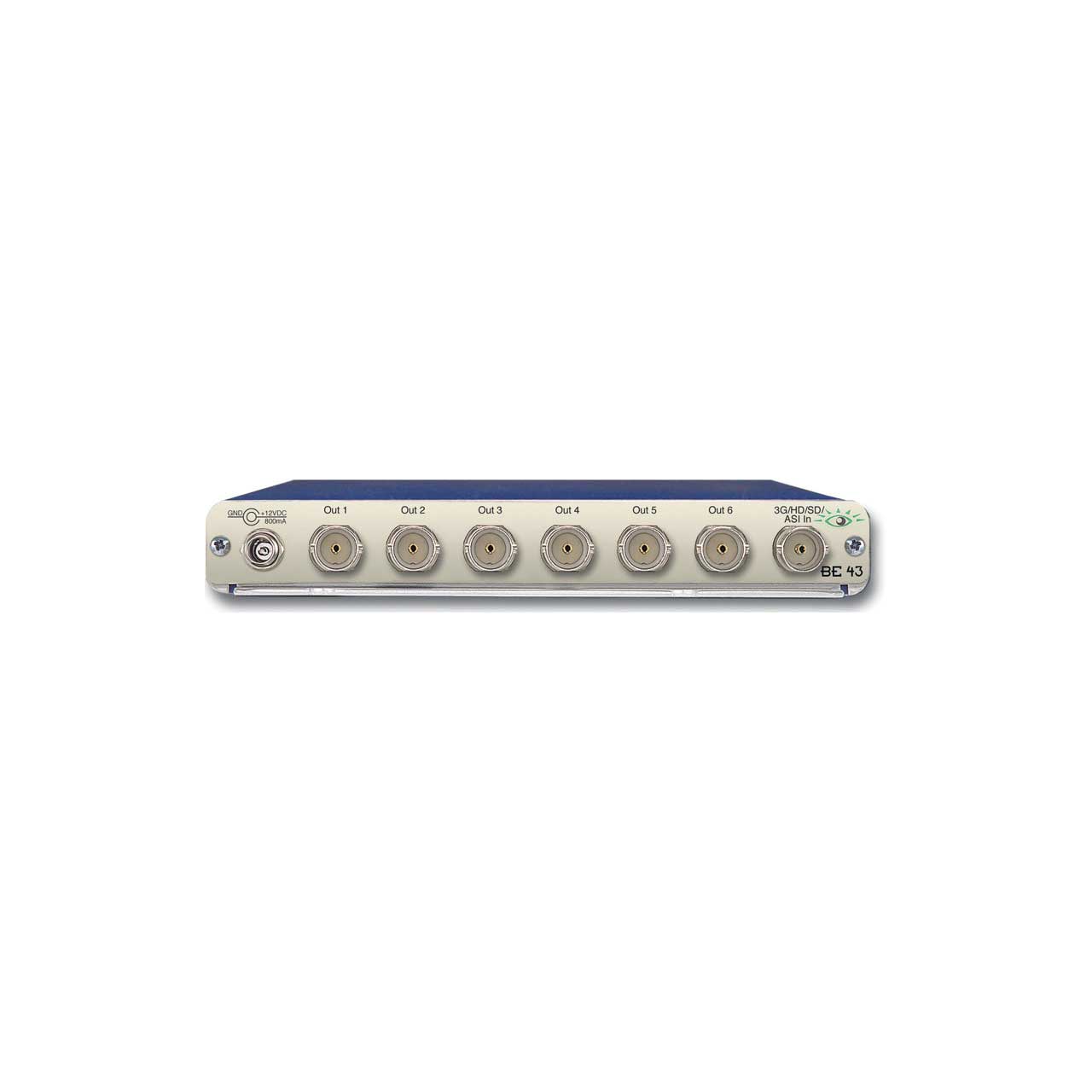

  Serial Digital Output
- Number: Six
- Signal Type 3G/HD/SD/ASI Serial Digital
- follows input
- Impedance 75 Ohm
- Return Loss >15 dB for 270 Mb/s
- >15 dB for 1.485 Gb/s
- >10 dB for 3 Gb/s
- Output DC None (AC coupled)

  General Specifications
- Size 5.625" W x 0.8" H x 5.5" D
- (143 mm x 20 mm x 140 mm)
- including connectors
- Power 12 volts, 7 watts
- (100-230 VAC modular power supply not included)
- Temperature Range 0 to 40Ý C ambient
- Relative Humidity 0 to 95Ý non-condensing

BE43 - Recommended Accessories

Ensemble Designs BERKMT-Full BrightEye & BrightEye NXT Rack Mount Assembly Kit
ENDE-BERKMT-FULL
Our Price: $270.00
Ensemble Designs BEBP BrightEye Blank Panel (for empty slots in RM)
ENDE-BEBP
Our Price: $67.50
Ensemble Designs BEPAK BrightEye BrightPak Rugged Portable Field Case
ENDE-BEPAK
Our Price: $2,250.00
Ensemble Designs BEPAKEXT BrightEye BrightPak Extension Kit
ENDE-BEPAKEXT
Our Price: $135.00
Ensemble Designs BEPS6 Spider Power Supply for 6 BrightEye Units
ENDE-BEPS-6
Our Price: $202.50
Laird Belden 1694A SDI/HDTV RG6 BNC Cable - 10 Foot Black
1694-B-B-10
Our Price: $26.95
Laird Belden 1855A SDI/HDTV Sub-Mini RG59 BNC to Right-Angle BNC Cable Black - 3 Foot
1855-B-BRA-3
Our Price: $41.49
Allen Avionics HEC-2000 75 Ohm Hum Eliminator
HEC-2000
Our Price: $139.95
Connectronics B-BFRA 75 Ohm BNC Female to Male Right Angle Adapter
B-BFRA
Our Price: $4.49
Connectronics BF-BF BNC Female to Female Barrel 75 Ohm
BF-BF
Our Price: $2.38
Tripp Lite PV2000FC 2000W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
PV-2000FC
Our Price: $671.00
Delvcam DELV-SDI-7 Advanced Function 7-Inch 3G-SDI On-Camera Field LED Monitor with HDMI
DELV-SDI-7
Our Price: $399.95
Blackmagic Design HDL-SMTVDUO2 SmartView Duo2 Dual 8 Inch Intelligent 6G-SDI Rack Monitors
BMD-HDL-SMTVDUO2
Our Price: $545.00
Jackreel Deluxe MKR-1-1694A-100 1-Channel BNC 3G-SDI Snake Reel with Belden 1694A RG6 - 100 Foot
MKR-1-1694A-100
Our Price: $165.95

BE43 - Reviews

BE43 - Attachments

See Ensemble BE43 Manual/Specs (PDF)
See Ensemble BE43 Specifications (PDF)
