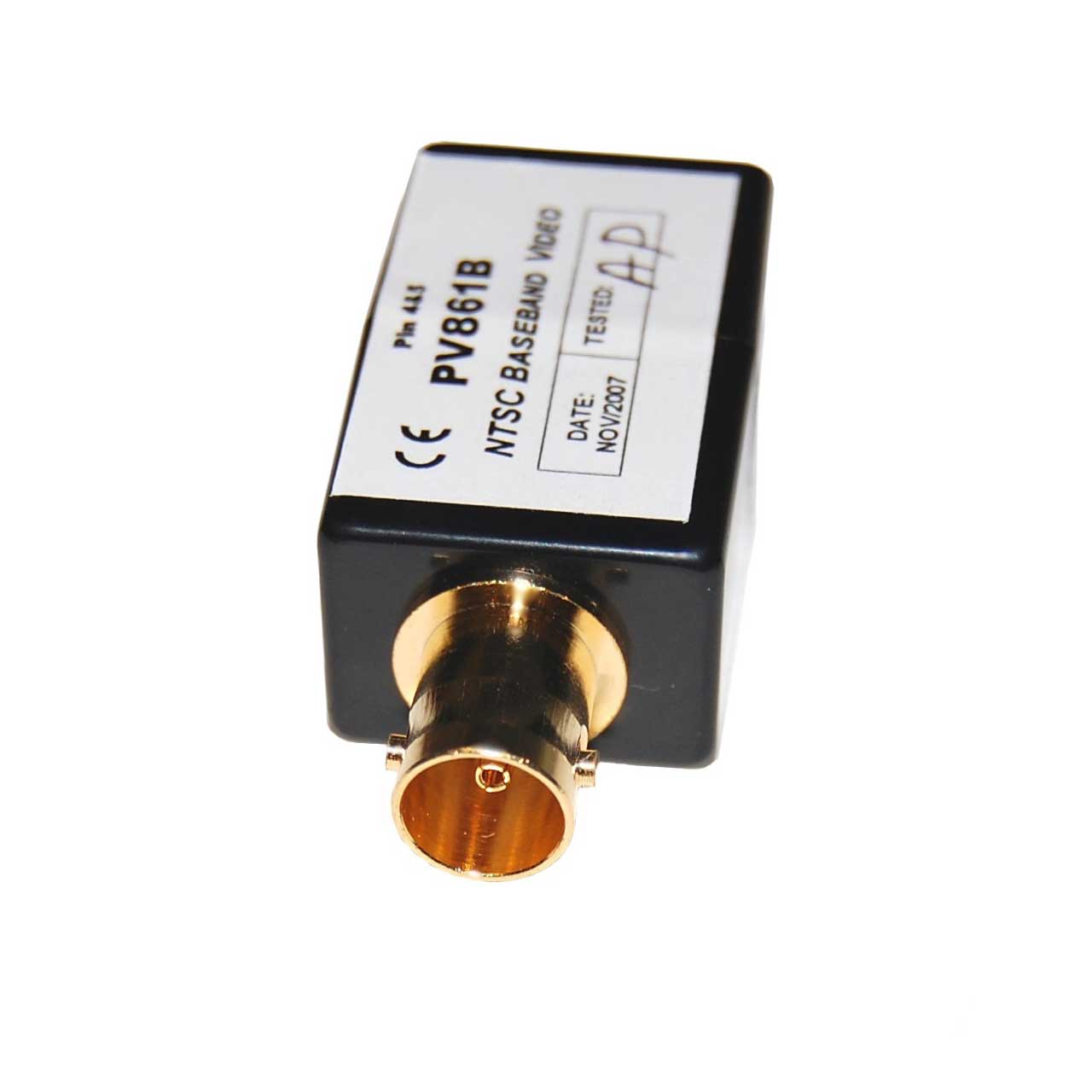

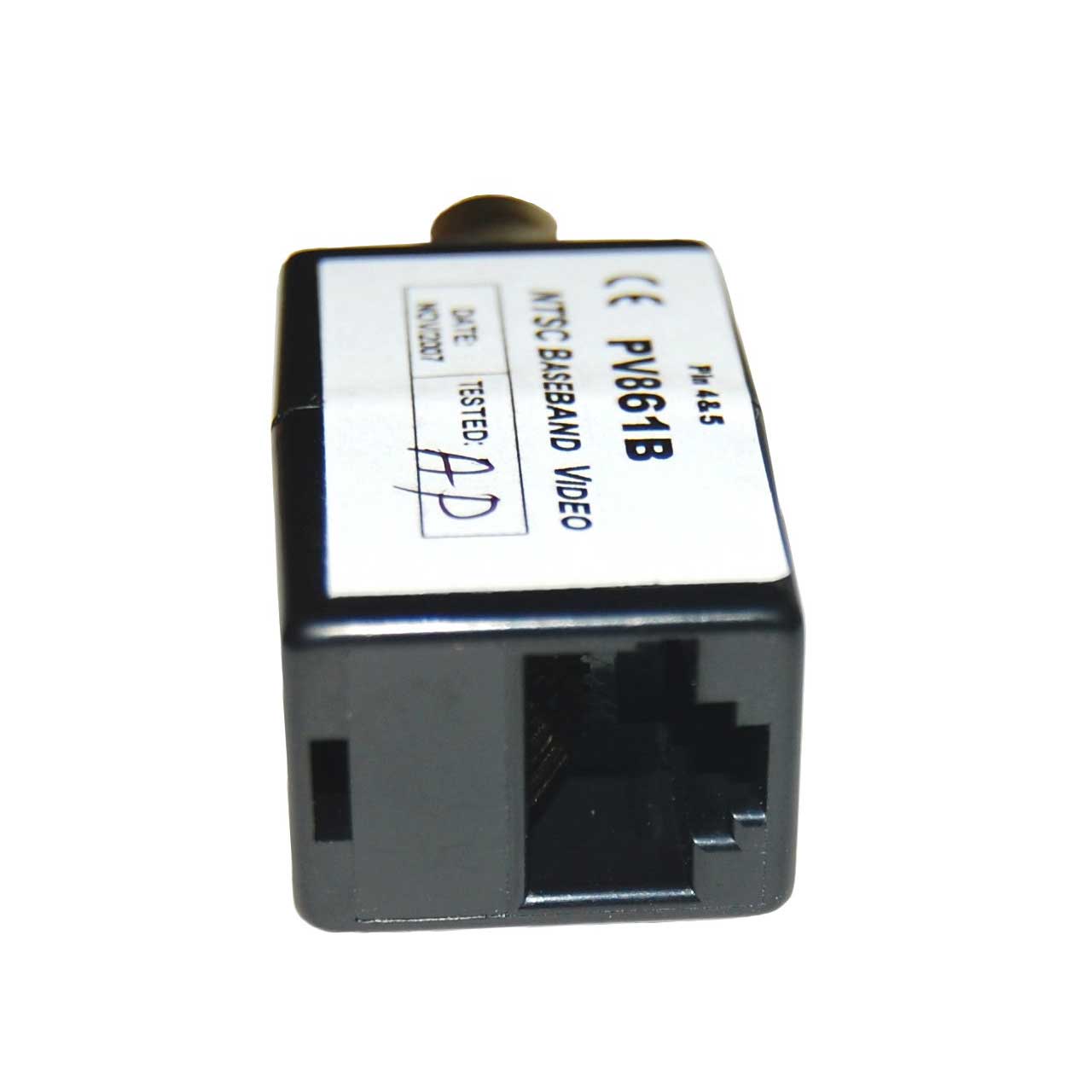

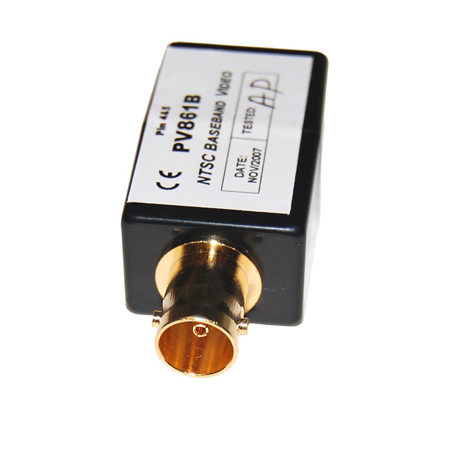

NTSC Baseband Video Baluns BNC to RJ45

ITEM #: ETS-PV861B MFG #: PV861B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$50.50

Our Price:

$46.62

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PV861B - Overview

The ETS PV860 Series of NTSC Baseband Video Baluns are the original video balun for use in adapting baseband video to run over UTP. In comparison to our PV840 baluns, the PV860 offers potentially greater run lengths, depending on cable quality, due to careful impedance matching. Conversely, the frequency range of the PV860 is lower - the PV840 offers extended high-end frequency response for better synchronization.

  • Features:

    • Run video over UTP for an easy, low cost installation
    • Impedance matching for potentially greater signal transmission distance compared to the PV840
    • Supports color signals over 350 meters
    • Supports black & white over 900 meters
    • Compact plastic case
    • Made in USA
    • 100% tested

  • Specifications:

    • Bandwidth: 35 Hz to 4.5 MHz
    • Connectors: BNC (male or female) to RJ45 or RJ11 jack
    • Impedance: 75 Ohm unbalanced to 100 Ohm balanced
    • Media: Category 5 or better
    • Distance: 1200 ft - Color; 2500 ft - B/W
    • Dimensions: 46mm x 25mm x 19mm
    • Net Weight: 0.02 kg
