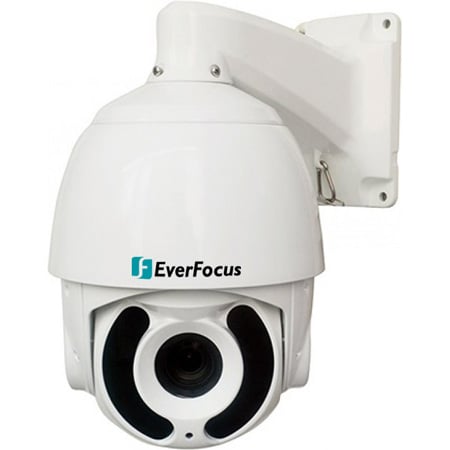

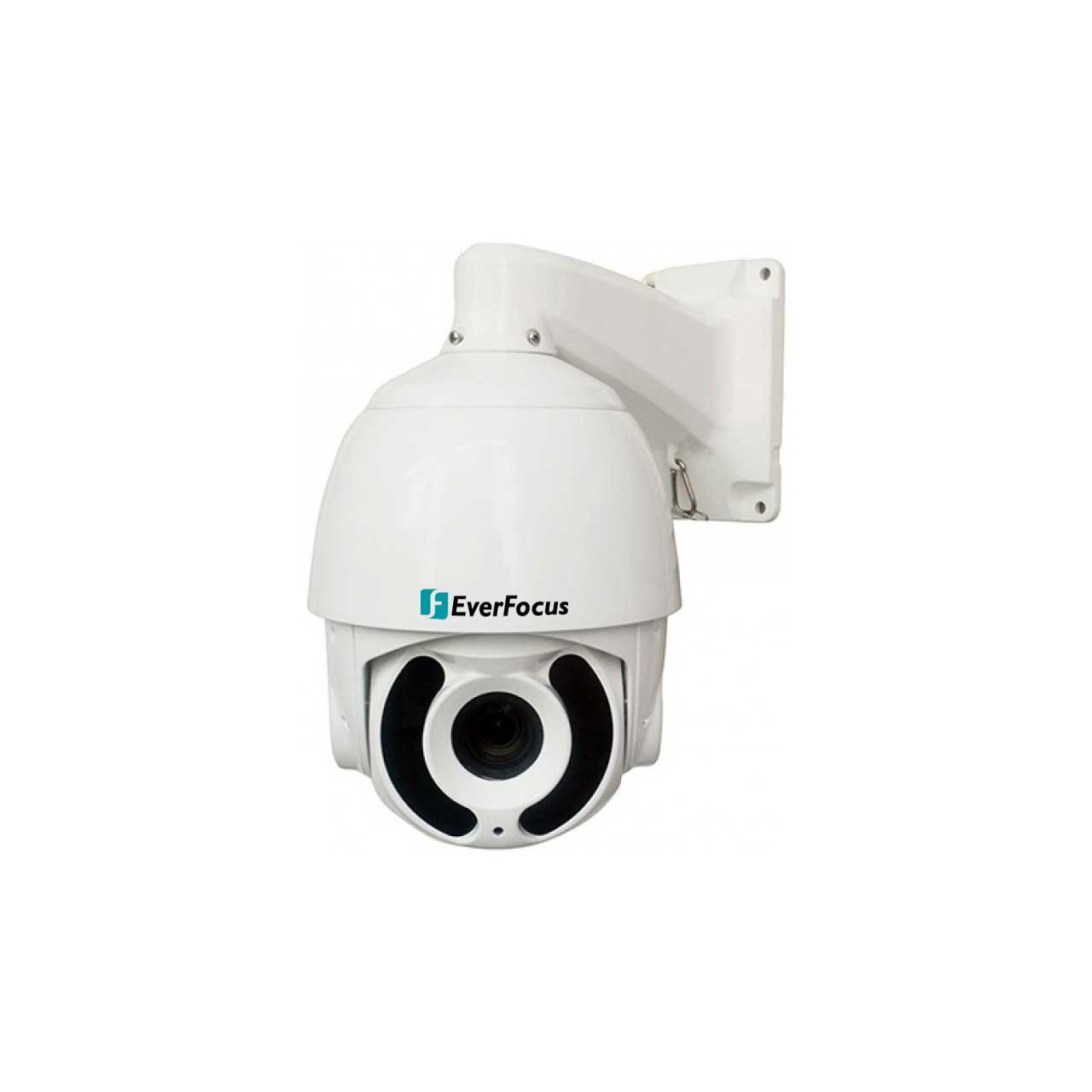

EverFocus EPA6220 AHD Camera - 1080p IR - IP66 Outdoor Speed Dome - 20x Optical Zoom - True Date / Night - WDR

EPA6220 - Overview

• Features:

  • AHD 1080p Sony CMOS sensor
  • 20x optical zoom lens
  • Supports UTC & RS-485 communication
  • True day/Night (IR-cut filter removable)
  • Supports D-WDR
  • Supports 220 preset positions
  • Supports 8 tours (16 positions each tour)
  • IP66-rated with metal housing
  • Supports OSD menu


• Specifications:

  • Camera Features
  • Horizontal Resolution: 1920 x 1080
  • Image Sensor: 1/2.7" Sony CMOS sensor
  • Video Format: AHD / TVI / CVI / CVBS switchable
  • Scanning System: User programmable (scan speed 1-64)
  • Lens: 20x optical zoom, 4.7~94mm
  • Focus Control: Auto / Manual
  • Horizontal Rotation Speed:Pan: 0~480°/s, Tilt:0~240°/s
  • Preset Positions: 220 preset points (dwell time 01-60s)
  • Tour: 8 tours (max.16 preset points each tour)
  • Pattern: 4 patterns (max.15 minutes, max.512 commands)
  • Communication: RS-485, Coaxial
  • Communication Speed: 1200 / 2400 / 4800 / 9600bps
  • Built-in Protocols: Pelco-P / Pelco-D
  • Speed Dome ID Address: 0 ~ 255

    Video
  • Video Output: 1Vp-p, 75Ω
  • Day/Night: Supported
  • S/N Ratio: ≥50dB
  • AGC: Auto
  • AWB: Auto
  • BLC: On / Off

    Function
  • WDR: D-WDR (auto)
  • Digital Zoom: Max. 20x (optical)
  • OSD Menu: Supported

    General
  • IR LED (units): 8 units
  • IR Distance: 150m / 492ft.
  • Water Resistant: IP66
  • Power Source: 12VDC, 4A
  • Power Consumption: ≤ 25W
  • Operating Temperature: ≤ 95% / -40°F ~ 140°F ≤ 95%

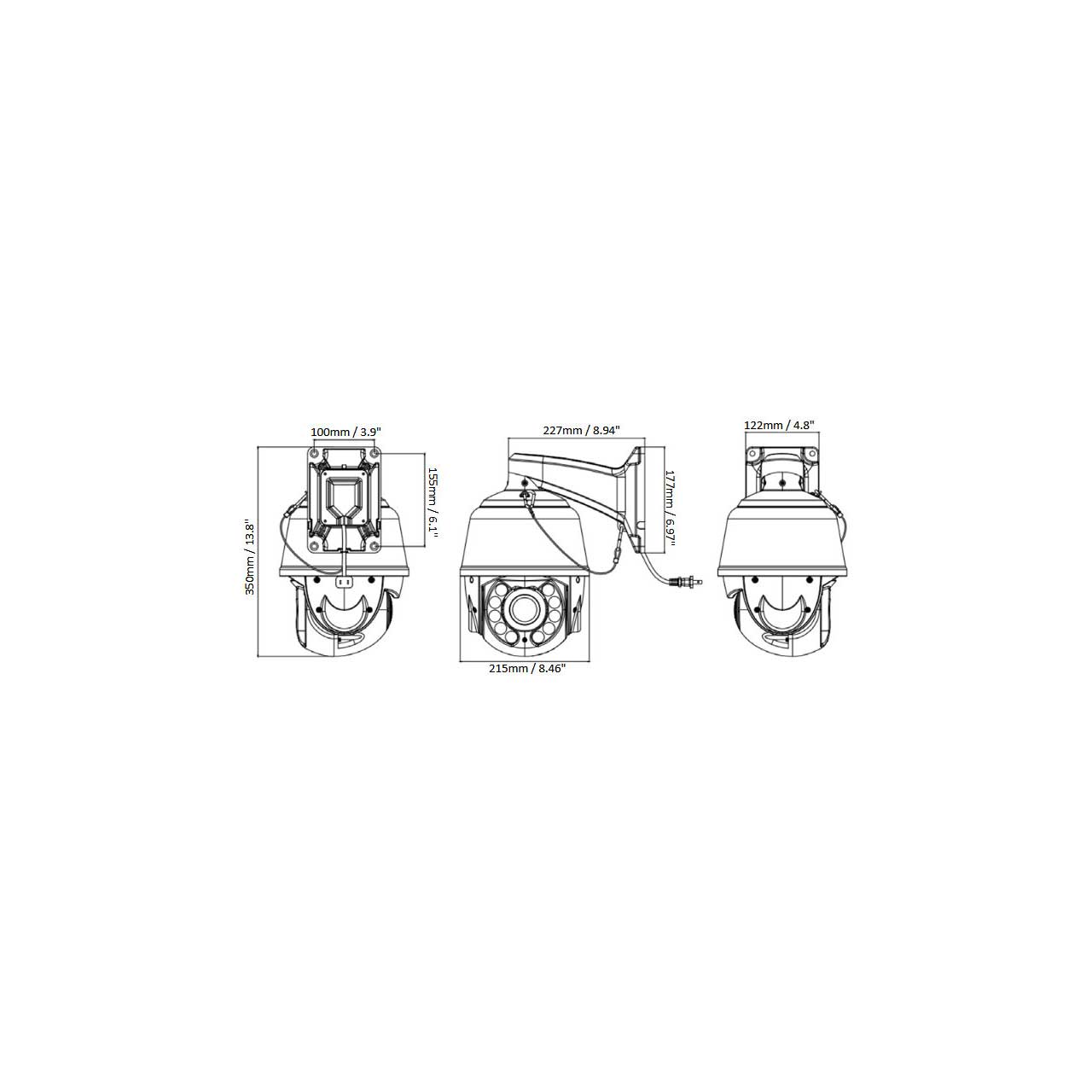

  • Dimensions: 12.2 x 12.2 x 17.32inch
  • Weight: 12VDC: 6.1kg / 13.45lb 24VAC~: 7.15kg / 15.76lb
  • Certificates: CE, FCC
