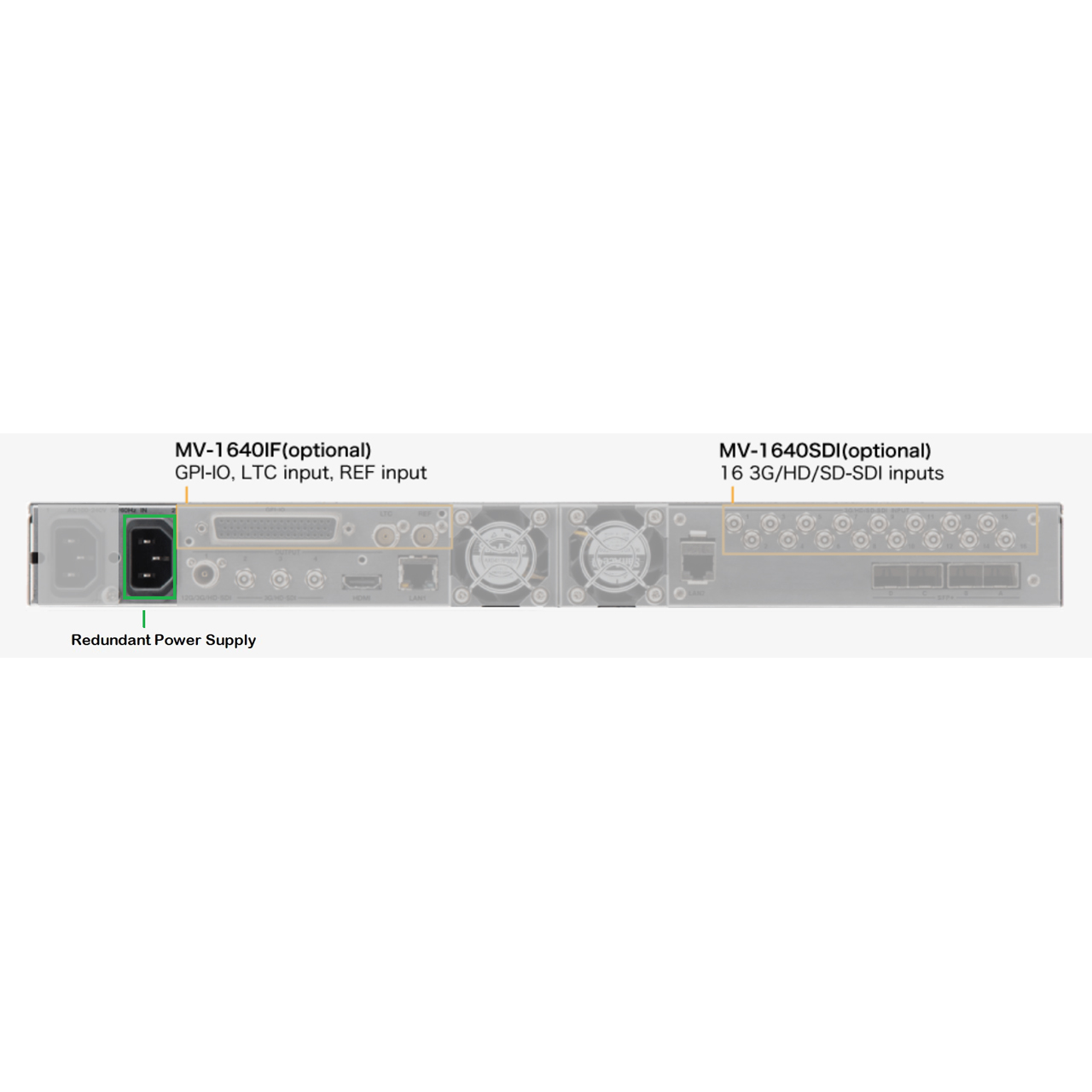

FOR-A MV-1640PS Optional Redundant Power Supply for MV-1640IP

MV-1640PS - Overview

• Features:

  • Compatible with SFP28 modules and making the unit ready for either 10 or 25 GbE environments
  • Uses NMOS IS-05 for stream switching.
  • Realizes minimum delay of one field (16.6ms) from IP to baseband output.
  • 1 Uncompressed video input supported
  • 2 SMPTE ST 2110-10/20/30
  • 3 SMPTE ST 2022-7
  • Cascading input is supported.
  • Combines multiple Multi viewers and displays into more than
  • 16 IP split screens - with low delay.
  • HD to 4K up-resizing and 4K to 2K down-resizing
  • Captures specified frames of streamed video.
  • Cropping
  • Logo display in title areas
  • Tally, Title, and Timecode Display
  • Time of day, Timer, and Information Display


• Specifications:

  • Video Input
    IP:
  • 4K: 2160/59.94p, 2160/50p 4 inputs (uncompressed)
  • HD: 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p16 inputs (uncompressed)
  • VoIP standard: ST2110-10/20/30/40, ST2022-6/7
  • Ethernet Standard: 25GBASE-SR, 25GBASE-LR
  • VoIP control: IGMP V3, NMOS:IS-04/05
  • I/F setting: Ember+
    SDI (optional):
  • 3G-SDI: 1080/60p,1080/59.94p,1080/50p(Level-A/B)
  • HD-SDI: 1080/60i,1080/59.94i,1080/50i,720/60p,720/59.94p, 720/50p,1080/30p,1080/29.97p,1080/25p,1080/24p, 1080/23.98p,720/24p,720/23.98p,1080/30PsF, 1080/29.97PsF,1080/25PsF,1080/24PsF,1080/23.98PsF, 1035/60i,1035/59.94i
  • SD-SDI: 525/60(NTSC),625/50(PAL) *PsF signal will be achieved as an interlace in internal process. Some videos will show flicker.
    LTC:
  • 1 input (with interface option) SMPTE compliant timecode within 1.0Vp-p±6dB
    Genlock:
  • 1 input (with interface option)
  • BB: 0.429V(p-p)(NTSC), 0.45V(p-p)(PAL), Tri level sync: 0.6V(p-p)

    Video Output
  • SDI 75Ω BNC 12G 1 output or HD 3 outputs
  • Quantization: Y: 10-bit, C: 10-bit
  • 12G-SDI: 2160/59.94p, 2160/50p
  • 3G-SDI: 3Gbps 1080/59.94p, 1080/50p (only Level-A)
  • HD-SDI: 1.5Gbps1080/59.94i, 1080/50i, 720/59.94p, 720/50p
  • HDMI HDMI connector (TYPE A) 1 output
  • Quantization: R: 8-bit, G: 8-bit, B: 8-bit
  • Resolution: 1920 x 1080, 1280 x 720, 3840 x 2160
  • Refresh Rate: 59.94, 50Hz
  • HDMI2.0-Level-B(4:2:0) selectable
  • IP: To be supported

    Audio Output
  • Embedded(SDI) Number of outputs: 2 groups (4 stereo pairs) per output
  • Sampling Frequency: 48 kHz
  • Quantization: 24-bit
    Embedded(HDMI):
  • Number of Outputs: 4 stereo pairs per output
  • Sampling Frequency: 48 kHz
  • Quantization: 24-bit
    Video/Clock Display Windows:
  • Up to 25 windows
  • Monitor output 4K 1 output or 2K 4 outputs
    Clock Display:
  • Time based on internal clock or LTC time code
  • Time correction via GPI or SNTP
  • Internal clock accurate to within 15 seconds/month (at 25C°)
  • Count Up/Down Timer, Remaining Time Counter: Can be displayed in clock display window. ( Internal clock or LTC is selectable for remaining time counter.)
  • Background display: Stores and displays 1 4K size background image. Max. size: 3840 x 2160
  • Logo display: Stores and displays 4 logo images. Max. size: 1024 x 512
  • Screen layout: User customized layout. Can be saved max. 16 layouts on main unit
  • Title display: Character limit: Max. 16 characters x 2 lines for each input channel. Supported characters: Letters, numbers, symbols, and Japanese kana/kanji(JIS 1 and 2)

    Interface (standard)
  • LAN 100BASE-TX/1000BASE-T, RJ-45 x 2 (CAT 5e-compliant)
  • SNMP Supports GET and TRAP.

    Interface (optional)
  • GPI-IO 50-pin D-sub (female) x 1, up to 45-pin for input
  • 23 of them are I/O selectable
  • Data backup Stores settings internally to the memory.
  • Backup battery Electrical Double Layer Capacitor (10 days)
  • Temperature/humidity: 0°C to 40°C / 30% to 90% (no condensation)
  • Power: 100 V AC to 240 V AC ±10%, 50/60 Hz
  • Dimensions/Weight: 430 (W) x 44 (H) x 500 (D) mm, EIA 1RU/9.7kg
  • Consumables: Cooling fan: Replace every 5 years. Battery: Replace every 5 years.


• Item Includes:

  • 1x FOR-A MV-1640PS Redundant Power Supply for MV-1640IP
