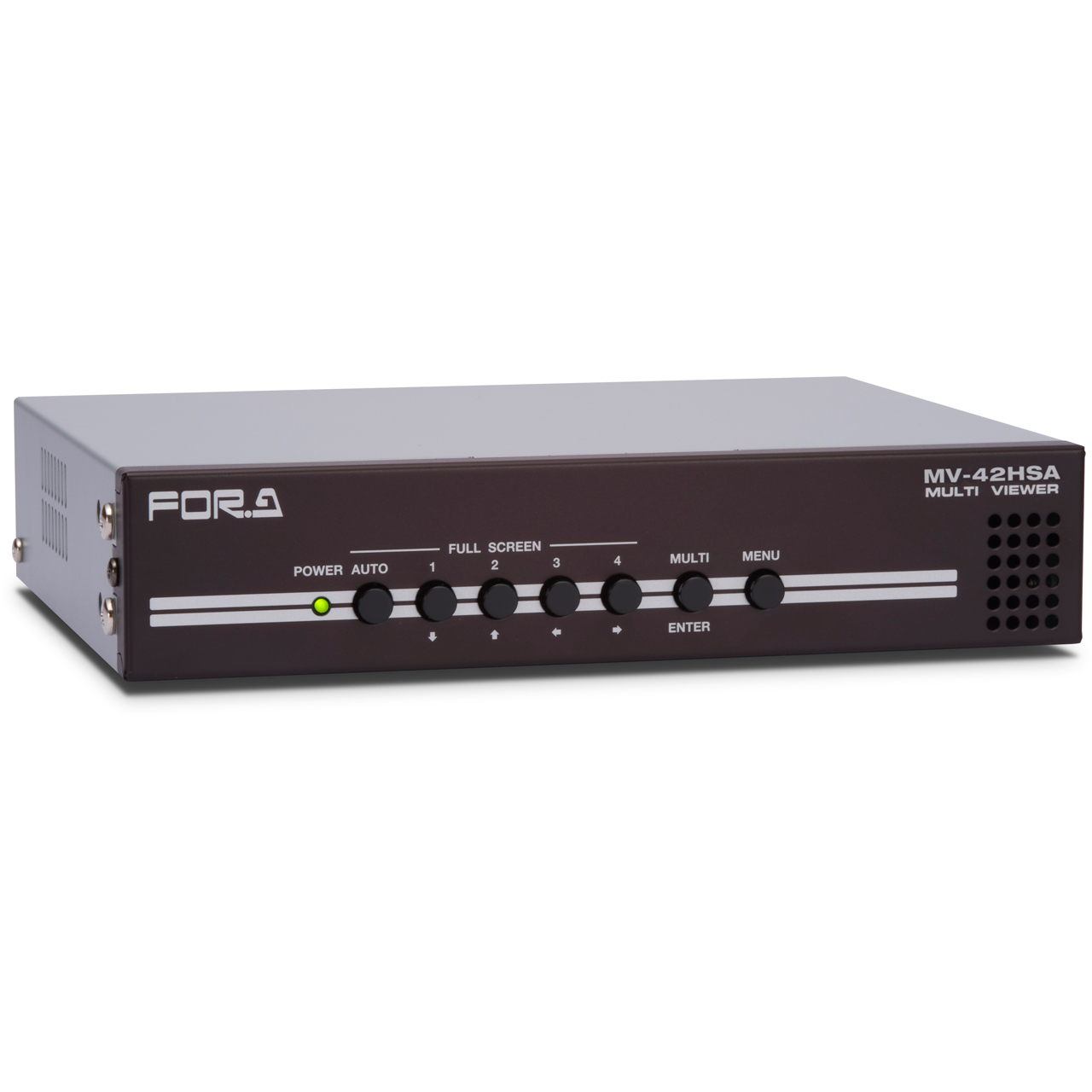

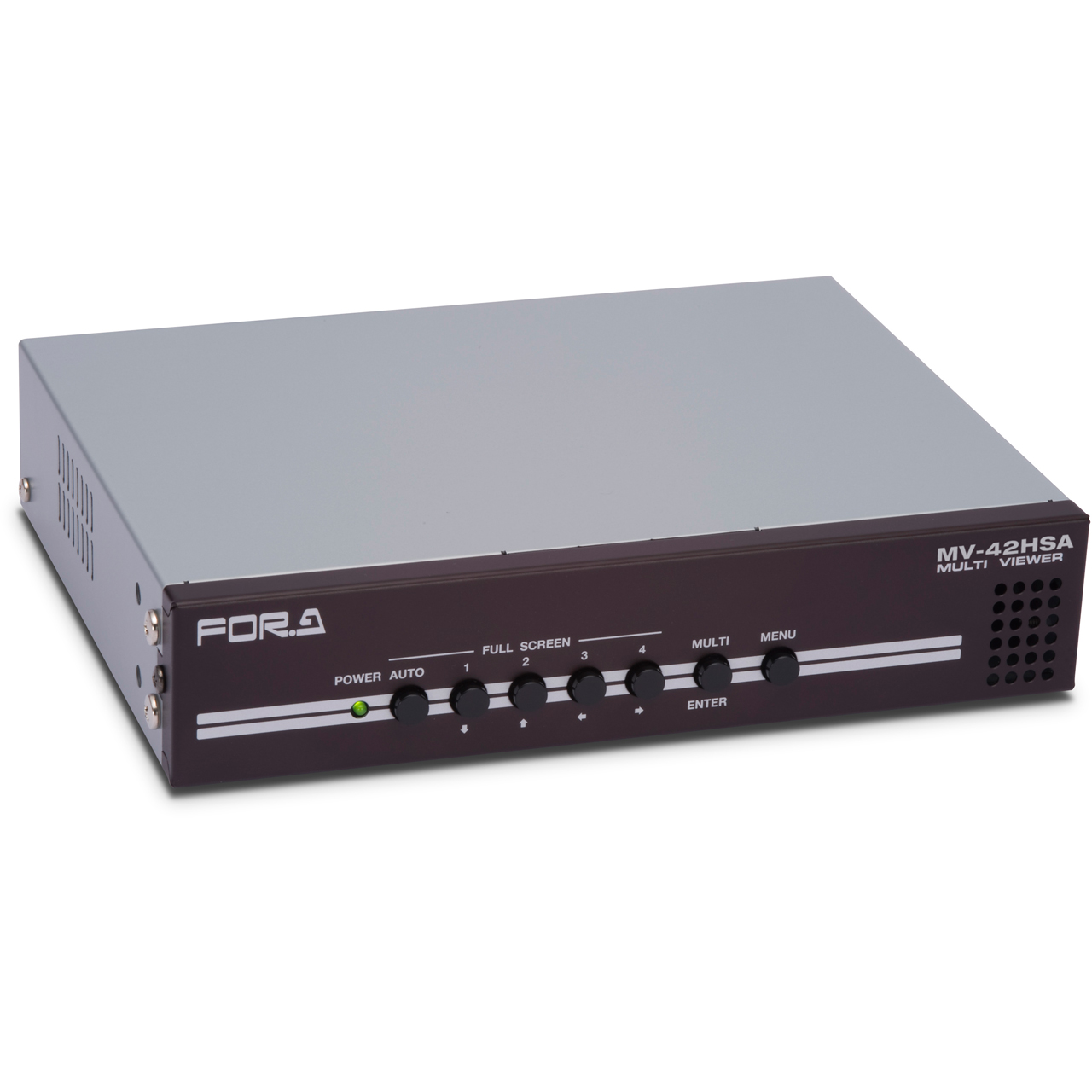

FOR-A MV-42HSA 4K (QFHD) Monitoring Down Converter

MV-42HSA - Overview

• Features:

  • Supports mixed 3G-SDI (Level A/B), HD-SDI and SD-SDI signal input (Mixed and asynchronous input supported)
  • Supports mixed analog composite input (MV-42AI)
  • Outputs high-definition HD-SDI and DVI-D (1920 x 1080 or 1280 x 720) images
  • Video loss detection
  • Full screen, 2-split (right, left), and quad screen output selectable
  • Audio level metering for 3G/HD/SD-SDI embedded audio signals (Up to 8-channel display)
  • Displays ancillary time code (ATC) embedded on 3G/HD/SD-SDI input signals
  • Max. 16-character title displays for each input (alphanumeric and symbols)


• Specifications:

  • Video Input: 4 inputs in the following video formats (Mixed input, asynchronous acceptable)
  • 3G-SDI:
  • 3Gbps, 75Ω BNC
  • Color format: YCbCr (4:2:2)
  • Quantization: 10-bit
  • HD-SDI:
  • 1.485Gbps or 1.485/1.001Gbps, 75Ω BNC
  • Color format: YCbCr (4:2:2)
  • Quantization: 10-bit
  • SD-SDI:
  • 270Mbps 75Ω BNC
  • Color format: YCbCr (4:2:2)
  • Quantization: 10-bit
  • Video Format:
  • 1080/60p, 1080/59.94p, 1080/50p (Level A/B)*
  • 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/30PsF, 1080/29.97p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/24p, 1080/24PsF, 1080/23.98p, 1080/23.98PsF, 720/60p, 720/59.94p,
  • 720/50p, 720/24p, 720/23.98p,
  • 525/60(NTSC) , 625/50(PAL)
  • * 3G-SDI (Level B) support for 1920 x 1080 only.


  • Video Output
  • HD-SDI:
  • 1.485Gbps or 1.485/1.001Gbps, 75Ω BNC x 1
  • Color format: YCbCr (4:2:2)
  • Quantization: 10-bit
  • * Embedded audio is unsupported
  • DVI-D:
  • DVI-D connector x 1
  • Color format: RGB
  • Quantization: 8-bit
  • * HDCP is unsupported
  • Video Format:
  • 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
  • * No input/output frame rate converter.
  • A frame rate difference between the input and output may result in a repeat frame or drop frame.
  • I/O Delay: Max. 1.5 frames
  • Screen Display: Full screen, 2-split screen, Quad-split screen
  • Audio Level Metering: Audio level metering for 3G/HD/SD-SDI input signal embedded audios (Up to 8 channels)
  • * 3G-SDI (Level B) audio level metering support for Link A only. Link B unsupported.
  • Time Code Display: Embedded time code display for 3G/HD/SD-SDI signals
  • Title Display: Max. 16 characters x 1 line for each input channel
  • Character types: Alphanumeric characters and symbols
  • Data Backup: Stores the setting data to EEPROM
  • Interface: For title settings and remote control over the unit
  • RS-232C:
  • 9-pin, D-sub (male) x 1
  • Baud rate: 38,400bps, Data length: 8-bit, Stop bit: 1-bit, Parity: NONE
  • Temprature / Humidity: 0°C to 40°C / 30% to 90% (no condensation)
  • Power: 12 V DC (DC jack)
  • * AC adaptor can be separately purchased. Use an AC adaptor that meets the following requirements.
  • Output voltage: 12 V DC, Output ampere: 2 A, Inrush current: 30 A, Connecter: JEITA RC-5320A Standard Voltage Class4
  • * The MV-42HSA connecter is HOSIDEN-produced HEC3800-01-010. Center positive voltage.
  • Power Consumption: 22 VA (11 W) (at 100 V), 27 VA (12 W) (at 200 V)
  • Dimensions / Weight: 212 (W) x 44 (H) x 161 (D) mm / 1.16 kg
  • Accessories: Quick Setup Guide, and CD-ROM (Operation manuals)
  • Consumables: Cooling fan: P1472 Replace every 3 yeaars (at room temp.)
