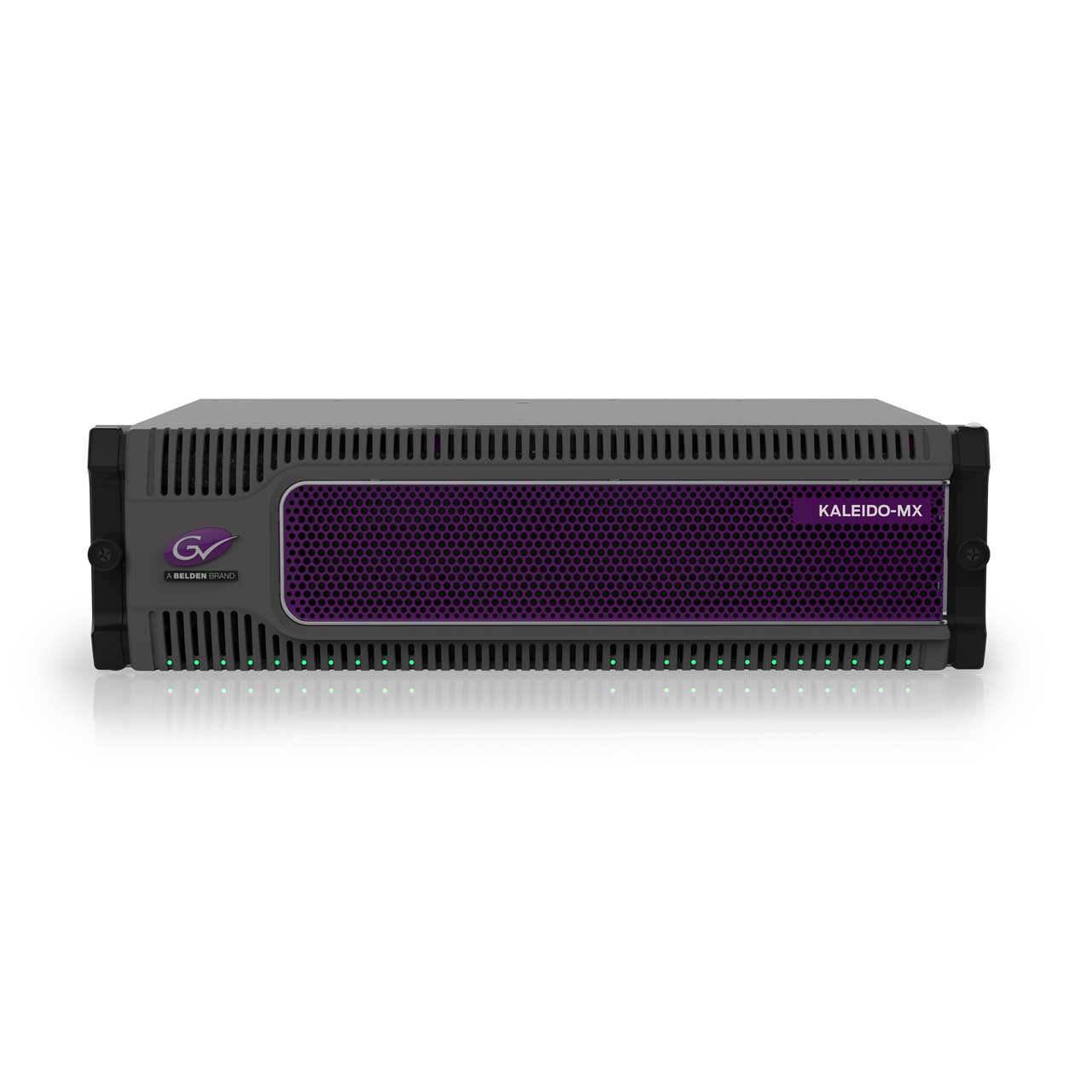

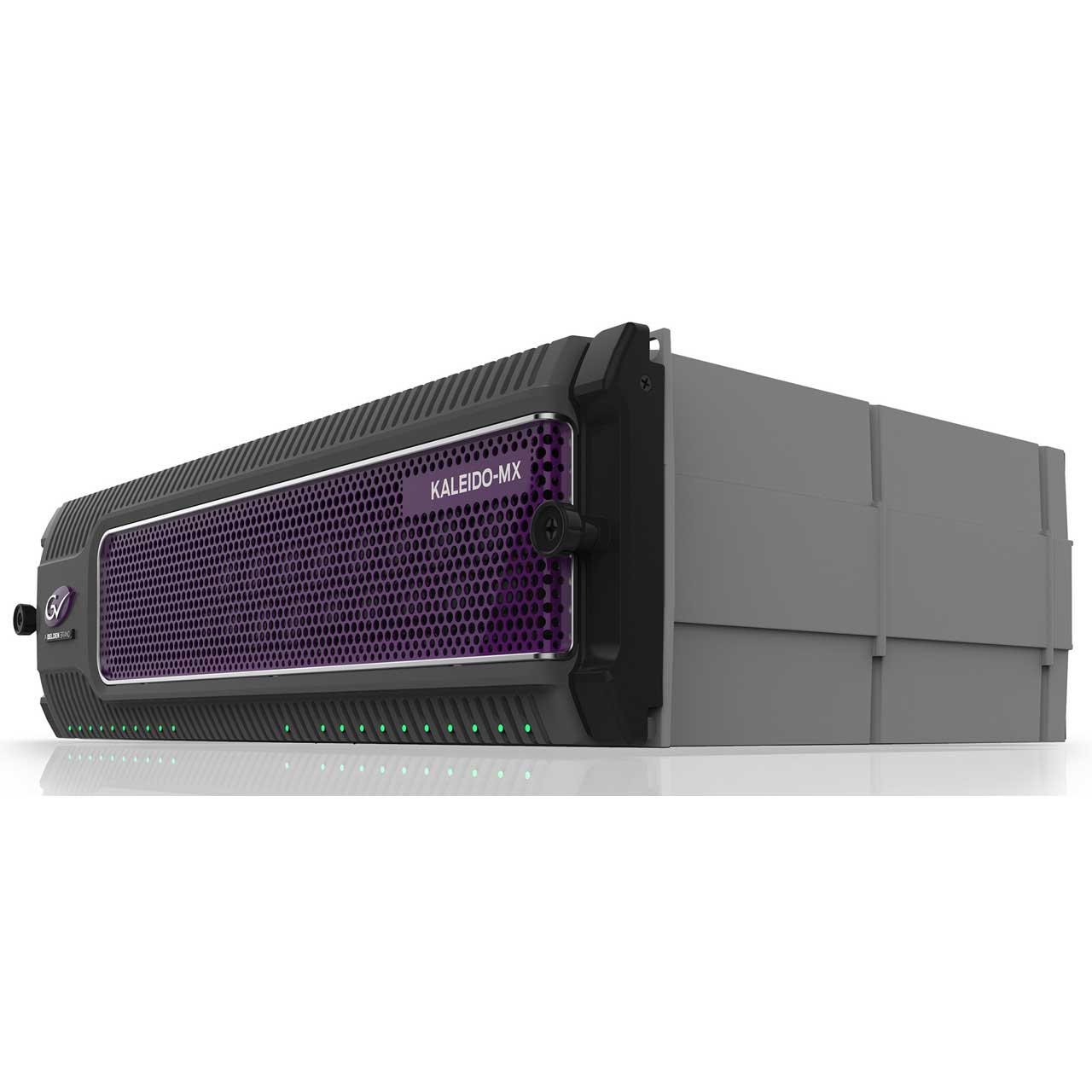

Grass Valley KDO-MX-64X4 Kaleido-MX 64x4 Standalone Multiviewer 3RU

KALEIDO-MX-64X4 - Overview

• Features:

  • Unmatched Image Quality
  • Unmatched multiviewer picture quality and superior on-screen graphics, for the most critical monitoring applications and high-end TV production requirements

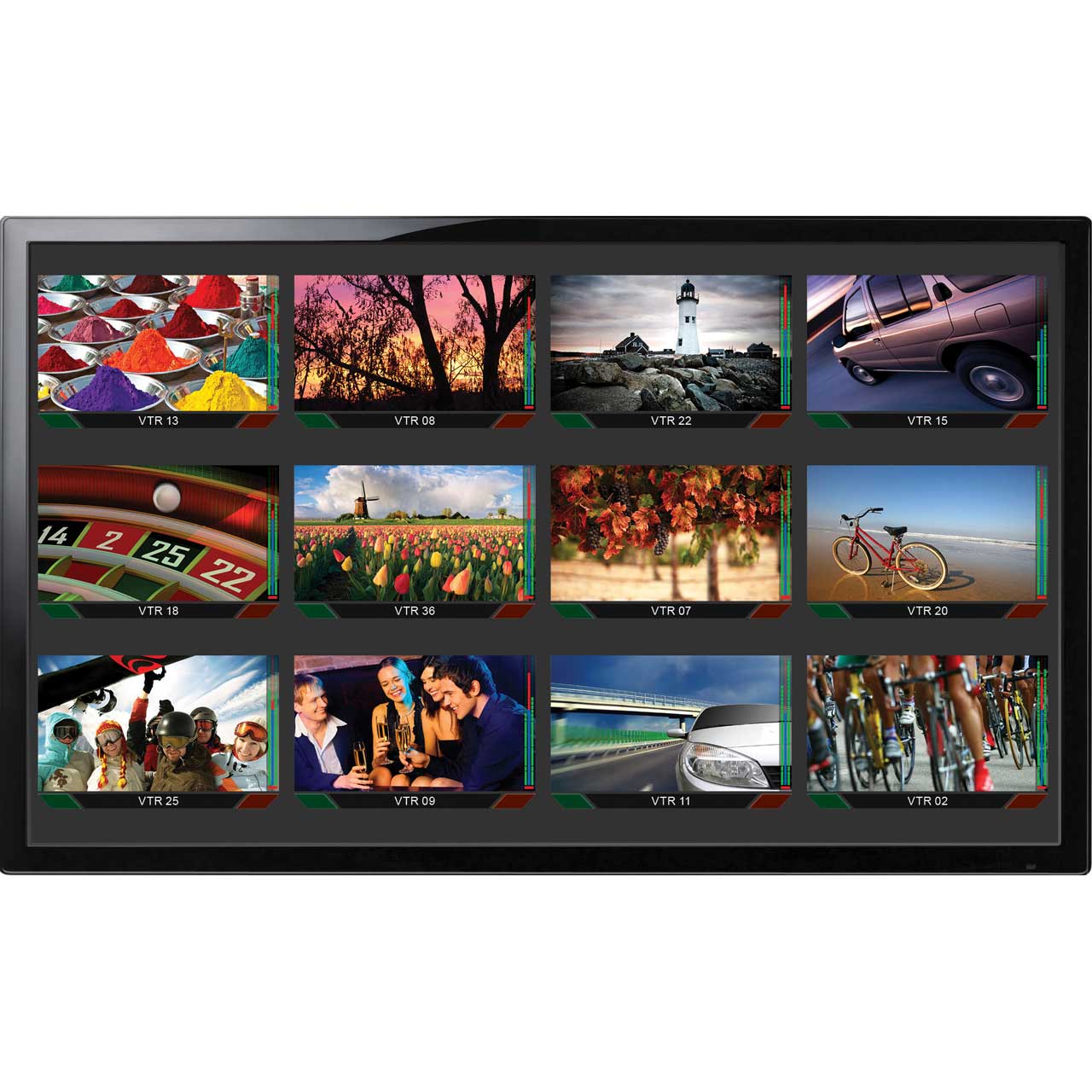

  • Simultaneous HDMI and SDI outputs at full 1080p50/60 Hz resolution on up to 4 multiviewer displays
  • Input signal processing up to 3G signal formats

    Robust and serviceable design
  • Unique Auto-Recovery feature provides fast automated recovery after a "cold" spare is inserted into the frame
  • Hot swappable modules and power supplies
  • 1 RU and 3 RU frame models with quiet cooling

    Multiroom, multiuser oriented
  • A single Kaleido-MX multiviewer can be used to share sources across multiple rooms or operator positions, with fully independent displays, audio monitoring and control panels dedicated to each operator

    Seamless control across multiple multiviewers
  • Kaleido multiviewers can be "mixed-and-matched" with others to create a seamless monitoring system across a facility
  • Choice of multiple control options such as standalone RCP-2/RCP-200 panels, integrated with router control systems and panels, iControl and third-party control systems

    Superior layout flexibility
  • Ultimate level of layout flexibility, with unlimited signal repetition and sizing across all displays, without blocking, grouping restrictions or bandwidth restrictions

    Router and switcher integration
  • Kaleido-MX offers rich integration with NVISION router family, and third-party routers and production switchers for tally and label/alias source management.
  • Multiple multiviewers can be controlled from a single control panel

    Scalable for the largest systems
  • Virtually limitless multiviewer system expansion with upstream NVISION router
  • Can create combined multiviewer/router system with 1,152 video inputs, 288 multiviewer outputs

    Advanced probing and alarming
  • Closed captioning and teletext subtitling display and alarming to ensure compliance with regulation, includes XDS and AFD
  • Software licensable Dolby E metadata extraction for metering and content alarming without the need of expensive hardware decoders
  • Sophisticated on-screen alarm displays for clear operator alerts. Supports multicolor and blinking statuses based on severity, latching and status message


• Specifications:

  • Video Inputs: 32
  • Video Connectors: DIN 1.0/2.3

    SD-SDI
  • Signal: 4:2:2 SMPTE 259M-C (270 Mb/s)
  • Formats: 525 and 625
  • Audio: SMPTE 274M-1994
  • Return loss: >15 dB up to 270 MHz
  • Jitter: <0.2 UI
  • Cable length: 250m (820 ft.) (Belden 1694A); 150m (492 ft.) (Belden 1855A)

    HD-SDI
  • Signal: 4:2:2 SMPTE 292M-C (1.5 Gb/s)
  • Formats: 720p24/25/29.97/50/59.94, 1080PsF23.98p/24p/25i/29.97i, 1080i50/59.94, 1080p23.98/24/25/29.97
  • Audio: SMPTE 299M
  • Return loss: >15 dB up to 1.5 GHz
  • Jitter: <0.2 UI
  • Cable length: 100m (328 ft.) (Belden 1694A); 45m (148 ft.) (Belden 1855A)

    3G-SDI
  • Signal: SMPTE 424M-2006 (2.97, 2.97/1.001 Gb/s) Level A and B
  • Formats : 1920x1080p60, 1920x1080p59.94, 1920x1080p50
  • Audio: SMPTE 299M
  • Return loss: >15 dB up to 1.5 GHz; >10 dB from 1.5 GHz to 3 GHz
  • Jitter: <0.3 UI
  • Cable length: 100m (328 ft.) (Belden 1694A); 45m (148 ft.) (Belden 1855A)

    LTC Inputs
  • Signal: SMPTE 12M-1995 (EBU-3259-E), SMPTE 309M
  • Level: 500 mVp-p to 10 Vp-p
  • Impedance: >10 k&8486;
  • Refresh rate: 50/59.94 Hz
  • Connector: DIN 1.0/2.3

    Reference
  • External: SMPTE 170M, SMPTE 318M, ITU 624-4, BUT 470-6, PAL and NTSC composite sync, SMPTE 274M, SMPTE 296M, SMPTE 240M
  • Connector: DIN 1.0/2.3

    Mosaic Outputs (video and graphic)
  • HDMI (1, 2, or 4)
  • Signal : HDMI V1.3
  • Format: 1280x1024 up to 1920x1200p configurable
  • Refresh rate supported (50 Hz and 59.94 Hz)
  • Cable length: 4.57m (15 ft.)
  • Connector: HDMI
  • Signal path: 8 bits output

    HD-SDI (1, 2 or 4)
  • Signal: 3G/HD-SDI SMPTE 424M and 292M compliant
  • Supports data rates of 1483.5, 1485, 2967, 2970 Mb/s
  • Return loss: >15 dB up to 1.5 GHz; >10 dB from 1.5 GHz to 3 GHz
  • Jitter (wideband): HD: <0.2 UI
  • Gb/s: <0.3 UI

    DVI Inputs (optional)
  • Device: KXI-DVI-Bridge
  • Signal: DVI
  • Resolutions: Mode A: 1024x768, 1366x768, 1280x1024, 1680x1050, 1600x1200 at 60 Hz
  • Mode B: 1280x720 and 1920x1080 at 50/60 Hz

    Communication Ethernet (1)
  • Signal: 10/100 BASE-T
  • Connector: RJ45

    Serial Port (1)
  • Signal: RS-422 (SMPTE 207M, EBU-3245)
  • Connector: RJ45

    Analog Audio Monitoring (1, 2 or 4)
  • Signals (2): Balanced analog stereo
  • Impedance: <600&8486;
  • Level: +24 dBu maximum
  • Connector: WECO

    Video Processing Performance
  • Signal path: 8-bit YCbCr to 24-bit RGB
  • Processing delay: 1 frame in genlock mode, 1-2 frame in non-genlock mode

    Audio Processing Performance
  • Quantization: 20-24 bits
  • Sampling: 48 kHz
  • THD+N: 80 dB
  • SNR: 98 dB

    Kaleido-MX (3 RU) Frame
  • Power supply: Hot swappable redundant power supplies
  • Input voltage: 100-240V
  • Frequency: 50/60 Hz
  • Power: 350W max
  • Dimensions: 3 RU x 485 mm (19 in.) x 286 mm (11.25 in.)
  • Full spec temperature range: 0-40° C (32-104° F) (ambient)
  • Weight: 4.8 kg (10.6 lbs.) for 32x4
  • Communication ports: Ethernet 10/100 BASE-T
  • Alarm: GPI contact

    Input Mode
  • Pull-up voltage: 2.3V
  • Source current: 2 mA when input shorted
  • Low level activation: 0.8V max
  • Over voltage: 25V max
  • Pulse duration: 8 ms min

    Output Mode
  • Contact closure current: 50 mA max
  • Reverse voltage: -15V max
  • Reverse current: -50 mA max
  • V OUT low: 0.6V at 1.5 mA
