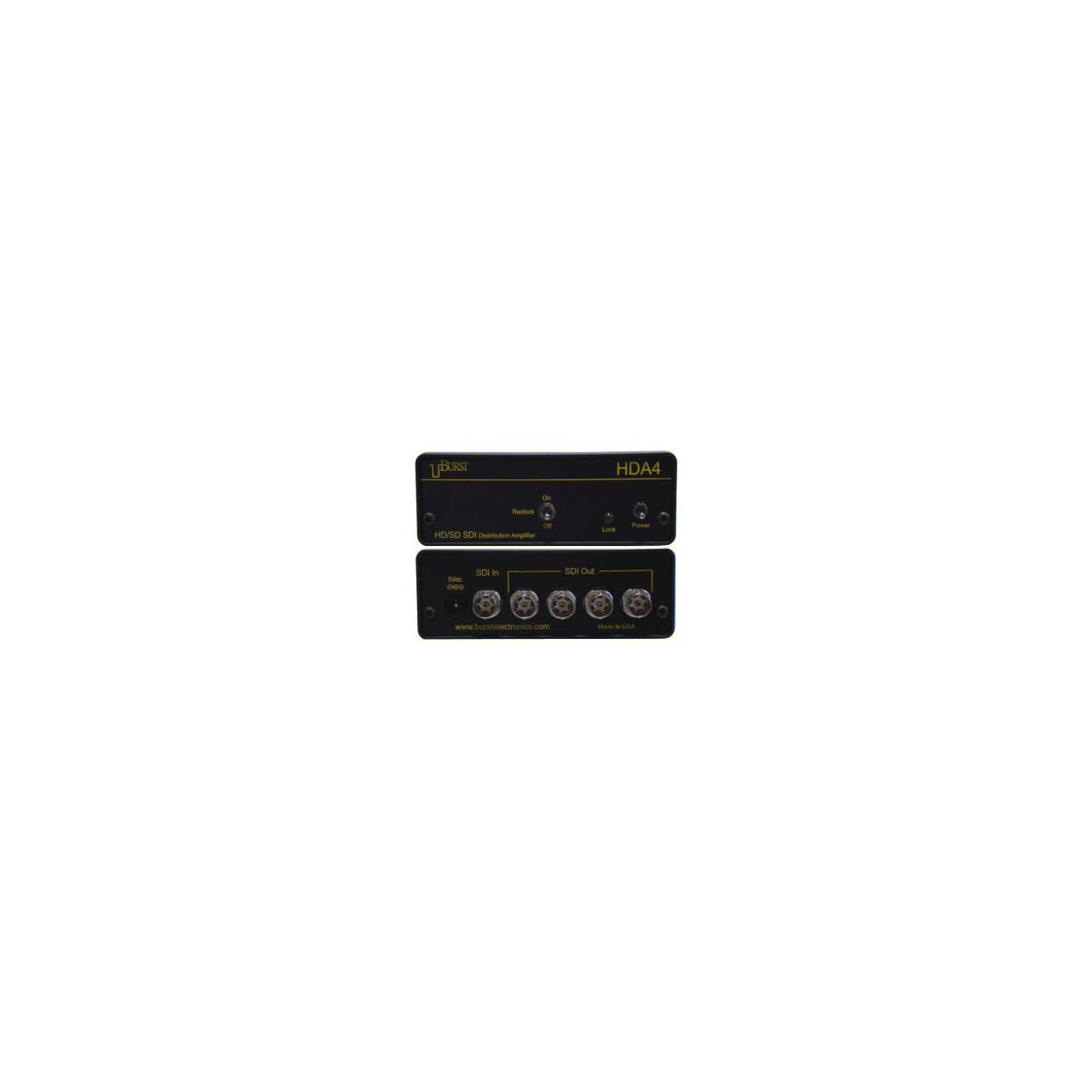

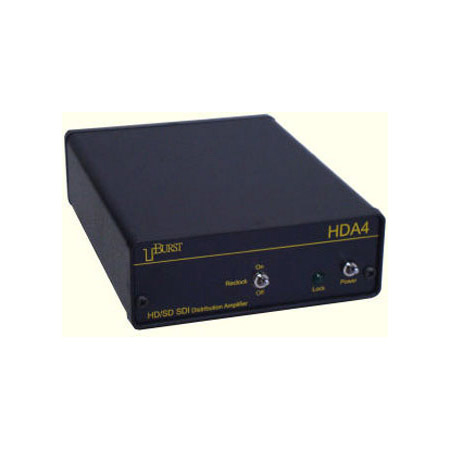

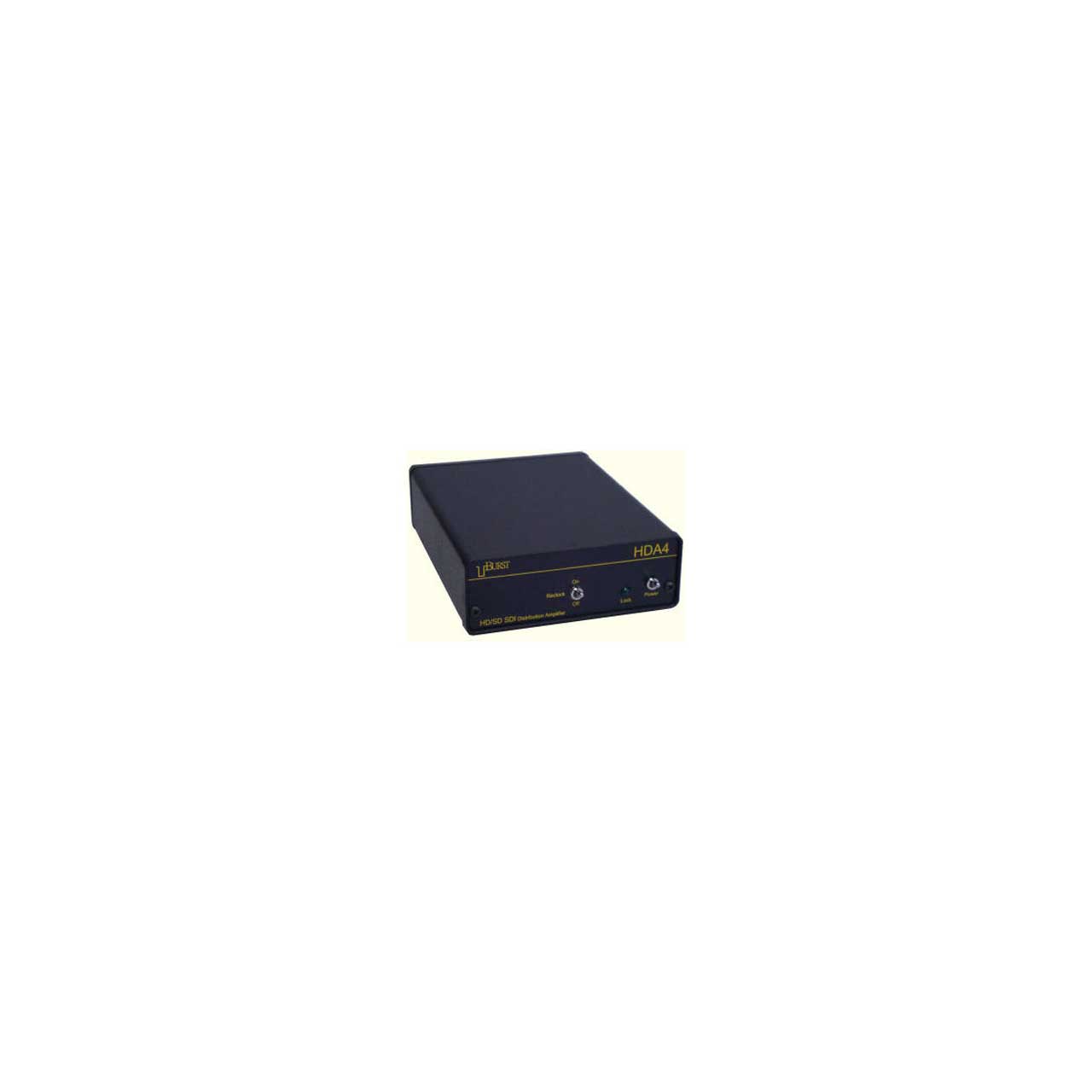

Burst HDA4 HD/SD SDI 4-output Digital Reclocking Distribution Amp

ITEM #: HDA4 MFG #: HDA4

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Burst Electronics
Free Shipping with $49 Minimum Order

List Price:

$1,361.25

Our Price:

$1,123.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HDA4 - Overview

Every home needs an electronics expert, someone who can decide if it makes sense to buy the latest equipments. If you are a gadget freak, our Electronics catalog is your dream destination. If you're still stuck at the basics, our elaborate product specifications shall handhold.

  • Specifications:

    • Standards Supported: SMPTE 292M/259M (NTSC 480i; PAL 576i; 720p59.94; 1080i50/59.94; 1080p30)
    • Level: 800mv p-p
    • Impedance: 75 ohm terminating
    • Equalization: Automatic up to 100m @ 3.0GHz using Belden 1694
    • Input Connectors: BNC
    • Input Level: 20–800mv p-p
    • Input Freq. Range: 143Mbps to 3.0Gbps inclusive
    • Outputs: 4
    • Output Connectors: BNC
    • Output Level: 800mv p-p, Unity Gain
    • Output Freq. Range: 143Mbps to 3.0Gbps inclusive
    • Output Impedance: 75 ohm
    • Output Jitter: 0.2UI (expected)
    • Switch 1: Power ON/OFF
    • Switch 2: Bypass/Reclocked
    • Signal Present Indicaotor: Green LED
    • Size: 4.2 W x 1.5 H x 5.5 D inches
    • DC Powered: 5 Vdc (5Vdc power supply included)
    • Warranty: Two Years Parts and Labor
    • Operation temperature: 0C to +40C
    • Storage temperature: -40C to +85C
    • Relative Humidity: 5% to 95% RH (non-condensing)
