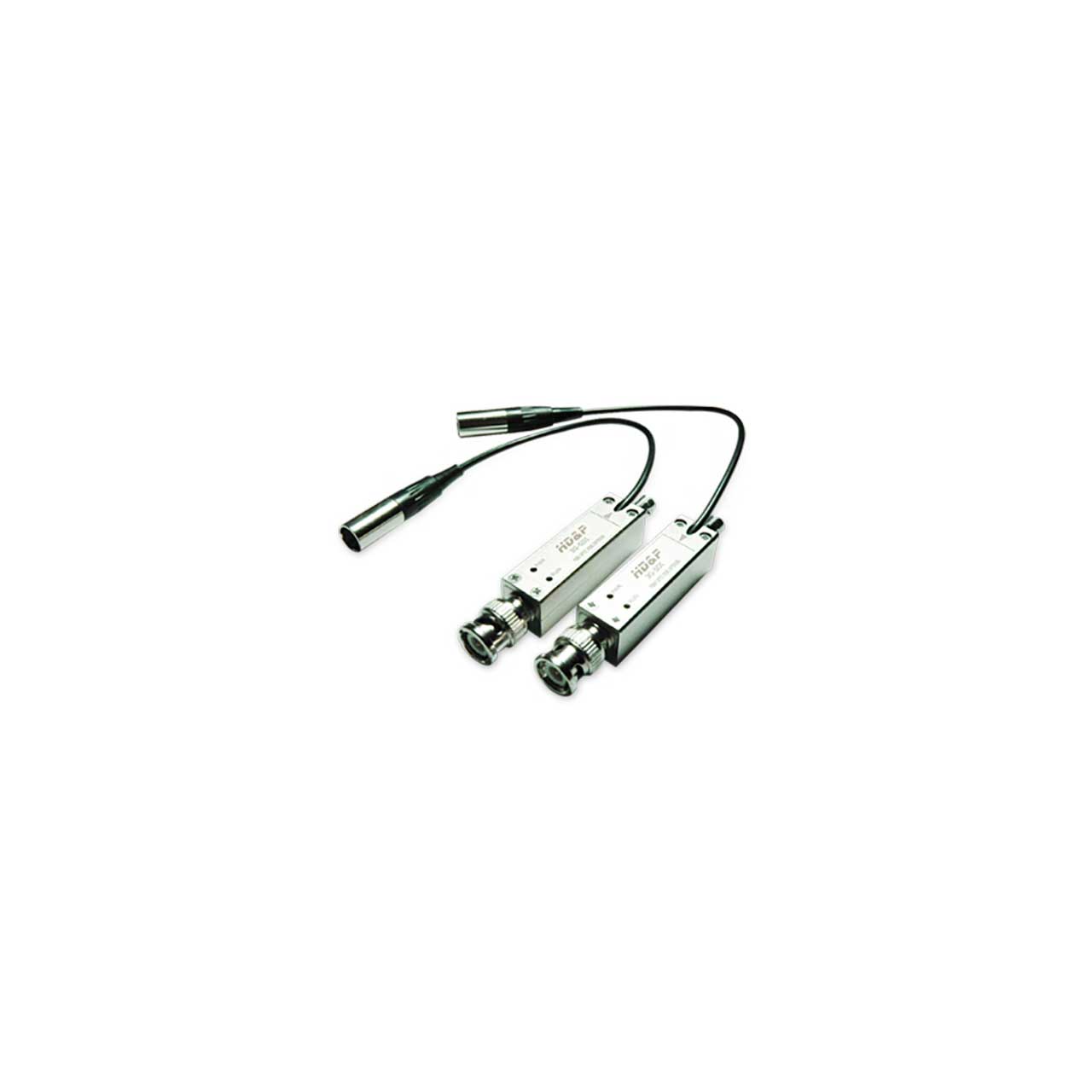

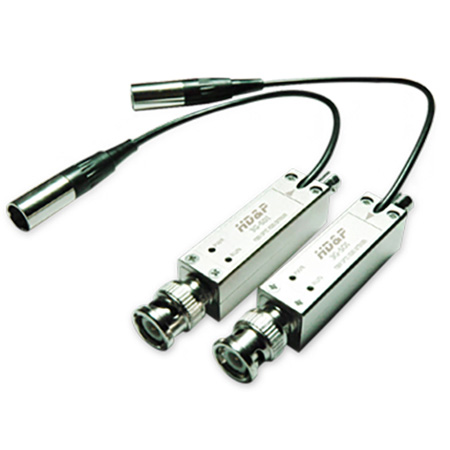

HDnP HDVE(T/Rx) 1-Channel 3G/HD-SDI Video Extender Set

HDVE-T-RX - Overview

• Features:

  • Supports 1 channel 3G/HD-SDI video
  • Supports SMPTE-424M, 292M, 259M and others
  • Bullet-type and slim package
  • 5V or 12V single supply voltage


• Specifications:

  • Video
  • Signal Format: SMPTE-424M, SMPTE-292M, SMPTE-259M
  • Signal Level: 800 mV Vp-p ±50 mV
  • Data rate: Up to 2.97Gbps
  • Jitter*:
    < 1.0 UI - Timing Jitter
    < 0.2 UI - Alignment Jitter
  • Electrical Connector: BNC (75Ω)
    Note: *Total Jitter at the end of Receiver output Maximum value.


  • Optical
  • Wavelength: 1310nm
  • Transmitter:
    Output power: -7 ~ -3dBm
    Extinction Ratio 7dB
  • Receiver
    Sensitivity -22dBm
    Maximum Overload 0dBm
  • Distance (Typ.): 30km*
  • Fiber Type: Single mode and Multimode
  • Optical Connector: ST Connector
  • Number of Fibers: 1
    Note: *The maximum distance coverage may be greater than these typical numbers, depending on fiber type, fiber bandwidth, connector, splicing losses, chromatic dispersion, environmental factors, etc.

    Mechanical
  • Power Supply: DC5, 1A Adaptors
  • Operating Temperature: -4° to 167°F (-20° to 75°C)
  • Humidity: 0 to 95% RH, non-condensing
  • Dimensions (WxDxH): 0.61 x 2.09 x 0.65" (15.5 x 53 x 16.5mm)


• Item Includes:

  • 2x HDVE converters
  • 2x DC5V Power supply, 1A Adapters


• Warranty:

  • 3 year warranty
