Dataprobe iBOOT-EXP iBoot G2-Plus Expansion Unit

Name: Dataprobe iBOOT-EXP iBoot G2-Plus Expansion Unit
Brand: Dataprobe Inc.
SKU: IBOOT-EXP
Price: 125.00 USD
Availability: PreSale

ITEM #: IBOOT-EXP MFG #: IBOOT-EXP

Dataprobe Inc.

Our Price:

$125.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

IBOOT-EXP - Overview

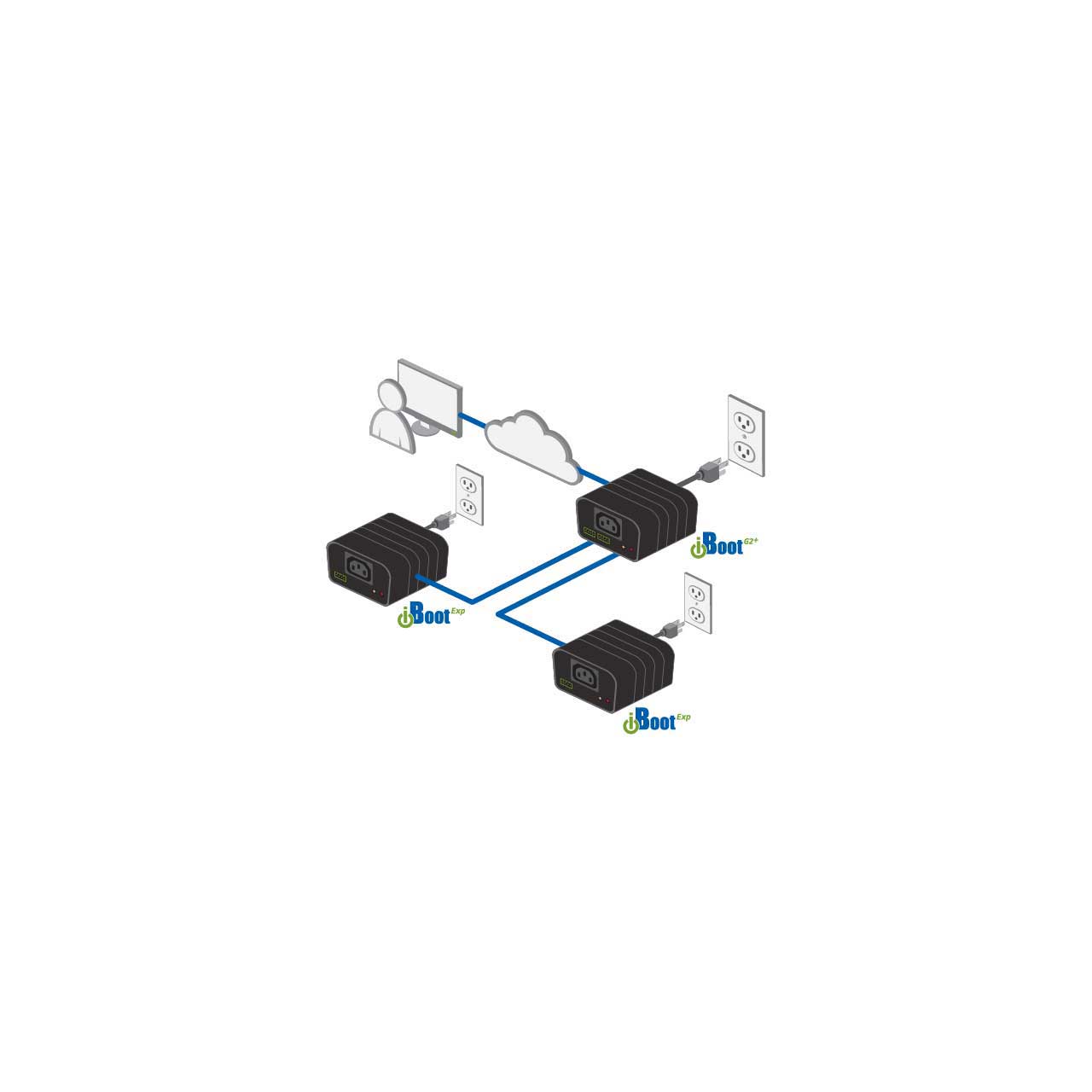

Dataprobe iBoot-EXP is a remote controlled power On / Off switch. It is designed to be controlled by DataprobeG€™s iBoot-G2+ or iBoot-G2S Web Enabled Power Switches, as an expansion unit. iBoot-EXP handles worldwide power from 105-240VAC. It is capable of switching up to 12Amps at 120VAC and 10 Amps at 220 VAC. Two iBoot-EXP units can be connected and independently controlled by the iBoot-G2+ or iBoot-G2S.

Specifications:
- Power: 105-240 VAC Auto Ranging
- Power Switching: 12 Amps at 105-125 VAC, 10 Amps at 210-240 VAC
- Power Connectors: Power Inlet: IEC 320 C13 Plug. Line cord for North America Included. 16AWGX3C x 6 foot/2m Power Out: IEC 320 C14 Receptacle. Extension Cord for N. America Included. 16AWGX3C x 2 foot/60cm
- Physical H x W x D: 2.0" x 3.2" x 4.2" (60mm x 82mm x 107mm) Operating Temperature 0 to 50 Deg. C
- Reliability: MTBF 540,000 Hours Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
- Compliance: RoHS/WEEE FCC Part 15 Class B. UL/cUL UL60950 Listed I.T.E File No. E225914 CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC
- External I/O: Two Inputs, Two Outputs, Screw Terminal Connections:
- V+: Power IN - This is +12 VDC power from the iBoot-G2+ or iBoot-G2S Maximum current 100 mA
- IInput: Control Input from iBoot-G2+ or iBoot-G2S
- Ground: Signal Ground for Input and Output
- Output : Status Output to iBoot-G2+ or iBoot-G2S
GTIN:
0700220863804
