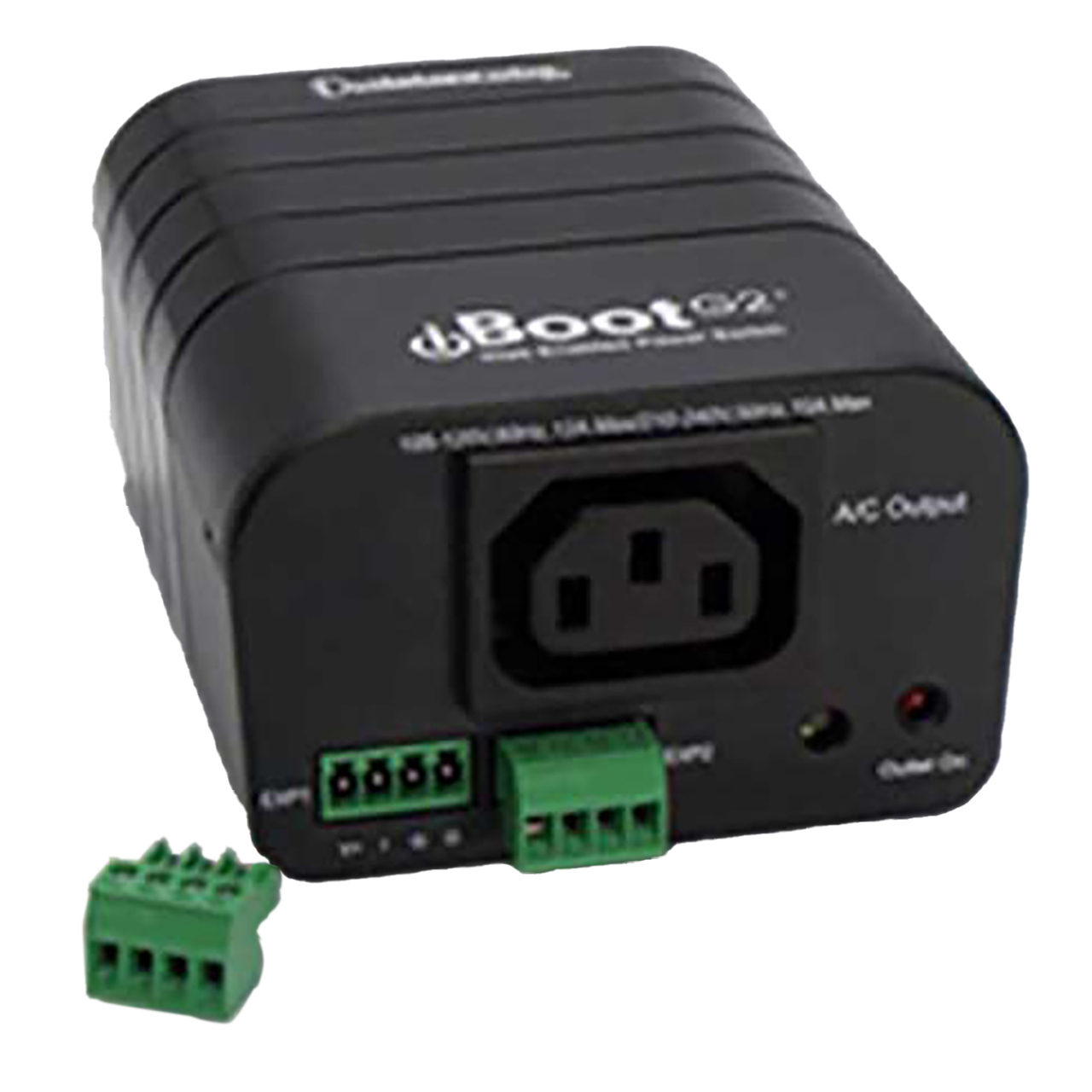

Dataprobe IBOOT-G2 Plus Enhanced iBoot Web Controlled Remote Reboot Power Switch

IBOOT-G2-PLUS - Overview

• Features:

  • AutoPing and HeartBeat - Auto Reboot
  • Cloud Service - Manage from Anywhere
  • General Purpose I/O independently monitored and controlled
  • Heartbeat Monitor - Automatic Failure Detection
  • Web Browser Power Control: Clean Web page design for immediate status and power control. Auto detects mobile browsers. No special software required.
  • Automatic System Restoral: AutoPing and Heartbeat detect network or equipment outage and takes immediate action to restore your network or device. Real time scheduling to have a fresh reboot each morning or minimize power waste at night.
  • Cloud Control: Manage all your iBoots from a single sign-on. Control power worldwide from any web browser, anytime anywhere.
  • Graceful Shutdown: Attempts to do a Graceful Shutdown or Restart on Windows platforms prior to hard power switch.
  • Expandable: Add one or two iBoot-EXP expansion units with independent control, and AutoPing. When not used for expansion units, the inputs and outputs can be used for general purpose I/O or as manual power control.
  • USB Port: Out-of-band management with simple serial commands for status, control and setup.
  • UL Listed: We take your safety seriously. Be confident to pass fire marshal and OSHA inspections.
  • Dual Password Protected: Separate user and administrator passwords. Deploy iBoots throughout your organization.
  • IP Addressed, 10/100 Base-T: Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.
  • Direct TCP and Software Control: Control iBoot-G2+ directly from your software application for the highest degree of power control integration. Simple protocol is freely available. Use iBoot-G2+ control program to call power control from any network management system.
  • 110/220 VAC Operation: Auto ranging power input. Deploy iBoot-G2+ anywhere in the world. iBoot-G2+ uses IEC320 Connectors and includes line and extension cords for North America.
  • 12 Amp Switching: Current for most Servers, Routers, Kiosks, etc. 10 Amps at 220 VAC.


• Specifications:

  • Power: 105 - 240 VAC Auto Ranging
  • Power Switching: 12 Amps at 105-125 VAC, 10 Amps at 210-240 VAC
  • Power Connectors: Power Inlet IEC 320 C13 Plug. Line cord for North America Included. 16AWGX3C x 6'/2m Power Out IEC 320 C14 Receptacle. Extension Cord for N. America Included. 16AWGX3C x 2'/60cm
  • Network: 10/100base-T, Auto sensing Uplink/Downlink Cat 5 Cable Included 6'/2m long; USB Mini-B Com Port 9600 8 N 1
  • Protocols: IP Addressable. DHCP or Static HTTP Web Server built-in, Port Assignable Telnet Server built-in, Port Assignable DxP Messaging Protocol, Port Assignable Auto-Ping TCP Protocol: Heartbeat Detector Protocol
  • External I/O: Two Inputs, Two Outputs, Screw Terminal Connections
  • Browser: Form Processing Browser Required Mozilla 3.0 or IE 3.0 or greater
  • Security: Dual Password Protected, User and Admin
  • Physical H x W x D: 2.0" x 3.2" x 4.2" (60mm x 82mm x 107mm)
  • Operating Temperature: 0 to 50 Deg. C
  • Reliability: MTBF 320,000 Hours Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
  • Compliance: RoHS/WEEE FCC Part 15 Class B AC Versions UL/cUL UL60950 Listed I.T.E File No. E225914 CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC


• GTIN:

  0700220863798
