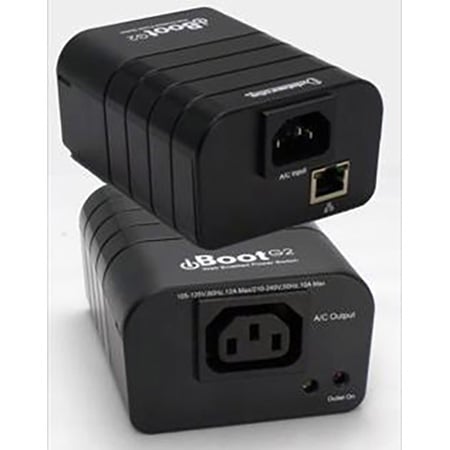

Dataprobe IBOOT-G2 Web Controlled Remote Reboot Power Switch

ITEM #: IBOOT-G2 MFG #: IBOOT-G2

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$225.00

Availability: In Stock
iAvailability Description Popup


IBOOT-G2 - Overview

Dataprobe IBOOT-G2 Web Controlled Remote Reboot Power Switch
iBoot-G2 is a 10/100 Ethernet network attached, IP addressed, Web Controlled power switch. Anyone with a web browser can access iBoot-G2 to perform power On, Off or Reboot (timed power shutdown). iBoot-G2 is password protected for security.

iBoot-G2 for uses international standard IEC320 Connections and is auto sensing for worldwide use. Line cord and Output Cord are included for North America. iBoot-G2 handles circuits up to 12 Amps (10 Amps at 230VAC).

Remote Power Control from your Web Browser
Just point your browser to iBoot's IP address, enter the Password and you're one click away from power ON, OFF or a timed Reboot. It's that simple.

Automatic Reboot for Crashed Devices
The unique Auto-Ping feature allows iBoot-G2 to monitor any IP device on the network and take automatic action whenever the device is down.

The new Heartbeat Detect feature allows iBoot-G2 to monitor any server or PC running either the free Heartbeat Generator Program, or heartbeats integrated into your custom software. Dataprobe can provide developer support to make integration easy.

Free Cloud Service
iBoot Cloud Service (iBCS) allows customers with iBoot to access and control multiple iBoots in multiple locations from a single portal with a single sign-on. iBCS will not only make using iBoots easier, by consolidating all units into one sign-on and interface, it will also enhance the number of situations where iBoot can be deployed.

  • Features:

    • Web Browser Power Control: Clean Web page design for immediate status and power control. Auto detects mobile browsers. No special software required. Learn More
    • Automatic System Restoral: AutoPing detects network or equipment outage and takes immediate action to restore your network or device. Real time scheduling to have a fresh reboot each morning or minimize power waste at night. Learn More
    • Cloud Control: Manage all your iBoots from a single sign-on. Control power worldwide from any web browser, anytime anywhere. Learn More
    • UL Listed: We take your safety seriously. Be confident to pass fire marshal and OSHA inspections. Learn More
    • Dual Password Protected: Separate user and administrator passwords. Deploy iBoots throughout your organization.
    • IP Addressed, 10/100 Base-T: Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.
    • Direct TCP and Software Control: Control iBoot-G2 directly from your software application for the highest degree of power control integration. Simple protocol is freely available. Use iBoot-G2 control program to call power control from any network management system. IPSentry, What'sUp Gold, etc.
    • 110/220 VAC Operation: Auto ranging power input. Deploy iBoot-G2 anywhere in the world. iBoot-G2 uses IEC320 Connectors and includes line and extension cords for North America.
    • 12 Amp Switching: Current for most Servers, Routers, Kiosks, etc. 10 Amps at 220 VAC.

  • Specifications:

    • Power: 105 - 240 VAC Auto Ranging
    • Power Switching: 12 Amps at 105-125 VAC, 10 Amps at 210-240 VAC
    • Power Inlet: IEC 320 C13 Plug. Line cord for North America Included. 16AWGX3C x 6 foot/2m
    • Power Out: IEC 320 C14 Receptacle. Extension Cord for N. America Included. 16AWGX3C x 2 foot/60cm
    • Network: 10/100base-T, Auto sensing Uplink/Downlink; Cat 5 Cable Included 6 foot/2m long
    • Browser: Form Processing Browser Required, Mozilla 3.0 or IE 3.0 or greater
    • Security: Dual Password Protected, User and Admin
    • Dimensions: H x W x D: 2.0" x 3.2" x 4.2" (60mm x 82mm x 107mm)
    • Operating Temperature: 0 to 50 Deg. C
    • Reliability MTBF 320,000 Hours; Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load

      Protocols
    • IP Addressable. DHCP or Static
    • HTTP Web Server built-in, Port Assignable
    • Telnet Server built-in, Port Assignable
    • DxP Messaging Protocol, Port Assignable
    • Auto-Ping TCP Protocol
    • Heartbeat Detector Protocol

      Compliance
    • UL/cUL UL60950
    • Listed I.T.E File No. E225914
    • CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC
    • RoHS/WEEE
    • FCC Part 15 Class B

  • GTIN:

    0700220863781
