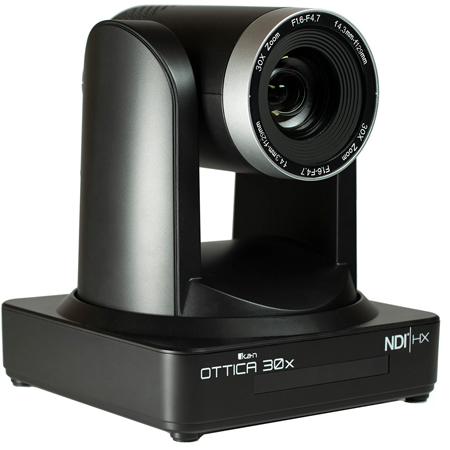

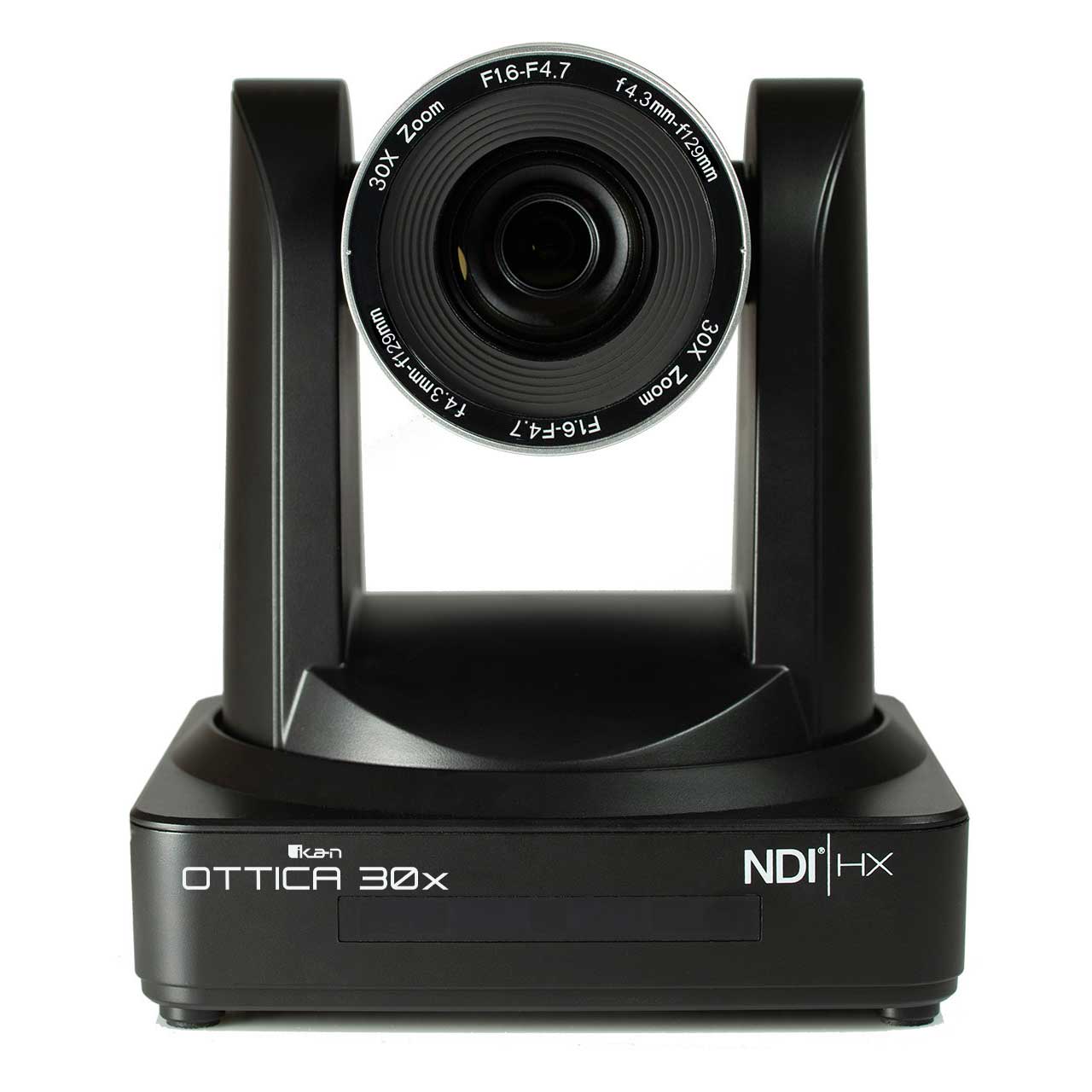

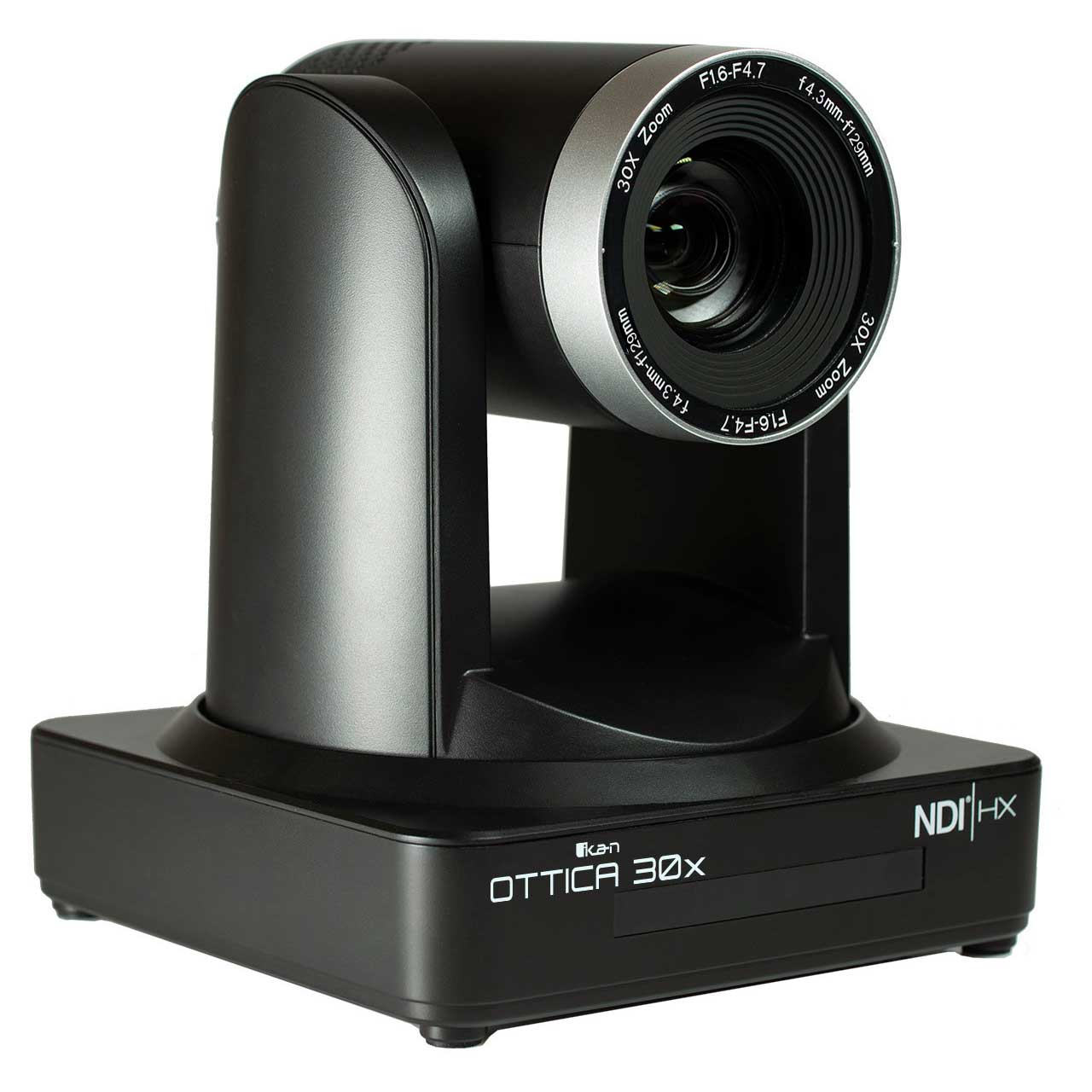

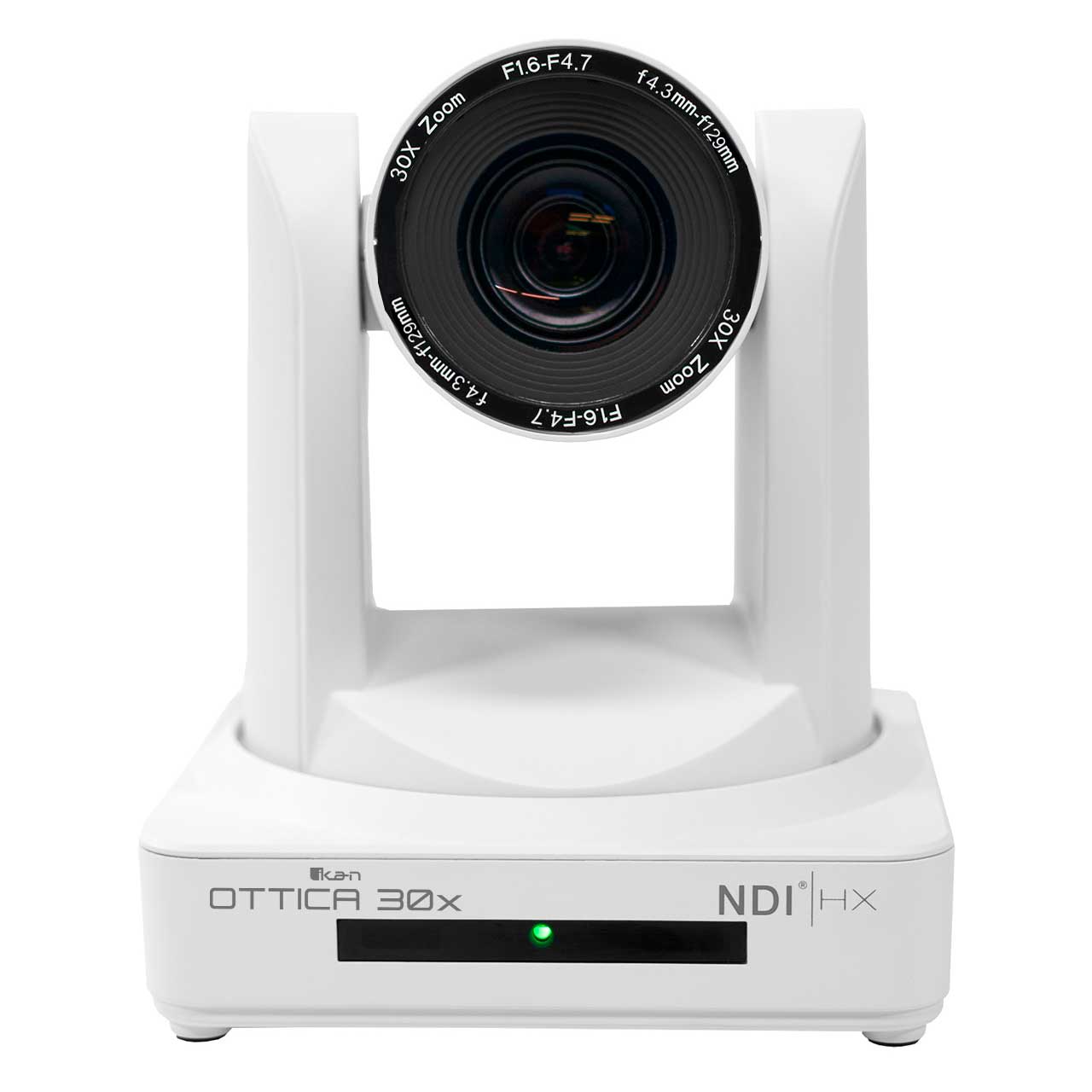

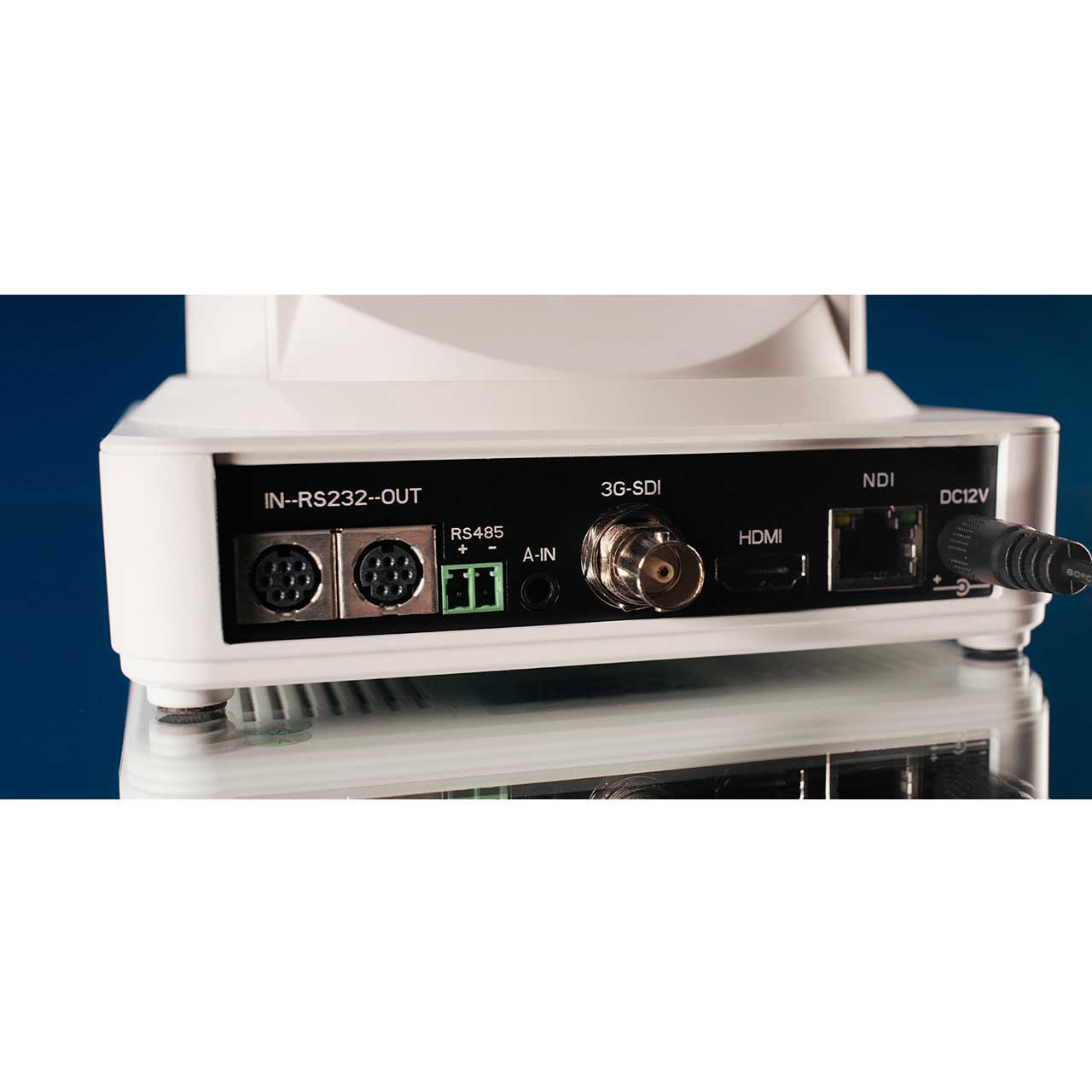

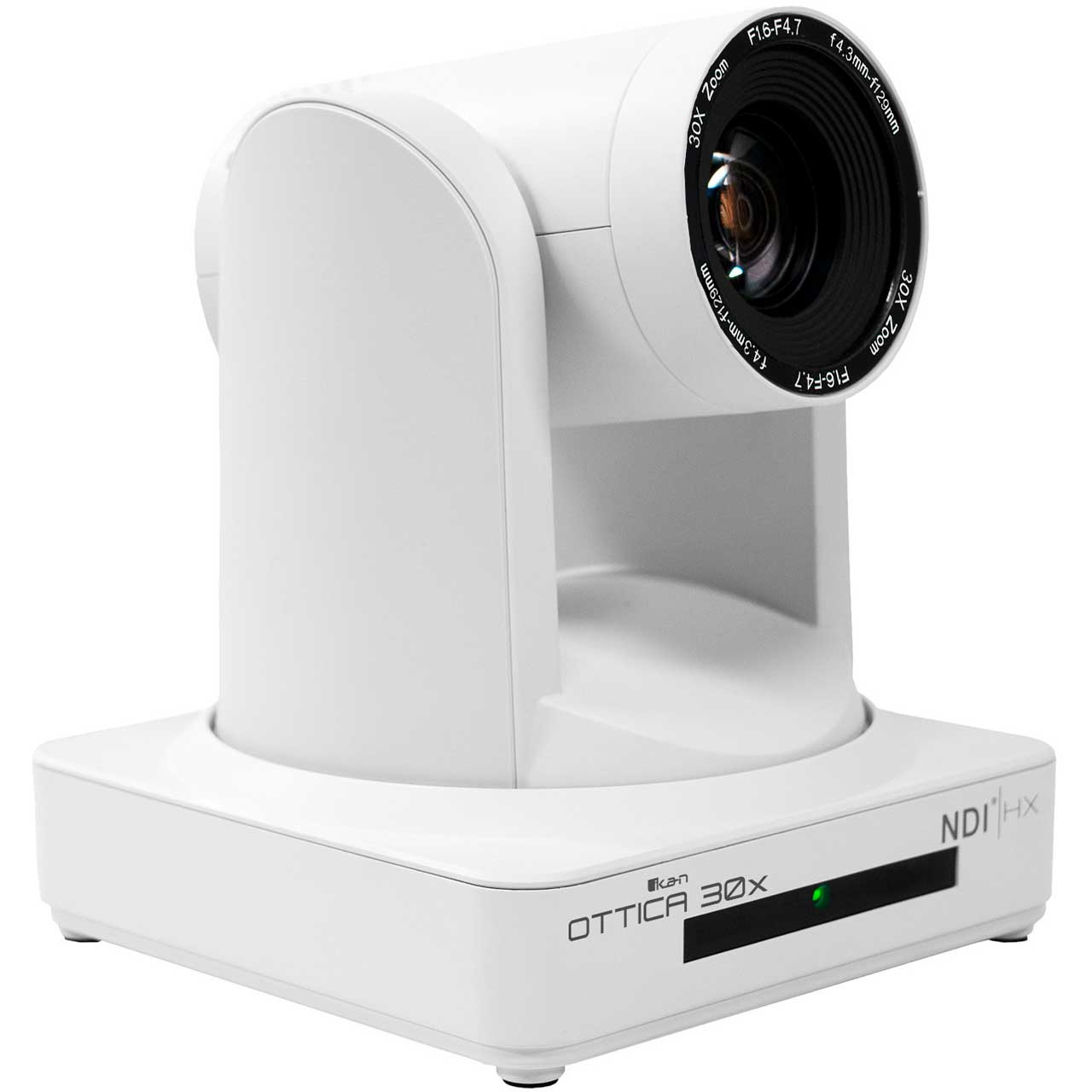

The OTTICA™ PTZ Video Camera from Ikan features a 1/2.8" CMOS sensor and 4.3-129mm varifocal lens with 30x zoom to capture videos at a maximum resolution of 1080p at 60fps. It supports POE (802.3af), HDMI, 3G-SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in connectivity. The camera uses a step drive motor mechanism and motor drive controller for smooth and noiseless PTZ operation. In addition, it supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats.
Camera Performance
Advanced ISP processing algorithms provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. The OTTICA supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions. A full-bandwidth NDI 1080p x60 fps video data stream uses approximately 100Mbps, whereas a video data stream using NDI|HX will only require around 10Mbps (approximately 1/10th of full-bandwidth NDI). Using NDI|HX will expand the camera’s compatibility with different types of network options.
Superb High-Definition Image

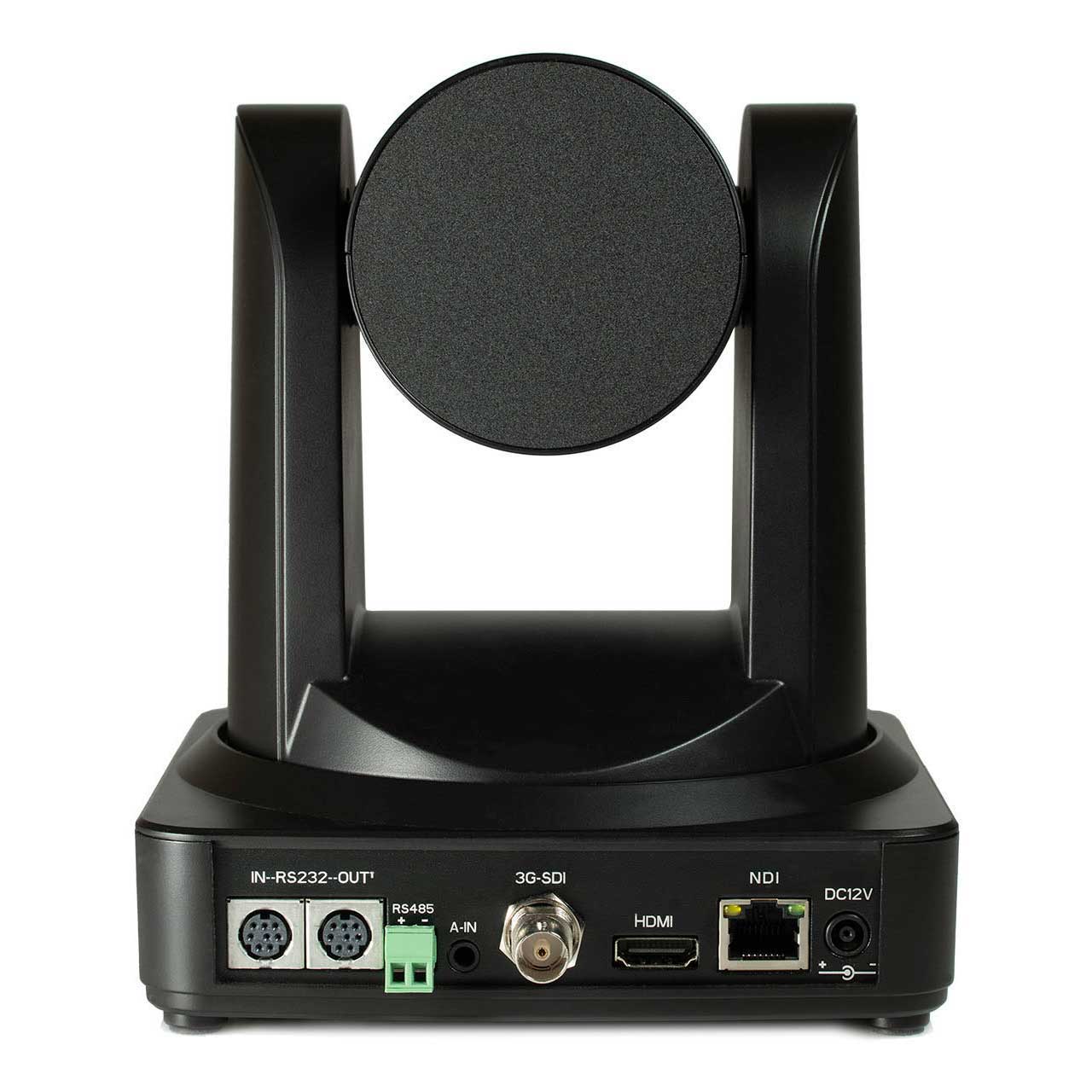

The OTTICA employs 1/2.8 inch high-quality CMOS sensor and supports resolutions up to 1920×1080 with frame rates up to 60 fps. Supported outputs include HDMI,3G-SDI, & wired LAN (NDI|HX). The 3G-SDI will work up to 100 meters in distance with transmission at 1080p60 format.
Variable Optical Zoom Lens
The camera includes a 4.3-129mm f/1.6-4.7 varifocal lens with a viewing angle ranging from 2.34° (tele) to 65.1° (wide) and offers 30x optical zoom.
