KanexPro EXT-HDBT70M UltraSlim 4K/60 HDMI Extender over HDBaseT - 230 Feet. (70m)

Name: KanexPro EXT-HDBT70M UltraSlim 4K/60 HDMI Extender over HDBaseT - 230 Feet. (70m)
Brand: KanexPro
SKU: KAN-EXT-HDBT70M
Price: 419.95 USD
Availability: InStock

ITEM #: KAN-EXT-HDBT70M MFG #: EXT-HDBT70M

KanexPro

Our Price:

$419.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

EXT-HDBT70M - Overview

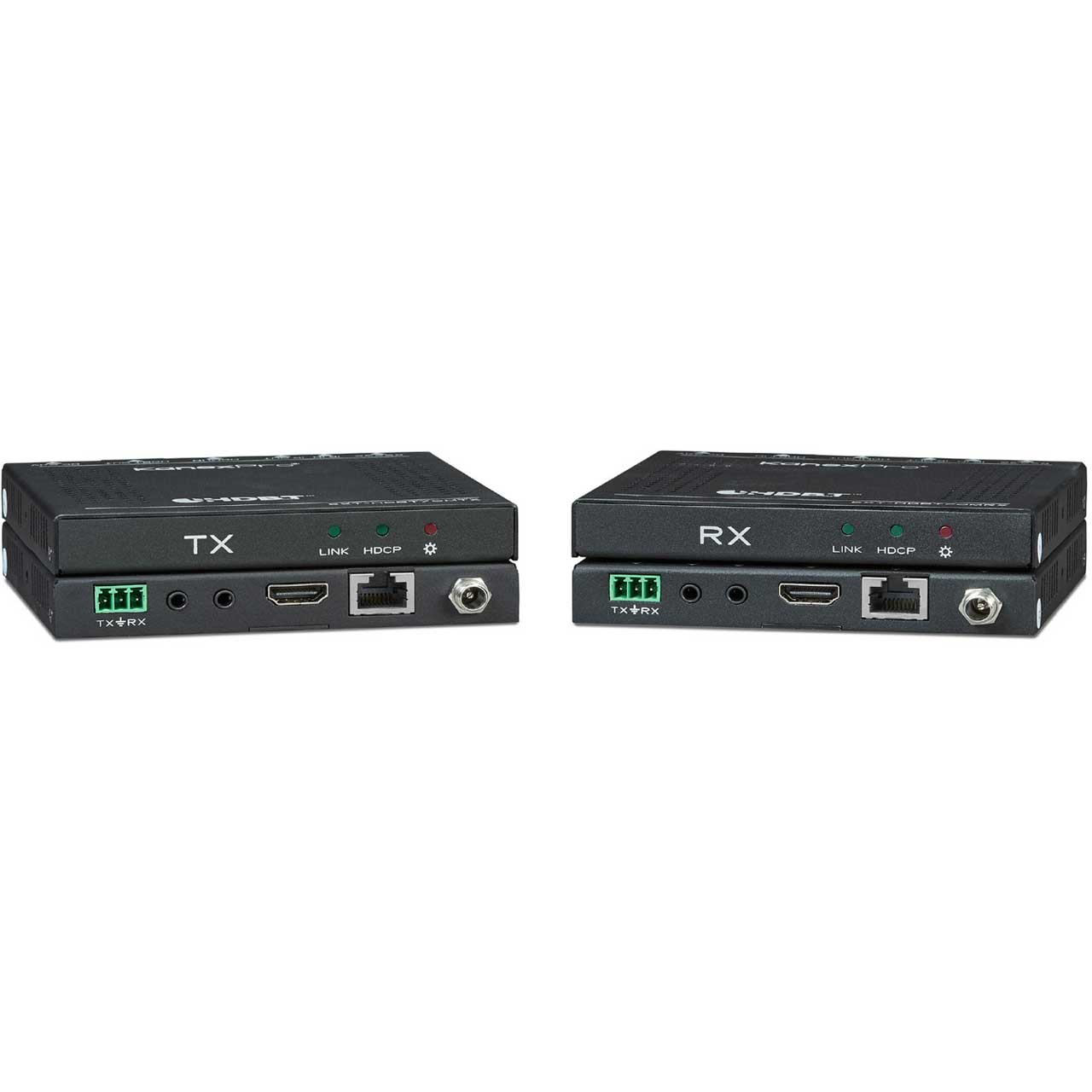

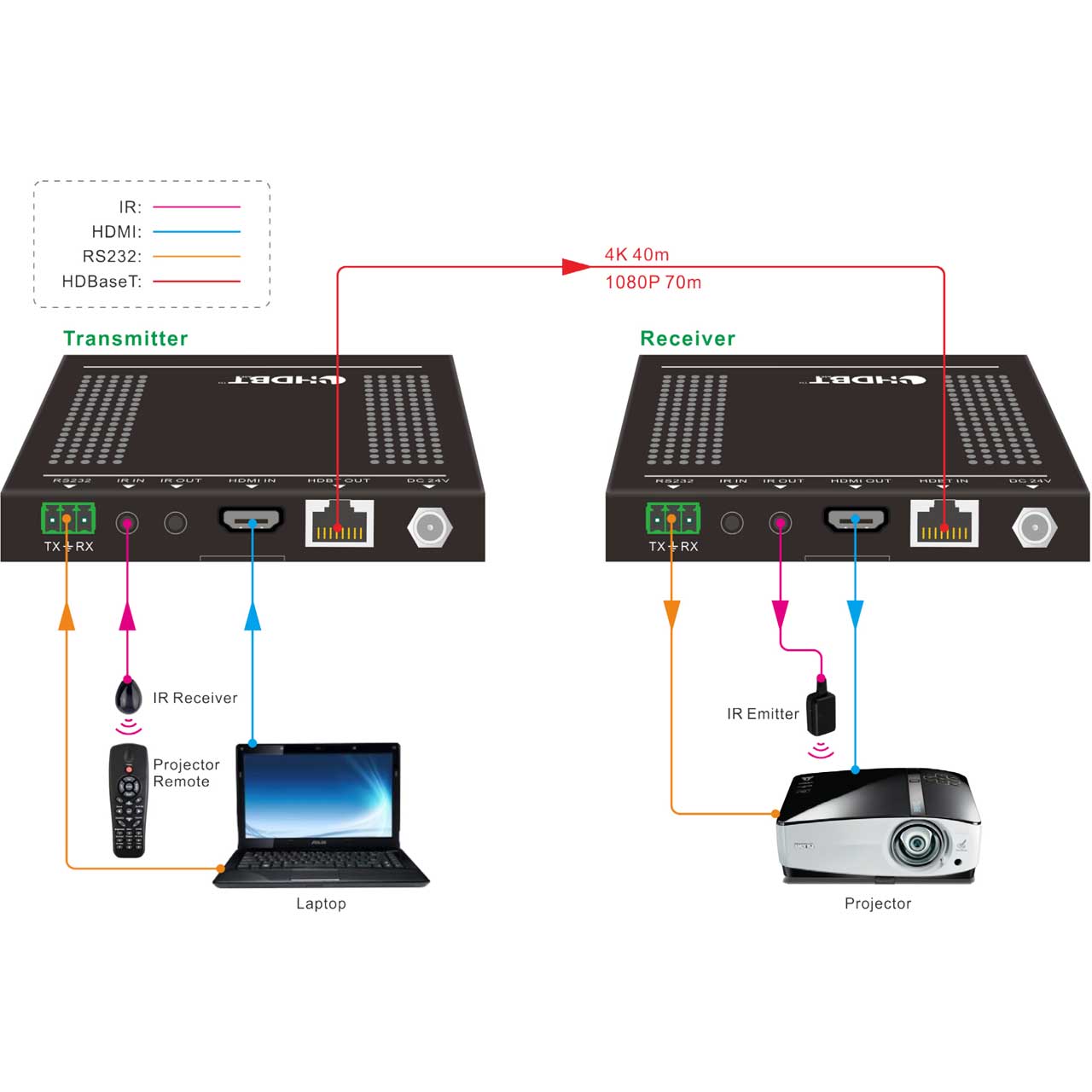

The KanexPro EXT-HDBT70M is an UltraSlim, HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. It supports 4K/60Hz with 4:2:0. Moreover, the extender set supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.

Applications
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.

Please Note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

Features:
- UltraSlim point-to-point HDMI extender over HDBaseT
- Extend full HD 1080p up to 70m
- Extend 4K/60 up to 40m
- Supports Ultra HD 4K@24/30/60Hz resolutions &
- PC resolutions from 1080p/60@48bit
- 4K/60Hz w/ 4:2:0
- Bi-directional PoH (power over HDBaseT)
- HDCP 2.2 and EDID compliant
- Bandwidth 10.2 Gbps
- Bi-directional RS-232 & IR control
- Supports CEC/IR/RS-232 pass-thru
- IR input/output - embedded over CATx extension
- Dolby TrueHD & DTS Master Audio ready
- Supports uncompressed audio - LPCM
- Includes separate mounting ears
- One locking power supply included
- Backed by KanexPro 3-year parts and labor warranty
Specifications:
- Transmitter
- Input Signal: (1) HDMI, (1) IR; (1) RS232

  Input Connector
- (1) HDMI female; (1) 3.5mm mini jack;
- (1) 3p captive screw connector

  Output
- (1) RJ-45, (1) IR, (1) RS232

  Output Connector
- (1) RJ-45; (1) 3.5mm mini jack;
- (1) 3-pin captive screw connector

  Audio
- (1) Digital audio,transmit through HDMI audio

  Receiver
- Input Signal: (1) IR; (1) RJ-45; (1) RS232
- Input Connector: (1) 3.5mm mini jack; (1) RJ-45; (1) 3p captive screw connector

  Output
- (1) HDMI
- (1) IR
- (1) RS232

  Output Connector
- (1) HDMI female
- (1) 3.5mm mini jack
- (1) 3-pin captive screw connector

  General
- Resolution Range: 640x480@60Hz~4Kx2K@30Hz
- Transmission Mode: HDBaseT
- Transmission Distance: 1080p = 70m; 4Kx2K = 40m
- Bandwidth: 10.2Gbps
- HDMI Standards - Supports HDMI1.4 and HDCP2.2
- Impedance: 75Ω
- Temperature: 0~ 50 C
- Humidity: 10% ~ 90%

  External Power Supply
- Input: 100VAC~240VAC, 50/60Hz;
- Output: DC 24V, 1.25A
- Power Consumption: 14w (max)

  Weight & Dimensions
- Transmitter: 193g (0.42 lbs)
- Receiver: 196g (0.43 lbs

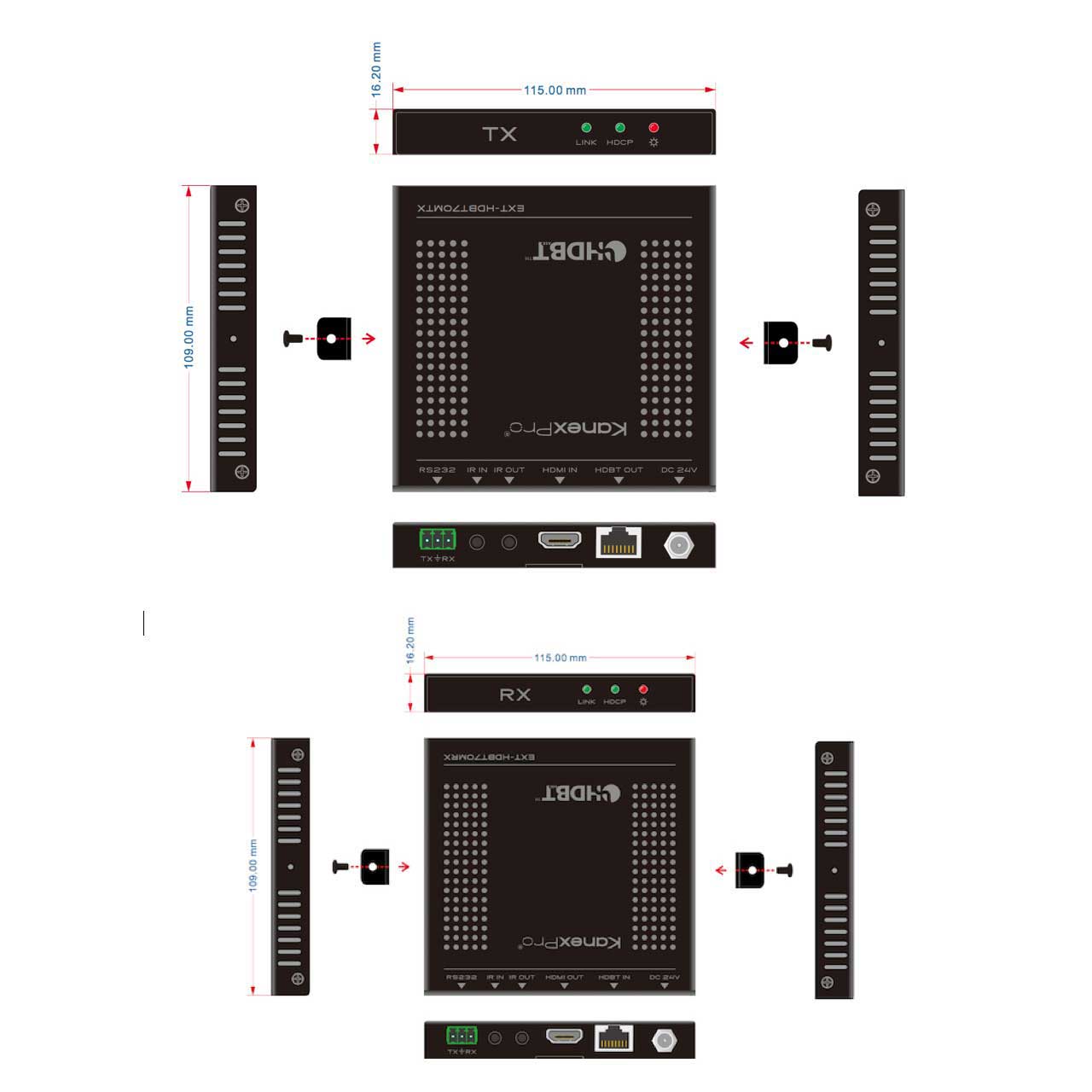

- Dimensions (W*H*D): 115mm x 16.2mm x 109mm
Item Includes:
- 1x KanexPro EXT-HDBT70M UltraSlim 4K/60 HDMI Extender over HDBaseT - 230 Feet. (70m)
GTIN:
0813982021358
