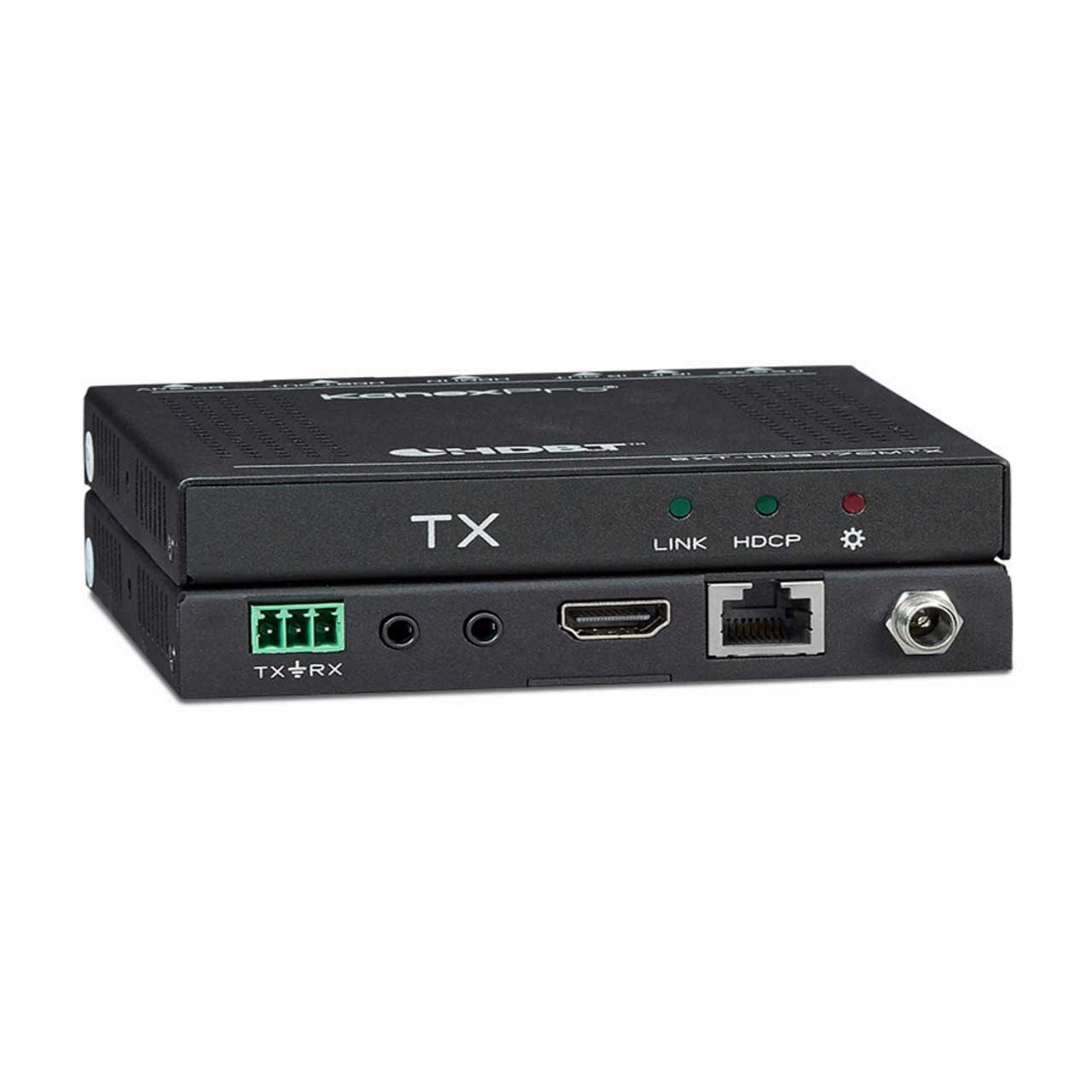

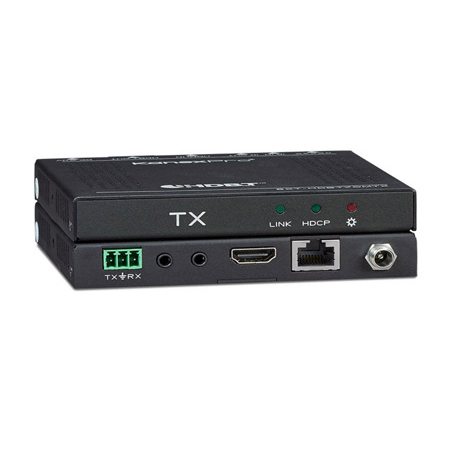

KanexPro EXT-HDBT70MTX UltraSlim 4K/30 HDMI Transmitter over HDBaseT - 230ft.

ITEM #: KAN-EXTHDBT70MTX MFG #: EXT-HDBT70MTX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
KanexPro
Free Shipping with $49 Minimum Order

Our Price:

$262.45

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

EXT-HDBT70MTX - Overview

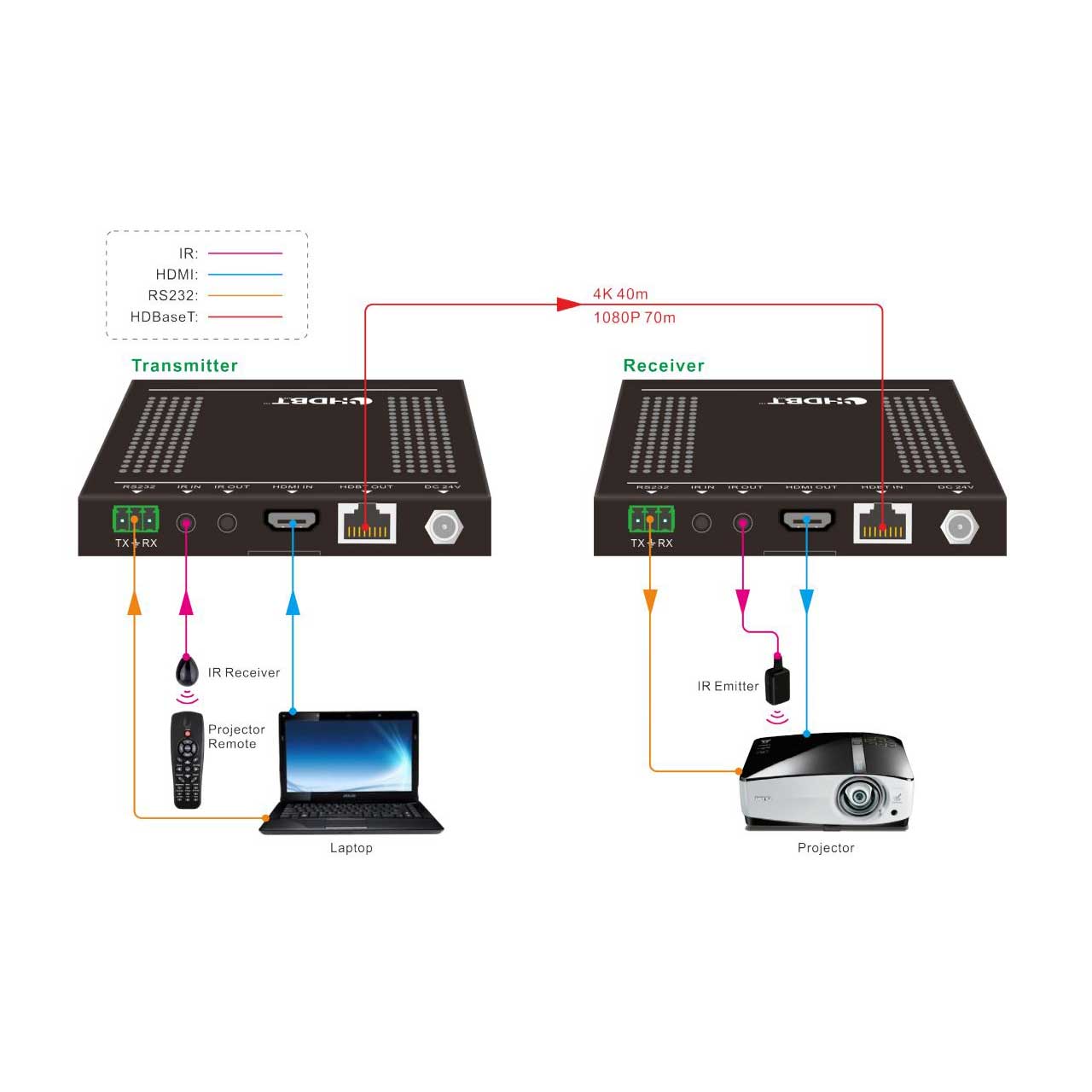

The KanexPro EXT-HDBT70MTX is an HDCP 2.2 compliant transmitter - extender consisting of one HDMI input one Ethernet output and IR + RS-232 controls. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at up to 70/40m. Moreover, EXT-HDBT70M supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.

Please note: Use of a CAT5e/6 cable with low impedance STP (Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

  • Features:

    • UltraSlim point-to-point HDMI Transmitter over HDBaseT
    • Extend full HD 1080p up to 70m
    • Extend 4K/30 up to 40m
    • Supports Ultra HD 4K@30Hz resolutions &
    • Video resolutions from 1080p/60@48bit
    • Bi-directional PoH (power over HDBaseT)
    • HDCP 2.2 and EDID compliant
    • Bandwidth 10.2 Gbps
    • Bi-directional RS-232 & IR control
    • Supports CEC/IR/RS-232 pass-thru
    • IR input/output - embedded over CATx extension
    • Dolby TrueHD & DTS Master Audio ready
    • Supports uncompressed audio - LPCM
    • Includes separate mounting ears
    • One locking power supply included
    • Backed by KanexPro 3-year parts and labor warranty


  • Specifications:

    • Input Signal: (1) HDMI, (1) IR; (1) RS232
    • Input Connector: (1) HDMI female; (1) 3.5mm mini jack; (1) 3p captive screw connector
    • Output: (1) RJ-45, (1) IR, (1) RS232
    • Output Connector: (1) RJ-45; (1) 3.5mm mini jack; (1) 3-pin captive screw connector
    • Audio: (1) Digital audio, transmit through HDMI audio
    • Resolution Range: 640x480@60Hz~4Kx2K@30Hz
    • Transmission Mode: HDBaseT
    • Transmission Distance: 1080p ≤ 70m; 4Kx2K ≤ 40m
    • Bandwidth: 10.2Gbps
    • HDMI Standards: Supports HDMI1.4 and HDCP2.2
    • Impedance: 75Ω
    • Operating Temperature: 0 - 50° C
    • Humidity: 10% - 90%
    • External Power Supply: Input: 100VAC~240VAC, 50/60Hz; Output: DC 24V, 1.25A
    • Power Consumption: 14w (max)
    • Dimensions (W x H x D): 4.52 x 0.63 x 4.29 Inches
    • Net Weight: 0.42 lbs


  • GTIN:

    0813982021365
