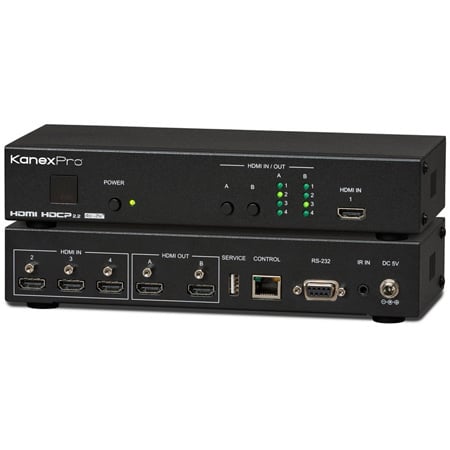

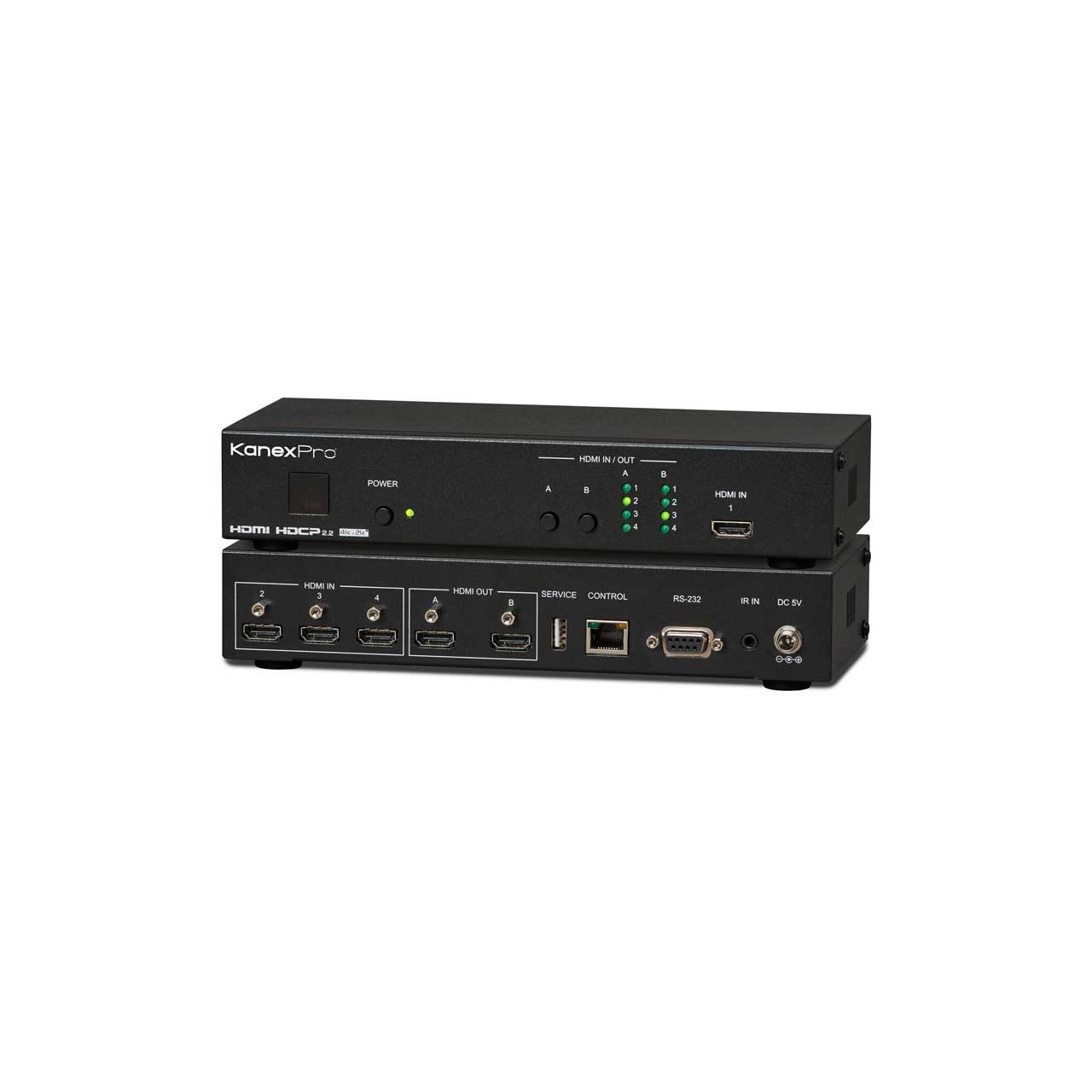

KanexPro HDMX42-18G 4x2 HDMI 4K/60 Matrix Switcher with HDR & EDID Management

HDMX42-18G - Overview

• Features:

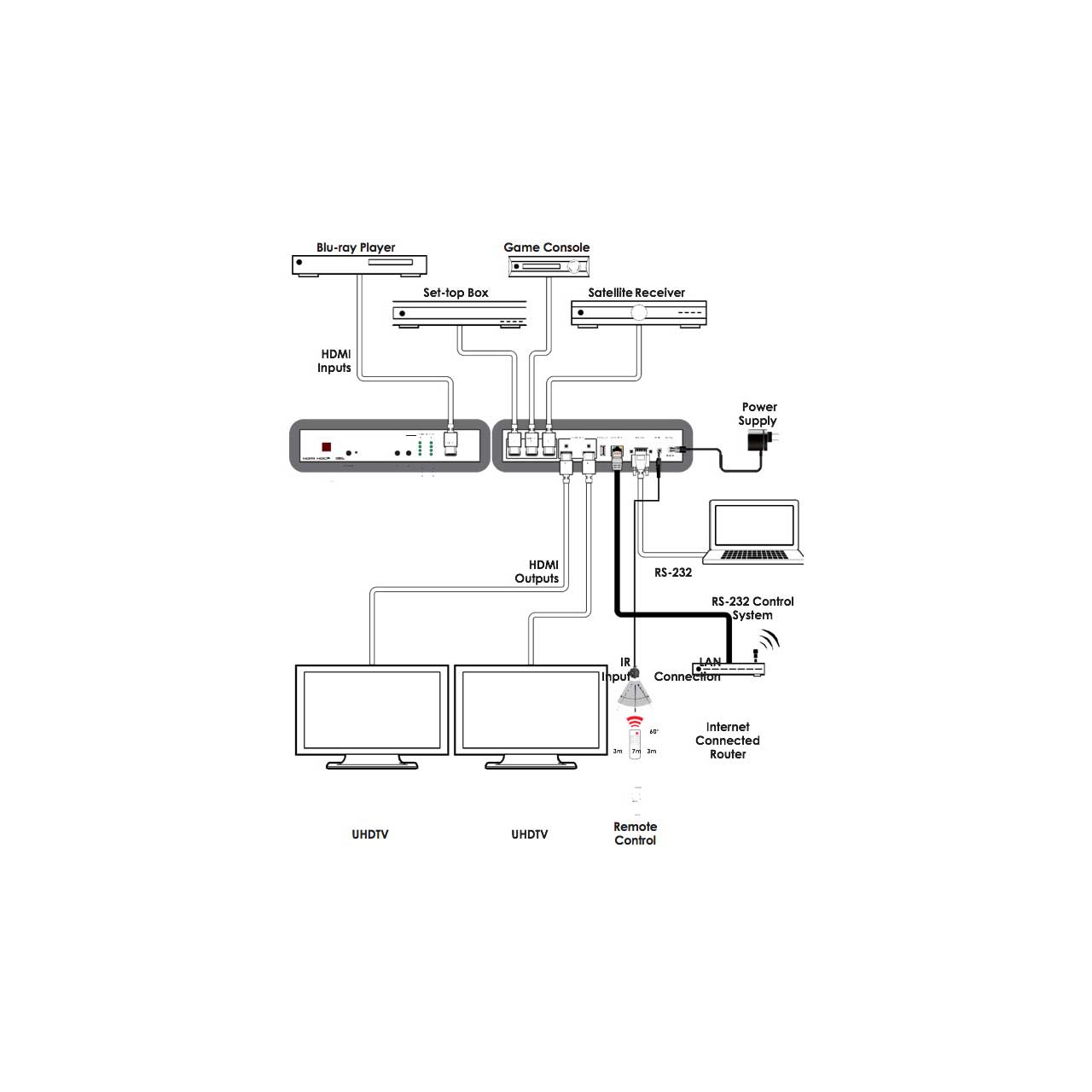

  • Switch 4 HDMI devices to 2 Displays with 4K/60 + HDR & 4:4:4
  • Supports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps HDMI outputs
  • Supports resolutions up to 4096x2160@60Hz (4:4:4, 8-bit)
  • HDMI 2.0 and DVI 1.0 compliant
  • HDCP 1.4 and 2.2 compliant
  • Maximum data rate up to 18Gbps with Deep Color support up to 16-bit at 1080p
  • Supports pass-through of LPCM 7.1, Bit stream and HD Bit stream audio formats
  • Supports EDID management via five pre-defined internal EDIDs and two external EDID options
  • Multiple control interfaces including RS-232, Telnet, WebGUI and IR remote


• Specifications:

  • Video Bandwidth: 600MHz/18Gbps
  • Input Ports: 4 x HDMI
  • Output Ports: 2 x HDMI
  • Control Interfaces: 1 x IR Extender (3.5mm) 1xRS-232 (9-pin D-sub) 1xIP Control (RJ45)
  • Supported Resolutions: 480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB)
  • HDMI Cable Length: 10m (1080p@60Hz, 12-bit); 3m (4K@60Hz, 4:4:4, 8-bit)
  • IR Frequency: 30 - 50kHz (30 - 60kHz under ideal conditions)
  • Baud Rate: 115200bps
  • Power Supply: 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection
  • Human Body Model: ±12kV (Air Discharge); ±8kV (Contact Discharge)
  • Dimensions(W x H x D): 9.4 in x 1.7 in x 4.0 in
  • Case Only(W x H x D): 9.4 in x 1.8 in x 4.4 in
  • Weight: 1.75 lbs (796g)
  • Chassis Material: Metal
  • Silkscreen Color: Black
  • Operating Temperature: 0°C - 40°C/32°F - 104°F
  • Storage Temperature: -20°C - 60°C/-4°F - 140F
  • Relative Humidity: 20 - 90% RH (Non-condensing)
  • Power Consumption: 7.106W


• Warranty:

  • KanexPro 3-year parts and labor


• GTIN:

  0813982021877
