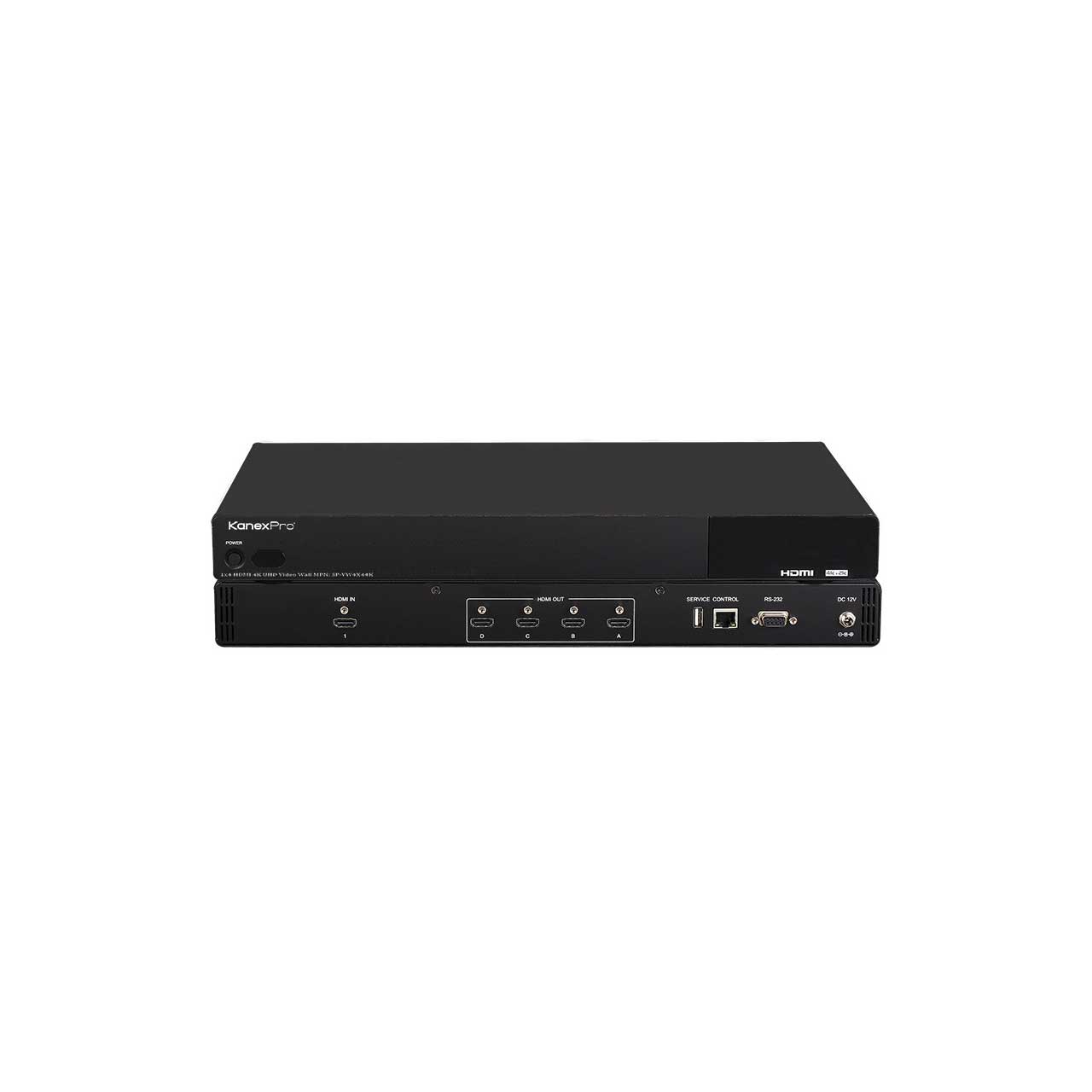

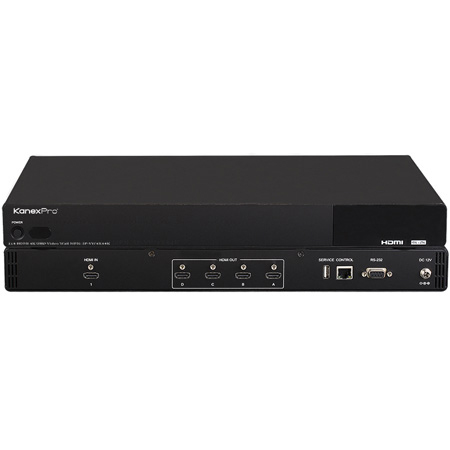

KanexPro VW-SP1X44K 1x4 HDMI 4K UHD Video Wall Processor with Bezel Correction

VW-SP1X44K - Overview

• Features:

  • 1x4 Video Processor with Built-in Bezel Correction and Control
  • Can be cascaded to create up to 3x3 Video Wall (9- displays)
  • Can also be used as a 1x4 DA (splitter)
  • Supports 4K x 2K@24/25/30Hz
  • HDCP compliant

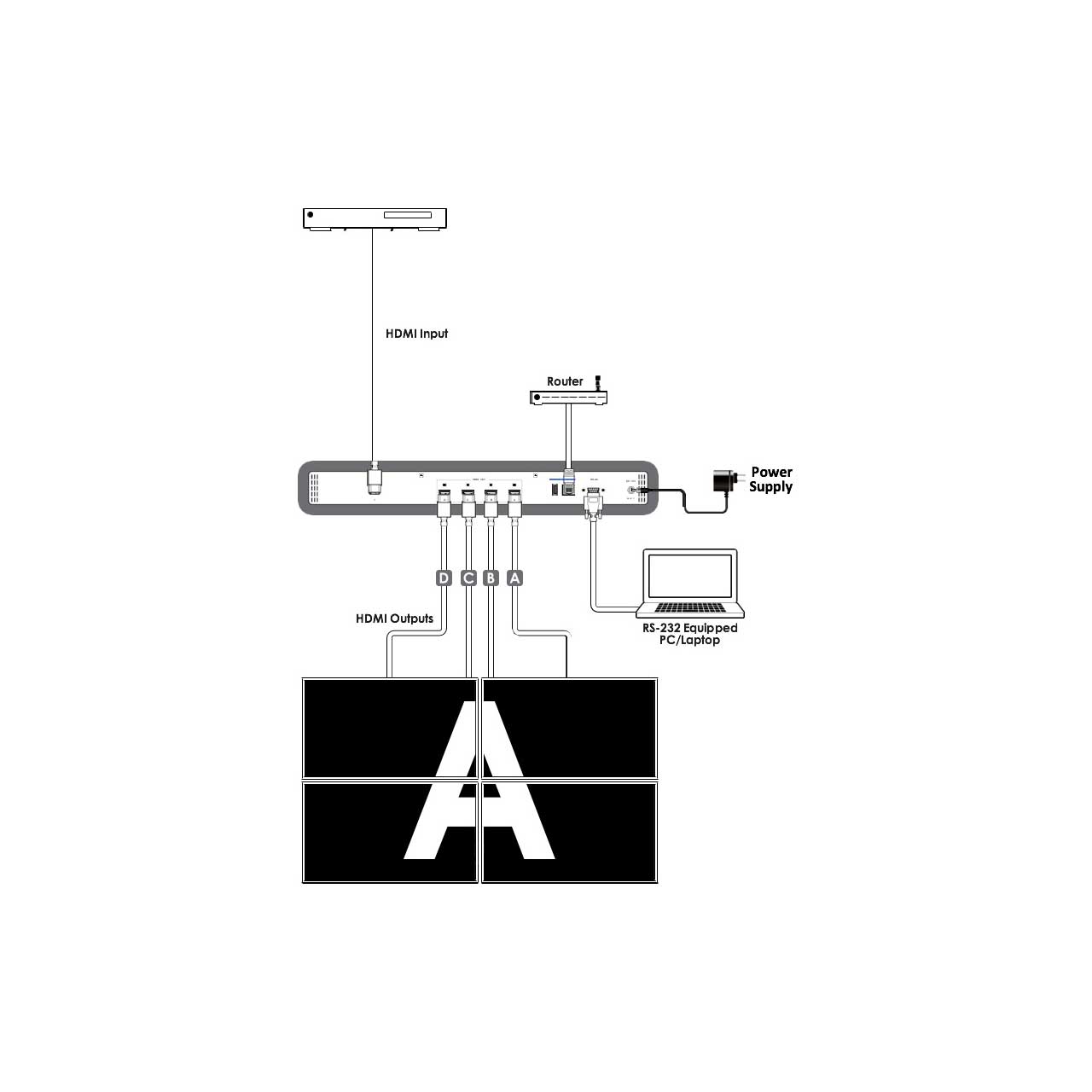

  • Outputs video signal to 4 displays with a full image & adjustable Bezel Correction
  • Input PC resolutions: from VGA~WUXGA & HDTV from 480i~1080p & 4K2K@24/25/30Hz
  • Various Audio Format Support: AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmos and DTS-HD Master Audio
  • Control via RS-232 & Telnet (Ethernet)


• Specifications:

  • Video Bandwidth: 300MHz/9Gbps
  • Input Ports: 1xHDMI (Female type), 1xControl (RJ45), 1xRS-232 (D-sub 9-pin), 1xUSB (Service only)
  • Output Ports: 4xHDMI (Female type) 10M/8-bit 1080p
  • HDMI Cable Distance: 5 meters for 4Kx2K, 10 meters for /8-bit FullHD 1080p; 100-150 meters over CAT5e/6 Exenders can be used to create long distances (optional)
  • Baud Rate: 115200 bps
  • Chassis Material: Metal enclosure
  • Color: Black
  • Operating Temperature: 0 °C~40 °C / 32 °F~ 04 °F
  • Storage Temperature: -20 °C~60 °C / -4 °F~140 °F
  • Relative Humidity: 20~90 % RH (non-condensing)
  • ESD Protection: Human body model: ± 8 kV (air-gap discharge) ± 4 kV (contact discharge)
  • Power Supply: 12V/3A DC (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 12.98W
  • Weight: 6.51lbs. (2956g)
  • Dimensions(W x D x H): 17 in x 11 in x 1.7 in - Jacks Excluded; 19 in x 10.78 in x 2 in - Jacks Included


• Item Includes:

  • One locking power supply
  • 1U (19 inch) rack mountable enclosure


• Warranty:

  • KanexPro 3-year parts and labor


• GTIN:

  0813982021594
