Klein Tools VDV826-704 Pass-Thru Modular Data Plugs - RJ45-CAT6A - UTP - 50-Pack

VDV826-704 - Overview

• Features:

  • Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
  • For CAT6A cable as well as larger diameter/thicker jacket CAT6 cable

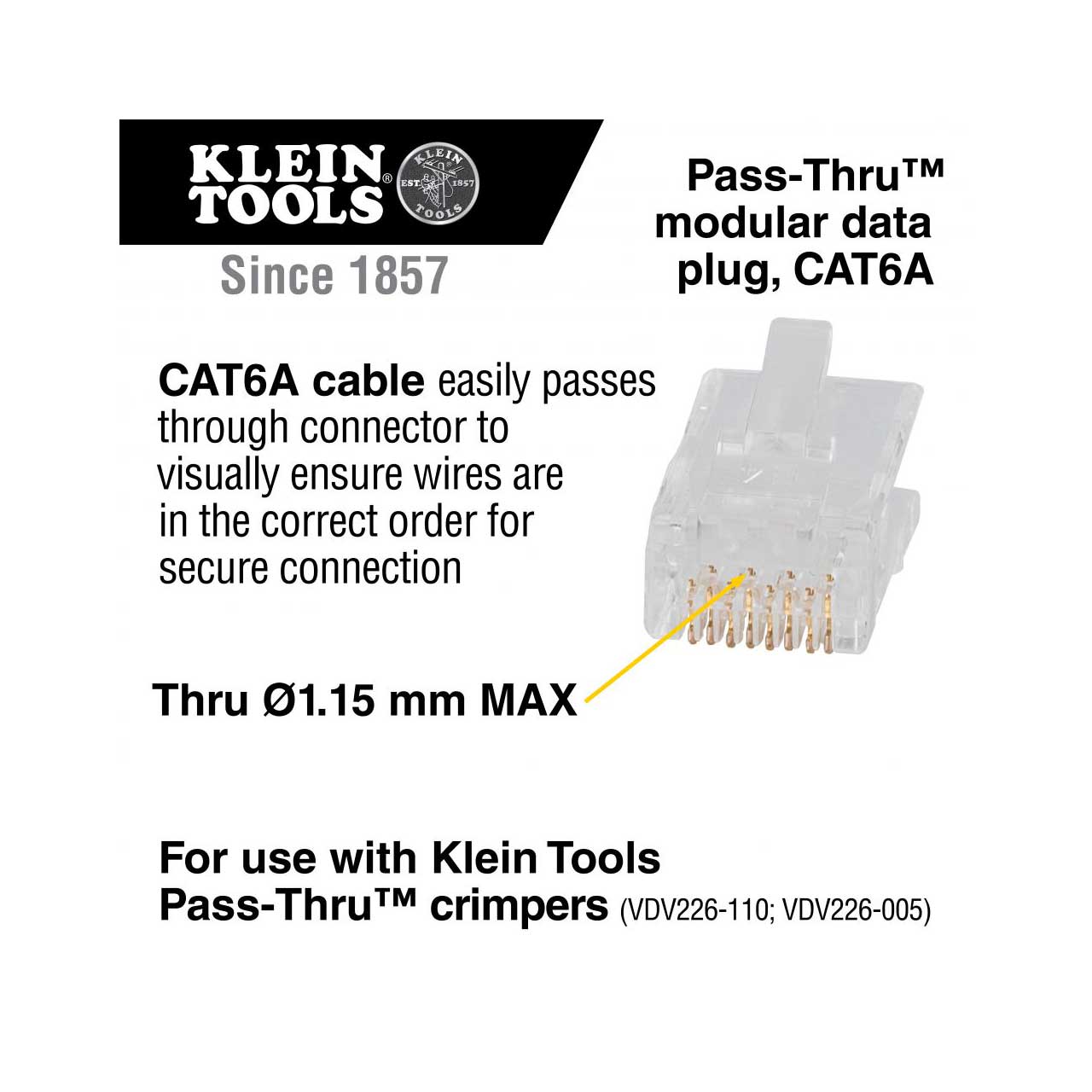

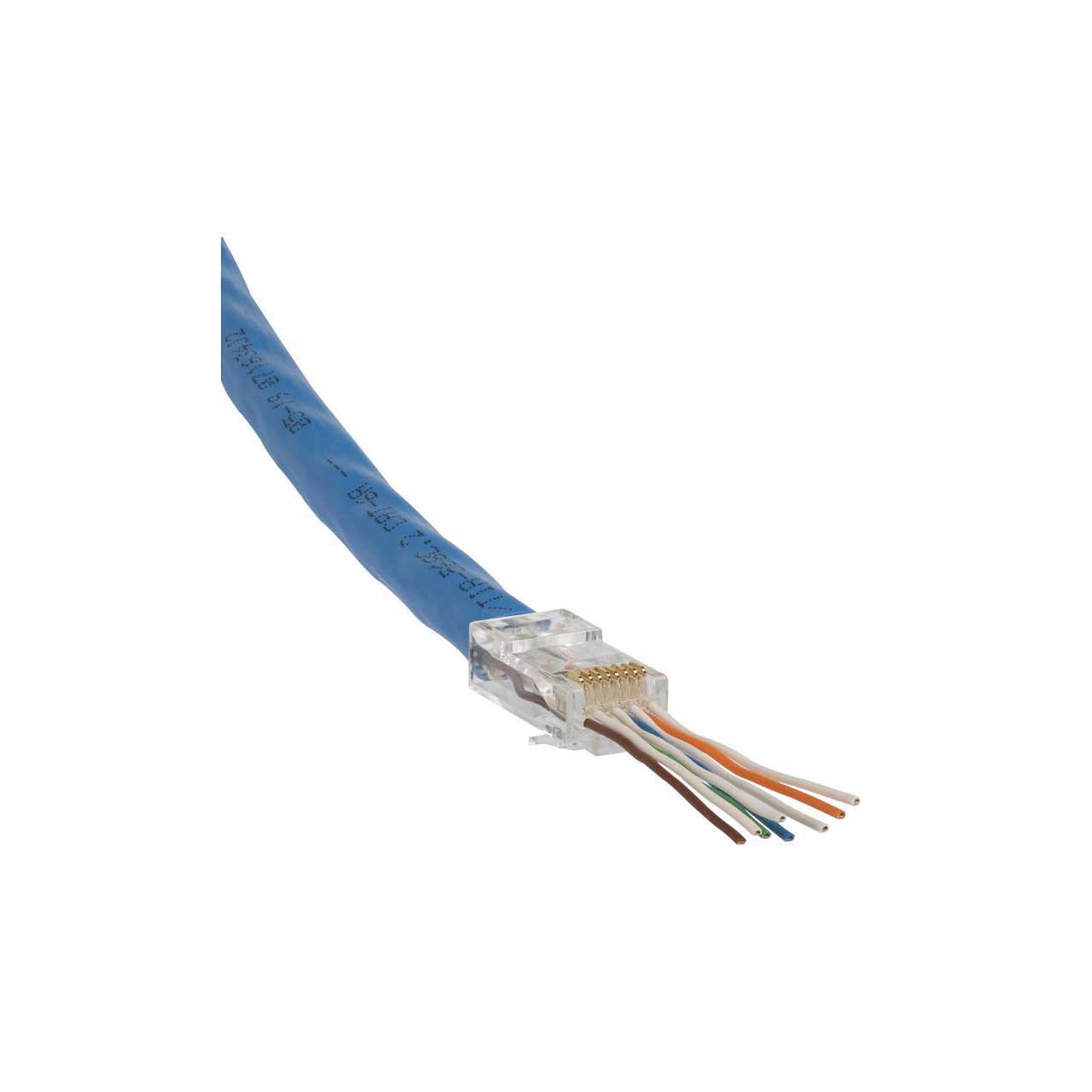

  • CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
  • Fully compliant with Power Over Ethernet (PoE and PoE+) standards

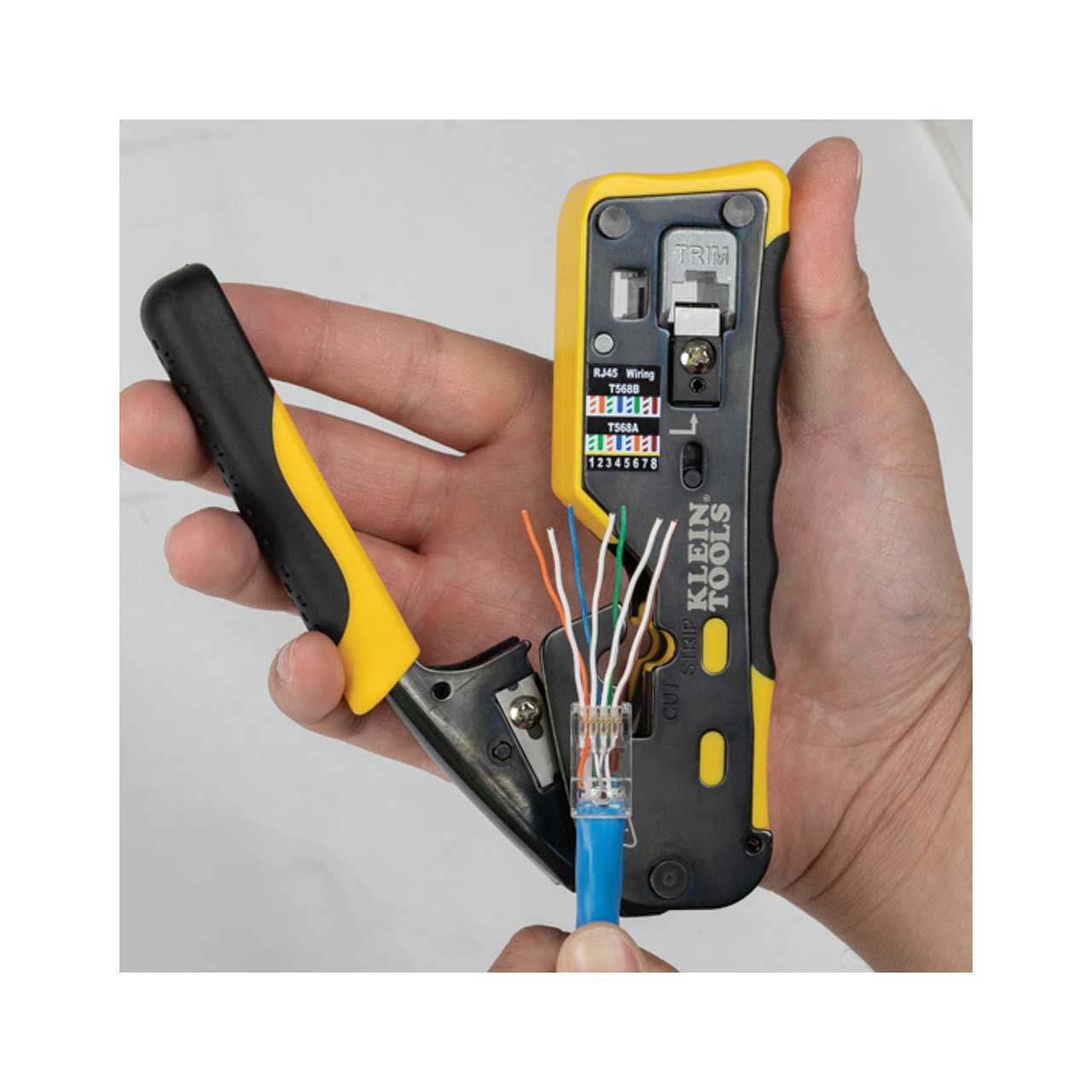

  • Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)
  • 8 position, 8 contact pass-through type data plugs for solid or stranded wire
  • Category 6A performance per TIA/EIA-568-B.2
  • 50-Pack
  • 50 µ-inch gold plating on all contact surfaces
  • Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.01 mm)


• Specifications:

  • Type: Modular
  • Application: Data
  • Special Features: Pass-Thru Technology; Meets All PoE+ Standards
  • Overall Length: 0.875" (2.2 cm)
  • Overall Height: 0.453" (1.2 cm)
  • Overall Width: 0.094" (0.2 cm)
  • Material: PVC Plastic; Gold Plated Contacts
  • Connector Type: RJ45
  • Cable Type: CAT6A UTP and Larger Diameter CAT6
  • Position & Contacts: 8P 8C
  • Connector Color: Clear
  • Solid Conductor Wire: Yes
  • Stranded Conductor Wire: Yes
  • Package Quantity: 50
  • Weight: 4.8 oz (136 g)


• GTIN:

  0092644583780
