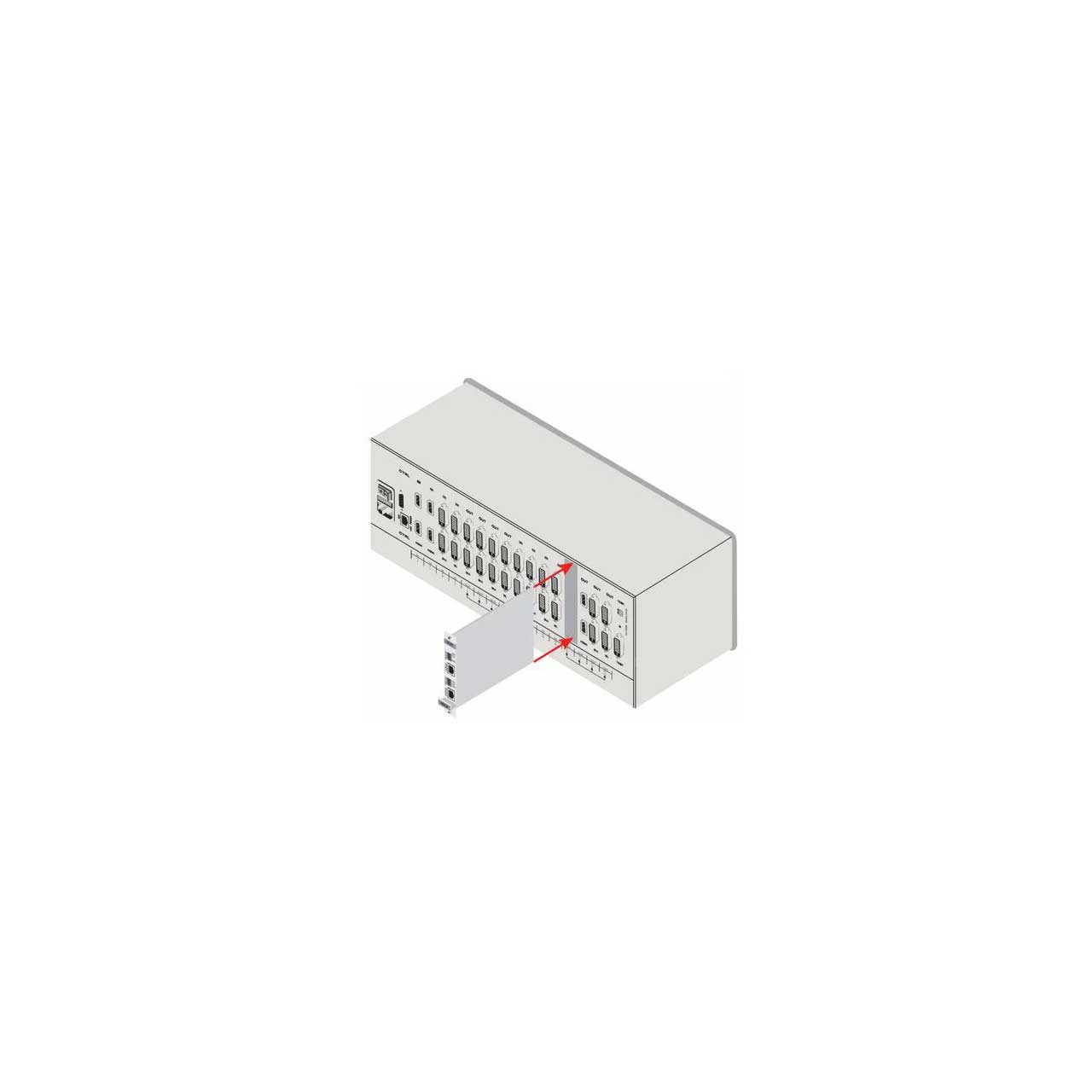

Kramer DGKAT-IN2-F16 2-Channel HDMI & RS-232 over DGKat Input Card for VS-1616DN Switcher

DGKAT-IN2-F16 - Overview

Max. Data Rate - 4.95Gbps.

• Features:

  • Max. Data Rate - 4.95Gbps.
  • System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
  • HDMI and HDCP Compliant.
  • DGKat™ Signal Integration.
  • 3D Pass-Through.
  • Bidirectional Local RS-232 Port.
  • Kramer Equalization & re-Klocking Technology.
  • Power Connect System - For supplying power to compatible TP transmitters.


• Specifications:

  • PORTS

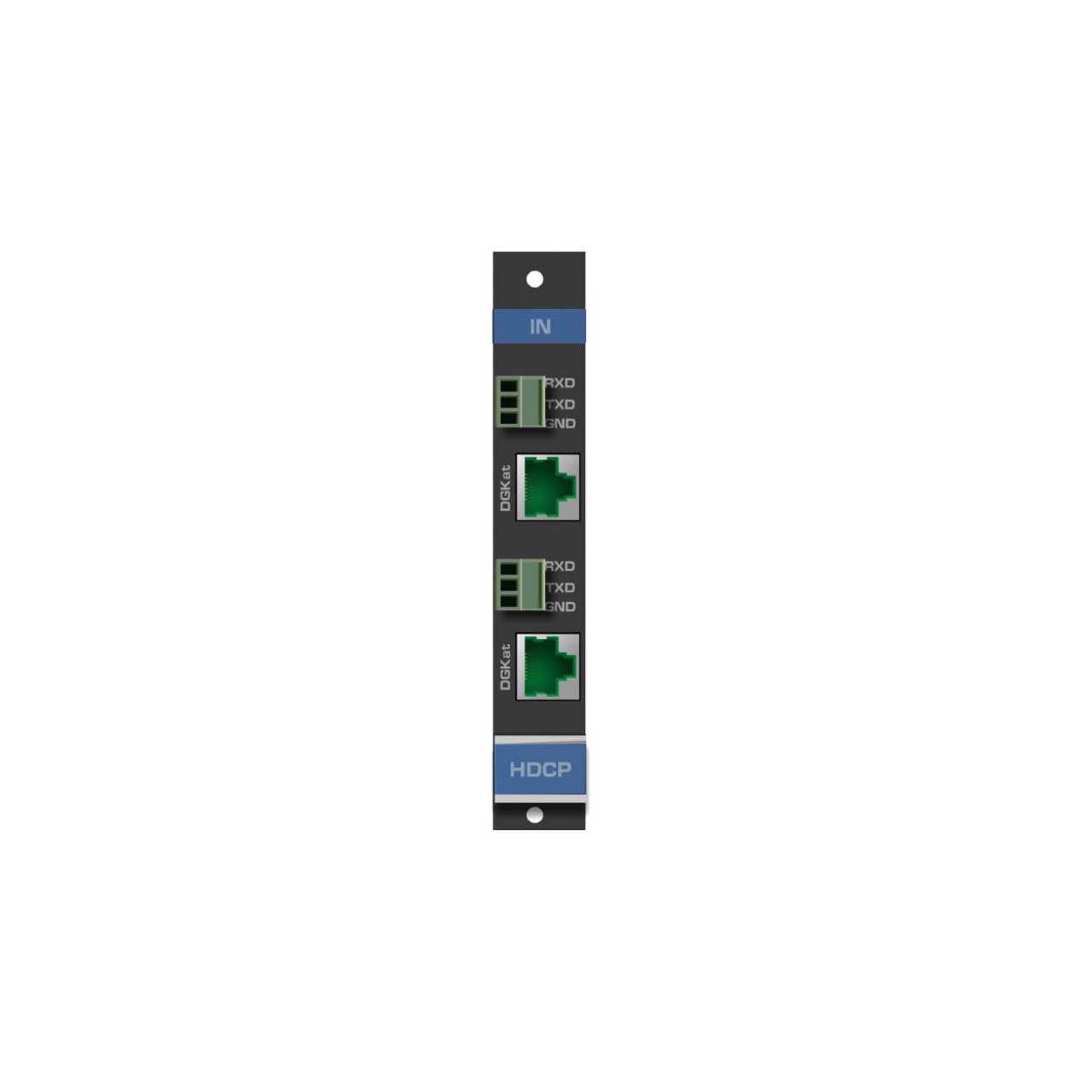

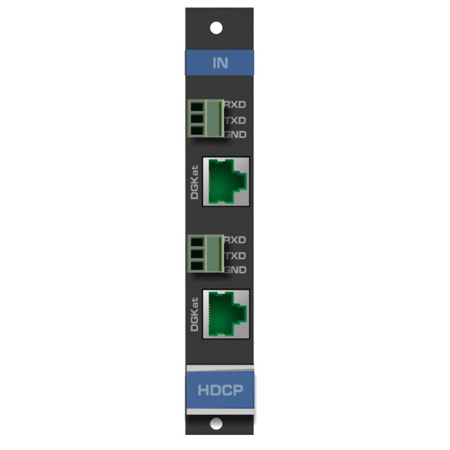

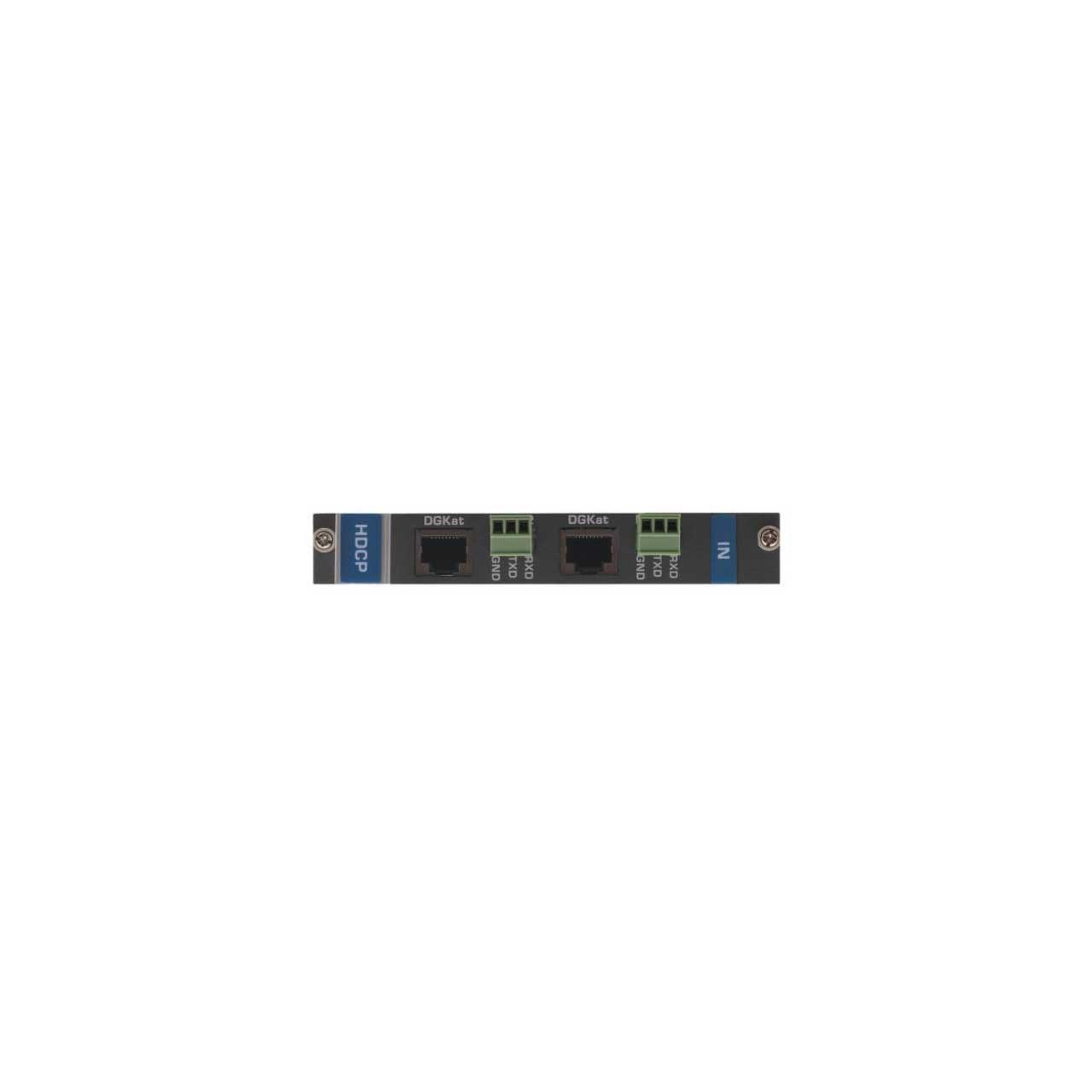

  • 2 TP ports on RJ-45 connectors, 2 serial ports on 3-pin terminal blocks


  • BANDWIDTH PER CHANNEL
  • Video: 1.65Gbps
  • serial data: 19200


  • TOTAL BANDWIDTH
  • Video: 4.95Gbps
  • serial data: 19200


  • MAXIMUM RANGE
  • 90m (300ft) - 1080p @60Hz
  • 3D PASS THROUGH
  • Supported


  • POWER CONSUMPTION
  • 12W


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • STANDARD COMPLIANCE
  • HDCP 1.4, HDMI 1.3a


  • SAFETY REGULATORY COMPLIANCE
  • CE, FCC


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • DGKAT-IN2-F16 DGKat Input Card ONLY


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063003814
