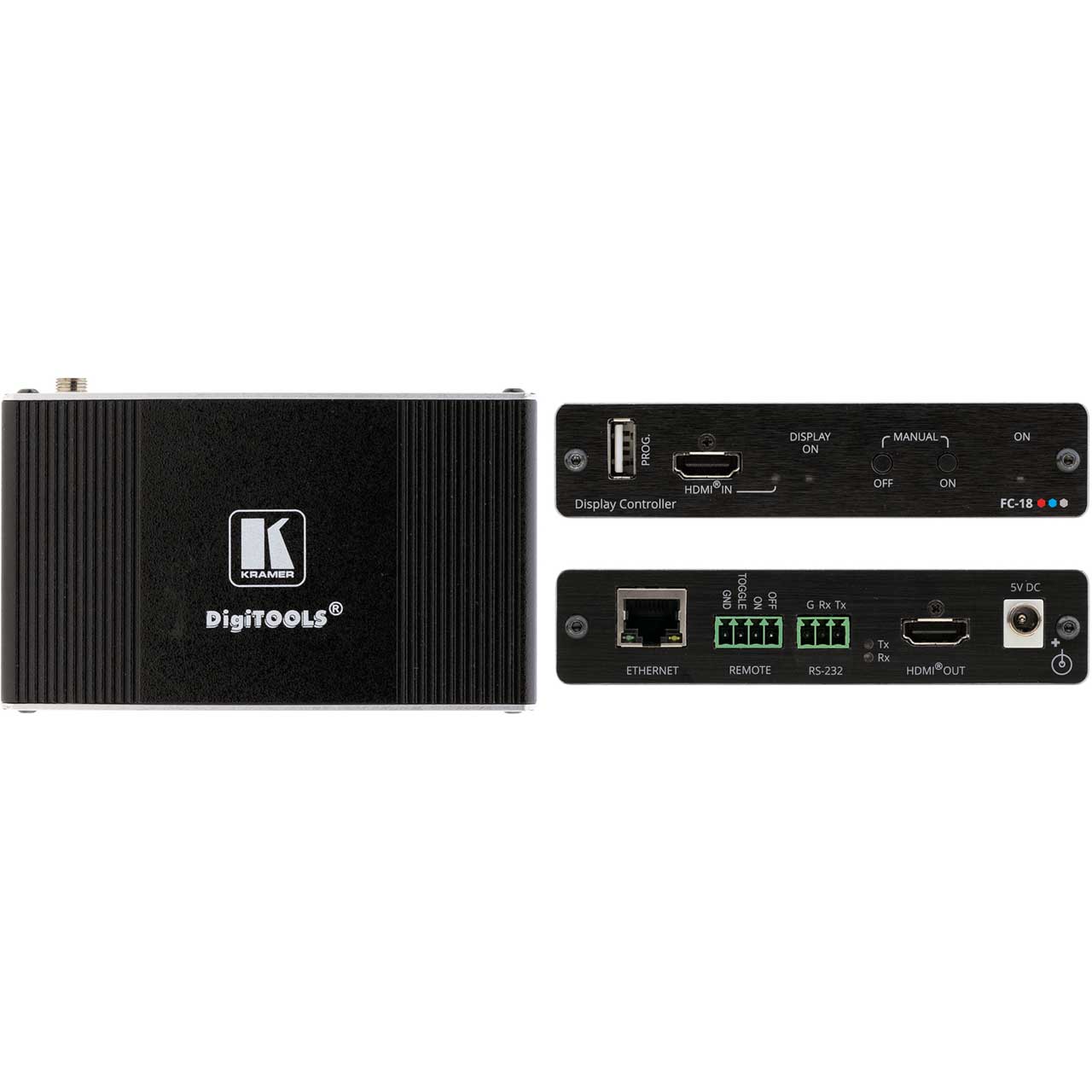

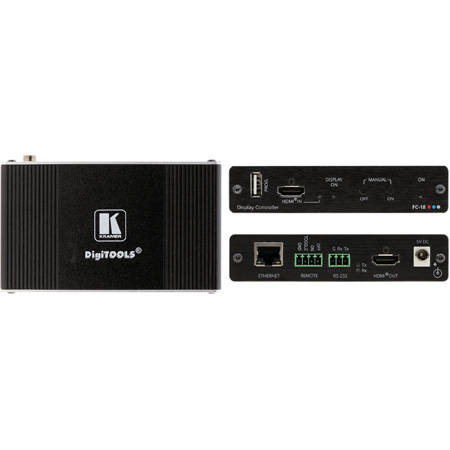

Kramer FC-18 4K HDR Display ON/OFF Controller

FC-18 - Overview

HDCP Compliance - HDCP 1.4 and 2.2.

• Features:

  • Save on Power Costs - Shut down display devices automatically when not in use.
  • Facilitate Meeting Setups - Just plug in the AV source and the display screen or projector automatically turn on. No more searching for the power button.
  • High-Performance HDMI Acceptor - Supports 4K@60Hz (4:4:4) HDR10, HDCP 2.2/1.4 signals at 18G (6G per channel) data rate, CEC (by-pass), Dolby Vision (by-pass) as specified in HDMI 2.0.

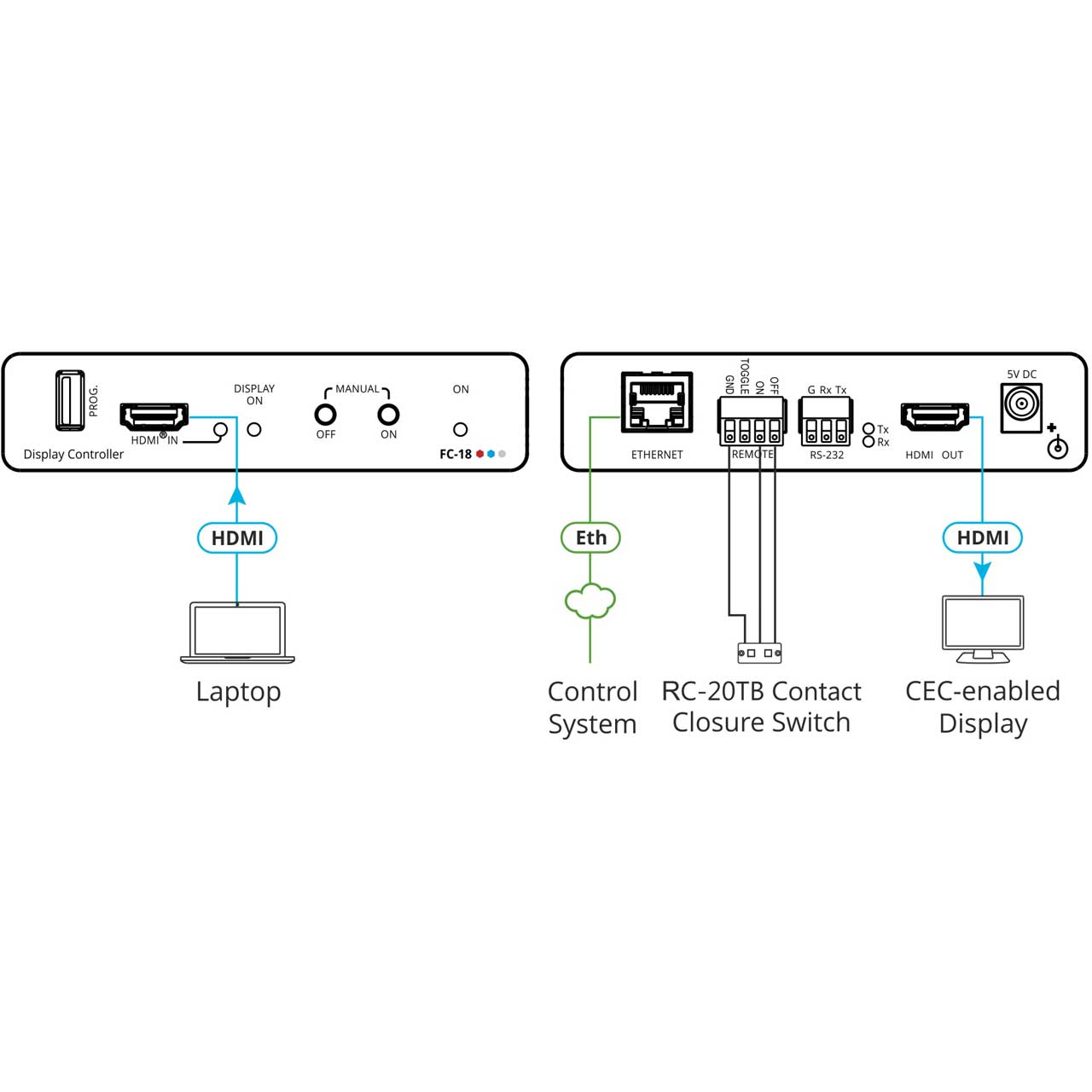

  • Variety of Automatic Control Formats - Commands are sent to the display device via CEC, RS-232, or Ethernet.
  • Variety of Manual Control Formats - Manually turn the display device ON and OFF via front panel button and RS-232/CEC commands, Ethernet, contact closure switches.
  • Data Tunneling - Supports data tunneling between the RS-232 port and the Ethernet ports.
  • HDCP Compliance - HDCP 1.4 and 2.2.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
  • Selectable EDID Options - Default (internal), external (sink) or user-defined.
  • Firmware Upgrading via USB port.
  • Easy Installation - Compact DigiTOOLS® fan-less enclosure for surface mounting or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 1 HDMI: On a female HDMI connector


  • OUTPUTS
  • 1 HDMI: On a female HDMI connector


  • PORTS
  • 1 Ethernet: On an RJ-45 connector
  • 1 RS-232: On a 3-pin terminal block
  • 1 USB: On a female USB type-A connector


  • VIDEO
  • Max. Resolution: 4K@60Hz (4:4:4)
  • Content Protection: HDCP 1.4 / 2.2
  • HDMI Support: CEC (by-pass), Dolby Vision (by-pass) as specified in HDMI 2.0


  • USER INTERFACE
  • Control: Manual ON and OFF buttons
  • Indicators: Display ON/OFF status, RS-232 communication and power LEDs


  • POWER
  • Source: 5V DC
  • Consumption: 580mA


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


• Item Includes:

  • FC-18 Controller
  • Power Adapter and cord (1)
  • Bracket Set (1)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063088101
