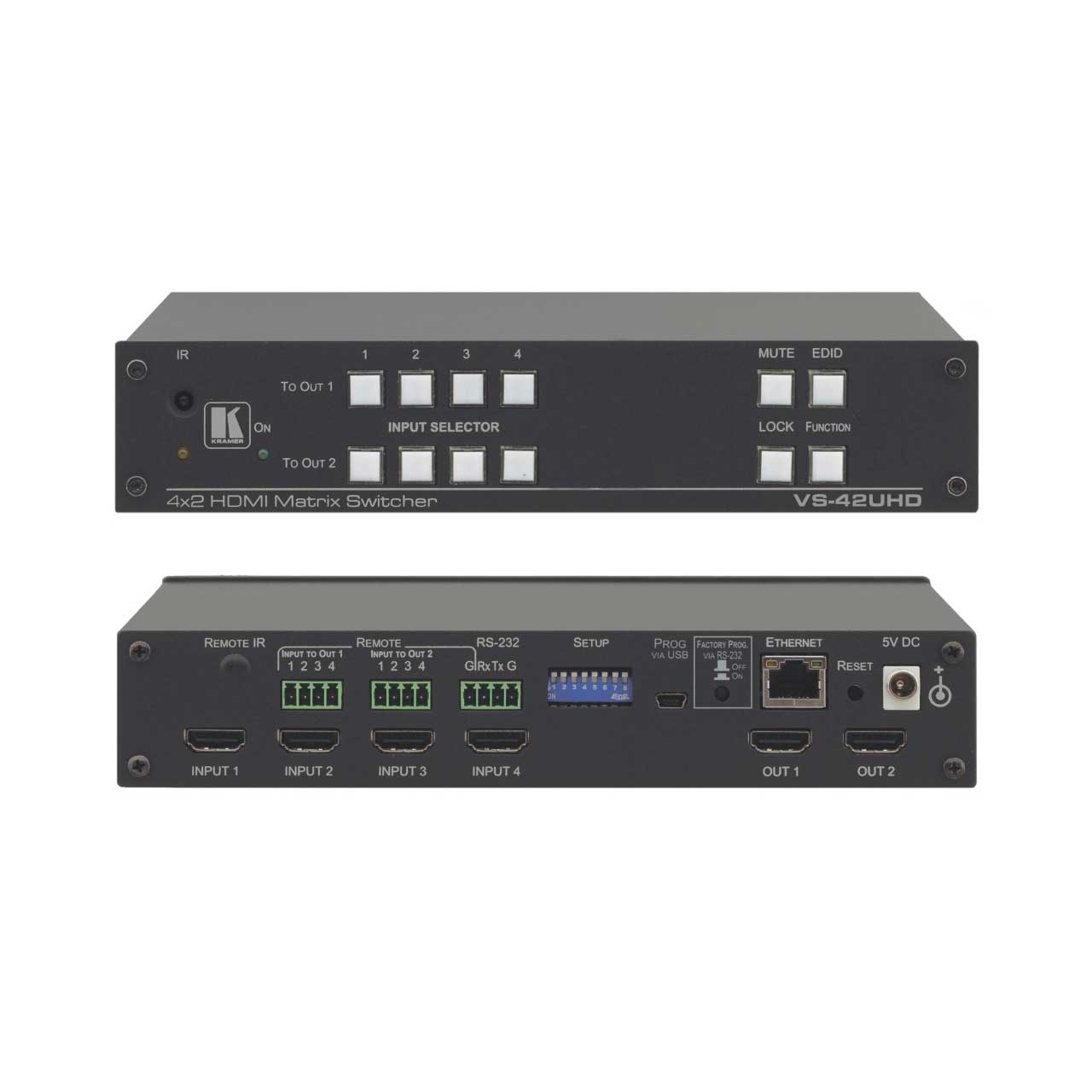

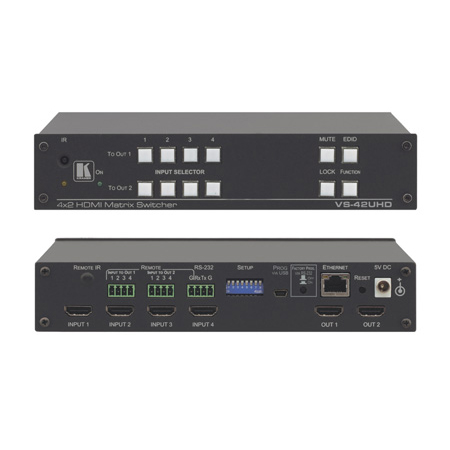

Kramer VS-42UHD 4x2 4K60 4:2:0 HDMI Automatic Matrix Switcher

VS-42UHD - Overview

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
  • HDCP 1.4 Compliant
  • True Video Clock Detection.
  • Automatic Switching Modes - Last connected and priority switching.
  • HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
  • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Programmable Step-in Functionality - When used with compatible step-in devices, such as the SID-X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
  • Non-Volatile EDID Storage.
  • Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Static or Dynamic DHCP IP Addressing.
  • Embedded Web Pages - Provide remote configuration and operation.
  • Lock Button - Prevents tampering with the front panel buttons.
  • Kramer Protocol 3000.
  • Versatile Control Options - RS-232, Ethernet, infrared remote control, optional remote IR receiver.


• Specifications:

  • INPUTS
  • 4 HDMI connectors


  • OUTPUTS
  • 2 HDMI connectors


  • PORTS
  • 1 Ethernet on an RJ-45 connector
  • 1 IR on a 3.5mm mini jack
  • 8 remote selection contact-closure switches on 9 terminal block pins
  • 1 serial port on a 3-pin terminal block
  • 1 program port on a mini USB


  • BANDWIDTH
  • Up to 8.91Gbps data rate (2.97Gbps per graphic channel)


  • COMPLIANCE WITH HDMI STANDARD
  • HDMI and HDCP 1.4


  • RESOLUTION
  • Up to UXGA
  • 4K x 2K


  • SUPPORTED BAUD RATES
  • 9600, 115200bps


  • SUPPORTED WEB BROWSERS
  • The following operating systems and Web browsers are supported:
  • Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9
  • Windows XP: Google Chrome v25, FireFox v15
  • Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6


  • POWER CONSUMPTION
  • 5V DC, 880mA
  • 100-240V AC, 65VA max


  • CONTROLS
  • Front panel buttons, infrared remote control transmitter, RS-232, Ethernet, remote input selection switches


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VS-42UHD Switcher
  • Power supply (5V DC)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063078904
