Kramer VS-622DT All-in-One Presentation System with 6x2 4K60 4:2:0 HDMI/HDBaseT Matrix Switching

VS-622DT - Overview

Control Gateway with RS-232, IR, GPI/O, and Relay Ports

• Features:

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
  • Simple and Powerful Maestro Room Automation - Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
  • Provides Power (PoE) on All HDBaseT Ports to Compatible Devices.
  • HDBaseT Data Tunneling - Supports Ethernet tunneling, as well as bidirectional tunneling for RS-232 and IR control.
  • HDCP Compliant.
  • HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
  • EDID Capture - Copies and stores the EDID from a display device.
  • Advanced Auto AV Switching Option - Independent (breakaway) audio routing of embedded HDMI and analog audio content to two balanced audio ports.
  • Programmable Step-In over HDMI Functionality - When used in conjunction with compatible step-in devices, such as the SID-X3N and DIP-31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
  • True Video Clock Detection.
  • Non-Volatile EDID Storage.
  • Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Lock Button - Prevents unwanted tampering with the front panel.
  • Internal Pattern Generator.
  • Embedded Web Pages - Provide remote configuration and operation.
  • Static or Dynamic DHCP IP Addressing.
  • Flexible Control Options - Front panel buttons, IR remote (included), optional external remote IR receiver, RS-232, Ethernet, buttons and LED over contact closure, embedded Web server, Kramer Protocol 3000 support.
  • USB Port - For upgrading firmware.


• Specifications:

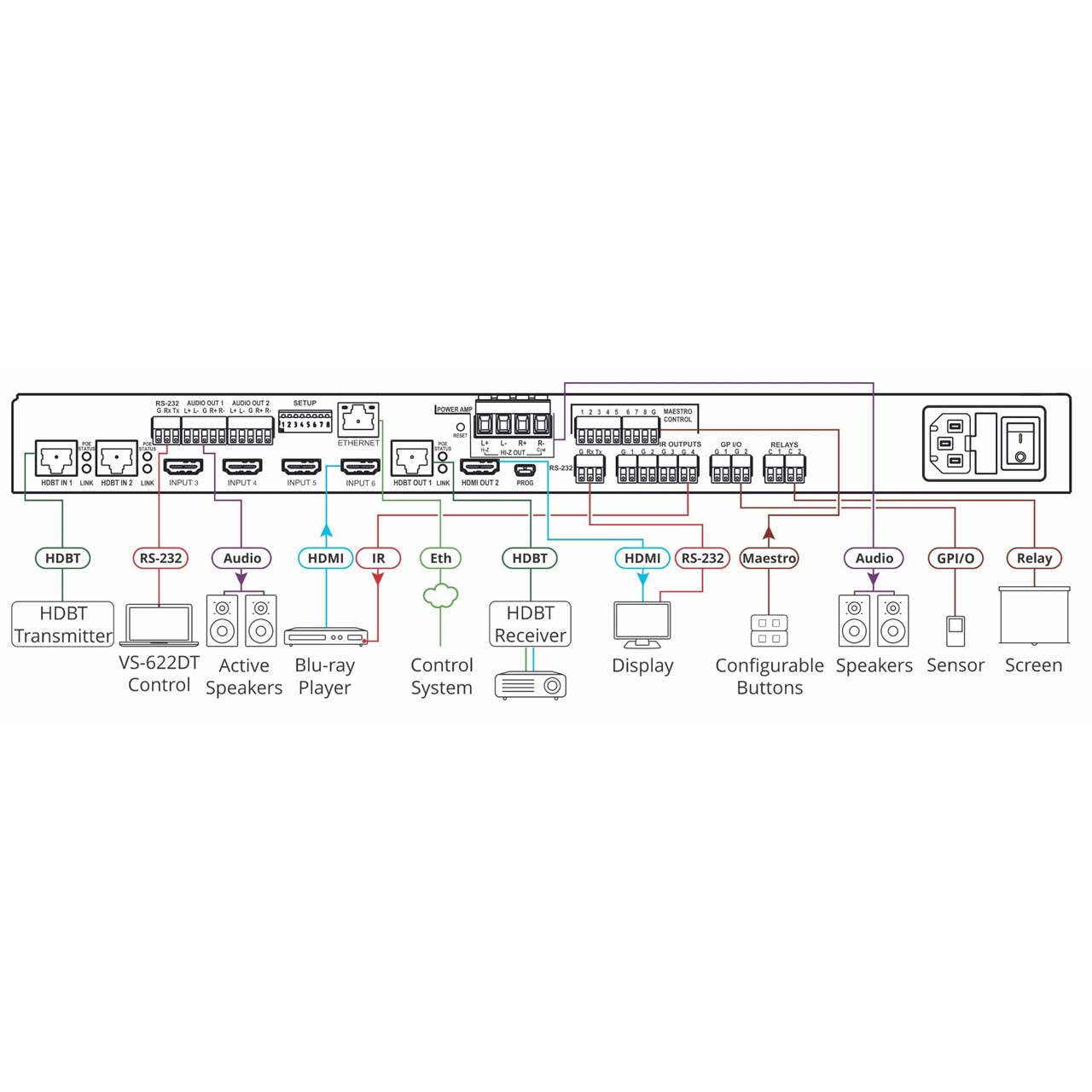

  • INPUTS
  • 2 HDBT with PoE: On female RJ-45 Connectors
  • 4 HDMI: On female HDMI connectors


  • OUTPUTS
  • 1 HDBT with PoE: On a female RJ-45 Connector
  • 1 HDMI: On a female HDMI connector
  • 2 Stereo Balanced Audio: On 5-pin terminal block connectors
  • 1 Power Amplifier for Stereo or 1 Mono Speaker: On a 4-pin large terminal block


  • PORTS
  • 1 Ethernet: On an RJ-45 female connector
  • 1 Control RS-232: On a 3-pin terminal block
  • 1 USB (PROG): On a mini USB connector, for firmware upgrade
  • 1 RS-232: On a 3-pin terminal block
  • 4 IR: On 2-pin terminal block connectors
  • 2 GPI/O: On 2-pin terminal block connectors
  • 2 Relays: On 2-pin terminal block connectors


  • VIDEO
  • Max Resolution: Up to 4K@60Hz UHD (4:2:0)
  • Compliance: HDCP 1.4


    POWER AMPLIFIER
  • 1 x 120W @ 70V/100V
  • 2 x 60W @ 4/8Ω


  • EXTENSION LINE
  • Up to 100m (330ft): At 4K@60Hz (4:2:0)
  • Up to 130m (430ft): At Full HD (1080p @60Hz 36bpp)
  • Up to 180m (590ft): HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)


  • ROOM AUTOMATION
  • Kramer Maestro: V1.5


  • USER INTERFACE

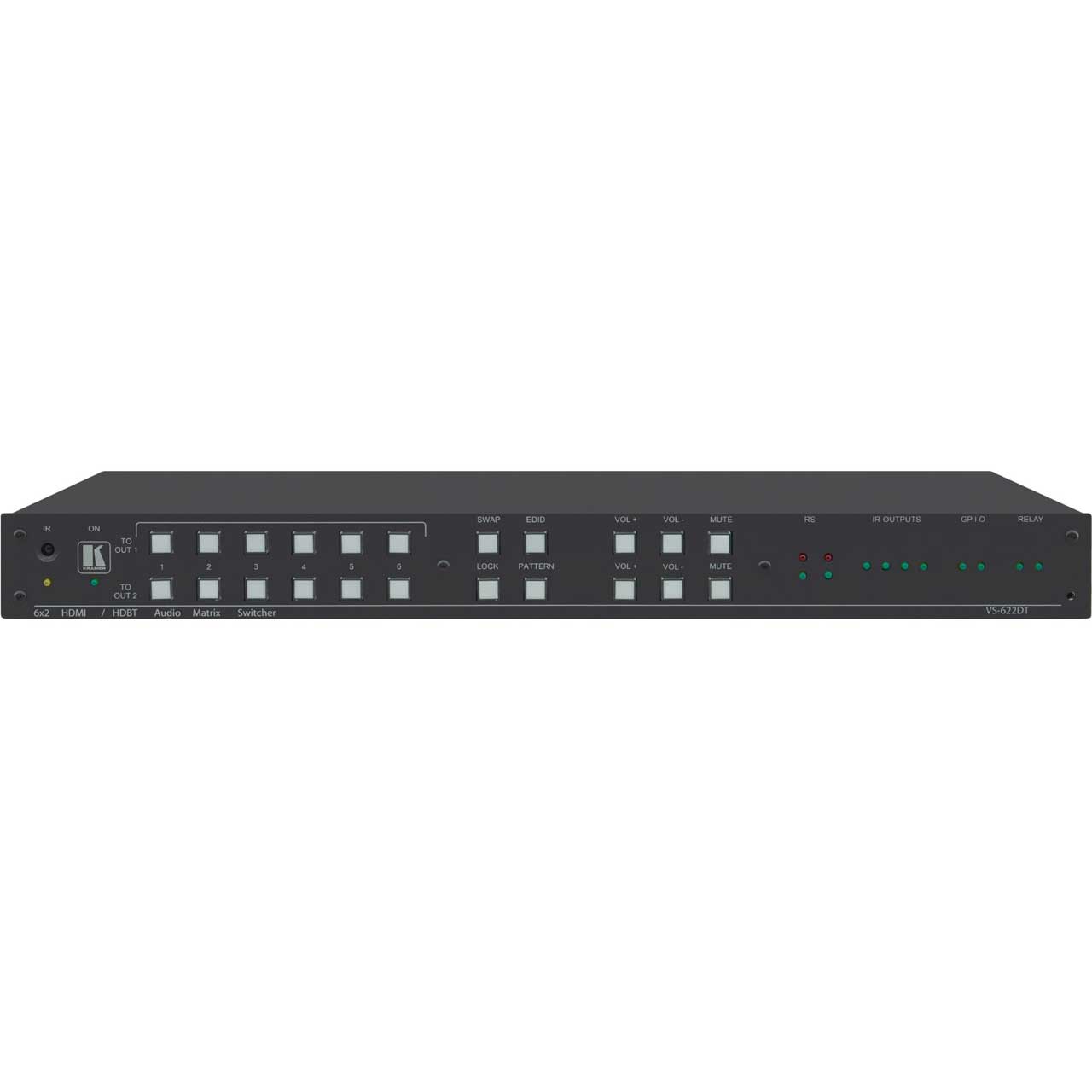

  • Controls: Input selection buttons, swap, EDID, lock and audio control buttons
  • Indicators: Power, RS-232, IR, GPI/O and relay LEDs
  • Remote: RS-232, Ethernet, Web pages, IR remote control transmitter, Programmable Maestro buttons interface


  • POWER
  • Source: 100-240V AC
  • Consumption: 250VA max


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • REGULATORY
  • Safety: CE
  • Environmental: RoHs, WEEE


  • ENCLOSURE
  • Size: 19", 1U
  • Type: Aluminum
  • Cooling: Fan Ventilation


• Item Includes:

  • VS-622DT 6x2 HDMI / HDBT Audio Matrix Switcher
  • Power Cord (1)
  • Rubber Feet (4)
  • Rack Ears (1 set)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063084189
