The Lilliput C20N camera system is a fully featured Pan/Tilt/Zoom camera setup geared for live streaming and YouTube/online video presentation.
Like the similar C20P, the C20N features a 1/2.8" HD CMOS Sensor, 20X Optical Zoom, HDMI & 3G-SDI Video Output, and PoE.
In addition to sharing features with the C20P, the C20N comes with the added option of NDI data connectivity - meaning you can connect the camera to a Network and both the power and the data are transmitted using this protocol.

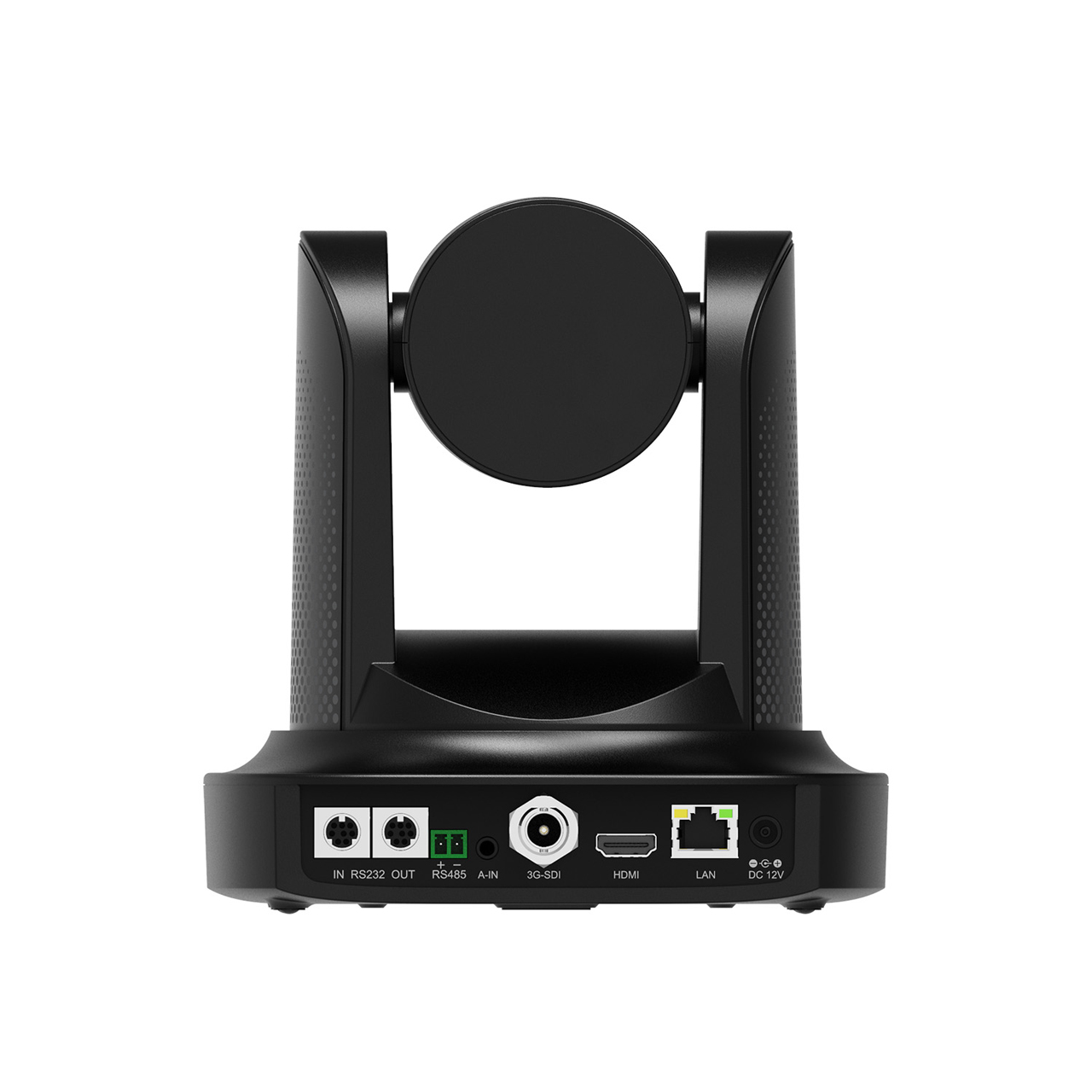

Multiple Outputs
PTZ cameras include various interfaces. SDI, HDMI, and IP outputs allow users to output up to FHD 1080p signal simultaneously. LAN port supports Power over Ethernet (PoE), NDI|HX 5.0 (optional) and IP streaming via RTSP and RTMP protocols. It offers audio line-in for NDI/IP streams. Users can control the PTZ camera easily wia the LAN port or the RS232/RS485 serial port.

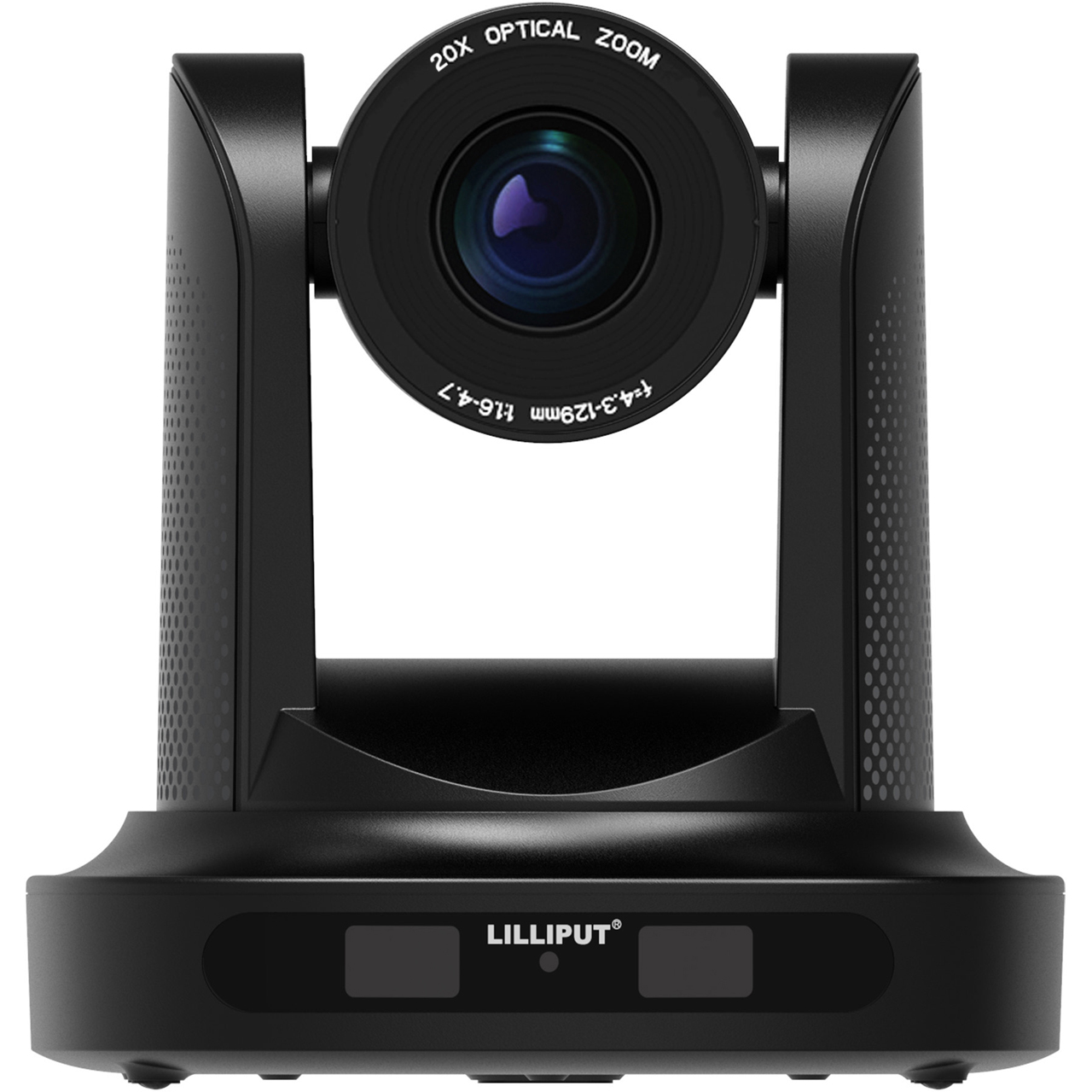

Zoom Lens
The C20N has a 20x optical zoom lens for effective close-up and wide-angle shooting. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, and sharpness provide precision control of your images.
Easy To Control
This camera can be easily controlled by IR remote control, Web UI, or the joystick camera controller via IP or serial port. Supports multiple control protocols including ONVIF, VISCA over IP, VISCA, PELCO-D, PELCO-P.

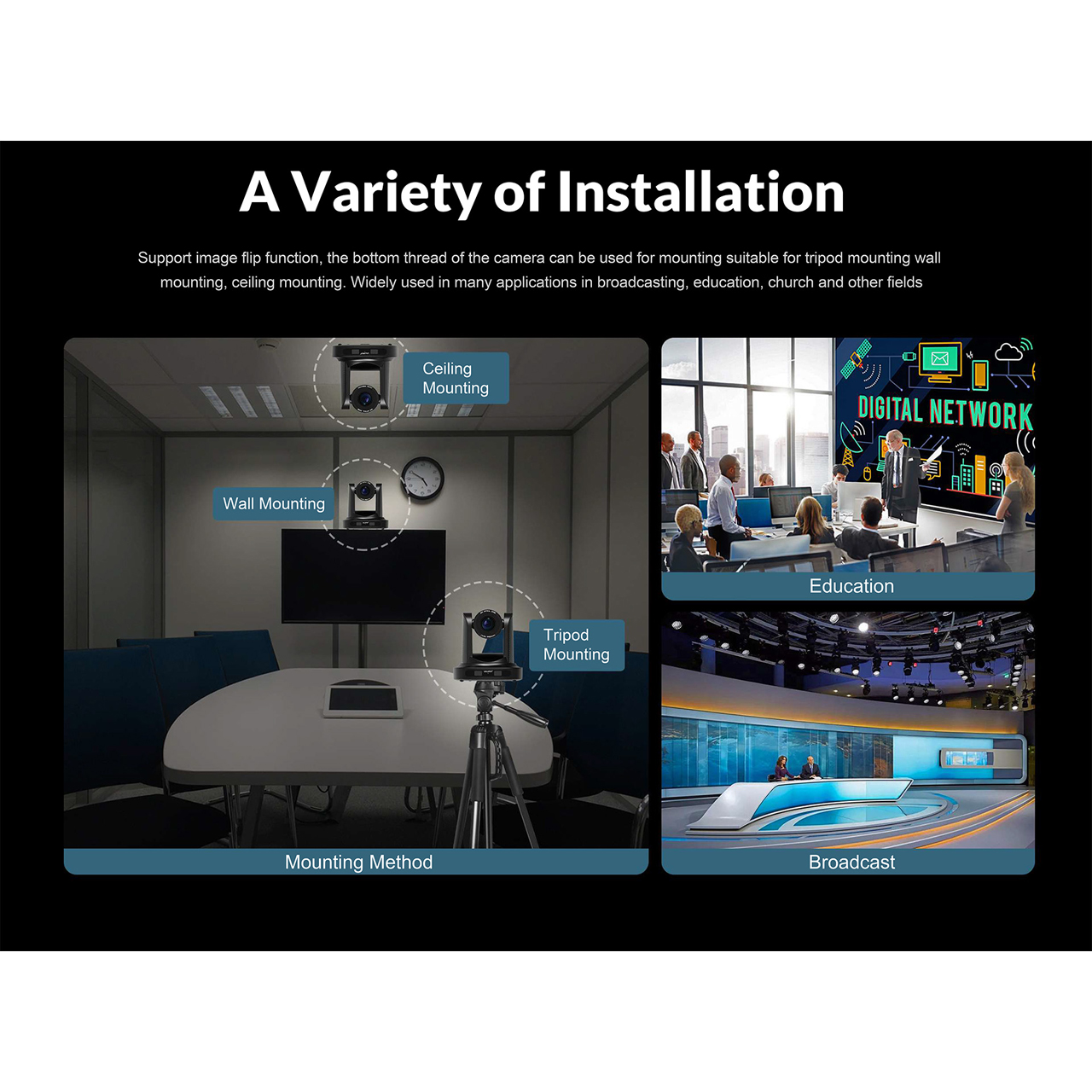

A Variety Of Installations
With the Support Image Flip function on these cameras, the bottom thread of the camera can be used for mounting on a tripod, wall mounting, and ceiling mounting. This can be widely used in many applications such as Broadcasting, Education, Houses of Worship, and other fields.
