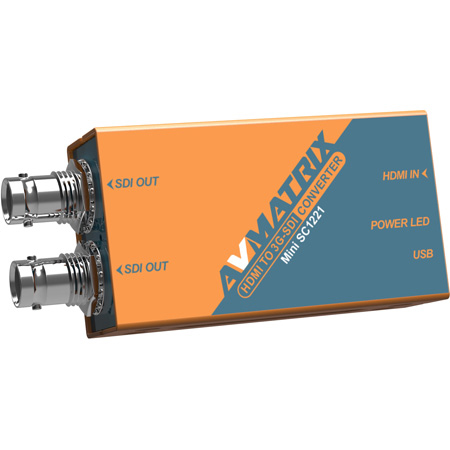

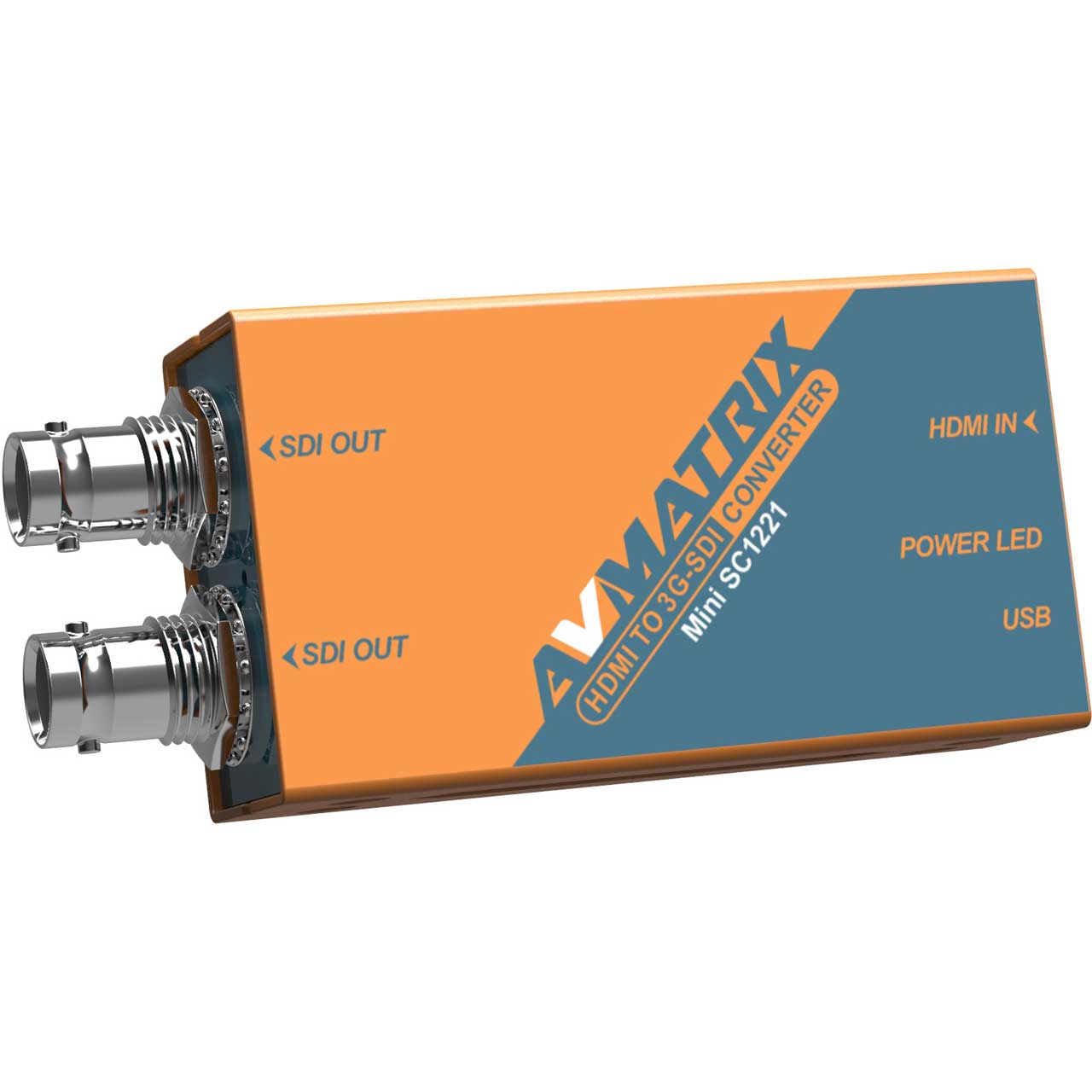

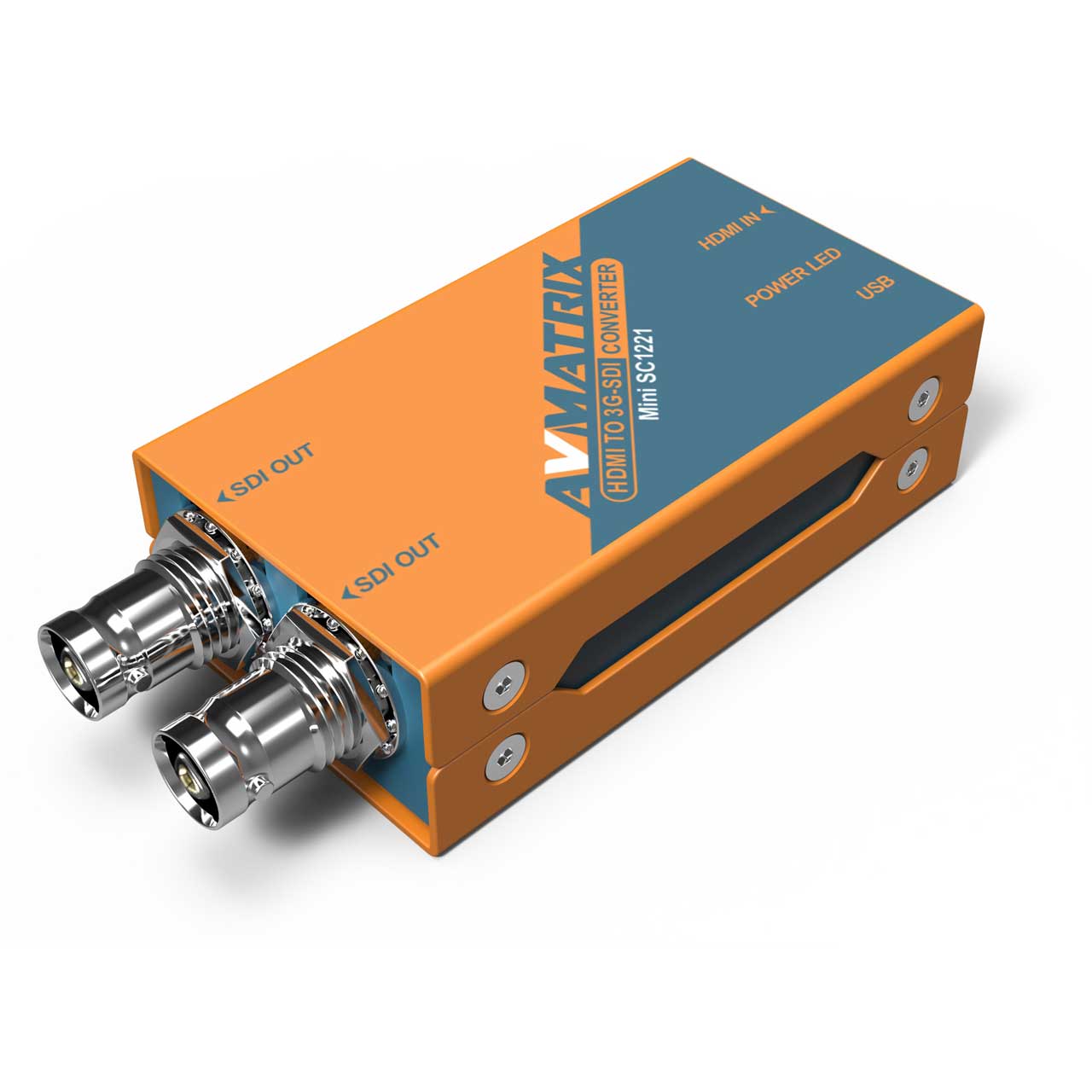

AVMATRIX SC1221 HDMI to 3G-SDI Mini Converter

SC1221 - Overview

• Features:

  • Born for Broadcast
  • Although it's a pocket-size converter, it has full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080P 60Hz. Complying with EMC test, the steady and reliable performance makes it support 7x24h uninterrupted working without any lag or delay.
    Powered Anywhere
  • Featured with universal USB power solution design, avmatrix mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 10,000mAh power bank can supply a more than 24-hours of uninterrupted working time.
    Pocket Size and Easy to Mount
  • Miniature design makes it portable for indoors and outdoors. It's possible to put into pocket and take to anywhere. With a convenient and detachable mounting bracket, it is also available in different application scenarios.


• Specifications:

  • Analog Audio Input
  • Impedance: 600Ω

    HDMI Video Input
  • Connector (HDMI): Standard HDMI 16 Pin Connector
  • HDMI Video Input: Standard HDMI Signal
  • Impedance (HDMI): 100Ω
  • Signal Amplitude: 800mV ±10% (100Ω)

    SDI Output
  • Bit Rate: 270Mbps - 2.97Gbps
  • Connector (SDI): BNC Comply IEC 169-8 standards
  • Impedance (SDI): 75Ω
  • Output Format: 1080p @60Hz, 50Hz, 30Hz, 25Hz, 24Hz/1080i @ 60Hz, 50Hz/720p @ 60Hz, 50Hz, 30Hz, 25Hz/576i @ 50Hz/480i @ 50Hz
  • Signal Amplitude(SDI): 800mV ±10% (75Ω)

    Analog Audio Input/Output
  • Connector: 3.5mm Earphone Socket
  • Digital Sampling: 48K
  • Input Signal: Analog Stereo Audio

    Common Parameters
  • Dimension: 4.4" x 4.7" x 1.1" (112mm x 120mm x 30mm)
  • Operating Voltage: DC 5V - 12V
  • Power: <2W
  • Storage Humidity (%RH): 0% - 90%
  • Storage Temperature: -4°F - 167°F (-20°C - 75°C)
  • Weight: 10.58oz (300g)
  • Working Humidity (%RH): 20% - 70%
  • Working Temperature: 32°F - 122°F (0°C - 50°C)


• Warranty:

  • 3 Year Limited Warranty
