SW-610-48P-F - Overview

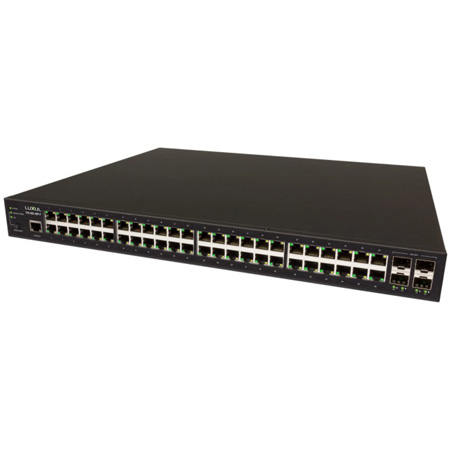

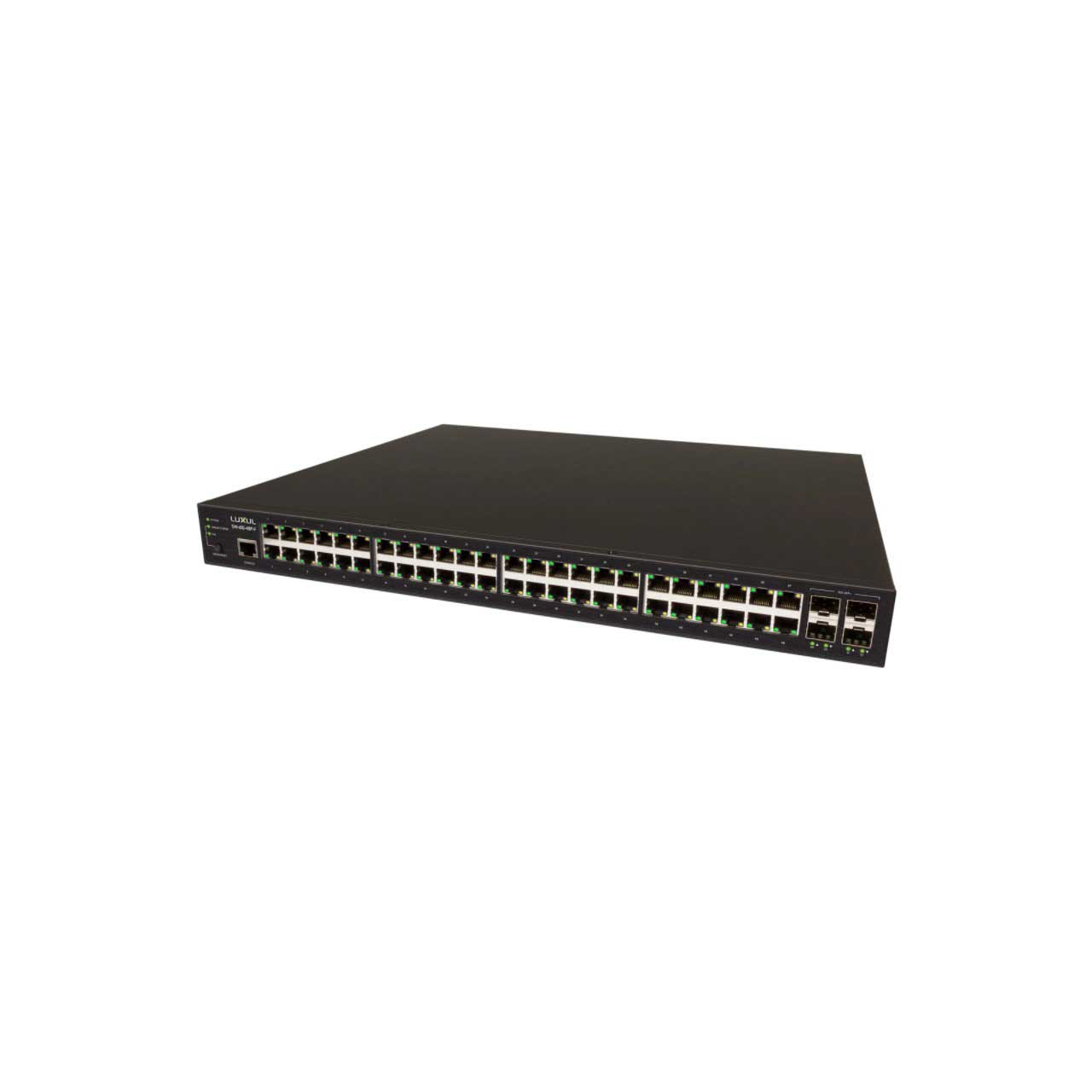

The Luxul SW-610-48P-F is a 48 port PoE+ front facing single space rackmount Gigabit switch with 4 SFP+ 10Gb ports (aggregable up to 40Gbps) with a total PoE power budget of 740W. Each of the SFP+ ports can be used alone or aggregated together to allow 20 or 40Gbps throughput to another switch. This L2/L3 switch with 176Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch Integrated for support of remote monitoring and management.

  • Features:

    • PoE Self-Healing with auto-recovery and power scheduling
    • 48 PoE+ Gigabit Ports
    • 740 Watt total PoE budget
    • Front-facing ports
    • 4 SFP+ Ports
    • Aggregable up to 40Gbps
    • Rack Mountable
    • Group Manager -Single pane user interface for easy administration of multiple 510 and 610 series switches


  • Specifications:

    • General:
    • Power Budget: 740W
    • Max Power Consumption: 899W @ 100VAC, 869W @ 240VAC
    • Power Supply: Internal Switched Power, AC 100-240V, 50-60Hz input
    • Operating Temperature: 32°F to 122°F (0°C to 50°C)
    • Operating Humidity: 10% to 90% (Non-condensing)

      Characteristics & Features:
    • Connection Type: Wired
    • Layer Support: L2, L3
    • Number of Ports: 48
    • PoE Self Healing: Per Port Basis
    • Port Location: Front
    • Power Cord: US Cord
    • ProWatch Type: ProWatch Integrated
    • SPF Port Type: 4 x 1 Gigabit
    • Switch Type: Managed PoE+
    • VLAN Compliance: 802.1Q

      Dimensions & Measurements:
    • Height: 1.75 in (4.44 cm)
    • Length: 17.4 in (44.2 cm)
    • Max Power Consumption: 899W @ 100VAC
    • Operating Temperature: 32° to 122°F (0° to 50°C)
    • PoE Power Budget: 740W
    • Product Weight: 12.4 lbs (5.62 kg)
    • Switching Capacity: 176 GBPS
    • Width: 14.75 in (37.46 cm)


  • Item Includes:

    • 1x SW-610-48P-F48PoE+ FrontPort Gb Switch w 4 SFP+
    • 1x Power and Console Cables
    • 1x Rack Ears and Set of Four (4) Adhesive Feet
    • 1x Quick Install Guide & Regulatory Documentation


  • Warranty:

    • 3 Year Limited Warranty
