Luxul Whole Home WiFi System - AC1200 Wireless Router/Controller & AC1200 Apex Access Point - US Power Cord

ITEM #: LUXU-WS-80 MFG #: WS-80

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$385.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


WS-80 - Overview

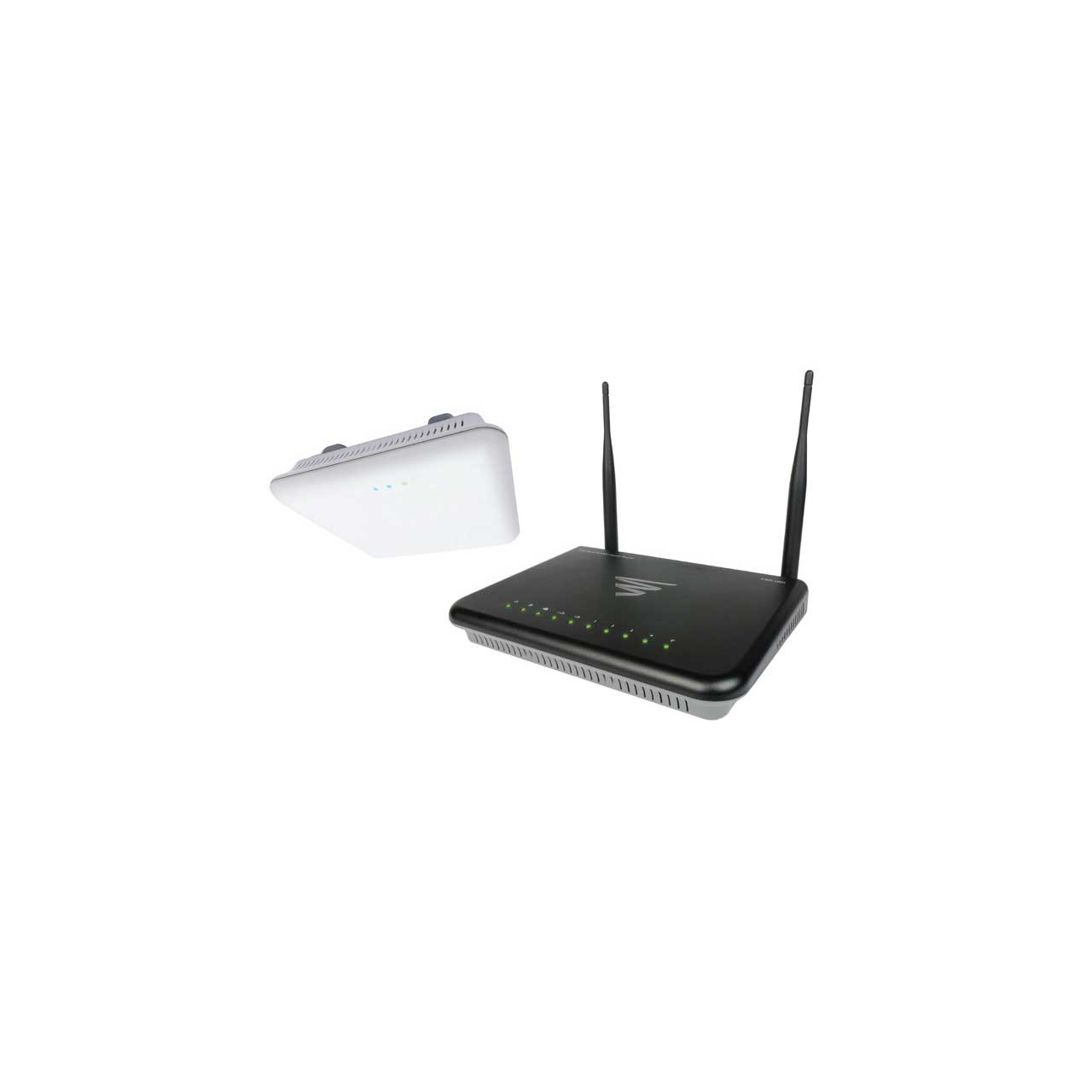

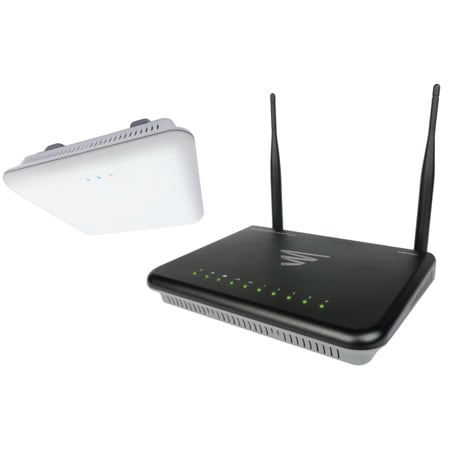

The Luxul WS-80 wireless AP and router package includes everything you need to effortlessly and cost-effectively deploy a basic and reliable wireless network. The package includes one XWR-1200 dual-band wireless AC1200 router and one XAP-810 High-Power dual-band AC1200 access point. The XWR-1200 features high performance 2x2 MIMO technology and has a built-in wireless controller with Luxul’s exclusive Roam Assist™ capability. The low-profile, simple-to-install XAP-810 implements dual-band beamforming technology for delivering wireless coverage to smaller spaces. The Luxul WS-80 comes with (1) XWR-1200 Wireless Router, (1) XAP-810, and (1) PoE injector.

  • Features:

    • Seamless roaming with Luxul Roam Assist™
    • Supports up to two access points
    • Concurrent dual-band wireless 802.11ac
    • 2x2 dual-band MIMO
    • Wireless data transfers up to 1200Mbps
    • 5Ghz beamforming
    • Up to 4 SSIDs per band (8 total)
    • Quality of service (QoS)
    • Three-year limited warranty

  • Specifications:

    • XWR-1200 Specs
    • Standards Compliance: 2.4GHz: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b; 5.xGHz: IEEE 802.11n, IEEE 802.11a; 802.11ac
    • Interface: One 10/100/1000M WAN port Four 10/100/1000M LAN ports One USB 2.0 port
    • Antenna: Two dual-band detachable omni-directional antennas
    • Power Input: 12V/2A DC power jack
    • Max Power Consumption: 18W
    • Dimensions LxWxH in. (mm): 8.1"x5.6"x1.5" (206x142x38)
    • Weight lbs (kg): 1 (.45)
    • LEDs: Power, SYS, USB, WAN, LAN (4), 5GHz, 2.4GHz
    • Frequency: Concurrent 2.4GHz and 5GHz
    • Wireless Speed: 2.4GHz: 300Mbps 5GHz: 866Mbps
    • Wireless Security: WPA-PSK/WPA2-PSK, WPA/WPA2

      XAP-810
    • Standards Compliance: IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at
    • Interface: One 10/100/1000M port
    • Antenna: Two dual-band antennas
    • Power: PoE+ 802.3at (injector included)
    • Power Consumption: 12W avg
    • Max Power Consumption: 17W
    • Environmental Temperatures: 0-50C°
    • Dimensions WxHxD in. (mm): 6.25"x6.25"x1.75" (158.75 x158.75 x44.45)
    • Weight lbs (kg): .95 (.44)
    • LEDs: Power, 2.4GHz, 5GHz (can be turned off/on via user interface)
    • Frequency: Concurrent 2.4GHz and 5GHz
    • Wireless Speed: 2.4GHz: 300Mbps 5GHz: 866Mbps
    • Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2

  • Item Includes:

    • XWR-1200 Wireless Router (1)
    • XAP-810 Access Point (1)
    • PoE Injector (1)
    • Mounting kits
    • Power supply
    • Quick Install Guide (2)

  • Warranty:

    • 3-year limited warranty
