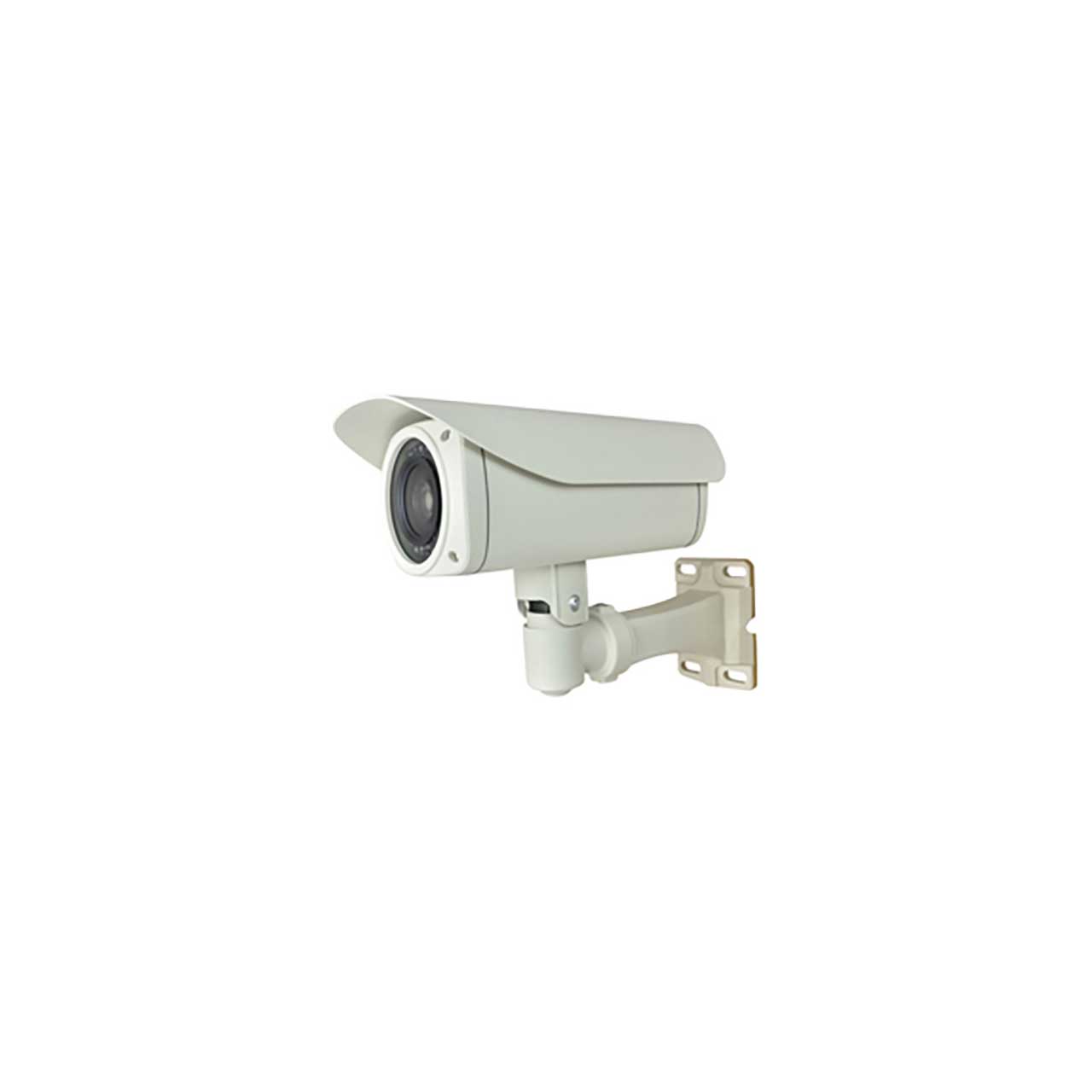

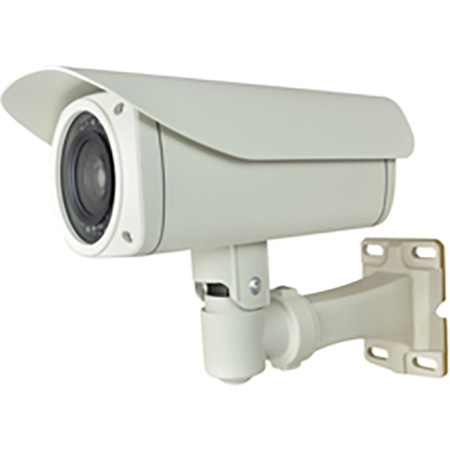

LevelOne FCS-5065 HUBBLE Zoom IP Network Camera - 5MP - 802.3af PoE - IR LEDs/10x Optical Zoom/Indoor/Outdoor

FCS-5065 - Overview

• Features:

  • 5-Megapixel high-definition resolution
  • Supports 10X optical zoom
    Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
  • Built-in infrared LEDs for night viewing up to 40m
  • Removable IR-cut filter for day and night surveillance
  • Built-in Micro SDHC/SDXC card slot for local storage
  • Vandal-proof IK10-rated housing
  • Weatherproof IP67-rated housing
  • Video compression: H.264, MJPEG
  • Dual power support: 12V DC/PoE (IEEE 802.3af)
  • Free surveillance and CMS (Central Management System) software packages with 64-channel license


• Specifications:

  • Standards & Protocols:
    IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3af Power over Ethernet (PoE)
    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • Image Sensor: 5-Megapixel 1/3" Progressive Scan CMOS
  • Lens: Zoom, DC iris, Auto focus, f5.2-62.4mm, F1.8-3.0
  • Port:
    1x RJ-45 10/100 Mbps PoE Port
    1x Line In
    1x Line Out
    1x Power terminal block
    I/O terminal block (1 DI/1 DO)
  • Button/Knob: Reset Button
  • Indicator: Power
  • IR Cut Filter: Removable infrared-cut filter for day & night function
  • IR LED: 27 Adaptive IR LEDs for illumination up to 43m
  • Shutter Time: 1/5 to 1/10,000 sec
  • Angle of View: 48.4° to 4.8°
  • Pan/Tilt/Zoom: 10x Optical Zoom, Digital Zoom to very high detail available on Software
  • Video Format: H.264 / MJPEG
  • Resolution: 5M (2592x1944)
  • Output Video Format: RAW
  • Audio Compression: G.711
  • Power Consumption: PoE Class 3 (IEEE802.3af) and DC 12V / 12W (built-in heater and IR on)
  • Power Input: DC 12V / 802.3af PoE
  • Data Rate: 10/100Mbps
  • Storage Capacity: SD/MicroSD memory card of up to 64GB
  • Operating Temperature: -40° to 122°F (-40° to 50°C)
  • Humidity: 10 to 85% (non-condensing)
  • Mount: Wall Mount
  • Image Settings:
    Adjustable image size, quality and bit rate
    Configurable brightness, sharpness, contrast, saturation, white balance and exposure
    AGC/AWB/AES
    Back Light Compensation (BLC)
    Wide Dynamic Range (WDR), Basic WDR (74 dB)
    2D Noise Reduction (2DNR)
    Streaming: Up to 2 video streams
    2D DNR
  • Streaming: 2-way audio
  • Input/Output: line input, line output
  • Frame Rate (fps): 15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320x240
  • Minimum illumination:
    Color: 0.1 lux at F1.8
    B/W: 0 lux (IR LED on)
  • Dimensions (WxDxH): 4.80 x 9.45 x 3.98" (122 x 240 x 101mm)
  • Weight: 5.27Lbs (2390g)
  • Approval & Compliance: EMI/EMS: CE, RoHS, FCC, ONVIF, IP67, IK10, NEMA 4X
  • Environmental Test: Weather proof IP67-rated housing; Vandal proof IK10-rated
  • Supported Browsers: Microsoft Windows 8/7/Vista/XP


• Item Includes:

  • x1 FCS-5065
  • x1 Wall Mount Kit
  • x1 Quick Installation Guide
  • x1 Resource CD (User Manual, Utility, QIG)


• GTIN:

  0846359034316
