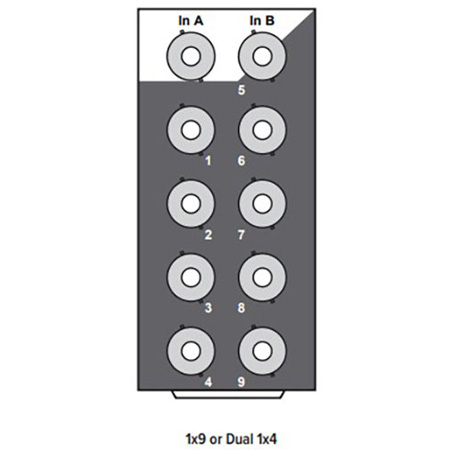

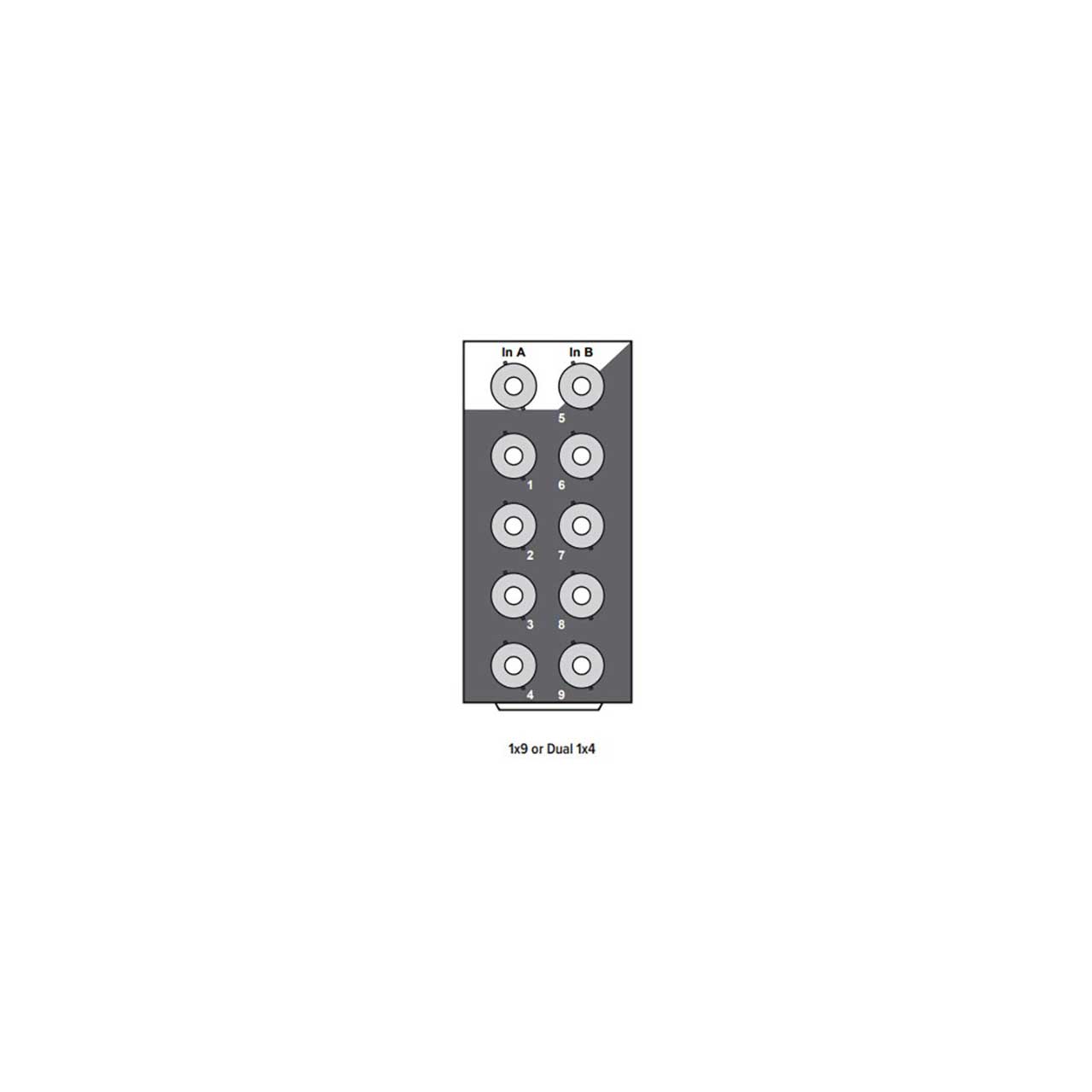

The Multidyne RP-VDA-STD oGx Rear Module includes 1 HD/SDI-SDI BNC input with 9 HD/SD-SDI BNC Outputs or Dual 1 Input and 4 Outputs to your MD-VDA-2419 Amplifier Card.
The VDA-2419 is a multi-rate SDI digital video distribution system for distributing up to nine signals from a common input, or two groups of four signals from two inputs. It also can handle other data rates within the range and specifications of SDI signals. This
is presented in a single slot openGear card.
The VDA-2419 incorporates an integrated crosspoint matrix that allows not only the ability to assign a given input signal to one or more outputs but also to enable and disable outputs should the need arise.
The VDA-2419 has an automatic fail-over mode that, when selected will switch to the second input should the signal in the first input somehow fail or become corrupted. All outputs are non-inverting and ASI capable. An auto mute feature will silence any input whose signals are under 20Mbps.
All of this is easily controlled either via dip switches on the front card edge or via the openGear Dashboard Management Software (DBM). There is also a lock-out on the card that prevents the card parameters from being changed remotely via DBM.
