MOTU 112D Thunderbolt / AVB Ethernet / USB Audio Interface with 112 Channels of Digital I/O & MADI

112D - Overview

• Features:

  • 112 simultaneous digital audio channels - 24 channels of AES/EBU I/O, plus 24 channels of ADAT optical I/O, plus 64 channels of MADI I/O, for 112 total channels digital audio I/O. All channels can be active simultaneously.
  • 64 channels of MADI - Serves as a 64-channel MADI-to-AVB converter with near-zero latency and flexible routing and splitting to/from the AVB network.
  • 24 channels of AES/EBU and ADAT up to 96 kHz - Three 8-channel (D-sub) banks of AES/EBU at all sample rates up to 96 kHz. Three 8-channel banks of ADAT optical at rates up to 48 kHz; six banks of ADAT at 2x sample rates (24 channels).
  • Flexible routing, splitting and format conversion - Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network. Convert any format to any other.
  • Universal connectivity - Connects to your computer with Thunderbolt technology, AVB Ethernet or audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.
  • On-board 32-bit floating point DSP with large console style mixing and effects - Flexible 48-input digital mixer with 12 stereo busses and DSP effects, including reverb with sends, plus modeled analog EQ and compression, gate, and reverb.
  • System expansion and audio networking - Add a 2nd MOTU AVB interface (1248, 8M, 16A, 24Ai, 24Ao or Monitor 8) with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately). Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (hundreds of meters). Stream hundreds of audio channels among devices and computers on the network.
  • Web app control - Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.
  • Stand-alone mixing with wireless control - Connect an Apple Airport or other Wi-Fi router directly to the 112D with a standard Ethernet cable and control the 112D's powerful routing, mixing and DSP effects from your smart phone or tablet, without a computer. Great for live sound mixing.


• Specifications:

  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

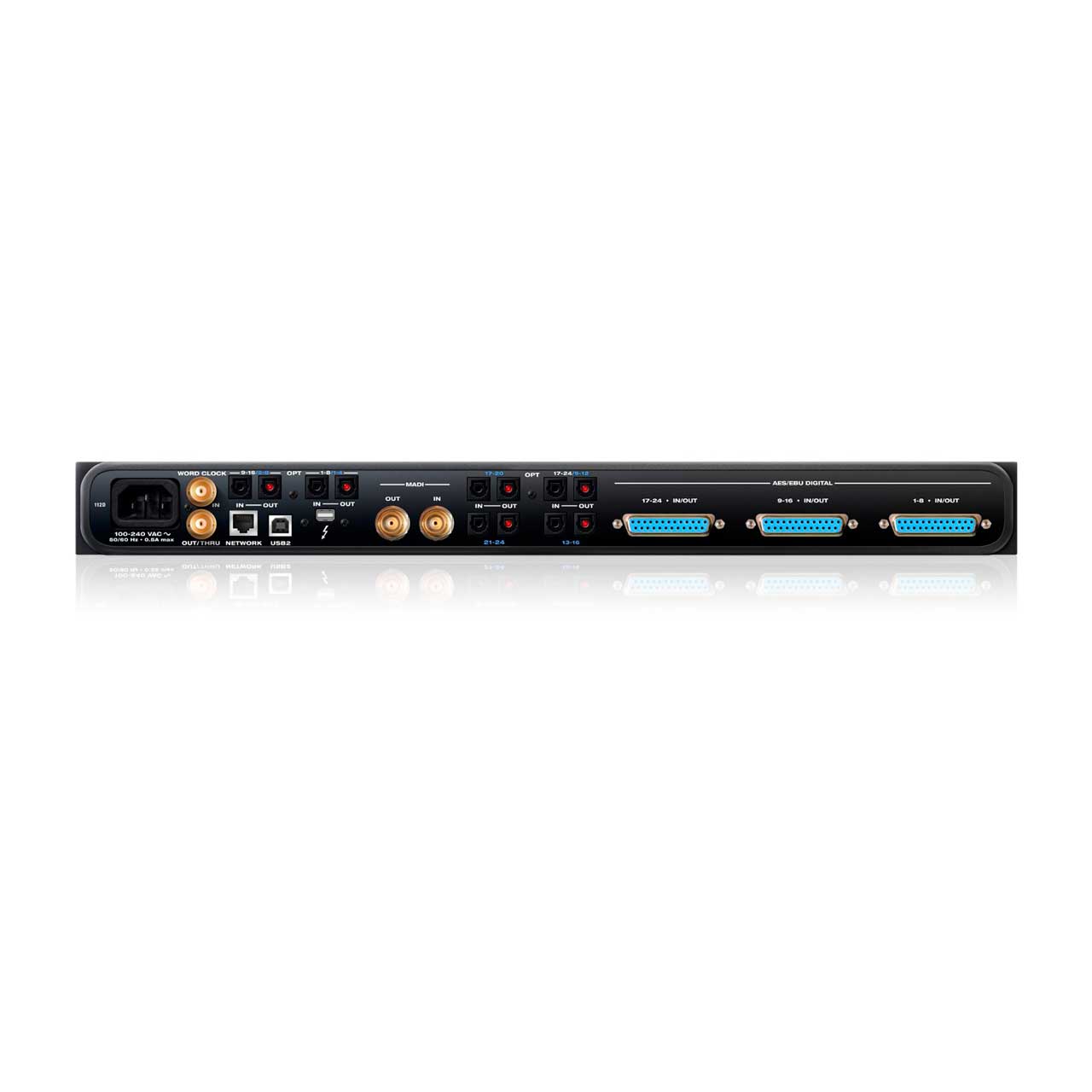

  • Digital I/O
  • 3x 8-ch banks (24 ch) of ADAT optical at 1x sample rates
  • 6x 4-ch banks (24 ch) of SMUX optical at 2x sample rates
  • 3x 8-ch banks (24 ch) of AES/EBU on 25-pin D-sub
  • 1x BNC MADI in/out (64/56 ch @ 1x, 32 @ 2x, 16 @ 4x)


  • Total I/O
  • 112 inputs and 112 outputs (224 total) at 1x sample rates
  • 80 inputs and 80 outputs (160 total) at 2x sample rates
  • 16 inputs and 16 outputs (32 total) at 4x sample rates


  • Computer I/O
  • 1 x Thunderbolt (compatible with 1 and 2)
  • 1 x USB 2.0 audio class compliant
  • USB 3.0 and iOS compatible
  • 1 x AVB Ethernet (requires OS X Yosemite)


  • Sync I/O
  • 1 x word clock in
  • 1 x word clock out / thru

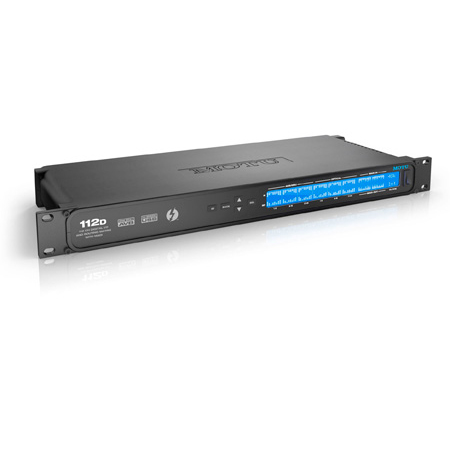

  • Front panel
  • 5 x switches menu navigation
  • 324 x 24 pixel LCD for level meters / menu nav
  • 1 x AC power switch


  • Power International 100-240V autoswitching supply
  • 50-60 Hz - 0.5A max


• GTIN:

  0839128005976
