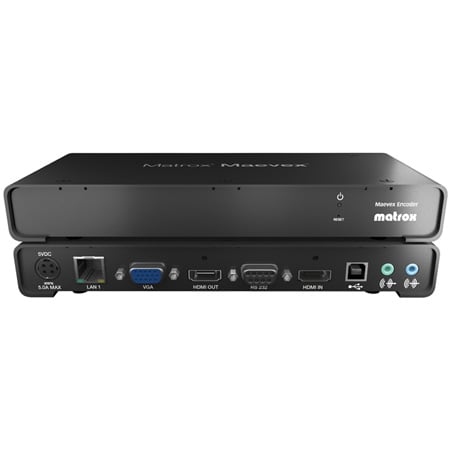

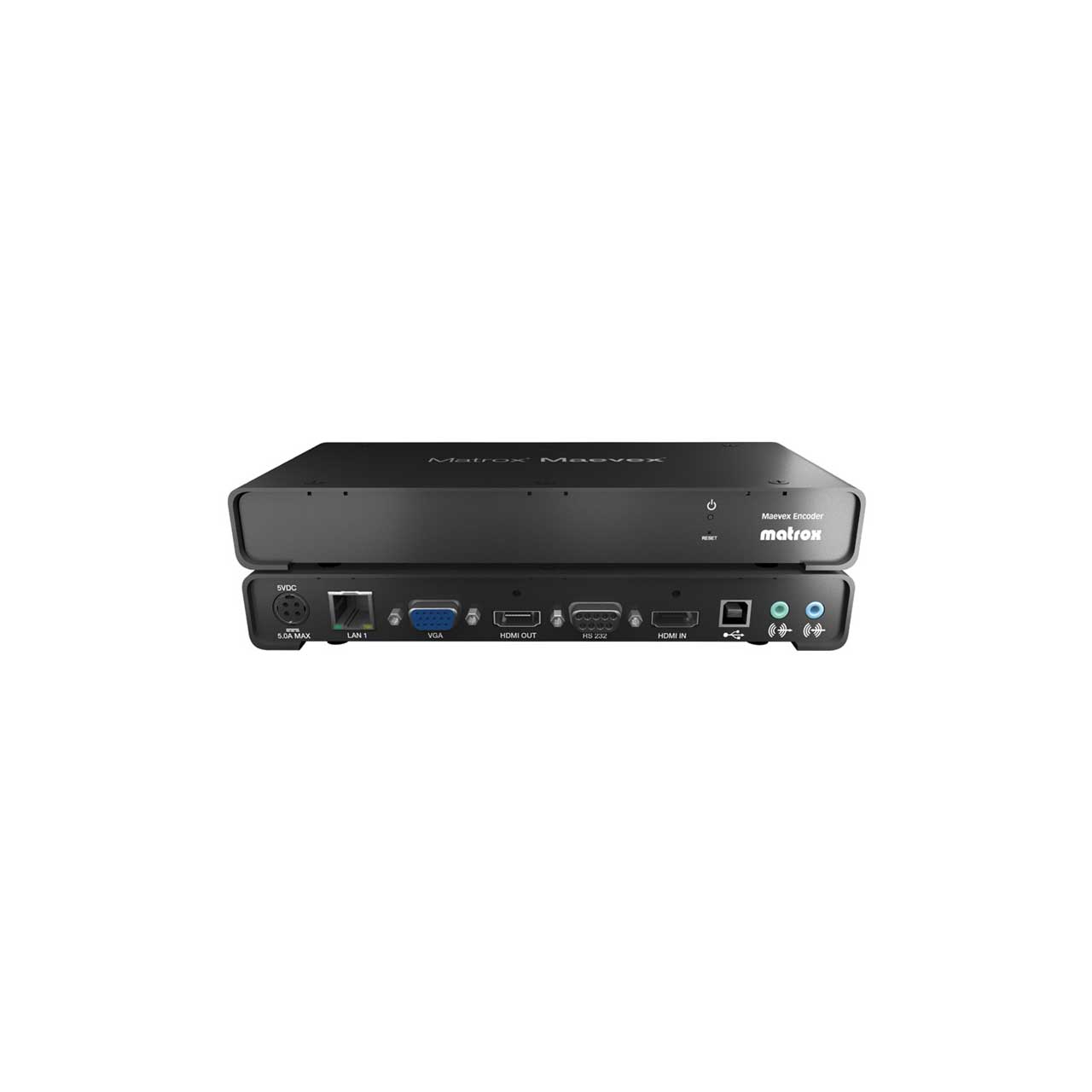

Matrox MVX-E5150F Maevex Video over IP Encoder

MVX-E5150F - Overview

• Features:

  • Encode/record up to 1080p60 and 1920x1200 video and audio
  • H.264 compression for high-quality, low-bandwidth AV-over-IP
  • Support for wide-screen and standard aspect ratios and many resolutions
  • Scale streams before distribution for lower bandwidth consumption
  • HDMI or analog audio support

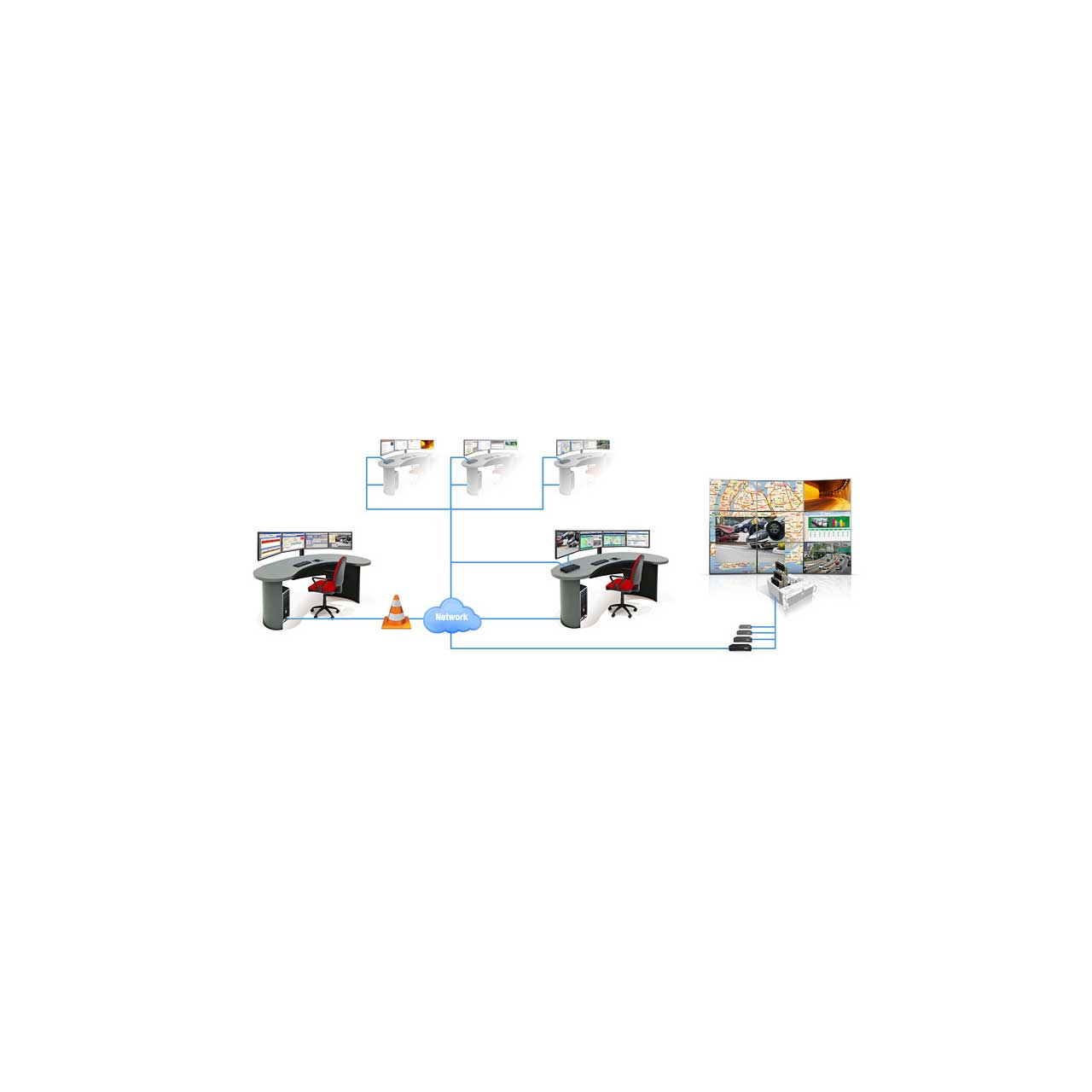

  • Open encoding allows for third-party software decode (e.g. VLC)

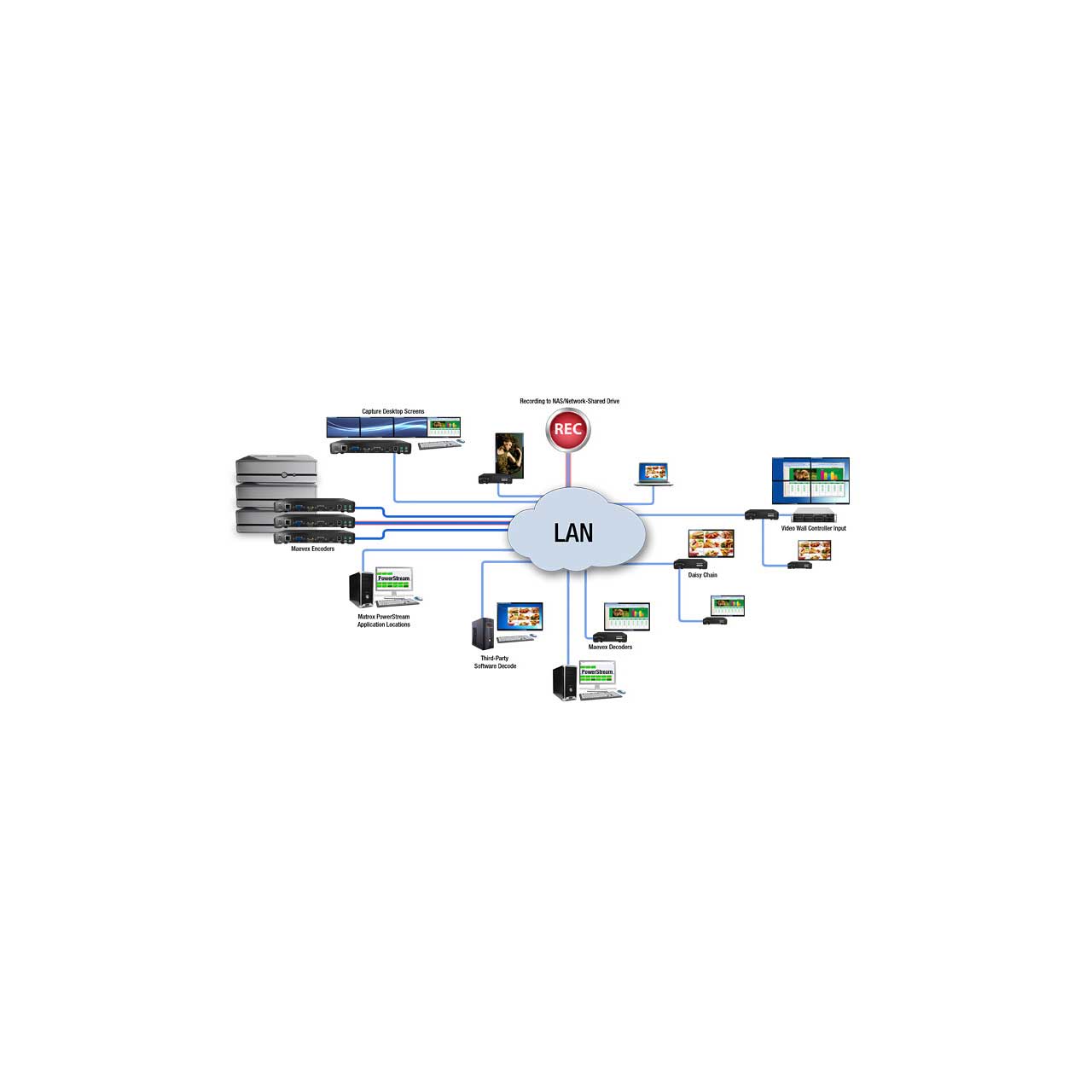

  • Record up to 1080p60/1920x1200 to NAS or shared network drive
  • Control frequency and duration of recording
  • Schedule the start time and date of recording sessions
  • Recorded user-defined file name includes timestamp for easy file management
  • Operates on standard 100/1000Mb Ethernet networks
  • Auto-detect and discover Maevex units on subnet (DHCP server required)
  • Full/half-duplex mode and static IP address support
  • CBR, VBR support
  • Network bitrate control (100 Kbps - 25 Mbps)
  • Play back pre-recorded content at the decoder in case of a network disruption or if encoder stops streaming (e.g. loss of power)
  • Programmable time delay before failsafe activates
  • Resumes last streaming activity upon power return


• Specifications:

  • Video Input
  • HDMI with digital L-PCM audio
  • DVI via DVI-to-HDMI adapter
  • Resolutions up to 1920x1080p60, 1920x1200(60Hz) and many more wide-screen and standard-definition resolutions

    Video Output
  • HDMI with digital L-PCM audio, local pass-through w/o scaling or confidence preview w/ optional scaling
  • DVI via HDMI to DVI-D adapter, local pass-through w/o scaling or confidence preview w/ optional scaling
  • HD15, Analog VGA - confidence preview w/ optional scaling
  • Resolutions up to 1920x1080p60, 1920x1200(60Hz), 1920x1080i50, 1920x1080i60
  • Procamp control: contrast, brightness, saturation, hue
  • Scaled output (i.e., 1080p60 input/720p60 scaled output)
  • Audio Line-In: 3.5mm analog stereo audio
  • Audio Line-Out (Local Pass-Through): 3.5mm analog stereo audio
  • Network Connector: RJ45

    Video Encoding / Decoding
  • Single-Channel HD: Up to 1920x1080p60 and 1920x1200(56Hz) and many more wide-screen and standard-definition resolutions
  • Compression Standard: H.264/MPEG-4 Part 10 (AVC)
  • Profiles: Main
  • Levels: Up to 4.2
  • Bitrates: 100 Kbps to 25 Mbps
  • Rate Control: CBR, VBR, Favor Speed, Favor Quality, Adjustable GOP (Group Of Pictures) Size

    Encoder Recording Mode
  • Record any supported resolution to NAS or shared network drive
  • File format: .mp4
  • User definable filename prefix
  • Auto timestamp in filename
  • Programmable:
    Recording start date / time and duration
    Maximum file length
    File frequency

    Audio Encoding/Decoding
  • Compression Standard: MPEG-4 AAC-LC
  • Channels: 2 channel (stereo), HDMI with digital L-PCM audio
  • Analog Sample Frequency: 32, 44.1, and 48kHz
  • Bitrates: 96, 128, 192, and 256 Kbps

    Networking Interface
  • 100/1000base-T Ethernet: 1000 Mbps full duplex, 100 Mbps half/full duplex
  • Streaming Protocols: RTSP/RTP/RTCP (all required) over UDP
  • Command & Control Protocols: HTTPS
  • IPV4 Support

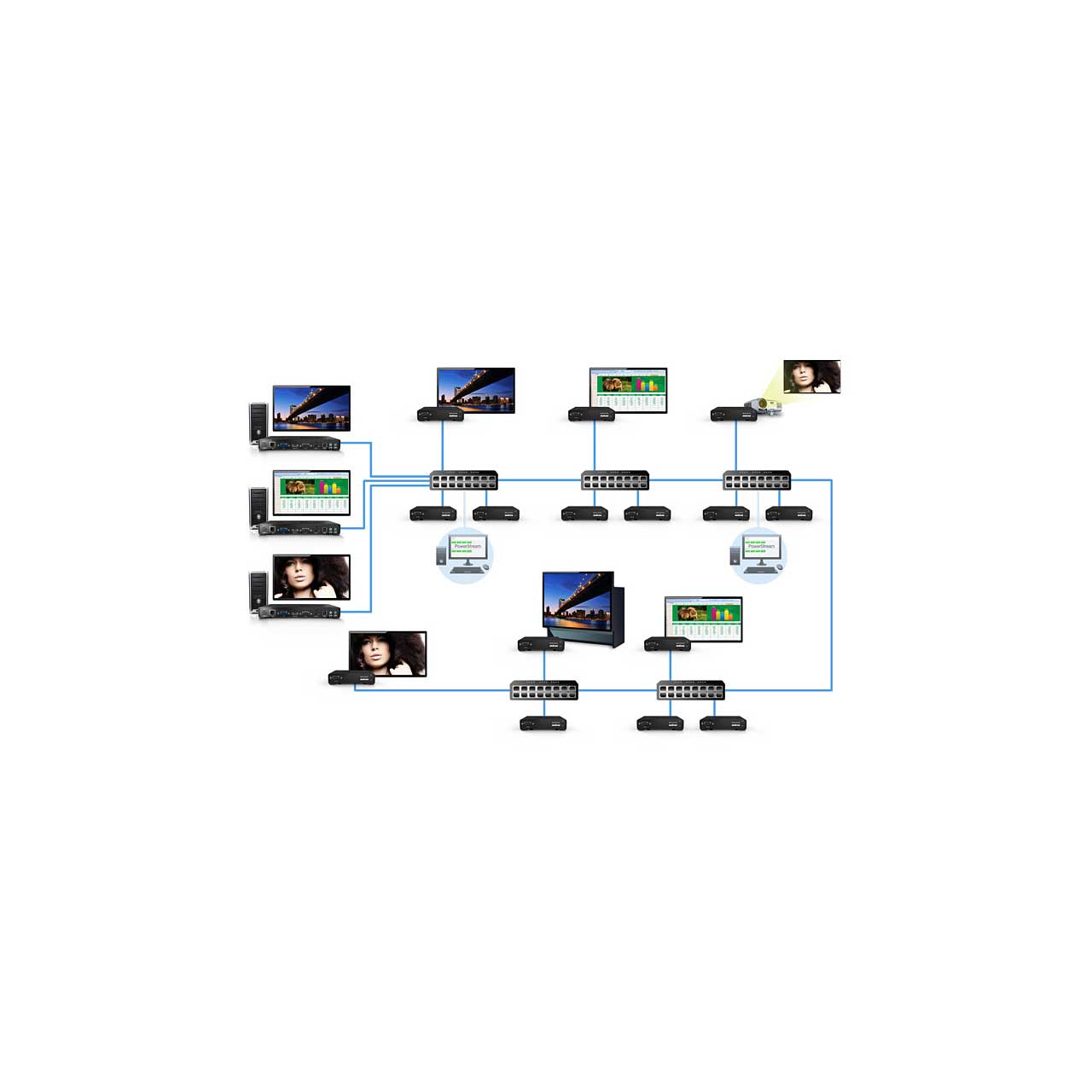

  • Unicast, Multicast and Multi Unicast
  • DHCP (Default) / Fixed IP Address Support
  • CAT5-or-Better Network Cables

    Power Supply
  • 100-240V AC In, 5VDC Out, 15W
  • DIN4 Locking Power Connector
  • Power Cords Included: US, EU, UK

    Regulatory
  • CE/FCC/VCCI/ICES/C-Tick/KCC Class B, ROHS/WEEE
  • ROHS/WEEE

    Environmental
  • Operating Temperature: 0 to 45 degrees Celsius
  • Non-Operating Temperature: -40 to 55 degrees Celsius
  • Operating Humidity: 20 to 80% (non-condensing)
  • Non-Operating Humidity: 5 to 95% (non-condensing)

    MTBF
  • Encoder: 135.05 years @ 40 degrees Celsius (excl. power supply)
  • External Power Supply: 11.45 years @ 25 degrees Celsius, full load
  • Fanless (no moving parts)

    Mechanical
  • Dimensions Encoder: 21.59cm x 2.59cm x 10.16cm (8.50" x 1.02" x 4.00")
  • Weight Encoder: 378g (excl. external power supply and power cords)
  • Rackmountable with optional rackmount tray and accessories
  • Encoder: dual density - 1u

    Software
  • PowerStream Plus (free download)
  • Compatible with Maevex 5100 Series and Maevex 6100 Series
  • Network discovery
  • Frame rate management
  • Resolution control
  • Scaling management
  • Maevex network configuration & control
  • Encoding and decoding control and manipulation
  • Password protection
  • Failsafe over network FW updates
  • Third-party RS-232 connectivity
  • Decoder Failsafe mode
    PowerStream Plus API for Windows and Linux1
  • Full-access to entire feature set via API
  • .NET 4.5.1 or higher, stand-alone library and Mono 5.2 or higher for Linux
    REST API1
  • Available for lower-level development
    Supported Operating System:
  • Microsoft Windows® 10 (64-bit)
  • Windows Server® 2016
  • Windows 7 (32-bit, 64-bit)
  • Windows Server 2008 R2


• Item Includes:

  • 1x MVX-E5150F Maevix Encoder
  • 1x CAT5E Ethernet cable, RJ45 male to male, 6'/182.88cm
  • 1x DVI adapter - DVI-D male to HDMI female
  • 1x 3.5mm analog stereo audio cable, male to male, 6'/182.88cm
  • 1x Power supply and power cords (see "Power supply")
  • 1x Quick setup guide and release notes (if applicable)


• Warranty:

  • Two-Year Warranty


• GTIN:

  0790750243948
