500727 - Overview

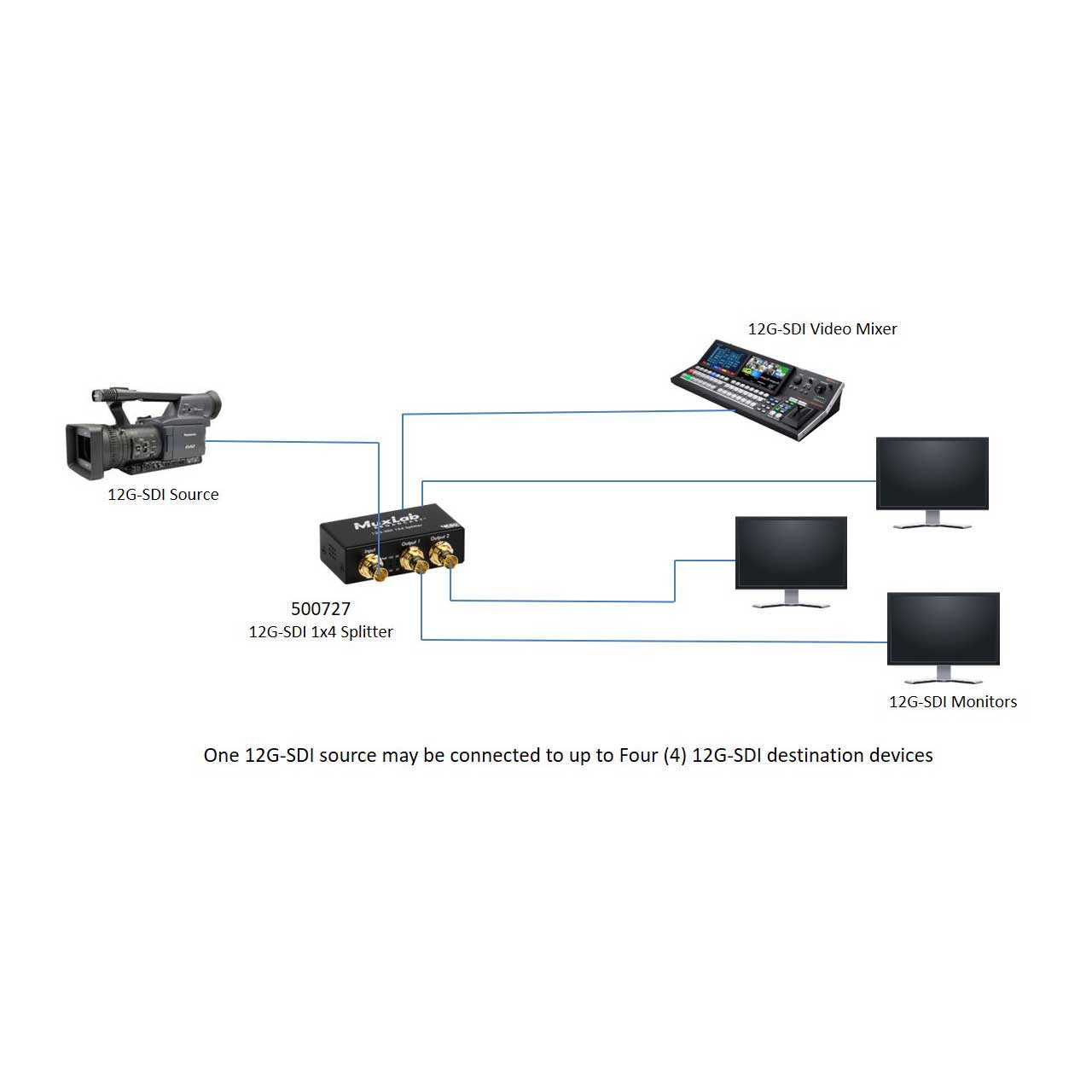

The Muxlab 12G-SDI 1x4 Splitter, 4K/60 (500727) allows one (1) 12G/6G/3G/HD/SD-SDI source to be distributed and amplified to up to four (4) 12G/6G/3G/HD/SD-SDI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-SDI), 720p/1080i (HD-SDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI). The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending distances between source and displays. Additionally, all connectors are on the rear panel for neater cabling.

  • Features:

    • Distribute one 12G-SDI source to four displays
    • Supports up to 4K @ 60Hz, including 12G/6G/3G/HD/SD-SDI
    • Automatically detects re-clocks and regenerates the 12G/6G/3G/HD/SD-SDI signal
    • LED diagnostic
    • Connectors on rear for neater cabling


  • Specifications:

    • Environment: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI
    • Devices: Camera, projectors, monitors, TV
    • Transmission: Transparent to the user
    • Detection: Auto Detection of the 12G/6G/3G/HD/SD-SDI Signal
    • Bandwidth: 11.88bps & 11.88/1.001Gbps
    • Data Rates: 1.485, 2.97, 5.96 & 11.88 Gbps
    • Output Impedance: 75Ω
    • Signals: SDI protocol
    • Supported Resolution:
      12G-SDI: 2160p50/59.94/60Hz (4:2:2)
      6G-SDI: 2160p23.98/24/25/29.97/30Hz (4:2:2)
      3G-SDI: 1080p50/59.94/60Hz (4:2:2)
      HD-SDI: 1080p/23.98/24/25/29.97/30Hz 720p/50/59.94/60Hz 1080i/50/59.94/60Hz
      SD-SDI: NTSC (59.94Hz), PAL (50Hz)
    • Audio: Up to 8 Audio Channels
    • Ancillary Data: Supported
    • Input Signal:
      12G-SDI: SMPTE ST2082
      6G-SDI: SMPTE ST2081
      3G-SDI: SMPTE 424M, 425M
      HD-SDI: SMPTE 292M, 296M
      SD-SDI: SMPTE 259M, 344M

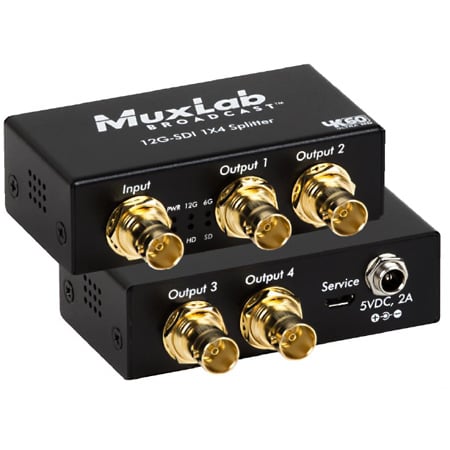

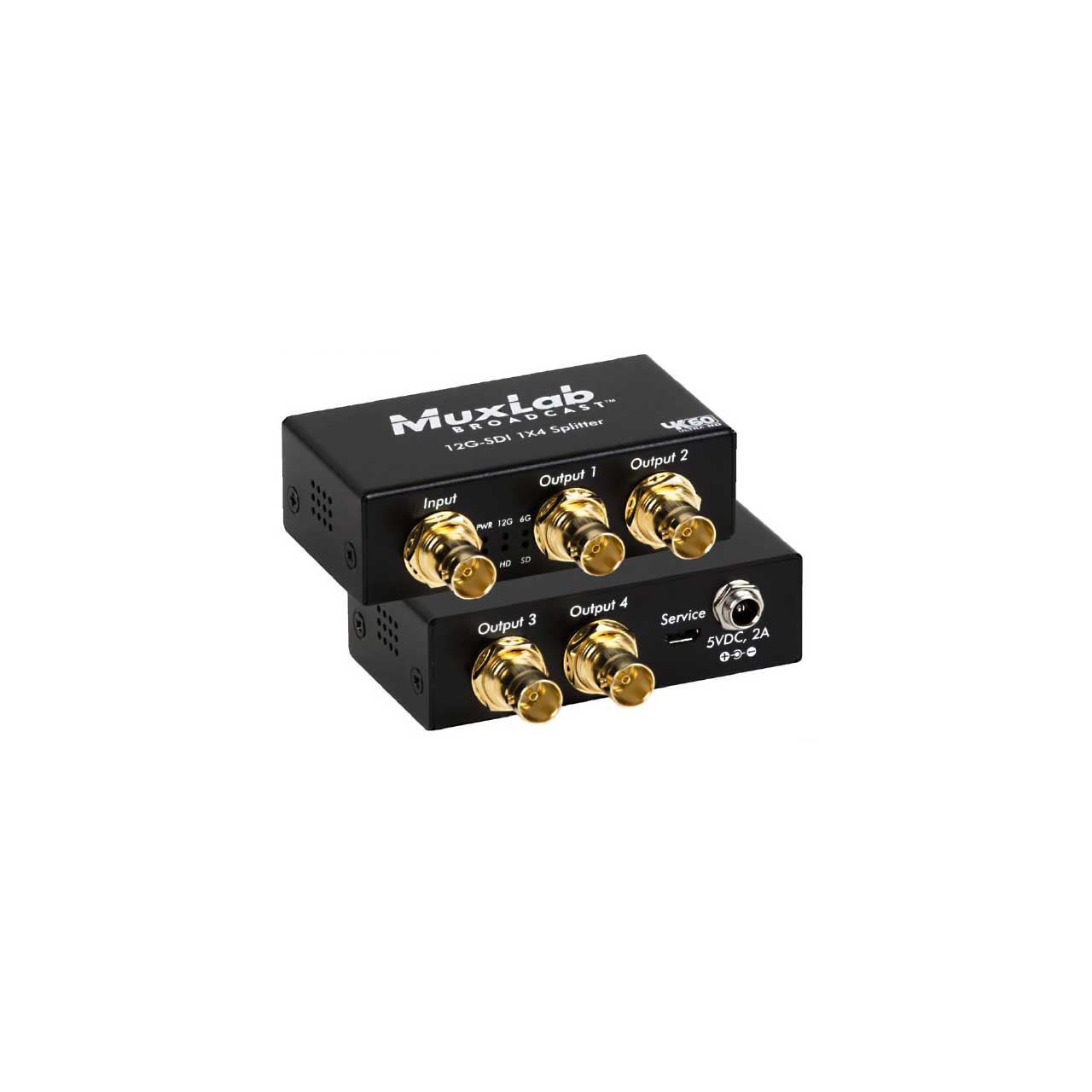

    • Connectors:

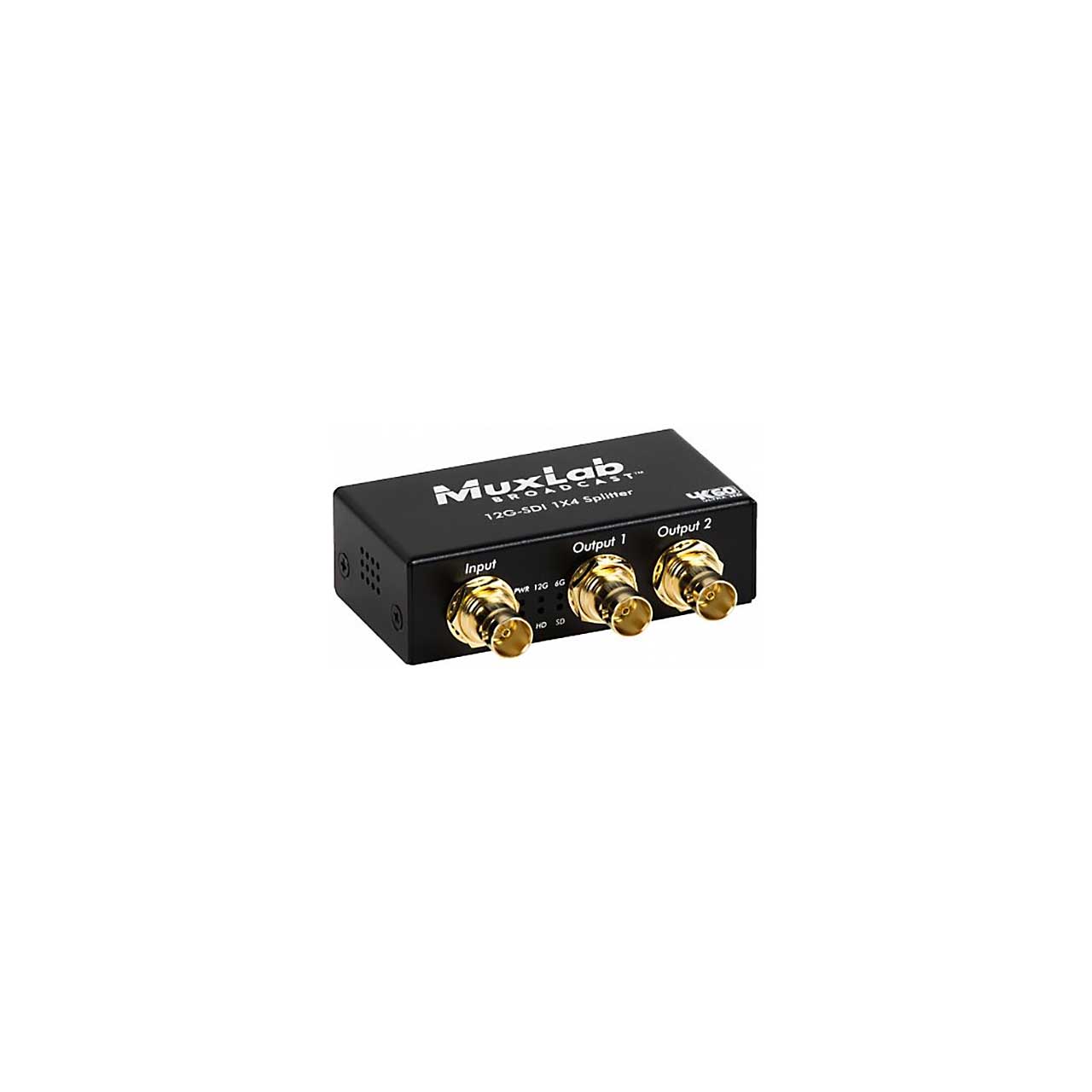

      One (1) BNC Female 75 Ohms, Gold Plated for input

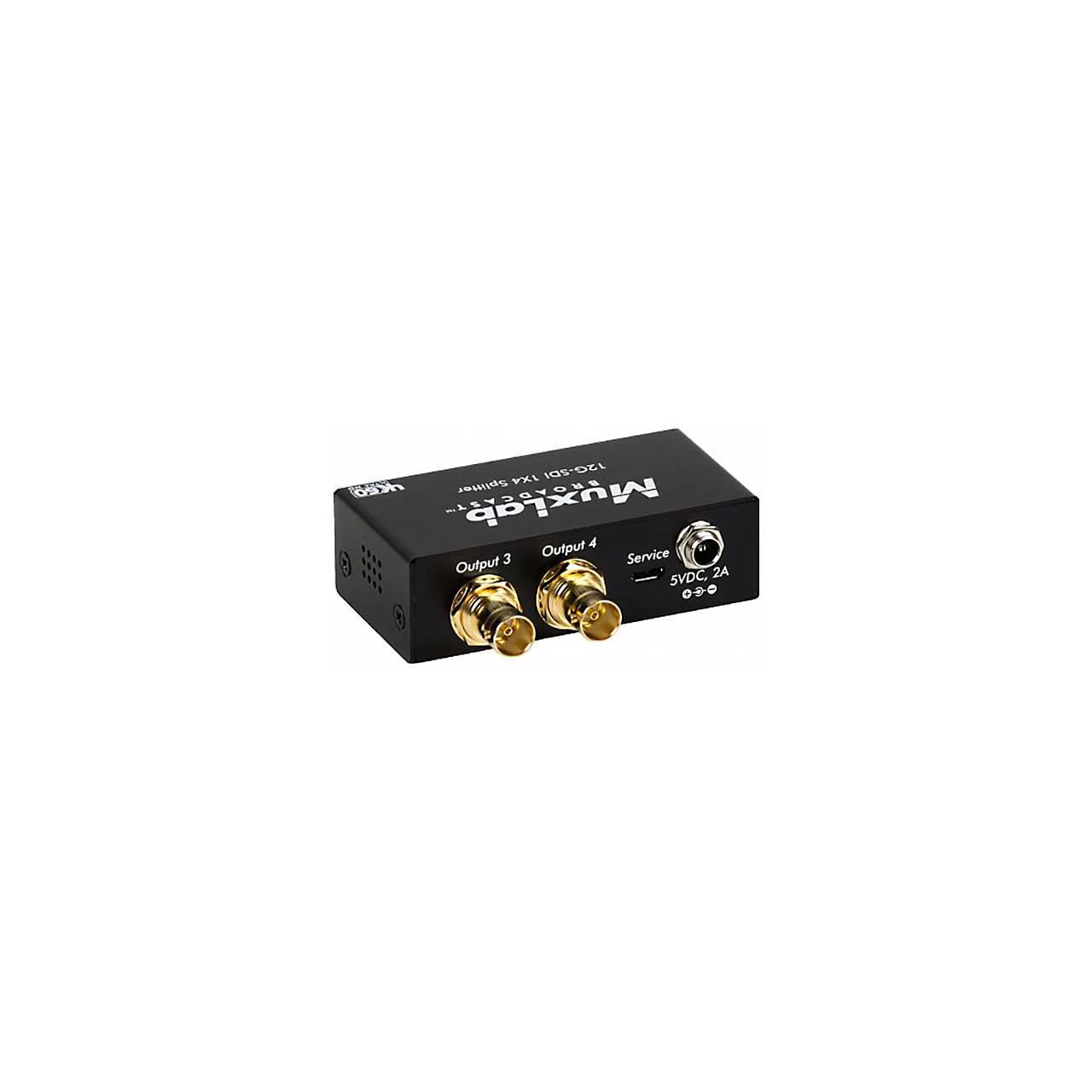

      Four (4) BNC Female 75 Ohms, Gold Plated for outputs
      One (1) Locking Barrel Jack 2.1mm Power Connector
      Note: RG59 coaxial cables not included.
    • Cable Equalization:
      12G-SDI up to 230ft (70m)
      6G-SDI up to 330ft (100m)
      3G-SDI up to 594ft (180m)
      Cable RG-59 or better cable required
    • Power Supply: One (1) 110-240V/5VDC power supply with interchangeable blades
    • Power Consumption: 3.0 Watt (Max)
    • Temperature Operating: 0° to 40°C Storage: -20° to 60°C
    • Humidity: Up to 90% non-condensing
    • Enclosure: Metal
    • Dimensions: 3.19 x 1.61 x 0.95" (81 x 41 x 24mm)
    • Weight: 0.37Lbs (0.17kg)
    • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0


  • Item Includes:

    • 1x 110-240V/5VDC power supply with interchangeable blades


  • Warranty:

    • 2 Year


  • GTIN:

    0627699007273
