MuxLab 500770-RX KVM HDMI over IP PoE Extender Kit - Receiver

ITEM #: MUX-500770-RX MFG #: 500770-RX

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MUX-500770-RX

500770-RX - Overview

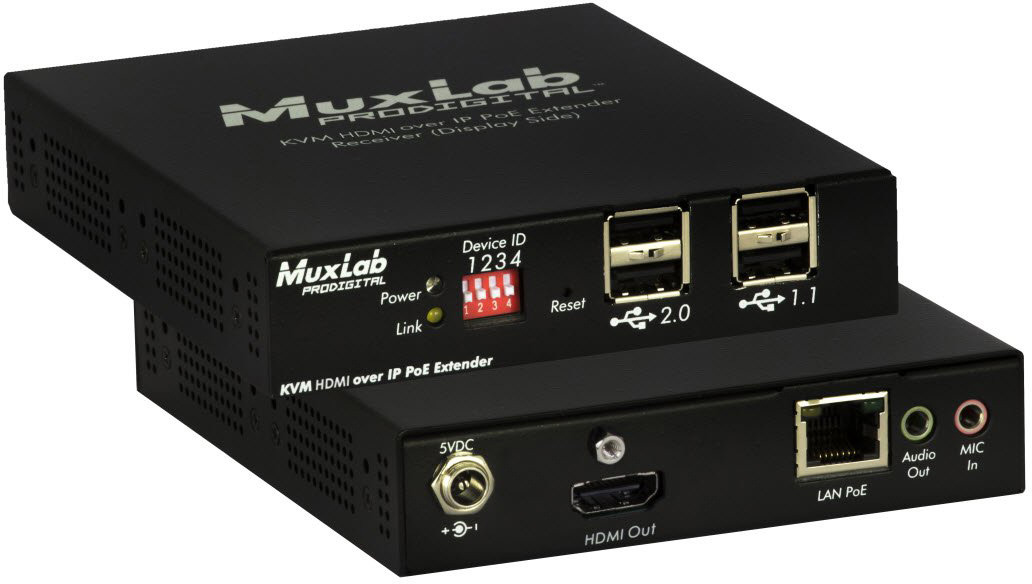

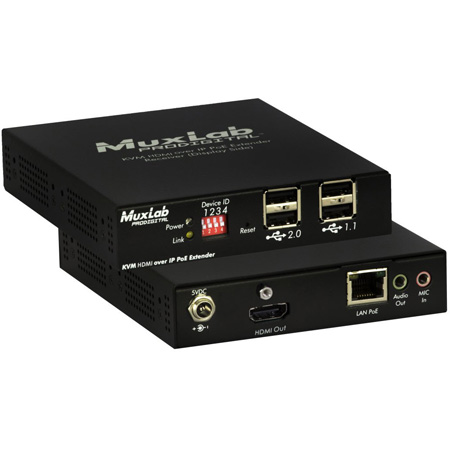

The Muxlab 500770-RX USB KVM Extender over IP PoE allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supporting 1920x1200 and 1080p resolution @ 60Hz via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500770-TX) and Receiver (500770-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.

The Transmitter terminates to a computer server/workstation via an HDMI & USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application.

Applications:
Management of multi-server systems supporting HDMI displays in IT departments within corporations
Educational institutions
CAD Design
Graphic Design
Media Servers
Data Centers

IMPORTANT NOTE!
A new firmware version 2.0 has been released, which includes important enhancements such as support for infrared Pronto codes, numerous bug fixes, improved system performance, and support for the new models including the 500778 & 500777-RX. Please see the Release Notes for further details.

Firmware version 2.0 or greater for this device will only operate correctly with compatible devices that are also running the same firmware version 2.0 or greater. If your existing installation includes compatible devices with older firmware versions, you have two options: Either upgrade all your existing compatible devices to firmware version 2.0 or greater. Or downgrade the new device to a firmware version lower than 2.0.

Firmware versions for your compatible devices are available at the following MuxLab website link: https://muxlab.com/support?section=software-and-firmware

Compatible devices include the following TX and RX models: 500758, 500759, 500770, 500771, 500773, 500777, 500778.

  • Features:

    • One operator can manage multiple servers/workstations
    • Supports HDMI up to 1920x1200 and 1080p @ 60Hz
    • Receiver side includes a 4-port USB hub, for KVM applications
    • Up to 330ft (100m) over Cat5e/6
    • Supports 100's of Transmitters & Receivers depending on network bandwidth
    • Supports multiple point-to-point, and point-to-multipoint applications
    • Supports audio insert & mic-out (TX), and audio extract & micin (RX)


  • Specifications:

    • Environment: HDMI 1.4
    • Devices: Computers and servers with HDMI monitor ports.
    • Transmission: Transparent to the user
    • Bandwidth: 300MHz
    • Signals: HDMI 1.4 protocol, HDCP 1.4
    • Connectors: Note: Cables not included
      One (1) HDMI receptacle.
      One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
      Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX).
      One (1) 2.1mm locking barrel jack for power
      One (1) or Four (4) USB Connector(s) for Host (on TX)/Client (on RX)
      Four (4) DIP Switches for device ID addressing.
    • Maximum Distance: Based on a maximum length of 6.6ft (2m) of HDMI cable per end.
      Cat5e/6: 330ft (100m) up to 1920x1200 and 1080p @ 60Hz
      Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
    • Latency: Typical one (1) Frame (16ms), maximum 2 frames (33ms)
    • Compression: JPEG 2000
    • Bandwidth: Up to 315Mbps
    • Network Requirement: 1000BaseT with PoE
    • RJ45 Pin Configuration: Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straightthrough wiring.
    • RJ45 Link:
      Pin 1 (R) Pin 2 (T)
      Pin 3 (R) Pin 6 (T)
      Pin 4 (R) Pin 5 (T)
      Pin 7 (R) Pin 8 (T)
    • Cable: One (1) Cat 5e/6 or better twisted pair cables required
    • Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
    • PoE Standard: IEEE 802.3af
    • Power Consumption:
      Transmitter: 2.85W
      Receiver: 2.55W
    • Operating Temp: 32° to 104°F (0° to 40°C)
    • Storage Temp: -4° to 185°F (-20° to 85°C)
    • Humidity: Up to 95% non-condensing
    • Dimensions: 4.40 x 5.08 x 1" (112 x 129 x 25mm)
    • Weight: 1.5lbs (0.68kg)
    • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94V0


  • Warranty:

    • 3 Year Warranty


  • GTIN:

    0627699007709
